• Question 51:

  The command frame-relay map ip 10.121.16.8 102 broadcast was entered on the router. Which of the following statements is true concerning this command?

  A. This command should be executed from the global configuration mode.
  B. The IP address 10.121.16.8 is the local router port used to forward data.
  C. 102 is the remote DLCI that will receive the information.
  D. This command is required for all Frame Relay configurations.
  E. The broadcast option allows packets, such as RIP updates, to be forwarded across the PVC.
  E. The broadcast option allows packets, such as RIP updates, to be forwarded across the PVC.

  ---

  The command frame-relay map ip 10.121.16.8 102 broadcast means to map the remote IP 10.121.16.8 to the local DLCI 102. When the "broadcast" keyword is included, it turns Frame Relay network as a broadcast network, which can forward broadcasts.

• Question 52:

  Refer to the exhibit.

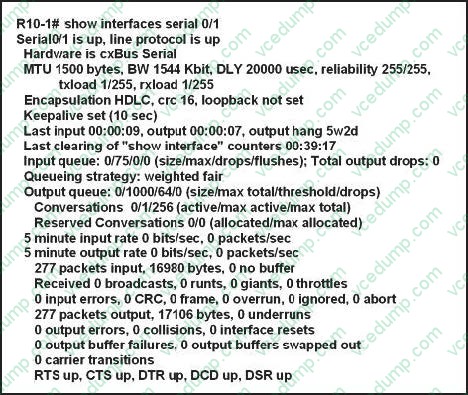

  The show interfaces serial 0/1 command was issued on the R10-1 router. Based on the output displayed which statement is correct?

  A. The cable connected to the serial 0/1 interface of the R10-1 router is a DTE cable.
  B. The R10-1 router can ping the router interface connected to the serial 0/1 interface.
  C. The clock rate used for interface serial 0/1 of the R10-1 router is 1,544,000 bits per second.
  D. The CSU used with the serial 0/1 interface of the R10-1 router has lost connection to the service provider.
  E. The interface of the remote router connected to the serial 0/1 interface of the R10-1 router is using the default serial interface encapsulation.
  E. The interface of the remote router connected to the serial 0/1 interface of the R10-1 router is using the default serial interface encapsulation.

  ---

  Cisco High-Level Data Link Controller (HDLC) is the Cisco proprietary protocol for Cisco HDLC is the default encapsulation type for the serial interfaces.

• Question 53:

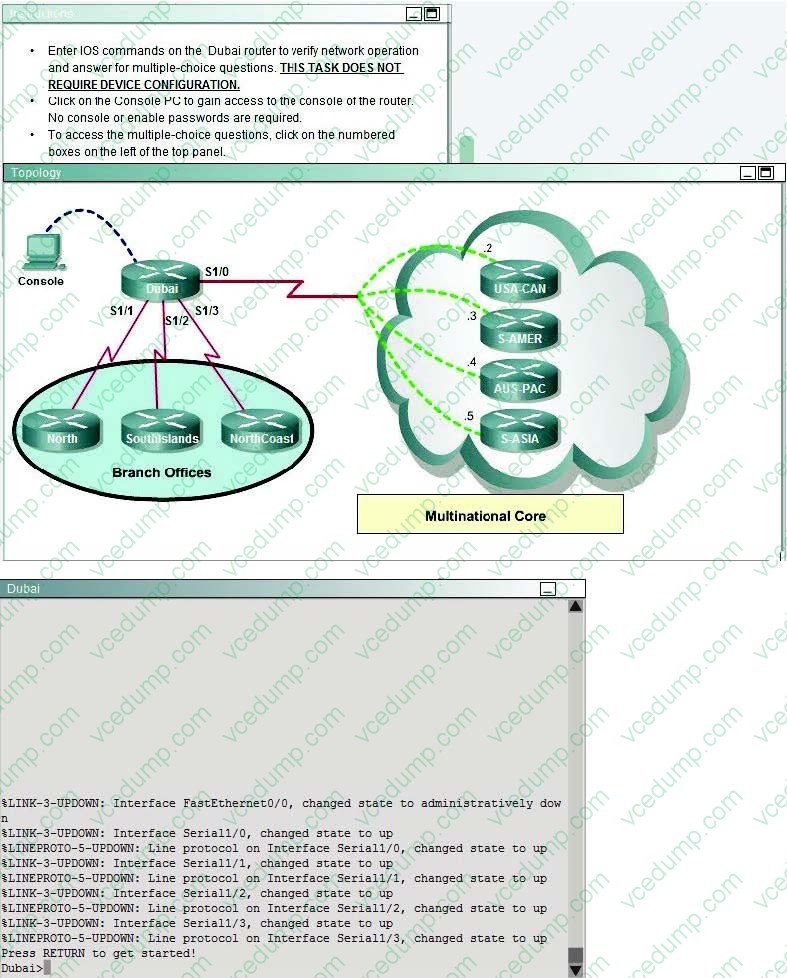

  Which connection uses the default encapsulation for serial interfaces on Cisco routers?

  A. The serial connection to the NorthCoast branch office.
  B. The serial connection to the North branch office.
  C. The serial connection to the Southlands branch office.
  D. The serial connection to the Multinational Core.
  B. The serial connection to the North branch office.

  ---

  Cisco default encapsulation is HDLC which is by default enabled on all cisco router. If we want to enable other encapsulation protocol(PPP,X.25 etc) we need to define in interface setting. But here except s1/1 all interface defined by other encapsulation protocol so we will assume default encapsulation running on s1/1 interface and s1/1 interface connected with North

• Question 54:

  What does the frame-relay interface-dlci command configure?

  A. local DLCI on the subinterface
  B. remote DLCI on the main interface
  C. remote DCLI on the subinterface
  D. local DLCI on the main interface
  A. local DLCI on the subinterface

  ---

  Frame Relay for ICND Exam

  http://www.ciscopress.com/articles/article.asp?p=100603andseqNum=3

  To assign a data-link connection identifier (DLCI) to a specified Frame Relay subinterface on the router or access server, or to assign a specific permanent virtual circuit (PVC) to a DLCI, or to apply a virtual template configuration for a PPP

  session, use the frame-relay interface-dlci interface configuration command Example 4-23 Example of frame-relay interface-dlci Command and the Output of show frame- relay map

  R4(config)#interface s1/2.403 point-to-point

  R4(config-subif)#frame-relay interface-dlci ?

  <16-1007> Define a switched or locally terminated DLCI R4(config-subif)#frame-relay interface-dlci 403 ? cisco Use CISCO Encapsulation

  ietf Use RFC1490/RFC2427 Encapsulation

  ppp Use RFC1973 Encapsulation to support PPP over FR protocol Optional protocol information for remote end

  R4#show frame-relay map

  Serial1/2.403 (up): point-to-point dlci, dlci 403(0xC9,0x3090), broadcast status defined, active R4#

• Question 55:

  Refer to the exhibit.

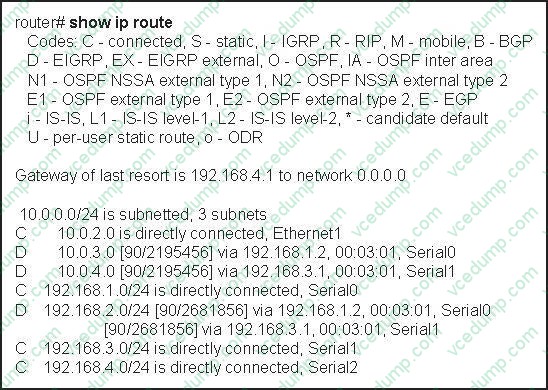

  How will the router handle a packet destined for 192.0.2.156?

  A. The router will drop the packet.
  B. The router will return the packet to its source.
  C. The router will forward the packet via Serial2.
  D. The router will forward the packet via either Serial0 or Serial1.
  C. The router will forward the packet via Serial2.

  ---

  Router has pointed default router to 192.168.4.1 and this subnet is connected via serial 2 interface. Router does not have router for the 192.0.2.156. so it will use the default gateway 192.168.4.1. A default route identifies the gateway IP address to which the router sends all IP packets for which it does not have a learned or static route.

• Question 56:

  It has become necessary to configure an existing serial interface to accept a second Frame Relay virtual circuit. Which of the following are required to solve this? (Choose three)

  A. configure static frame relay map entries for each subinterface network.
  B. remove the ip address from the physical interface
  C. create the virtual interfaces with the interface command
  D. configure each subinterface with its own IP address
  E. disable split horizon to prevent routing loops between the subinterface networks
  F. encapsulate the physical interface with multipoint PPP
  B. remove the ip address from the physical interface
  C. create the virtual interfaces with the interface command
  D. configure each subinterface with its own IP address

  ---

  How To Configure Frame Relay Subinterfaces http://www.orbit-computer-solutions.com/How-To-Configure-Frame-Relay-Subinterfaces.php

  Step to configure Frame Relay subinterfaces on a physical interface:

  1.

  Remove any network layer address (IP) assigned to the physical interface. If the physical interface has an address, frames are not received by the local subinterfaces.

  2.

  Configure Frame Relay encapsulation on the physical interface using the encapsulation frame- relay command.

  3.

  For each of the defined PVCs, create a logical subinterface. Specify the port number, followed by a period (.) and the subinterface number. To make troubleshooting easier, it is suggested that the subinterface number matches the DLCI number.

  4.

  Configure an IP address for the interface and set the bandwidth.

  5.

  Configure the local DLCI on the subinterface using the frame-relay interface-dlci command. Configuration Example: R1>enable R1#configure terminal R1(config)#interface serial 0/0/0 R1(config-if)#no ip address R1(config-if)#encapsulation frame-relay R1(config-if)#no shutdown R1(config-if)#exit R1(config-subif)#interface serial 0/0/0.102 point-to-point R1(config-subif)#ip address 192.168.1.245 255.255.255.252 R1(config-subif)#frame-relay interface-dlci R1(config-subif)#end R1#copy running-config startup-config

• Question 57:

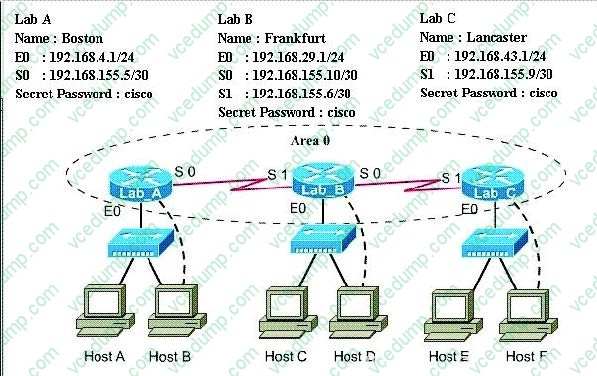

  A sporting goods manufacturer has decided to network three (3) locations to improve efficiency in inventory control. The routers have been named to reflect the

  location: Boston, Frankfurt, and Lancaster.

  The necessary networking has been completed at each location, and the routers have been configured with single area OSPF as the routing protocol. The Boston

  router was recently installed but connectivity is not complete because of incomplete routing tables. Identify and correct any problem you see in the configuration.

  Note: The OSPF process must be configured to allow interfaces in specific subnets to participate in the routing process.



  Correct Answer. The question mentioned Boston router was not configured correctly or incomplete so we should check this router first. Click on Host B to access the command line interface (CLI) of Boston router.
  The question mentioned Boston router was not configured correctly or incomplete so we should check this router first. Click on Host B to access the command line interface (CLI) of Boston router.

  ---

  Boston>enable (type cisco as its password here) Boston#show running-config

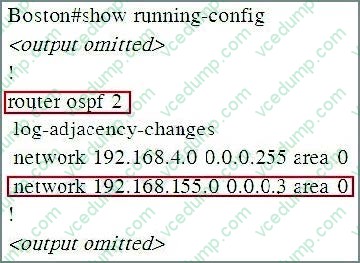

  First, remember that the current OSPF Process ID is 2 because we will need it for later configuration. Next notice that in the second “network” command the network and wildcard mask are 192.168.155.0 and 0.0.0.3 which is equivalent to 192.168.155.0 255.255.255.252 in term of subnet mask. Therefore this subnetwork's range is from 192.168.155.0 to 192.168.155.3 but the ip address of s0/0 interface of Boston router is 192.168.155.5 which don't belong to this range -> this is the reason why OSPF did not recognize s0 interface of Boston router as a part of area 0. So we need to find a subnetwork that s0 interface belongs to. IP address of S0 interface: 192.168.155.5/30 Subnet mask: /30 = 1111 1111.1111 1111.1111 1111.1111 1100 Increment: 4 Network address (which IP address of s0 interface belongs to): 192.168.155.4 (because 4 * 1 = 4 < 5) Therefore we must use this network instead of 192.168.155.0 network

  Boston#configure terminal Boston(config)#router ospf 2 Boston(config-router)#no network 192.168.155.0 0.0.0.3 area 0 Boston(config-router)#network 192.168.155.4 0.0.0.3 area 0 Boston(config-router)#end Boston#copy running-config startup-config

  Finally, you should issue a ping command from Boston router to Lancaster router to make sure it works well. Boston#ping 192.168.43.1

• Question 58:

  A network administrator needs to configure port security on a switch. Which two statements are true? (Choose two.)

  A. The network administrator can apply port security to dynamic access ports.
  B. When dynamic MAC address learning is enabled on an interface, the switch can learn new addresses, up to the maximum defined.
  C. The sticky learning feature allows the addition of dynamically learned addresses to the running configuration.
  D. The network administrator can configure static secure or sticky secure MAC addresses in the voice VLAN.
  E. The network administrator can apply port security to EtherChannels.
  B. When dynamic MAC address learning is enabled on an interface, the switch can learn new addresses, up to the maximum defined.
  C. The sticky learning feature allows the addition of dynamically learned addresses to the running configuration.

• Question 59:

  What can be done to secure the virtual terminal interfaces on a router? (Choose two.)

  A. Administratively shut down the interface.
  B. Physically secure the interface.
  C. Create an access list and apply it to the virtual terminal interfaces with the access-group command.
  D. Configure a virtual terminal password and login process.
  E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.
  D. Configure a virtual terminal password and login process.
  E. Enter an access list and apply it to the virtual terminal interfaces using the access-class command.

  ---

  It is a waste to administratively shut down the interface. Moreover, someone can still access the virtual terminal interfaces via other interfaces -> A is not correct.

  We can not physically secure a virtual interface because it is "virtual" -> B is not correct.

  To apply an access list to a virtual terminal interface we must use the "access-class" command. The "access-group" command is only used to apply an access list to a physical interface -> C is not correct; E is correct.

  The most simple way to secure the virtual terminal interface is to configure a username and password to prevent unauthorized login -> D is correct.

• Question 60:

  Refer to the exhibit.

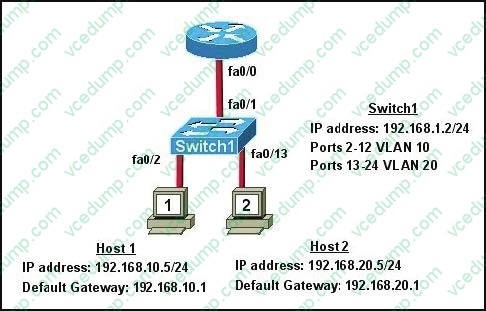

  What commands must be configured on the 2950 switch and the router to allow communication between host 1 and host 2? (Choose two.)

  A. Router(config)# interface fastethernet 0/0 Router(config-if)# ip address 192.168.1.1 255.255.255.0 Router(config-if)# no shut down
  B. Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0.1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192.168.10.1 255.255.255.0 Router(config)# interface fastethernet 0/0.2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192.168.20.1 255.255.255.0
  C. Router(config)# router eigrp 100 Router(config-router)# network 192.168.10.0 Router(config-router)# network 192.168.20.0
  D. Switch1(config)# vlan database Switch1(config-vlan)# vtp domain XYZ Switch1(config-vlan)# vtp server
  E. Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk
  F. Switch1(config)# interface vlan 1 Switch1(config-if)# ip default-gateway 192.168.1.1
  B. Router(config)# interface fastethernet 0/0 Router(config-if)# no shut down Router(config)# interface fastethernet 0/0.1 Router(config-subif)# encapsulation dot1q 10 Router(config-subif)# ip address 192.168.10.1 255.255.255.0 Router(config)# interface fastethernet 0/0.2 Router(config-subif)# encapsulation dot1q 20 Router(config-subif)# ip address 192.168.20.1 255.255.255.0
  E. Switch1(config)# interface fastethernet 0/1 Switch1(config-if)# switchport mode trunk

  ---

  http://www.cisco.com/en/US/tech/tk389/tk815/technologies_configuration_example09186a00800949f d.shtml https://learningnetwork.cisco.com/servlet/JiveServlet/download/5669-2461/Router%20on%20a %20Stick.pdf.
