Riverbed Riverbed Certifications 199-01 Questions & Answers

• Question 151:

  What is the default authorization policy used by Steelhead appliances?

  A. Remote-Last

  B. Local-Only

  C. Local-First

  D. Remote-Only

  E. Remote-First

  Correct Answer: E

• Question 152:

  What port number is configured on a Steelhead appliance to communicate to the TACACS+ server?

  A. 1645

  B. 1646

  C. 1812

  D. 389

  E. 49

  Correct Answer: E

• Question 153:

  Which of the following custom TACACS+ attribute-value (AV) pairs gives the user administrative privileges?

  A. local-user-name=superuser

  B. local-user-name=admin

  C. local-user-name=administrator

  D. local-user-name=monitor

  E. local-user-name=guest

  Correct Answer: B

• Question 154:

  Which of the following custom TACACS+ attribute-value (AV) pairs gives the user guest privileges?

  A. local-user-name=anonymous

  B. local-user-name=guest

  C. local-user-name=administrator

  D. local-user-name=monitor

  E. local-user-name=ghost

  Correct Answer: D

• Question 155:

  What is the command to view configuration files on the CLI?

  A. configuration files display

  B. configuration files view

  C. configuration files show

  D. show configuration files

  E. show configuration files all

  Correct Answer: D

• Question 156:

  In a previously optimized environment, users have recently upgraded their Windows XP workstations to Windows 7. After the upgrade, users are complaining about slow CIFS and encrypted MAPI performance. What is the most likely cause?

  A. The Steelhead appliance is only configured for transparent mode for SMB signing and MAPI encryption.

  B. Windows 7 is not supported.

  C. The client-side Steelhead appliance is not joined to the domain.

  D. The server-side Steelhead appliance is not joined to the domain.

  E. The Steelhead appliance only supports NTLM.

  Correct Answer: A

• Question 157:

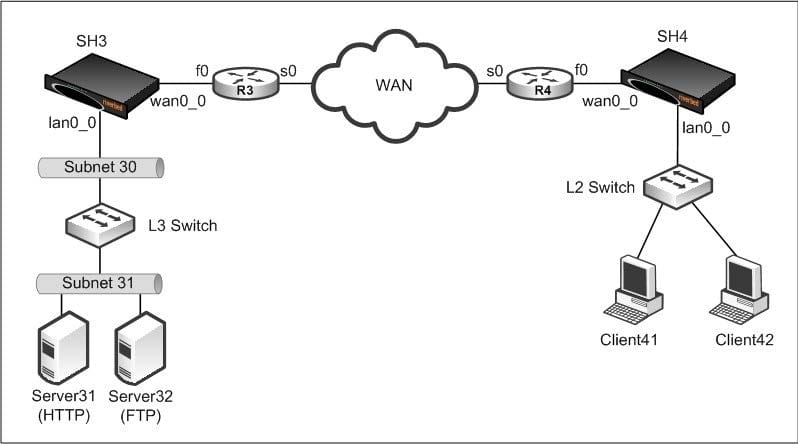

  In the exhibit, there is a resident firewall inside the WAN cloud that drops packets with any TCP option. The customer allows you to use fixed-target rules instead. The firewall policy can only allow unassigned ports 7750-7751 to pass-through it. Additionally, the SH3 has been configured with service port 7750, while SH4 has been configured with service port 7751. Which of the following fixed-target rule specification is correct?



  A. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7800. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7800.

  B. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7810. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7810.

  C. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.

  D. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7751. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.

  E. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7751.

  Correct Answer: E

• Question 158:

  In a WCCP configuration, during a packet trace, you notice the return WCCP communication on a CAT 6500 is using GRE. The Steelhead appliance is directly connected to it. What can be done to alleviate the router's CPU? (Select 2)

  A. Force L2 return

  B. Use PBR

  C. Use peering rules to avoid using GRE altogether

  D. Use NBAR to redirect

  E. Nothing can be done to force traffic as a different return

  Correct Answer: AB

• Question 159:

  What CLI command is used to view logs?

  A. show log

  B. show debug logging enable

  C. show debug logs enable

  D. view debug generate dump

  E. view logs

  F. tail -f /var/logs

  Correct Answer: A

• Question 160:

  Which of the following methods can be used to reduce the load on a router configured to use outbound interface WCCP redirection? (Select 3)

  A. Using inbound interface redirection instead

  B. Use fixed-target rules and remove WCCP on the WAN facing interfaces

  C. Use Redirect lists to control what traffic gets redirected

  D. Use the router command "load interval 30" to restrict WCCP to use 30% of the CPU

  E. Use Event Element Manager (EEM) to load balance between a clustered Steelhead appliance deployment

  Correct Answer: ABC
