Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 641:

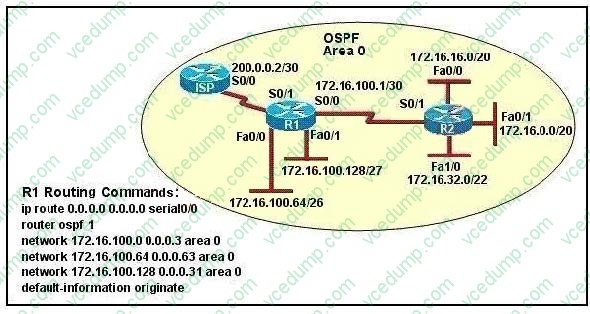

  Refer to the exhibit. Assume that all router interfaces are operational and correctly configured. In addition, assume that OSPF has been correctly configured on router R2. How will the default route configured on R1 affect the operation of R2?



  A. Any packet destined for a network that is not directly connected to router R2 will be dropped immediately.
  B. Any packet destined for a network that is not referenced in the routing table of router R2 will be directed to R1. R1 will then send that packet back to R2 and a routing loop will occur.
  C. Any packet destined for a network that is not directly connected to router R1 will be dropped.
  D. The networks directly connected to router R2 will not be able to communicate with the 172.16.100.0, 172.16.100.128, and 172.16.100.64 subnetworks.
  E. Any packet destined for a network that is not directly connected to router R2 will be dropped immediately because of the lack of a gateway on R1.
  B. Any packet destined for a network that is not referenced in the routing table of router R2 will be directed to R1. R1 will then send that packet back to R2 and a routing loop will occur.

• Question 642:

  For which two reasons was RFC 1918 address space define? (Choose two)

  A. to preserve public IPv4 address space
  B. to reduce the occurrence of overlapping IP addresses
  C. to preserve public IPv6 address space
  D. reduce the size of ISP routing tables
  E. to support the NAT protocol
  D. reduce the size of ISP routing tables
  E. to support the NAT protocol

• Question 643:

  How many VLANs can be carried across an access port?

  A. 8
  B. 1
  C. 4096
  D. 1024
  B. 1

• Question 644:

  A switch has 48 ports and 4 VLANs. How many collision and broadcast domains exist on the switch (collision, broadcast)?

  A. 4,48
  B. 48,4
  C. 48,1
  D. 4,1
  E. 1,48
  B. 48,4

• Question 645:

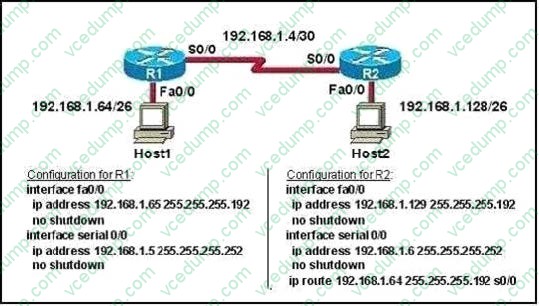

  Refer to the exhibit.



  A technician pastes the configurations in the exhibit into the two new routers shown.

  Otherwise, the routers are configured with their default configurations.

  A ping from Host1 to Host 2 fails, but the technician is able to ping the S0/0 interface of R2 from Host 1. The configurations of the hosts have been verified as correct. What could be the cause of the problem?

  A. The serial cable on R1 needs to be replaced.
  B. The interfaces on R2 are not configured properly
  C. R1 has no route to the 192.168.1.128 network.
  D. The IP addressing scheme has overlapping subnetworks.
  E. The ip subnet-zero command must be configured on both routers.
  C. R1 has no route to the 192.168.1.128 network.

• Question 646:

  If a router has four interfaces and each interface is connected to four switches, how many broadcast domains are present on the router?

  A. 1
  B. 2
  C. 4
  D. 8
  C. 4

• Question 647:

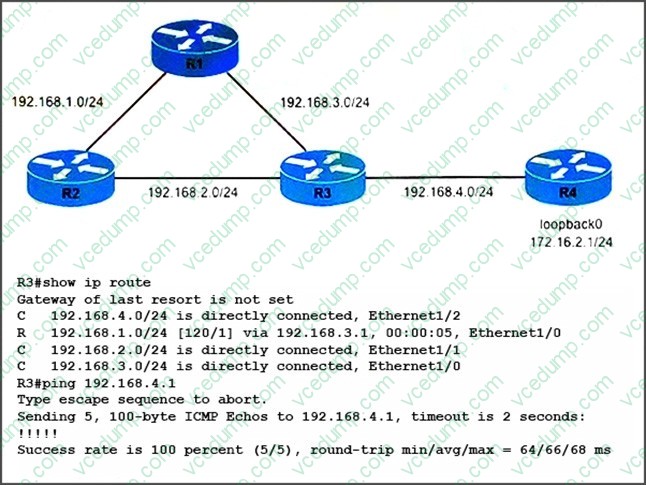

  Refer to the exhibit. Router R4 is reachable from Router R3. Which two scenarios would prevent the subnet 172.16.2.0/24 from being added to the routing table on router R3? (Choose two.)

  A. Router R4 is running RIPv1 instead of RIPv2.
  B. Network updates are looping around routers R1, R2, and R3.
  C. The subnet uses a loopback interface.
  D. Routers R3 and R4 are running different versions of RIP.
  E. The subnet uses a classless network.
  F. Router R3 has split horizon enabled.
  A. Router R4 is running RIPv1 instead of RIPv2.
  D. Routers R3 and R4 are running different versions of RIP.

• Question 648:

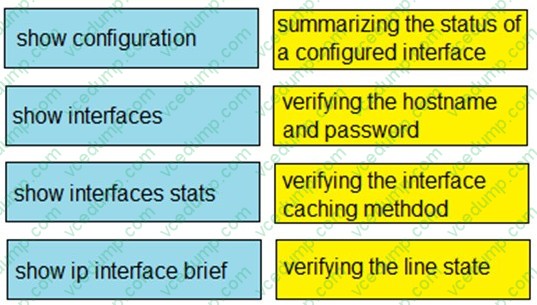

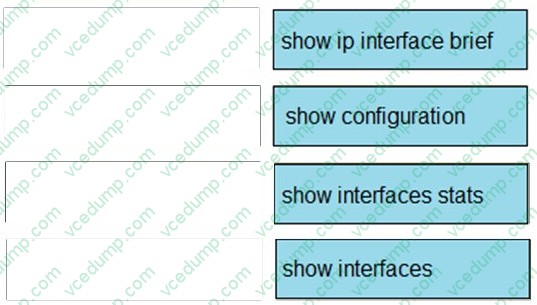

  DRAG DROP

  Drag and drop the show commands from the left onto the primary purposes on the right.

  Select and Place:





• Question 649:

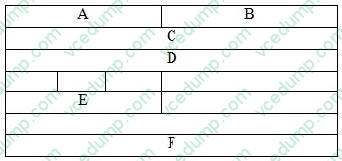

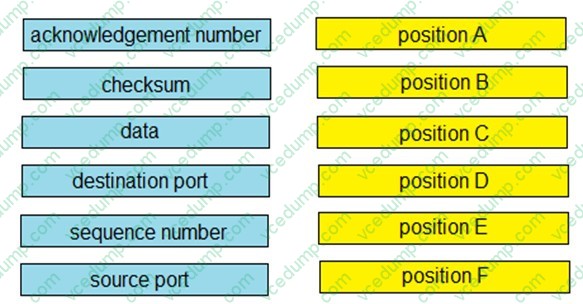

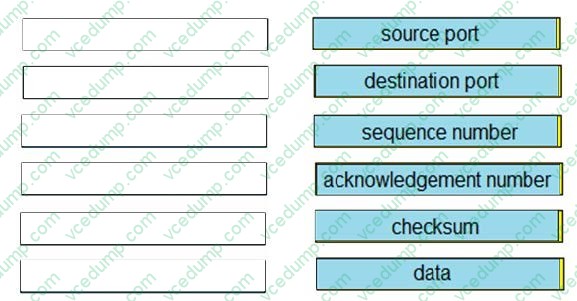

  DRAG DROP Refer to the exhibit.



  Drag and drop the TCP header fields from the left into the correct positions on the right.

  Select and Place:





• Question 650:

  Which two DNS record types are currently supported? (Choose two.)

  A. NIL
  B. A
  C. MX
  D. B
  E. ACK
  B. A
  C. MX
