Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 531:

  Instructions

  For both the Router and the Switch the simulated console mode needs to start and remain in enabled mode.

  RouterA and SwitchA have been configured to operate in a private network which will connect to the Internet. You have been asked to review the configuration prior to cabling and implementation.

  This task requires the use of various IOS commands to access and inspect the running configuration of RouterA and SwitchA. No configuration changes are necessary.

  You will connect to RouterA and SwilchA via the console devices that are attached to each.

  There are 4 multiple-choice questions with this task. Be sure to answer all of them before leaving this item. In order to score the maximum points you will need to have accessed both SwitchA and RouterA.

  NOTE: The configuration command has been disabled for both the router and switch in this simulation.



  Which two are security issues which need to be modified before RouterA is used? (Choose two.)

  A. unencrypted weak password is configured to protect privilege mode
  B. inappropriate wording in banner message
  C. the virtual terminal lines have a weak password configured
  D. virtual terminal lines have a password, but it will not be used
  E. configuration supports un-secure web server access
  A. unencrypted weak password is configured to protect privilege mode
  E. configuration supports un-secure web server access

• Question 532:

  Which entity assigns IPv6 addresses to end users?

  A. ICANN
  B. APNIC
  C. RIR
  D. ISPs
  D. ISPs

• Question 533:

  What command sequence will configure a router to run OSPF and add network 10.1.1.0 /24 to area 0?

  A. router ospf area 0 network 10.1.1.0 255.255.255.0 area 0
  B. router ospf network 10.1.1.0 0.0.0.255
  C. router ospf 1 network 10.1.1.0 0.0.0.255 area 0
  D. router ospf area 0 network 10.1.1.0 0.0.0.255 area 0
  E. router ospf network 10.1.1.0 255.255.255.0 area 0
  F. router ospf 1 network 10.1.1.0 0.0.0.255
  C. router ospf 1 network 10.1.1.0 0.0.0.255 area 0

• Question 534:

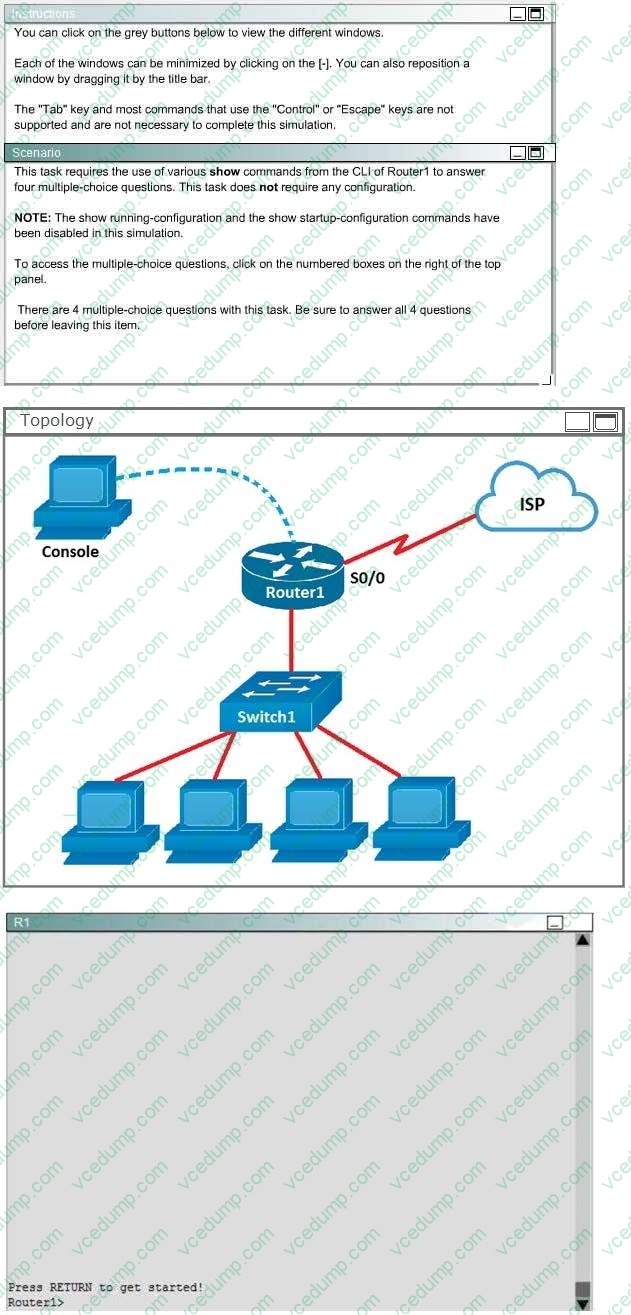

  The hosts in the LAN are not able to connect to the Internet. Which commands will correct this issue?

  A. Router1(conf)#interface fa0/0 Router1(conf-if)# no shutdown
  B. Router1(conf)#interface fa0/1 Router1(conf-if)# no shutdown
  C. Router1(conf)#interface s0/0 Router1(conf-if)# no shutdown
  D. Router1(conf)#interface s0/1 Router1(conf-if)# no shutdown
  E. Router1(conf)#interface s0/0 Router1(conf-if)# ip address 10.11.12.13 255.255.255.252
  F. Router1(conf)#interface s0/1 Router1(conf-if)# ip address 10.100.1. 1255.255.255.252
  C. Router1(conf)#interface s0/0 Router1(conf-if)# no shutdown

• Question 535:

  Instructions

  For both the Router and the Switch the simulated console mode needs to start and remain in enabled mode.

  RouterA and SwitchA have been configured to operate in a private network which will connect to the Internet. You have been asked to review the configuration prior to cabling and implementation.

  This task requires the use of various IOS commands to access and inspect the running configuration of RouterA and SwitchA. No configuration changes are necessary.

  You will connect to RouterA and SwilchA via the console devices that are attached to each.

  There are 4 multiple-choice questions with this task. Be sure to answer all of them before leaving this item. In order to score the maximum points you will need to have accessed both SwitchA and RouterA.

  NOTE: The configuration command has been disabled for both the router and switch in this simulation.



  Which three options are security issues with the current configuration of SwitchA? (Choose three.)

  A. privilege mode is protected with an unencrypted password
  B. inappropriate wording in banner message
  C. virtual terminal lines are protected only by a password requirement
  D. both username and password are weak
  E. telnet connections can be used to remotely manage the switch
  F. cisco user will be granted privilege level 15 by default
  A. privilege mode is protected with an unencrypted password
  B. inappropriate wording in banner message
  D. both username and password are weak

• Question 536:

  If a switch received a frame while forwarding others, how frame would be handled?

  A. It will interrupt the frames
  B. The switch will put the frame in a queue
  C. Will be forwarded at the same time with the current frame
  D. The new frame will forward first
  C. Will be forwarded at the same time with the current frame

• Question 537:

  Which layer of the TCP/IP stack combines the OSI model physical and data link layers?

  A. Internet layer
  B. transport layer
  C. application layer
  D. network access layer
  D. network access layer

• Question 538:

  Which name describes an IPV6 host-enable tunneling technique that uses IPV4 UDP,does not require dedicated gateway tunnels, and can pass through existing IPV4 NAT gateways?

  A. dual stack XX
  B. dynamic
  C. Teredo
  D. Manual 6to4
  C. Teredo

• Question 539:

  Which function enables an administrator to route multiple VLANs on a router?

  A. IEEE 802.1X
  B. HSRP
  C. port channel
  D. router on a stick
  D. router on a stick

• Question 540:

  An administrator issues the show ip interface s0/0 command and the output displays that interface Serial0/0 is up, line protocol is up. What does "line protocol is up" specifically indicate about the interface?

  A. The cable is attached properly.
  B. CDP has discovered the connected device.
  C. Keepalives are being received on the interface.
  D. A carrier detect signal has been received from the connected device.
  E. IP is correctly configured on the interface.
  C. Keepalives are being received on the interface.
