Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 471:



  Refer to the exhibit. Router R1 produced this partial output running on a current IOS. Which two statements about R1 and its network environment are true? (Choose two.)

  A. R1 has a combination of local and connected routes totaling two subnets.
  B. R1 has learned a maximum of four networks via routing protocols.
  C. R1 has a maximum of two connected subnets including local route.
  D. R1 has learned at least one network via routing protocols.
  E. R1 has a network environment that supports a maximum of 16 hosts.
  C. R1 has a maximum of two connected subnets including local route.
  D. R1 has learned at least one network via routing protocols.

• Question 472:

  Which networking Technology is currently recognized as the standard for computer networking?

  A. System network architecture
  B. Transmission control protocol/Internet protocol
  C. Open system Interconnect
  D. Open network architecture
  B. Transmission control protocol/Internet protocol

• Question 473:

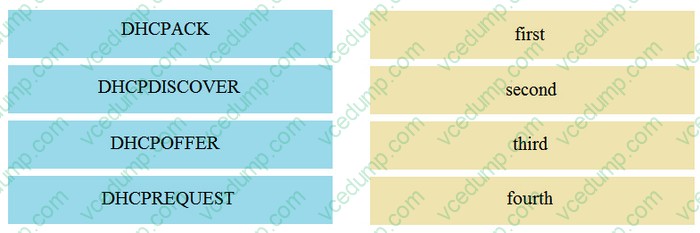

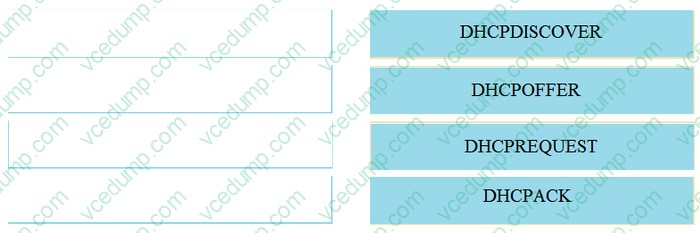

  DRAG DROP

  Drag and drop the DHCP messages from the left into the correct sequence for a DHCP IP address request on the right.

  Select and Place:





• Question 474:

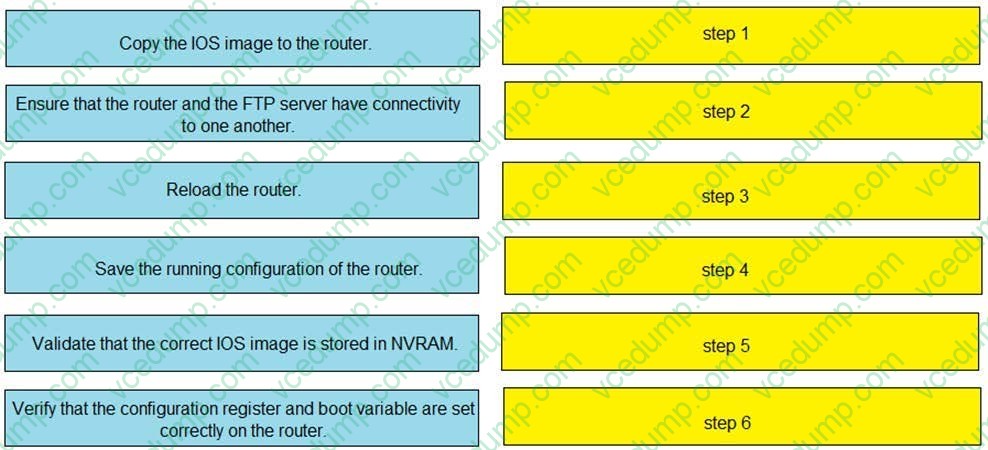

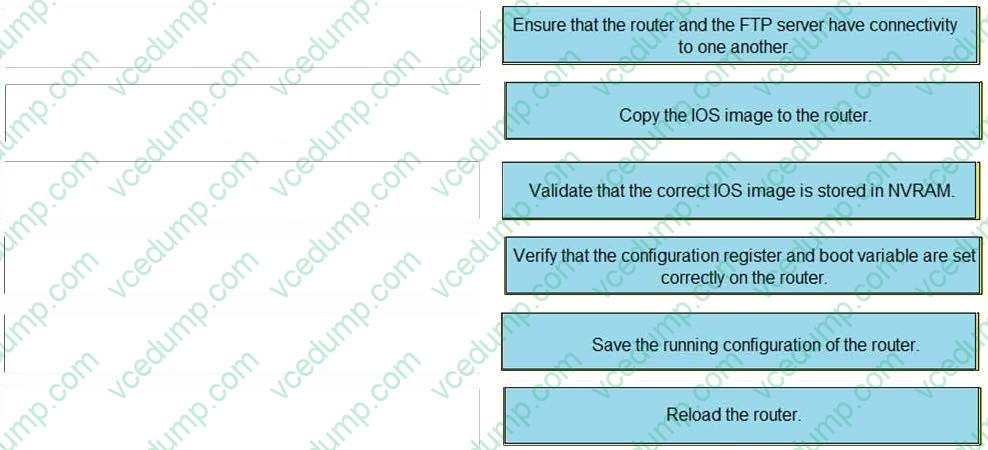

  DRAG DROP

  You are updating the IOS on a Cisco router. Drag and drop the tasks from the left into the correct sequence on the right.

  Select and Place:





• Question 475:

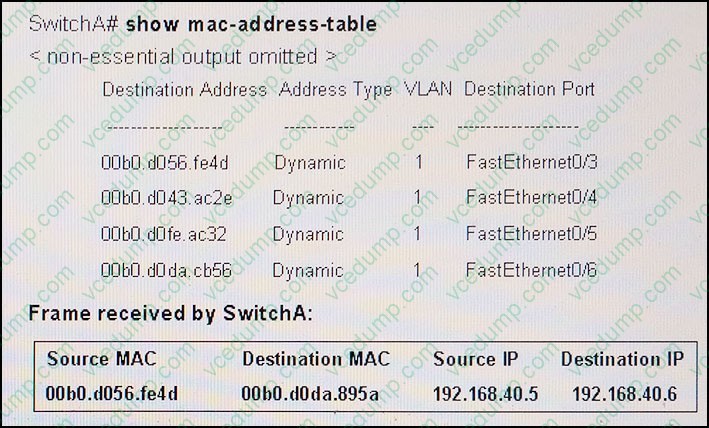

  Refer to the exhibit.



  Which option describes how SwitchA will handle the frame just received?

  A. It will flood the frame out of all the ports except Fa0/3.
  B. It will drop the frame.
  C. It will flood the frame out all ports.
  D. It will forward the frame out of port Fa0/3 only.
  A. It will flood the frame out of all the ports except Fa0/3.

• Question 476:

  What 8-bit field exists in IP packet for QoS?

  A. Tos Field
  B. DSCP
  C. IP Precedence
  D. Cos
  A. Tos Field

• Question 477:

  When you power up a Cisco router, in what memory is the start-up configuration normally stored in?

  A. RAM
  B. ROM
  C. FLASH
  D. NVRAM
  D. NVRAM

• Question 478:

  The following commands are entered on the router:

  Burbank(config)# enable secret fortress Burbank(config)# line con 0 Burbank(config-line)# login Burbank(config-line)# password n0way1n Burbank(config-line)# exit Burbank(config)# service password-encryption

  What is the purpose of the last command entered?

  A. to require the user to enter an encrypted password during the login process
  B. to prevent the vty, console, and enable passwords from being displayed in plain text in the configuration files
  C. to encrypt the enable secret password
  D. to provide login encryption services between hosts attached to the router
  B. to prevent the vty, console, and enable passwords from being displayed in plain text in the configuration files

• Question 479:

  Configuration of which option is required on a Cisco switch for the Cisco IP phone to work?

  A. PortFast on the interface
  B. the interface as an access port to allow the voice VLAN ID
  C. a voice VLAN ID in interface and global configuration mode
  D. Cisco Discovery Protocol in global configuration mode
  C. a voice VLAN ID in interface and global configuration mode

• Question 480:

  Which statements is true about Router on Stick?

  A. When a router has multiple subnets on a single physical link.
  B. When a router has single subnet on multiple physical links.
  C. When a router has multiple interface on single physical links.
  D. When a router has single interface on multiple physical links
  A. When a router has multiple subnets on a single physical link.
