Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 371:

  A router has learned three possible routes that could be used to reach a destination network. One route is from EIGRP and has a composite metric of 20514560. Another route is from OSPF with a metric of 782. The last is from RIPv2 and has a metric of 4. Which route or routes will the router install in the routing table?

  A. the OSPF route
  B. the EIGRP route
  C. the RIPv2 route
  D. all three routes
  E. the OSPF and RIPv2 routes
  B. the EIGRP route

• Question 372:

  Which sequence of actions will allow telneting from a user's PC to a router using TCP/IP?

  A. Connect the PC's COM port to the router's console port using a straight-through cable.
  B. Connect the PC's COM port to the router's console port using a crossover cable.
  C. Connect the PC's COM port to the router's Ethernet port using a straight-through cable.
  D. Connect the PC's Ethernet port to the router's Ethernet port using a crossover cable.
  E. Connect the PC's Ethernet port to the router's Ethernet port using a rollover cable.
  F. Connect the PC's Ethernet port to the router's Ethernet port using a straight-through cable.
  D. Connect the PC's Ethernet port to the router's Ethernet port using a crossover cable.

• Question 373:

  DRAG DROP

  Drag and drop the descriptions of routing protocols from the left onto the correct routing types on the right.

  Select and Place:





• Question 374:

  Drag and Drop Question

  Drag and drop each advantage of static or dynamic routing from the left onto the correct routing type on the right.

  Select and Place:





• Question 375:

  Which VLAN ID is reserved?

  A. 1
  B. 1002
  C. 1006
  D. 4094
  B. 1002

• Question 376:

  Which statement about routing protocols is true?

  A. Distance-vector routing protocols use the Shortest Path First algorithm.
  B. OSPF is a link-state routing protocol.
  C. IS-IS is a distance-vector routing protocol.
  D. Link-state routing protocols choose a path by the number of hops to the destination.
  B. OSPF is a link-state routing protocol.

• Question 377:

  Which statement about standard access list is true?

  A. They have an implicit permit statement at the end to allow all traffic
  B. They can use either a wildcard mask or a subnet mask to identify host
  C. They can be identified by a number from 1 to 99
  D. They must be placed close to the source of traffic
  C. They can be identified by a number from 1 to 99

• Question 378:

  By default, which speed does an interface attempt to negotiate if IEEE autonegotiation is enabled on only one side of a link?

  A. speed of the neighbor side of the link
  B. slowest supported speed of the interface
  C. fastest supported speed of the interface
  D. average supported speed of the two interfaces
  C. fastest supported speed of the interface

• Question 379:

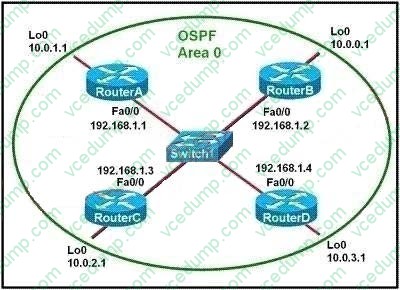

  Refer to the exhibit. Which two statements are true about the loopback address that is configured on RouterB? (Choose two.)



  A. It ensures that data will be forwarded by RouterB.
  B. It provides stability for the OSPF process on RouterB.
  C. It specifies that the router ID for RouterB should be 10.0.0.1.
  D. It decreases the metric for routes that are advertised from RouterB.
  E. It indicates that RouterB should be elected the DR for the LAN.
  B. It provides stability for the OSPF process on RouterB.
  C. It specifies that the router ID for RouterB should be 10.0.0.1.

• Question 380:

  Which port-security feature allows a switch to learn MAC addresses dynamically and add them to the running configuration?

  A. security violation restrict mode
  B. switch port protection
  C. sticky learning
  D. security violation protect mode
  C. sticky learning
