Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 321:

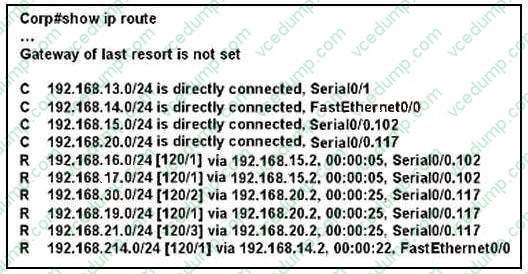

  Refer to the output of the corporate router routing table shown in the graphic. The corporate router receives an IP packet with a source IP address of 192.168.214.20 and a destination address of 192.168.22.3. What will the router do with this packet?



  A. It will encapsulate the packet as Frame Relay and forward it out interface Serial 0/0.117.
  B. It will discard the packet and send an ICMP Destination Unreachable message out interface FastEthernet 0/0.
  C. It will forward the packet out interface Serial 0/1 and send an ICMP Echo Reply message out interface serial 0/0.102.
  D. It will change the IP packet to an ARP frame and forward it out FastEthernet 0/0.
  B. It will discard the packet and send an ICMP Destination Unreachable message out interface FastEthernet 0/0.

• Question 322:

  Which value in a routing table entry represents the subnet mask?

  A. prefix length
  B. route source code
  C. administrative distance
  D. next-hop
  A. prefix length

• Question 323:

  Drag and Drop Question

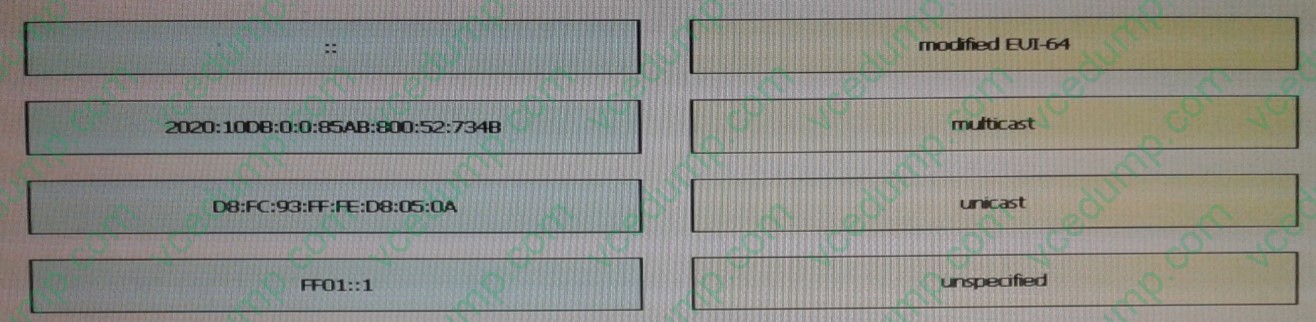

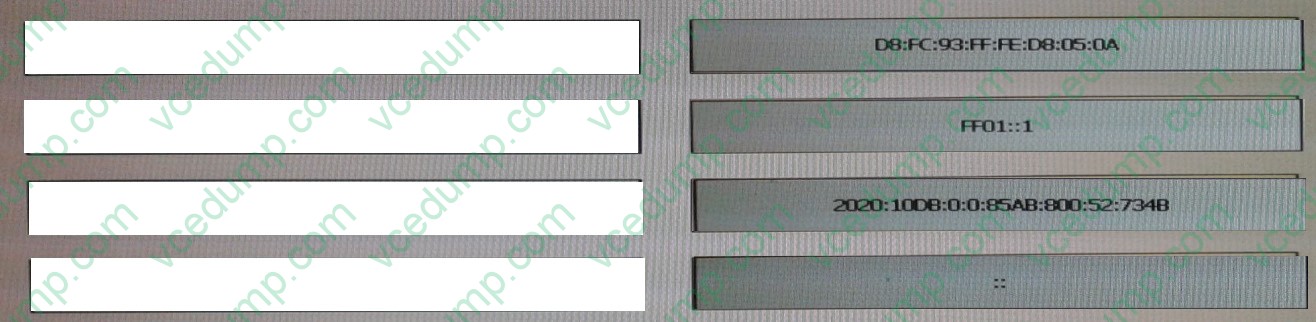

  Drag and drop the IPv6 IP addresses from the left onto the correct IPv6 address types on the right.

  Select and Place:





• Question 324:

  Which network device functions only at Layer 1 of the OSI model?

  B

• Question 325:

  How to configure RIPv2? (Choose Two.)

  A. Enable RIP
  B. Connect RIP to WAN interface
  C. Enable no auto-summary
  D. Enable authentication
  A. Enable RIP
  C. Enable no auto-summary

• Question 326:

  Which two statements about IPv6 address 2002:ab10:beef::/48 are true?(choose two)

  A. The embedded IPv4 address can be globally routed.
  B. It is used for an ISATAP tunnel
  C. The embedded IPv4 address is an RFC 1918 address
  D. The MAC address 20:02:b0:10:be:ef is embedded into the IPv6 address
  E. It is used for a 6to4 tunnel
  A. The embedded IPv4 address can be globally routed.
  E. It is used for a 6to4 tunnel

• Question 327:

  Which two characteristics of plenum cable are true? (Choose two.)

  A. It is more fire-resistant than nonplenum cable.
  B. It can be installed above a drop-down ceiling without additional safety precautions.
  C. It is less fire-resistant than nonplenum cable.
  D. When it burns, it may release more toxins than nonplenum cable.
  E. It requires additional safety precautions when installed above a drop-down ceiling.
  A. It is more fire-resistant than nonplenum cable.
  B. It can be installed above a drop-down ceiling without additional safety precautions.

• Question 328:

  Drag and Drop Question

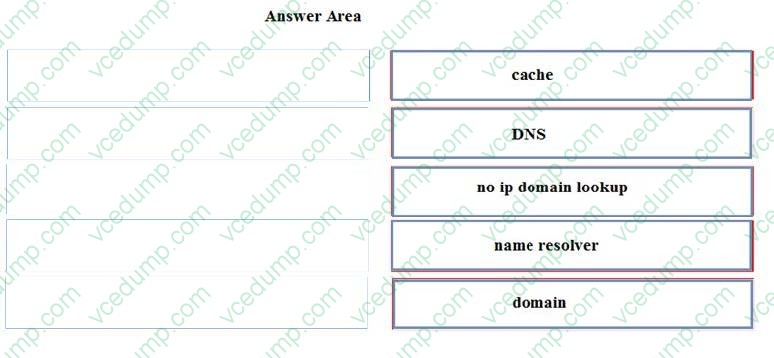

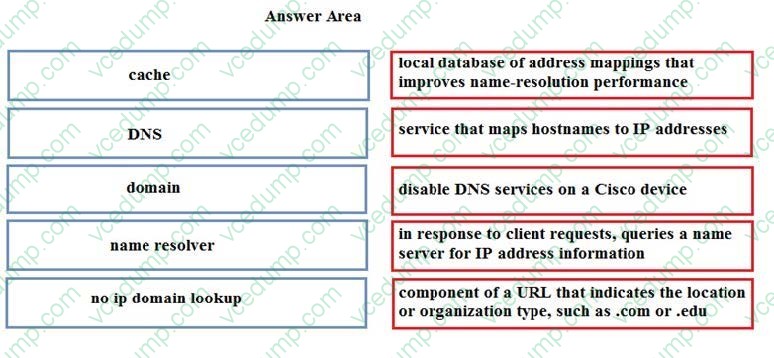

  Drag and drop the DNS lookup components from the left onto the correct functions on the right.

  Select and Place:





• Question 329:

  What is true about ipv6 unique local addresses: A. Global id

  B. Public routable
  C. Summarization
  D. Unique prefix
  D. Unique prefix

• Question 330:

  Drag and Drop Question

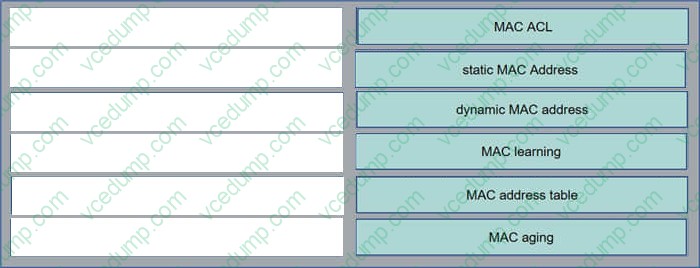

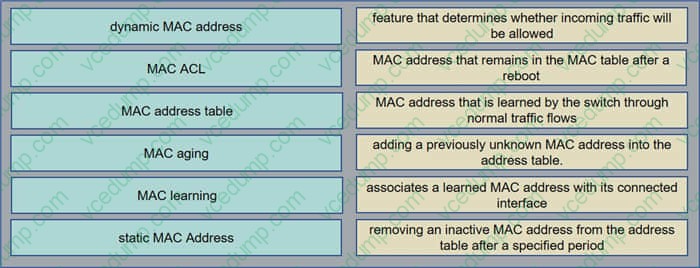

  Drag and drop the switching concepts from the left onto the correct descriptions on the right.

  Select and Place:
