Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 301:

  Which command do you enter to configure a device as an authoritative time server?

  A. ntp authenticate
  B. ntp server 127.0.0.1
  C. ntp source 127.0.0.1
  D. ntp master 1
  D. ntp master 1

• Question 302:

  Which of the following is true about port security?

  A. In stick, port retrain dynamically learned
  B. Configure spanning destination
  C. The default configuration with max 10
  D. Not supported by VLAN
  A. In stick, port retrain dynamically learned

• Question 303:

  Which statement about IPv6 address denotation is true?

  A. Any group of four zeroes can be omitted from the notation.
  B. Any group of two or more zeroes can be reduced to a single zero.
  C. All numbers must be annotated.
  D. The use of :: indicates a multicast address.
  B. Any group of two or more zeroes can be reduced to a single zero.

• Question 304:

  Which three options are switchport configuration that can always avoid duplex mismatch errors between two switches? (Choose three.)

  A. Set both sides of the connection to half duplex.
  B. Set one side of the connection to auto-negotiate and the other side to full duplex.
  C. Set both sides of the connection to auto-negotiate.
  D. Set one side of the connection to auto-negotiate and the other side to half duplex.
  E. Set one side of the connection to full ruplex and the other side to half duplex.
  F. Set both sides of the connection to full duplex.
  A. Set both sides of the connection to half duplex.
  C. Set both sides of the connection to auto-negotiate.
  F. Set both sides of the connection to full duplex.

• Question 305:

  Which two statements are true about the operation of a full-duplex Ethernet network? (Choose two.)

  A. There are no collisions in full-duplex mode.
  B. A dedicated switch port is not required for each full-duplex node.
  C. Ethernet hub ports are preconfigured for full-duplex mode.
  D. The device network card and the switch port must be capable of operating in full-duplex mode.
  E. In a full-duplex environment, the host network card must check for the availability of the network media before transmitting.
  A. There are no collisions in full-duplex mode.
  D. The device network card and the switch port must be capable of operating in full-duplex mode.

• Question 306:

  Which two commands will display the current IP address and basic Layer 1 and 2 status of an interface? (Choose two.)

  A. router#show version
  B. router#show ip interface
  C. router#show protocols
  D. router#show controllers
  E. router#show running-config
  B. router#show ip interface
  C. router#show protocols

• Question 307:

  Where is private IPv4 addressing used?

  A. On the endpoints of a VPN tunnel that traverses outside an administrator domain
  B. At a remote site that connects over public infrastructure to a hub
  C. Within an enterprise
  D. Over the internet
  C. Within an enterprise

• Question 308:

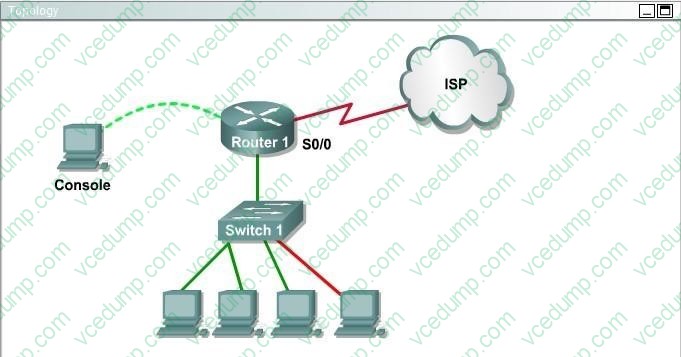

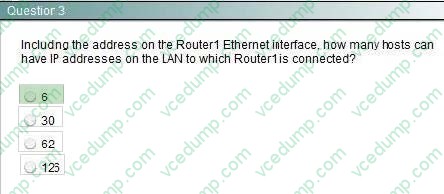

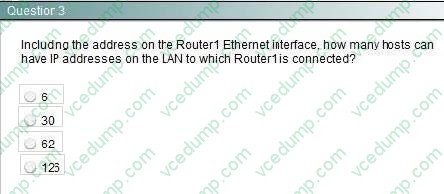

  Hot Area:





  ---

  This is a /29 address, so there are 6 usable IP's on this subnet.

• Question 309:

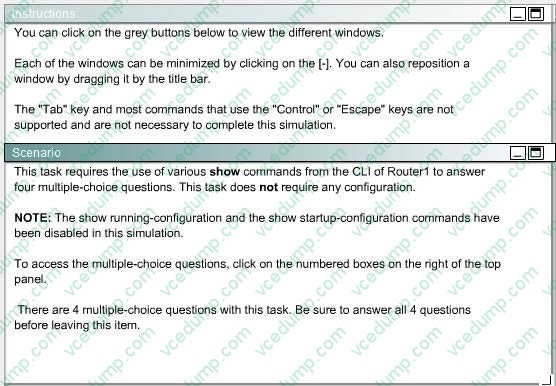

  Instructions

  For both the Router and the Switch the simulated console mode needs to start and remain in enabled mode.

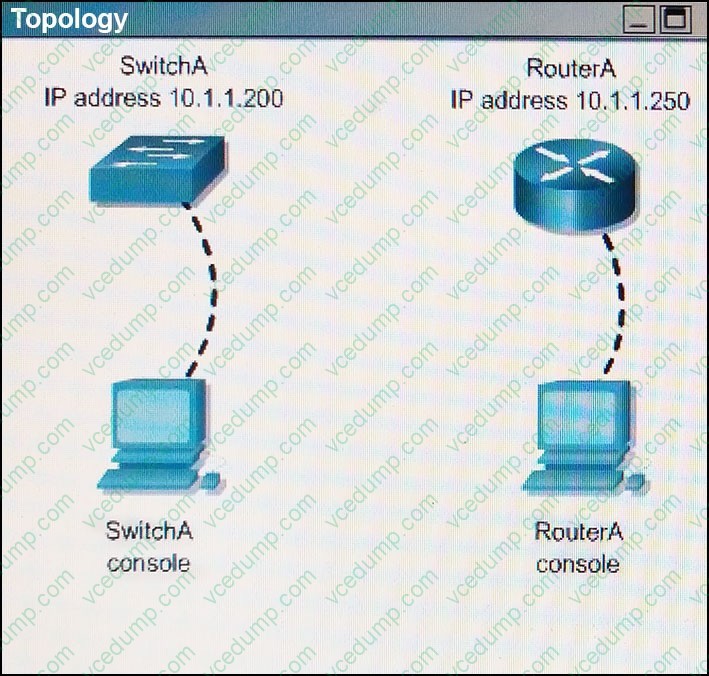

  RouterA and SwitchA have been configured to operate in a private network which will connect to the Internet. You have been asked to review the configuration prior to cabling and implementation.

  This task requires the use of various IOS commands to access and inspect the running configuration of RouterA and SwitchA. No configuration changes are necessary.

  You will connect to RouterA and SwilchA via the console devices that are attached to each.

  There are 4 multiple-choice questions with this task. Be sure to answer all of them before leaving this item. In order to score the maximum points you will need to have accessed both SwitchA and RouterA.

  NOTE: The configuration command has been disabled for both the router and switch in this simulation.



  Which of the following is true regarding the configuration of SwitchA?

  A. only 5 simultaneous remote connections are possible
  B. remote connections using ssh will require a username and password
  C. only connections from the local network will be possible
  D. console access to SwitchA requires a password
  B. remote connections using ssh will require a username and password

• Question 310:

  R1 is configured with the default configuration of OSPF. From the following list of IP addresses configured on R1, which address will the OSPF process select as the router ID?



  A. 192.168.0.1
  B. 172.16.1.1
  C. 172.16.2.1
  D. 172.16.2.225
  A. 192.168.0.1
