Cisco 100-105 Online Practice Questions and Exam Preparation

Cisco 100-105 Online Questions & Answers

• Question 261:

  How many addresses will be available for dynamic NAT translation when a router is configured with the following commands?

  Router(config)#ip nat pool TAME 209.165.201.23 209.165.201.30 netmask 255.255.255.224 Router(config)#ip nat inside source list 9 pool TAME

  A. 7
  B. 8
  C. 9
  D. 10
  E. 24
  F. 32
  B. 8

• Question 262:

  Drag and Drop Question

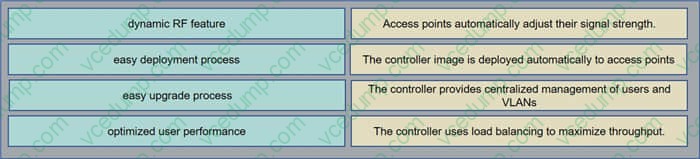

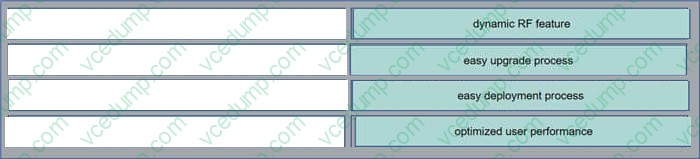

  Drag and drop the benefits of a cisco wireless Lan controller from the left onto the correct examples on the right.

  Select and Place:





• Question 263:

  Which two of these statements are true of IPv6 address representation? (Choose two.)

  A. There are four types of IPv6 addresses: unicast, multicast, anycast, and broadcast.
  B. A single interface may be assigned multiple IPv6 addresses of any type.
  C. Every IPv6 interface contains at least one loopback address.
  D. The first 64 bits represent the dynamically created interface ID.
  E. Leading zeros in an IPv6 16 bit hexadecimal field are mandatory.
  B. A single interface may be assigned multiple IPv6 addresses of any type.
  C. Every IPv6 interface contains at least one loopback address.

• Question 264:

  What is the purpose of flow control?

  A. To ensure data is retransmitted if an acknowledgement is not received.
  B. To reassemble segments in the correct order at the destination device.
  C. To provide a means for the receiver to govern the amount of data sent by the sender.
  D. To regulate the size of each segment.
  C. To provide a means for the receiver to govern the amount of data sent by the sender.

• Question 265:

  Which value to use in HSRP protocol election process ?

  A. interface
  B. virtual IP address
  C. priority
  D. router ID
  C. priority

• Question 266:

  Which protocol uses a connection-oriented service to deliver files between end systems?

  A. TFTP
  B. DNS
  C. FTP
  D. SNMP
  E. RIP
  C. FTP

• Question 267:

  Which two syslog configuration commands do you use to log warnings to the syslog server? (Choose two.)

  A. logging trap level informational
  B. logging trap level alerts
  C. logging trap level notice
  D. logging trap level critical
  E. logging trap level error
  A. logging trap level informational
  C. logging trap level notice

• Question 268:

  The command ip route 192.168.100.160 255.255.255.224 192.168.10.2 was issued on a router. No routing protocols or other static routes are configured on the router. Which statement is true about this command?

  A. The interface with IP address 192.168.10.2 is on this router.
  B. The command sets a gateway of last resort for the router.
  C. Packets that are destined for host 192.168.100.160 will be sent to 192.168.10.2.
  D. The command creates a static route for all IP traffic with the source address 192.168.100.160.
  C. Packets that are destined for host 192.168.100.160 will be sent to 192.168.10.2.

• Question 269:

  DRAG DROP

  Drag and drop each feature on the left on to the correct routing type on the right.

  Select and Place:





• Question 270:

  SW-C has just been added to the network shown in the graphic.



  What is the purpose of assigning a default gateway to this switch?

  A. allows connectivity to Router B from the switch prompt
  B. allows console port connectivity to the switch from Host A
  C. allows connectivity to remote network devices from Host B
  D. allows the switch to pass traffic between Host A and Host B
  A. allows connectivity to Router B from the switch prompt
