Cisco 100-105 Online Questions & Answers

• Question 211:

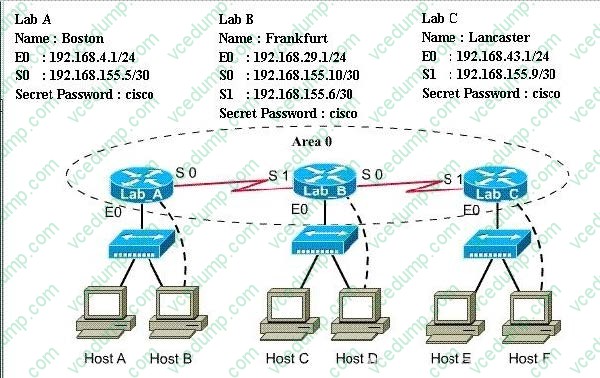

  Lab Simulation - OSPF



  The necessary networking has been completed at each location, and the routers have been configured with single area OSPF as the routing protocol. The Boston router was recently installed but connectivity is not complete because of incomplete routing tables. Identify and correct any problem you see in the configuration.

  Note: The OSPF process must be configured to allow interfaces in specific subnets to participate in the routing process.

  Correct Answer. Check the answer below
  Check the answer below

  ---

  Explanation:

  The question mentioned Boston router was not configured correctly or incomplete so we should check this router first. Click on Host B to access the command line interface (CLI) of Boston router.

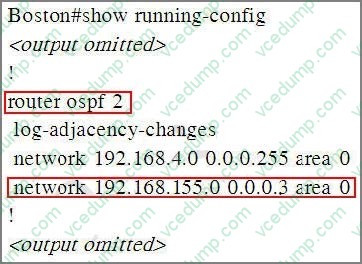

  Boston>enable(type cisco as its password here)Boston#show running-config



  First, remember that the current OSPF Process ID is 2 because we will need it for later configuration. Next notice that in the second “network” command the network and wildcard mask are 192.168.155.0 and 0.0.0.3 which is equivalent to

  192.168.155.0 255.255.255.252 in term of subnet mask. Therefore this subnetwork's range is from 192.168.155.0 to 192.168.155.3 but the ip address of s0/0 interface of Boston router is192.168.155.5 which don't belong to this range → this

  is the reason why OSPF did not recognize s0 interface of Boston router as a part of area 0.

  So we need to find a subnetwork that s0 interface belongs to.

  IP address of S0 interface: 192.168.155.5/30

  Subnet mask: /30 = 1111 1111.1111 1111.1111 1111.1111 1100

  Increment: 4

  Network address (which IP address of s0 interface belongs to):

  192.168.155.4 (because 4 * 1 = 4 < 5)

  Therefore we must use this network instead of 192.168.155.0 network

  Boston#configure terminalBoston(config)#router ospf 2Boston(config-router)#no network 192.168.155.0 0.0.0.3 area 0Boston(config-router)#network 192.168.155.4 0.0.0.3 area 0Boston(config-router)#endBoston#copy running-config startup-config

  Finally, you should issue a ping command from Boston router to Lancaster router to make sure it works well.

  Boston#ping 192.168.43.1

• Question 212:

  Which router command can be used to determine the status of Serial 0/0?

  A. show ip route
  B. show interfaces
  C. show s0/0 status
  D. debug s0/0
  E. show run
  F. show version
  B. show interfaces

• Question 213:

  Which protocol allows VLANs to be dynamically configured between multiple switches?

  A. IGMP
  B. STP
  C. VTP
  D. 802.1Q
  C. VTP

• Question 214:

  Which NTP type designates a router without an external referee clock as an authoritative time source ?

  A. Client
  B. Server
  C. peer
  D. master
  D. master

• Question 215:

  Which option is the default switch port port-security violation mode?

  A. shutdown
  B. protect
  C. shutdown vlan
  D. restrict
  A. shutdown

• Question 216:

  DRAG DROP

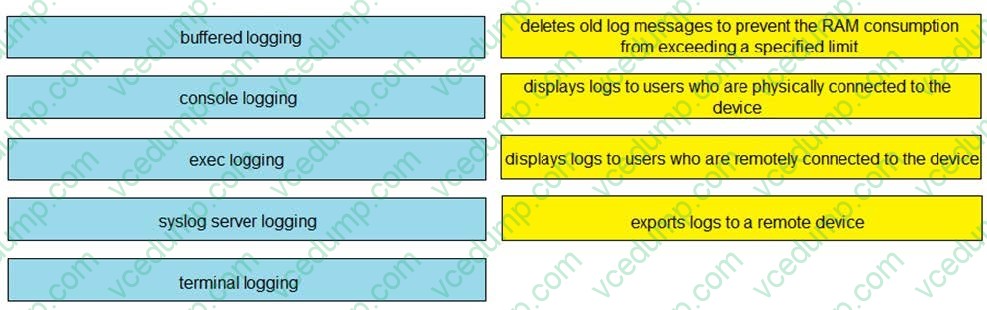

  Drag and drop the logging types from the left onto the correct descriptions on the right. Not all logging types are used.

  Select and Place:





• Question 217:

  Which statement about the default switch configuration for remote access managements is true?

  A. The system name is set to Cisco.
  B. The Telnet password is set to cisco.
  C. No default gateway is defined.
  D. One IP address is preconfigured.
  C. No default gateway is defined.

• Question 218:

  Which statement describes the effect of the copy run start command on a router in enable mode?

  A. The running configuration of the router is saved to NVRAM and used during the boot process.
  B. The router reboots and loads the last saved running configuration.
  C. A copy of the running configuration of the router is sent by FTP to a designated server.
  D. A new running configuration is loaded from flash memory to the router.
  A. The running configuration of the router is saved to NVRAM and used during the boot process.

• Question 219:

  Which feature can you use to access all file systems on a device?

  A. routing
  B. syslog
  C. service policies
  D. IFS
  D. IFS

• Question 220:

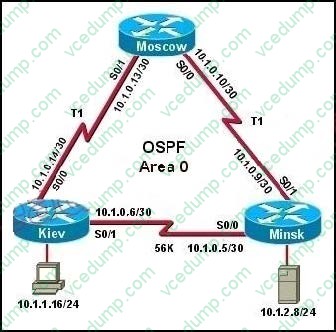

  Refer to the exhibit.



  The host in Kiev sends a request for an HTML document to the server in Minsk. What will be the source IP address of the packet as it leaves the Kiev router?

  A. 10.1.0.1
  B. 10.1.0.5
  C. 10.1.0.6
  D. 10.1.0.14
  E. 10.1.1.16
  F. 10.1.2.8
  E. 10.1.1.16
