• Question 231:

  Which statement about a router on a stick is true?

  A. It requires encapsulation to be configured on subinterfaces.
  B. It requires encapsulation to be configured on the main interface.
  C. The VLAN tag is randomly assigned as a frame exists the interface.
  D. A single VLAN can traverse the link.
  A. It requires encapsulation to be configured on subinterfaces.

• Question 232:

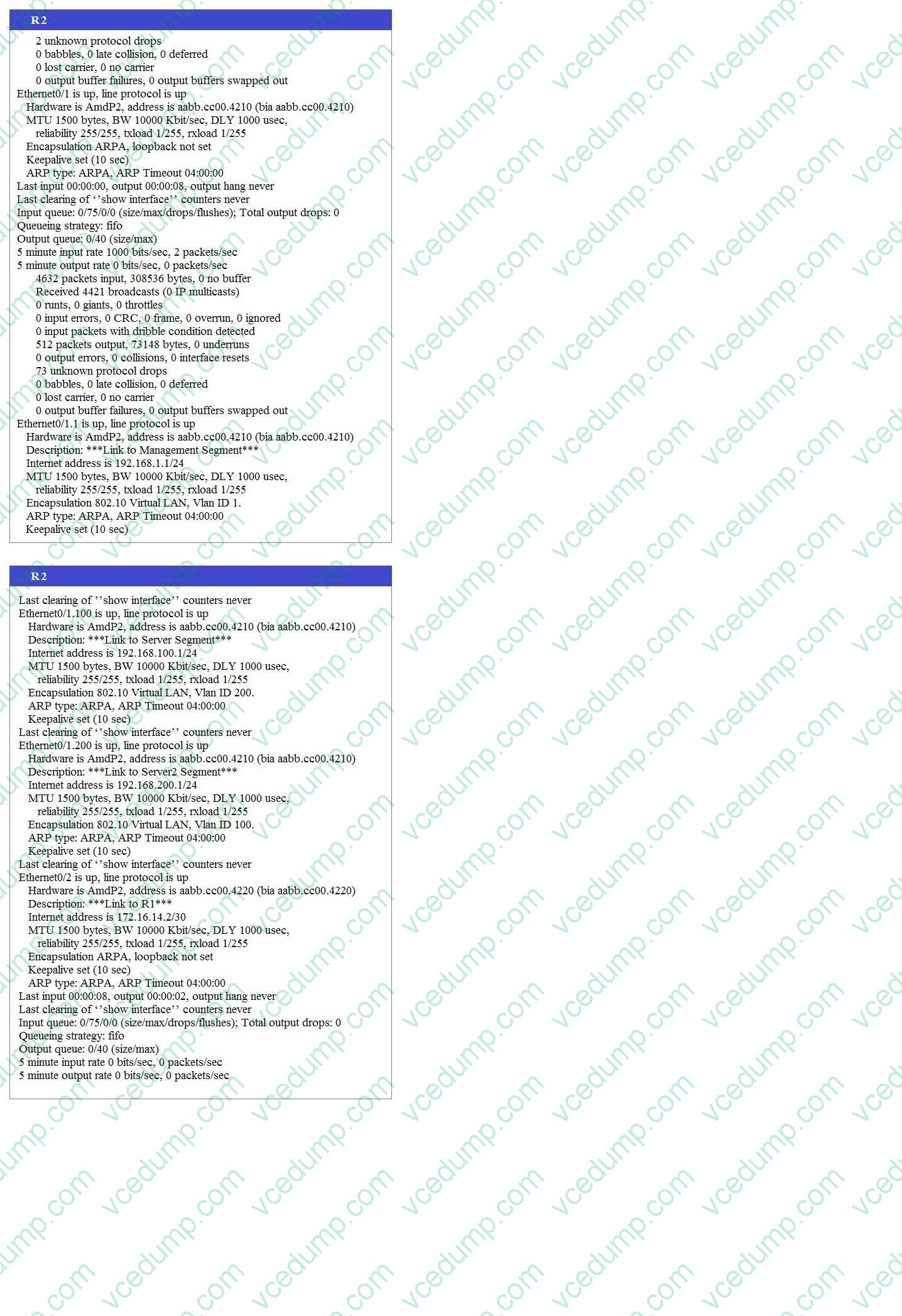

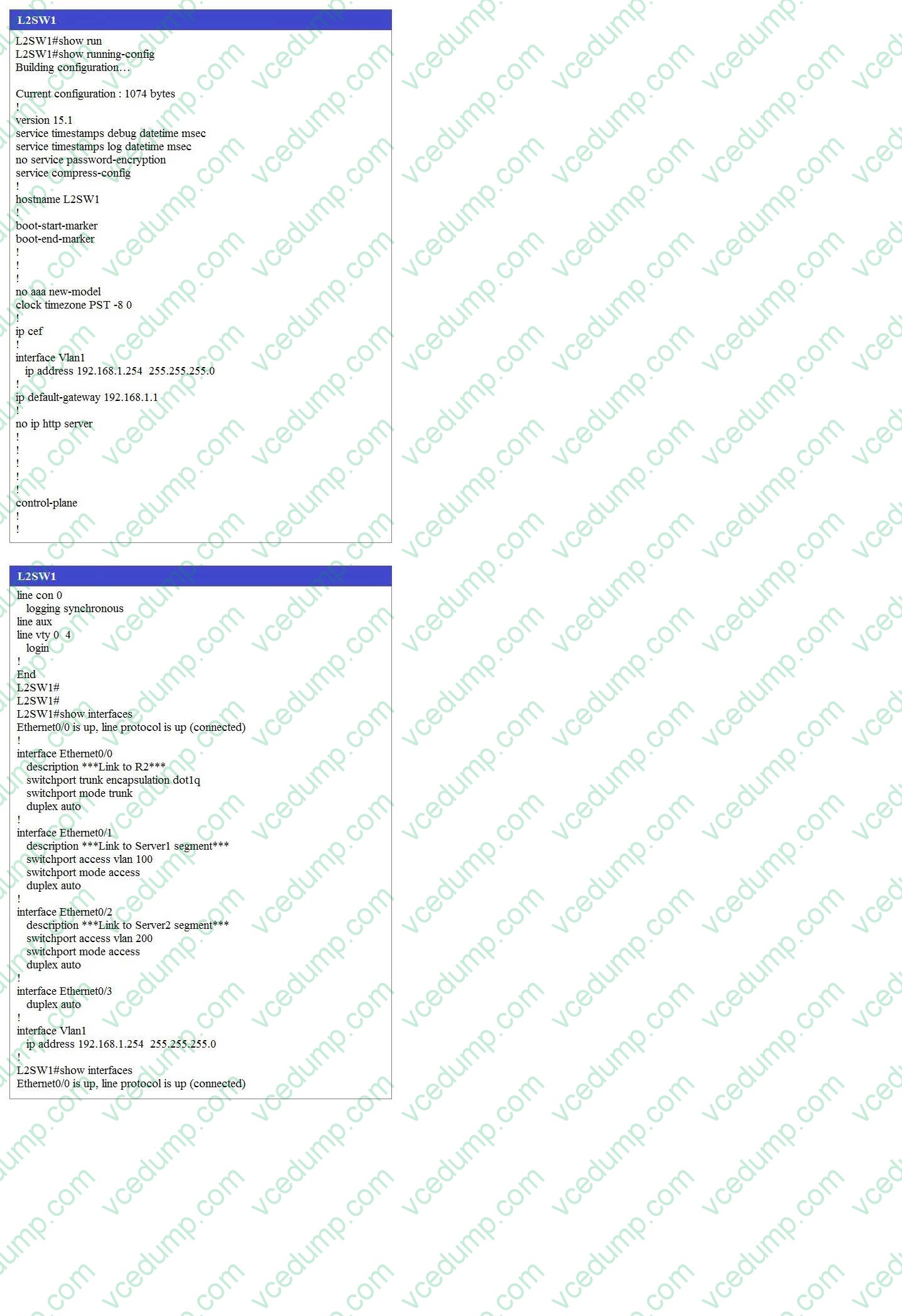

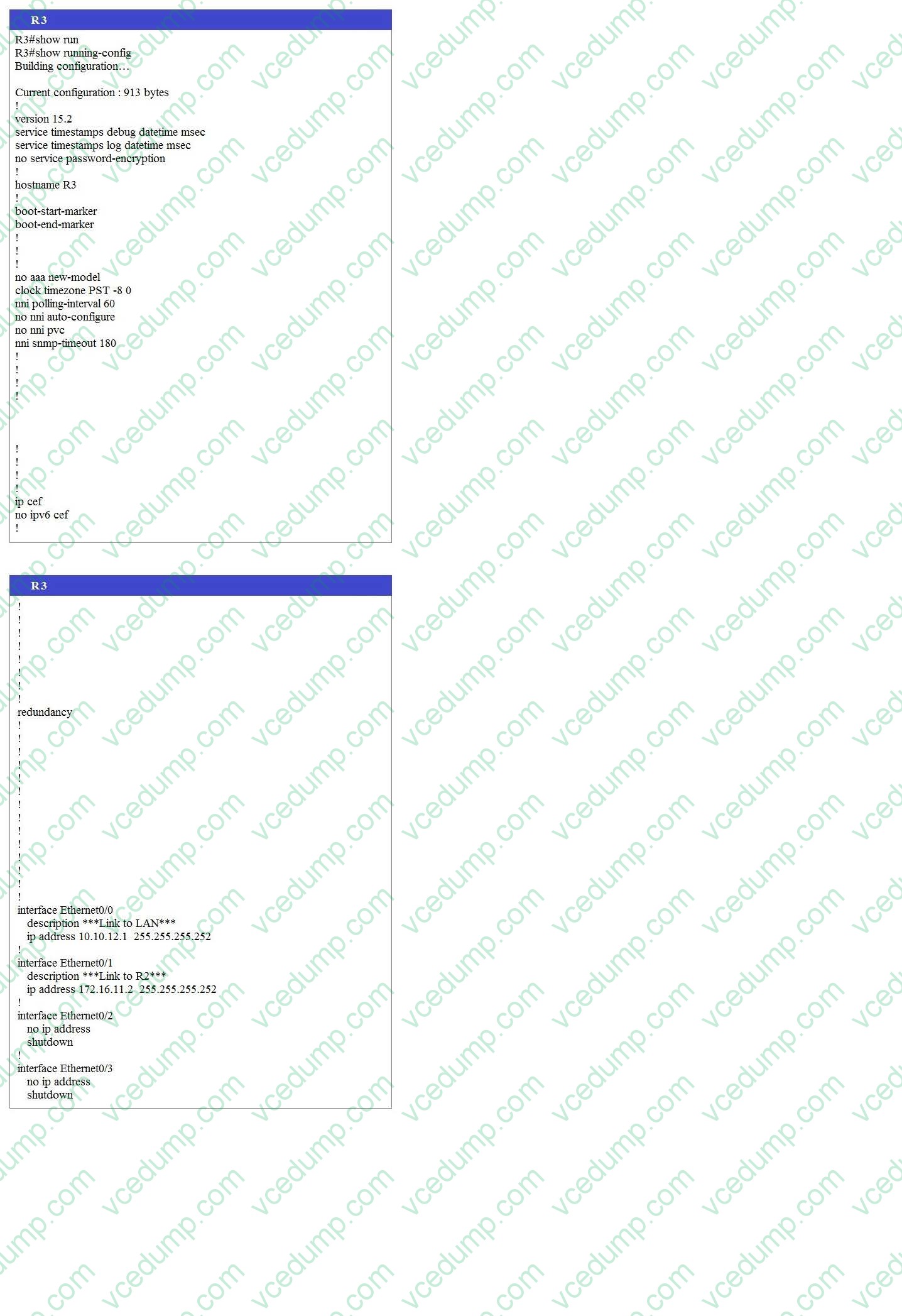

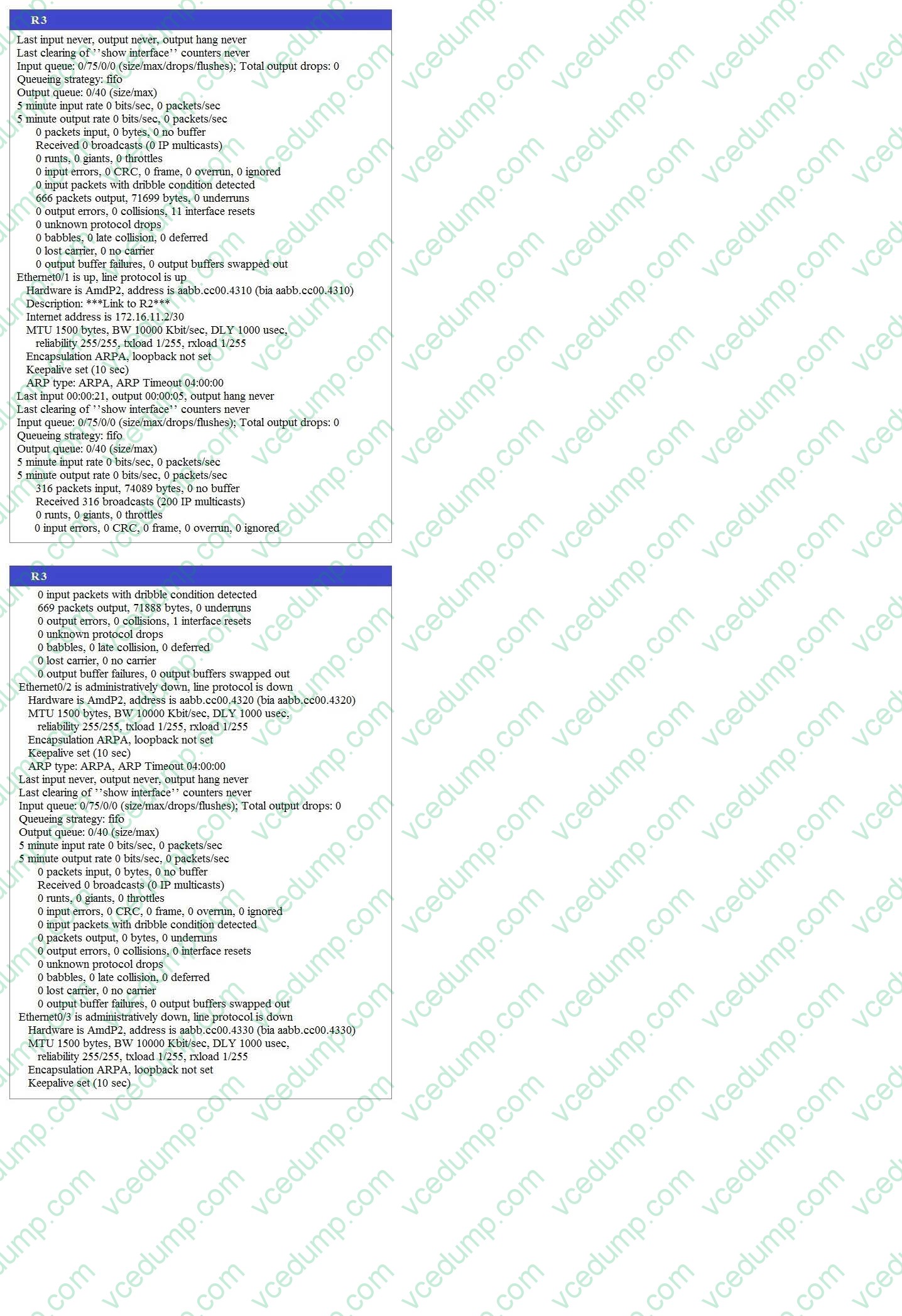

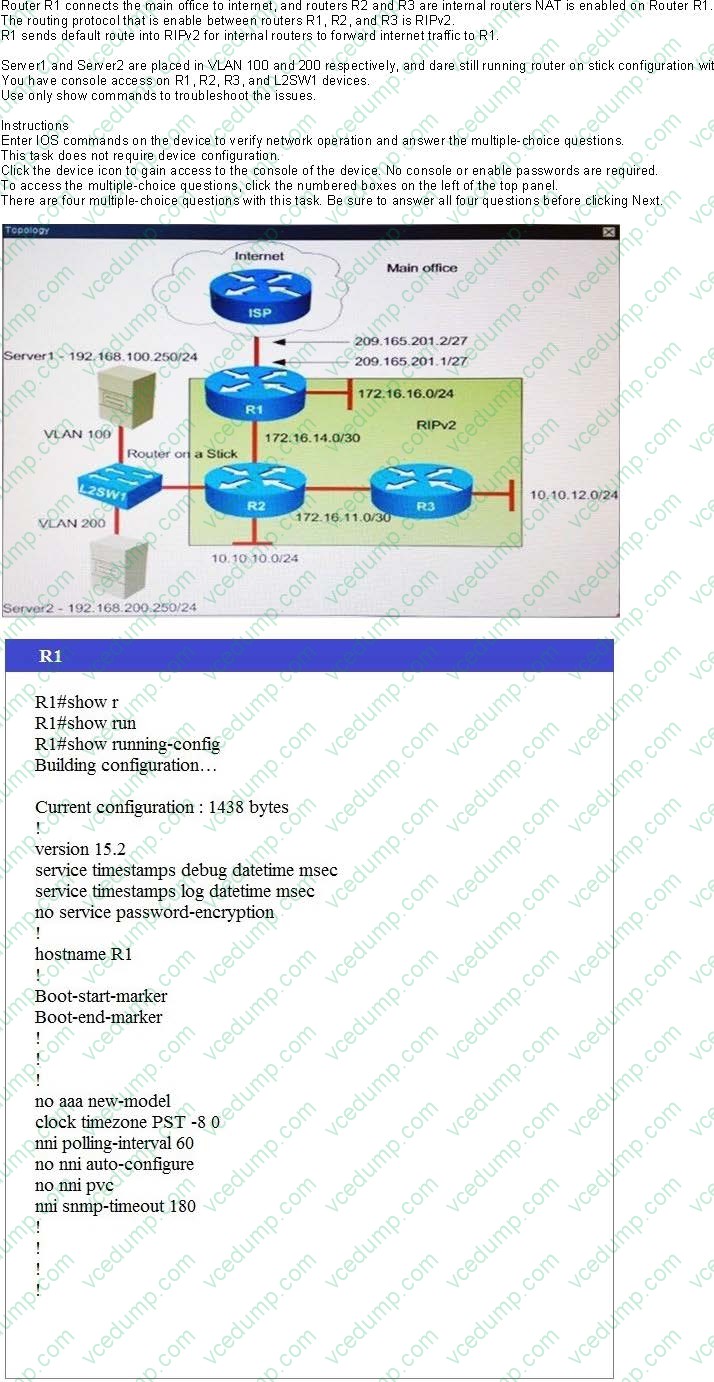

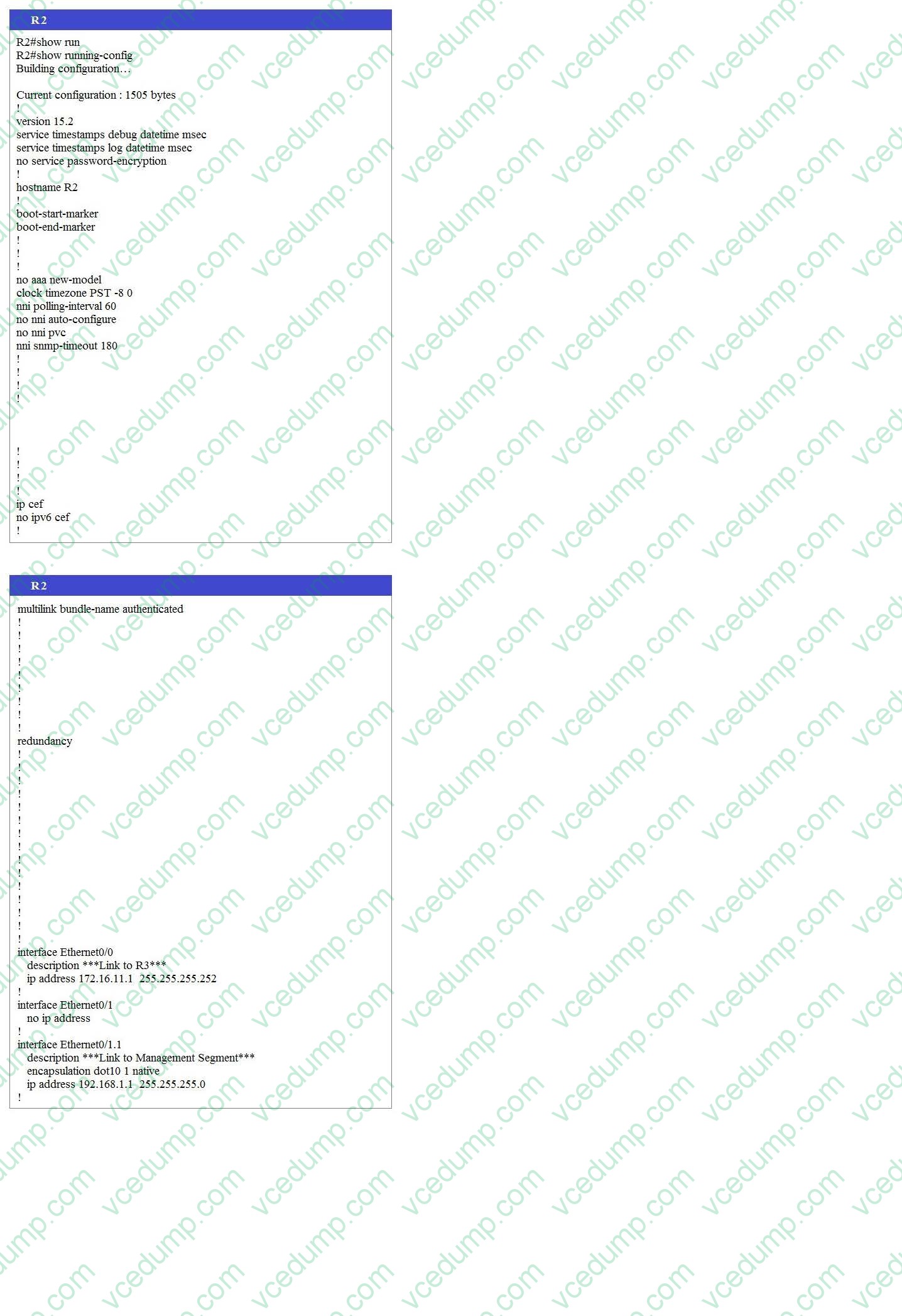

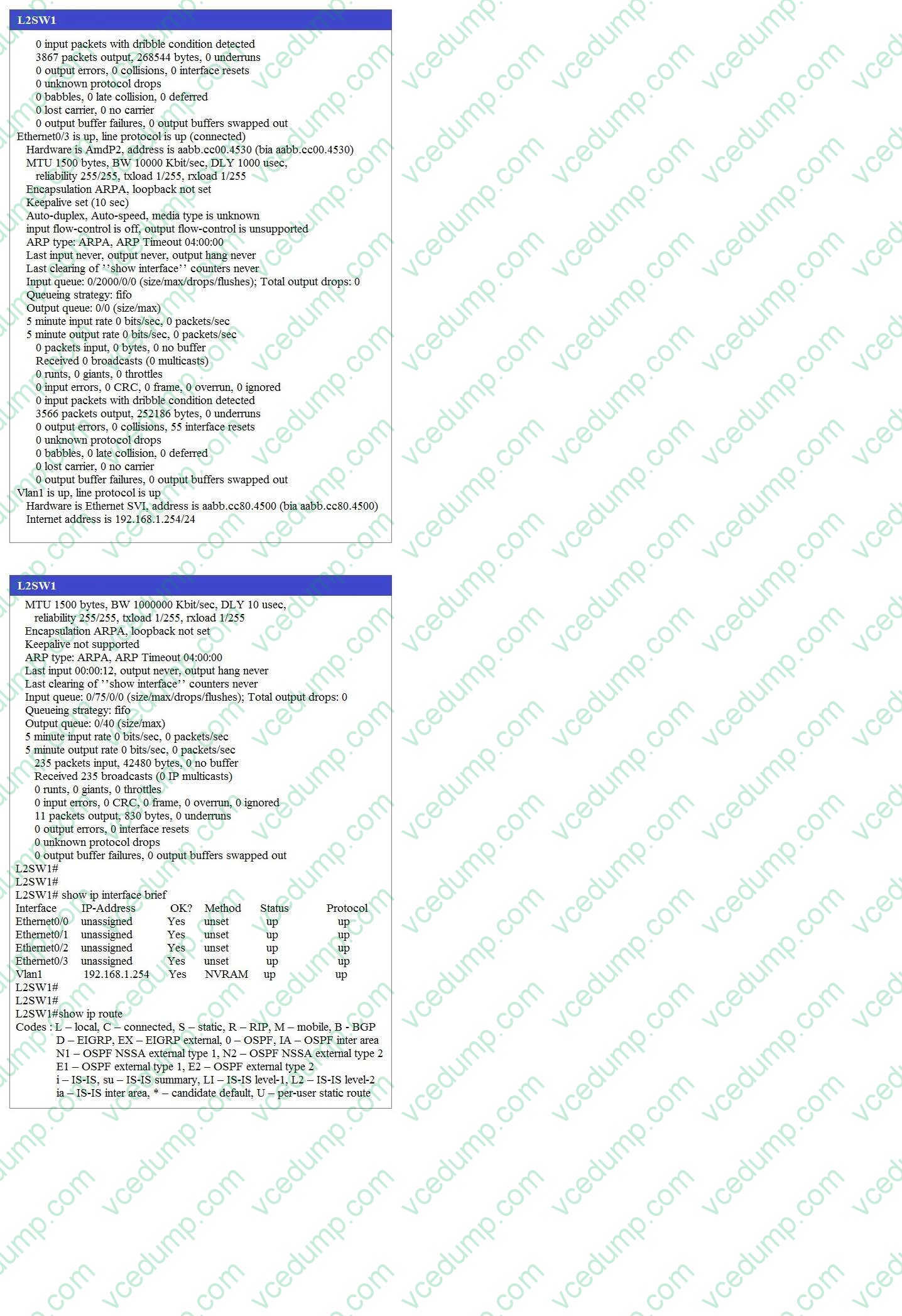

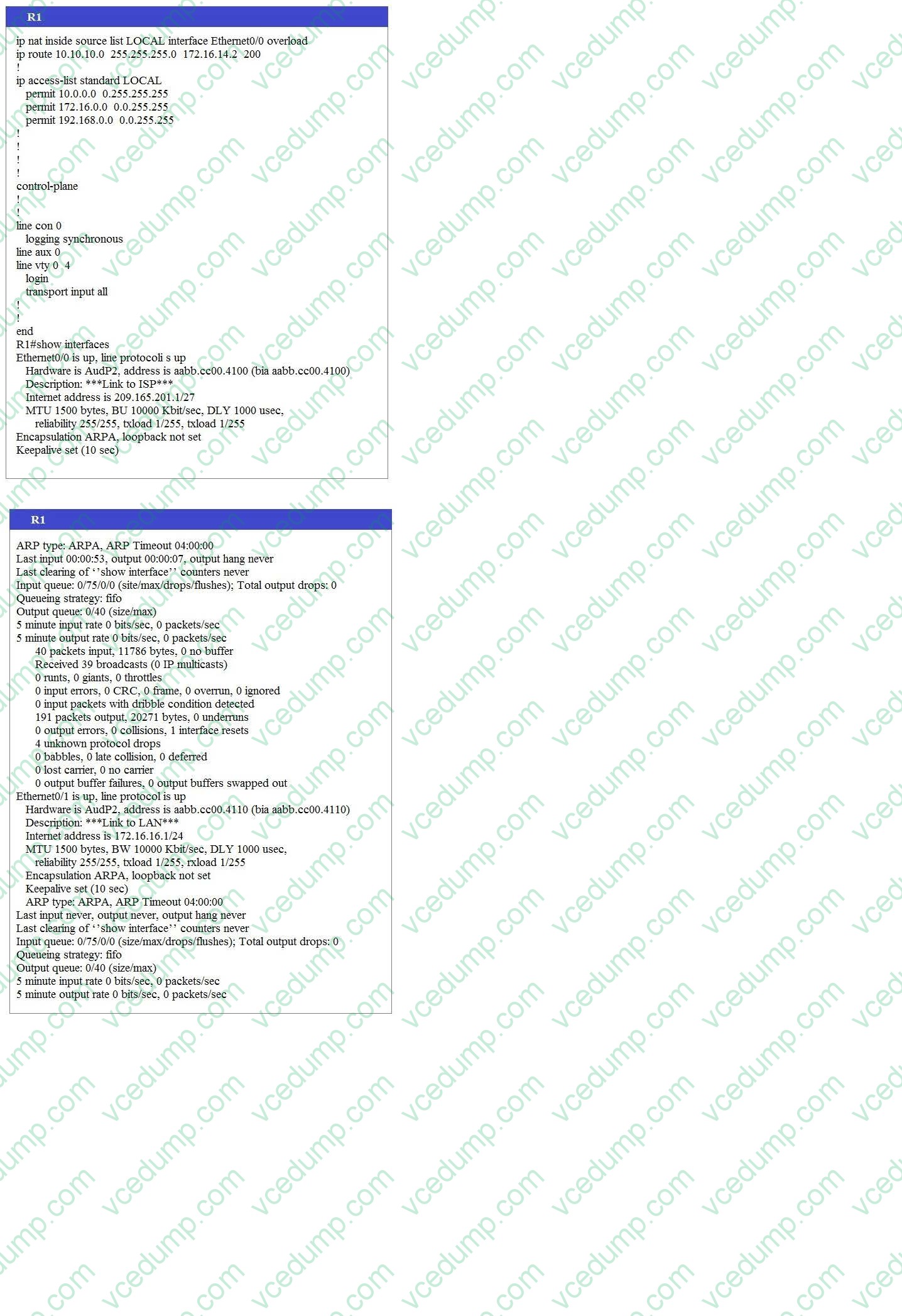

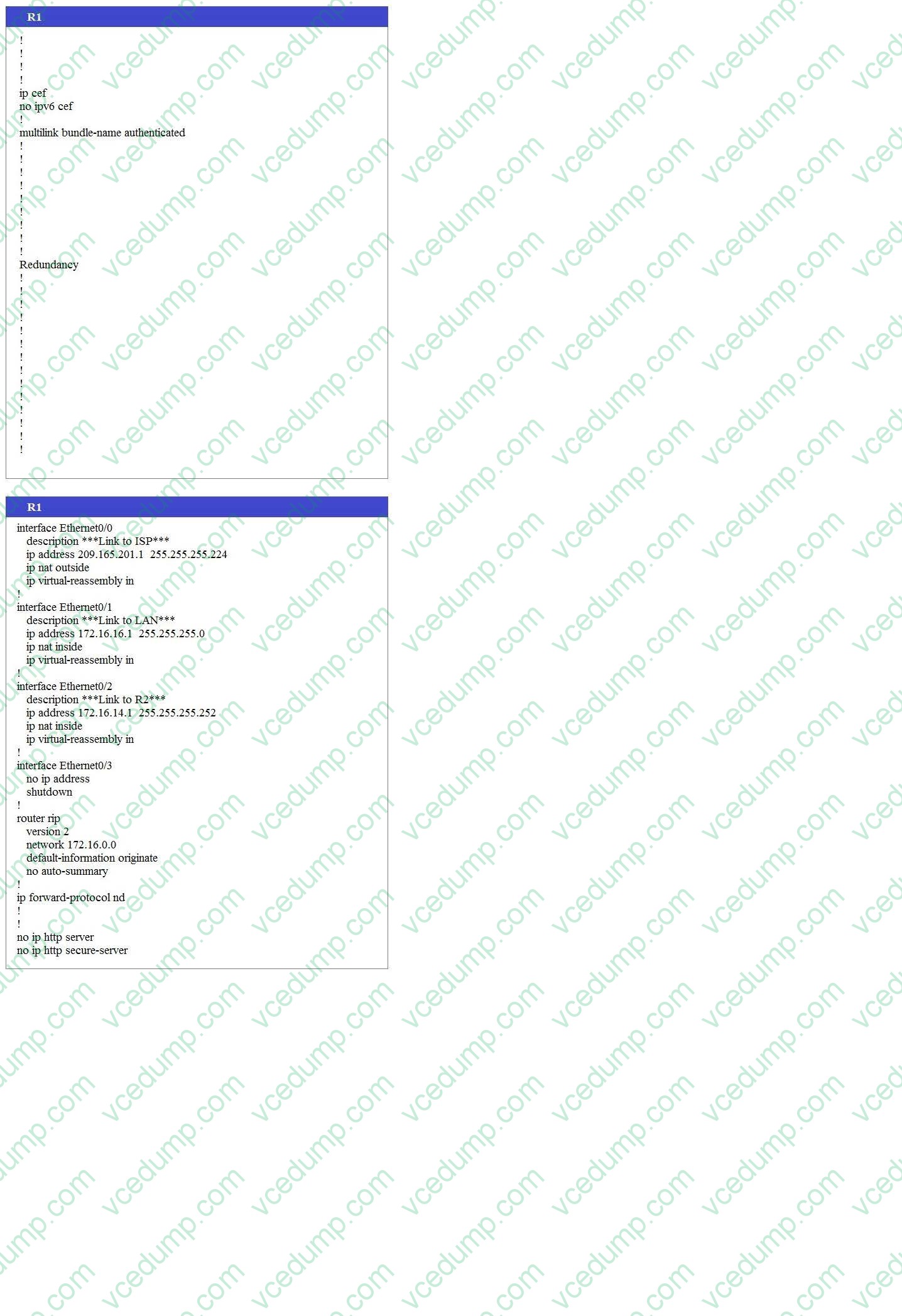

  Scenario:

  You work for a company that provides managed network services, and of your real estate clients running a small office is experiencing network issues, Troubleshoot the network issues.

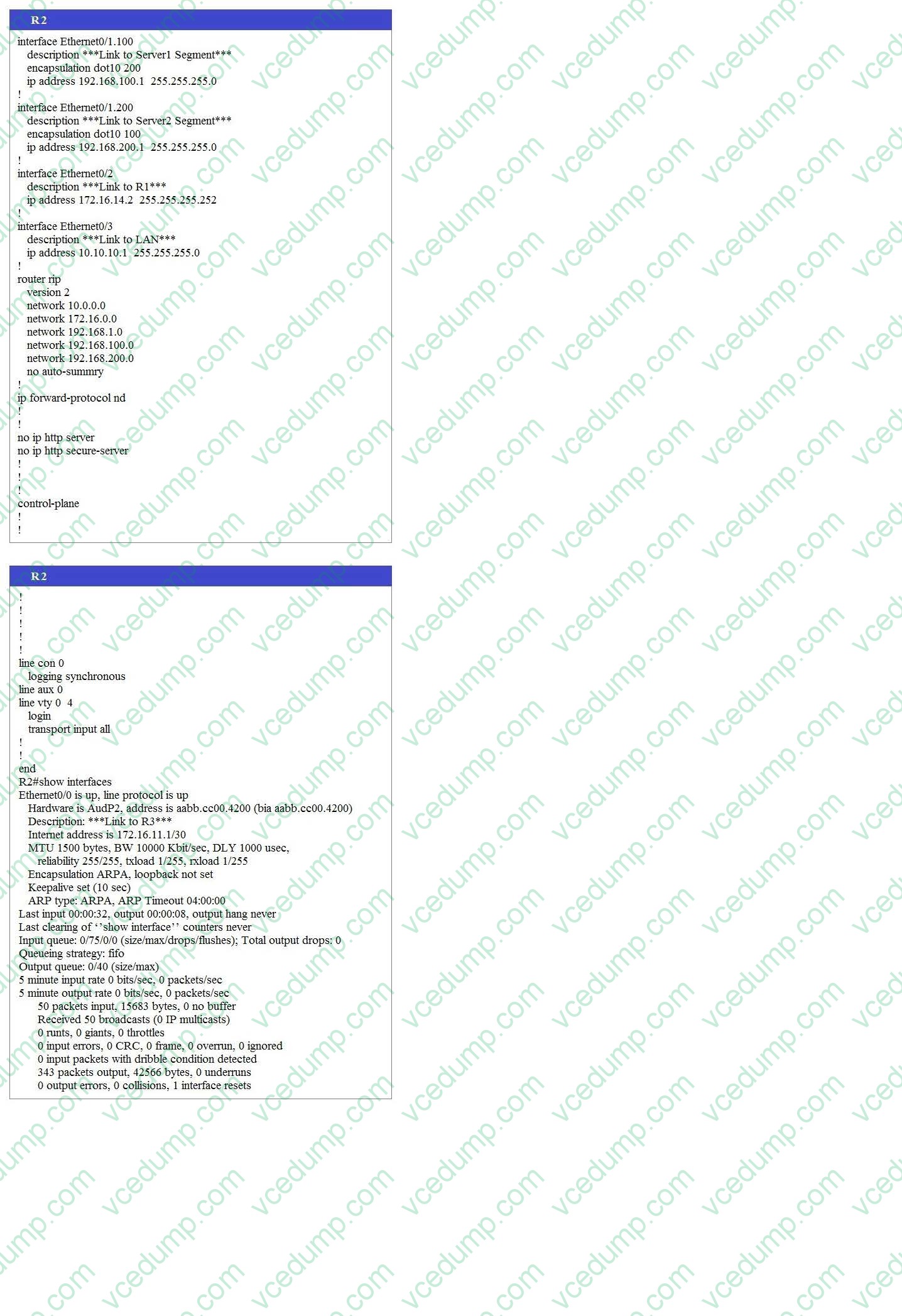

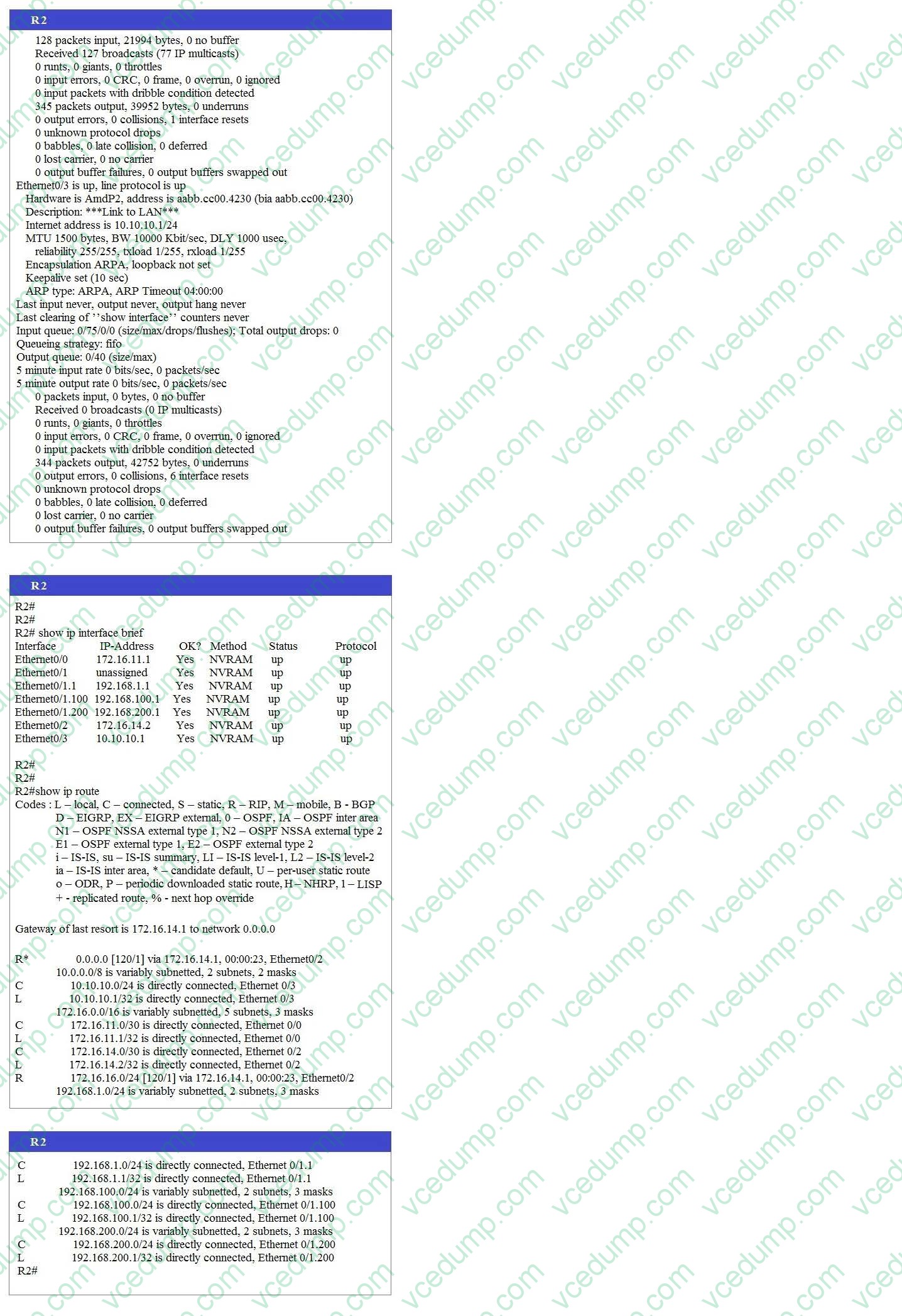

  Server1 and Server2 are placed in VLAN 100 and 200 respectively, and dare still running router on stick configuration with router R2.

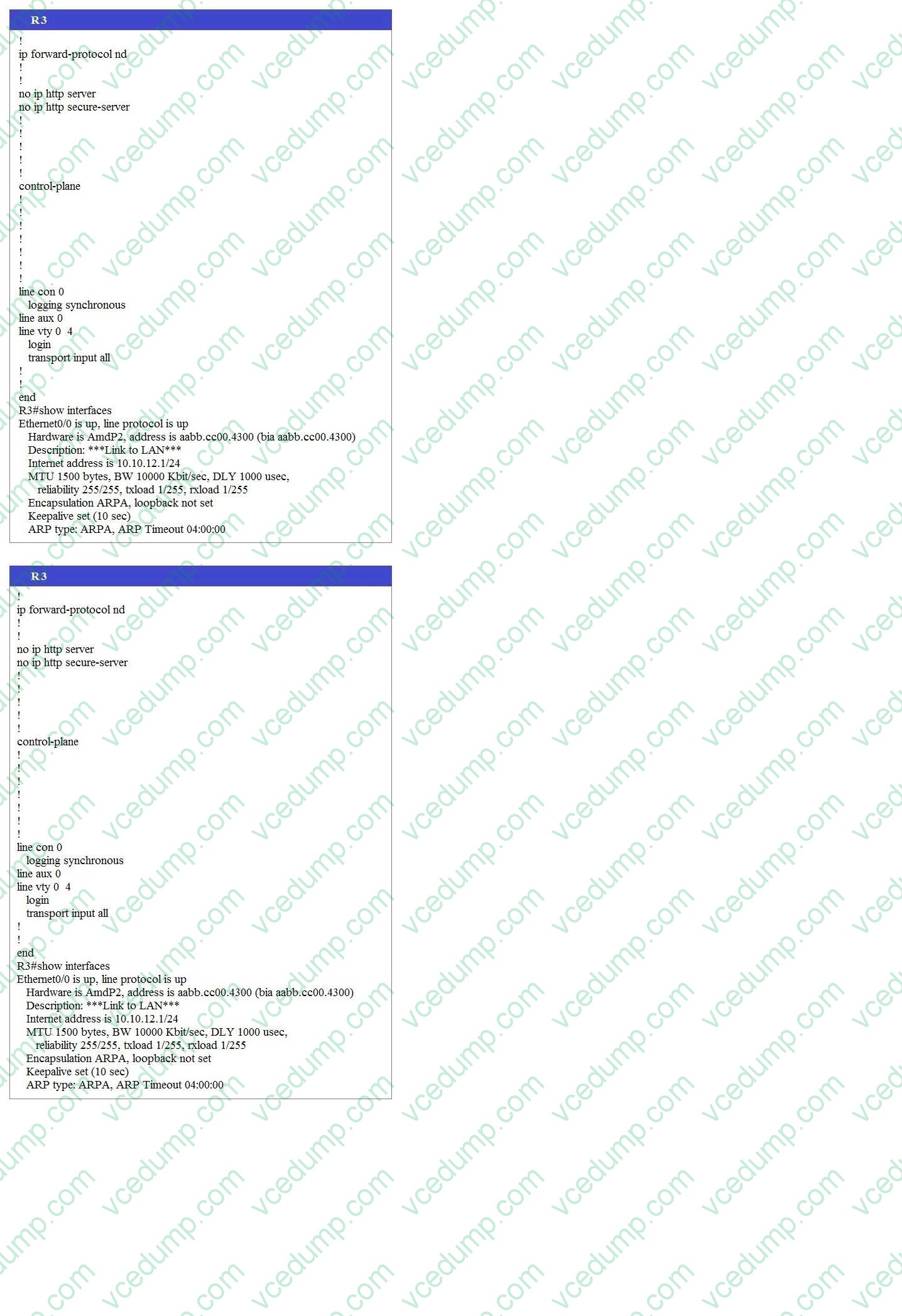

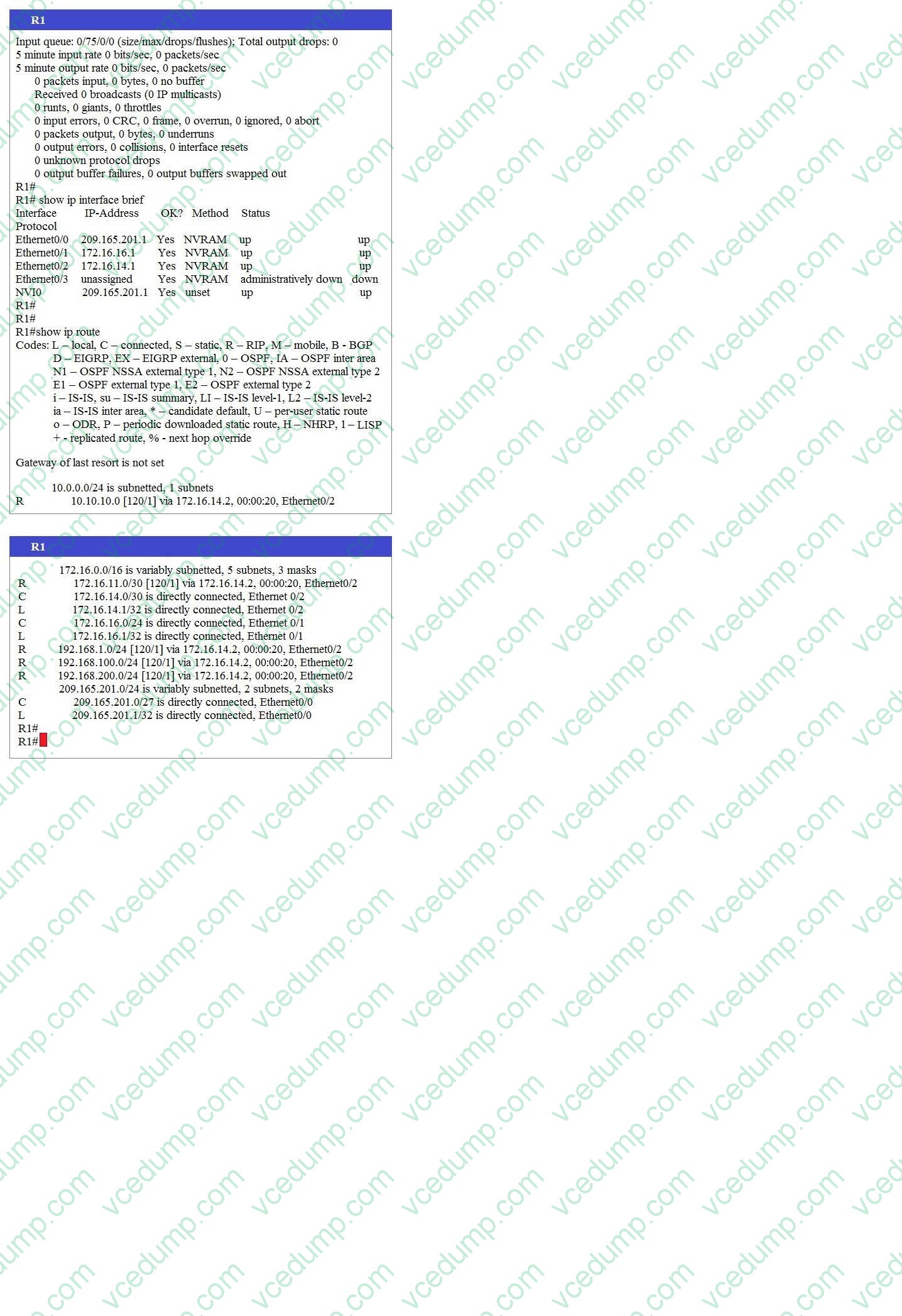

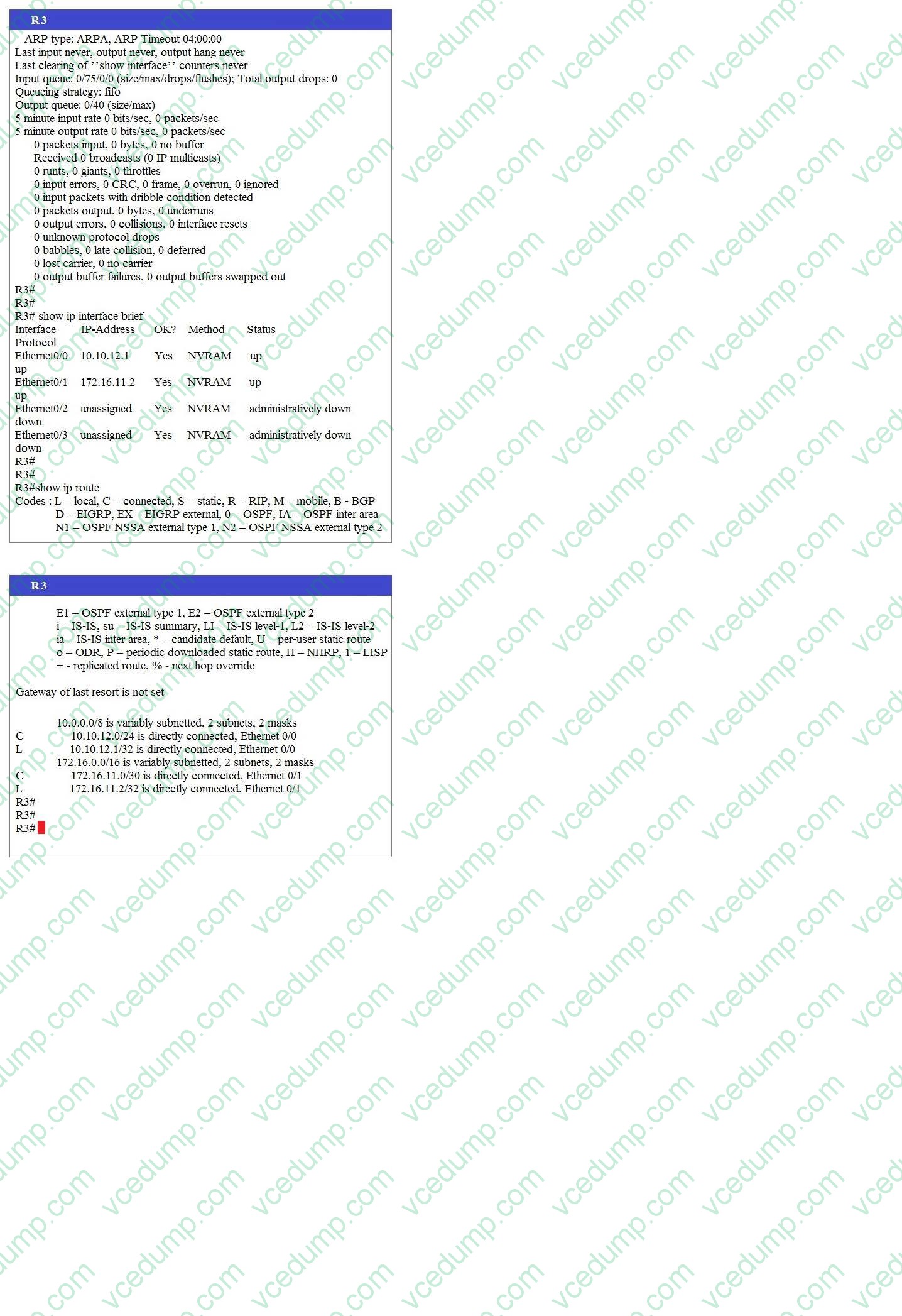

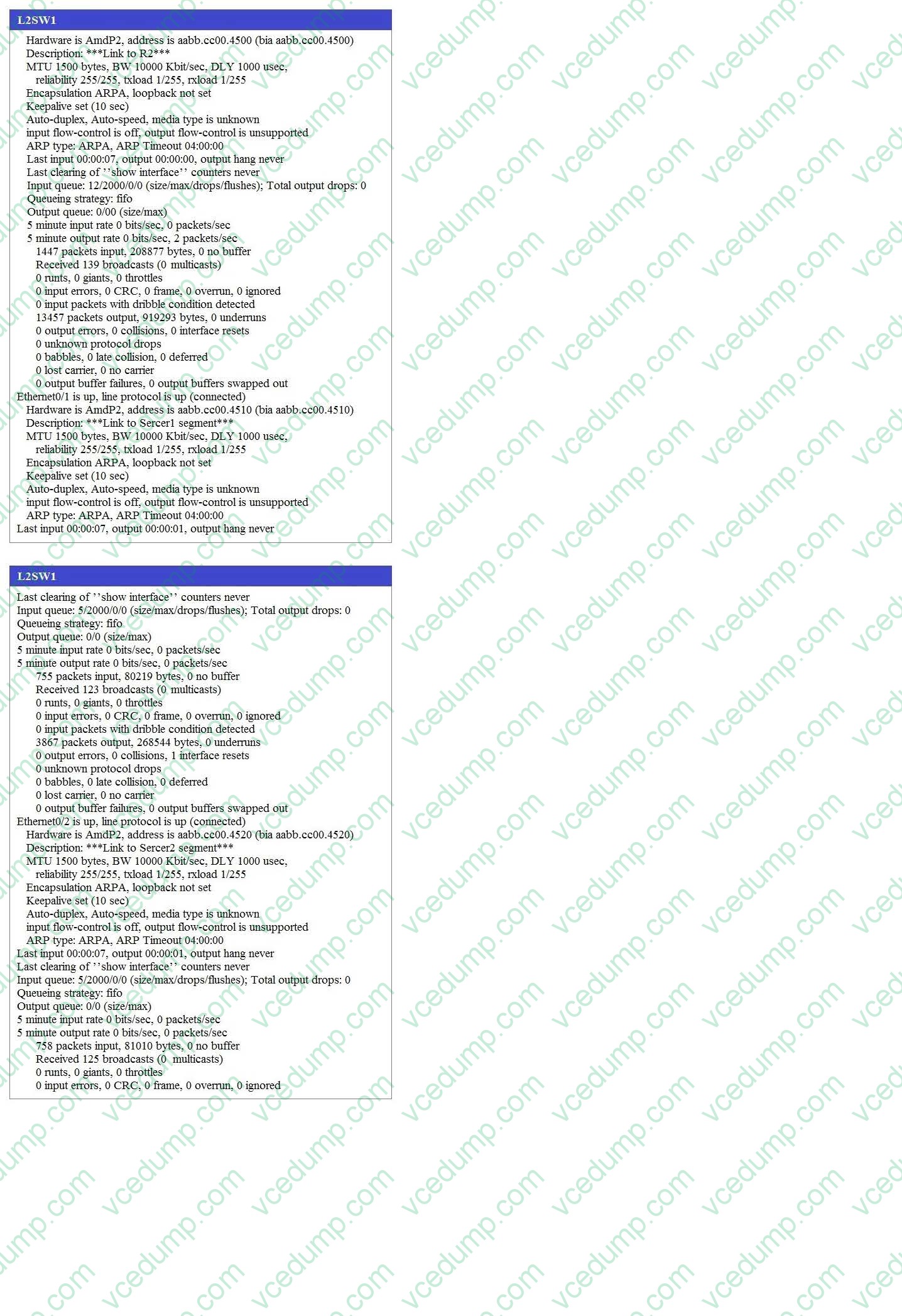

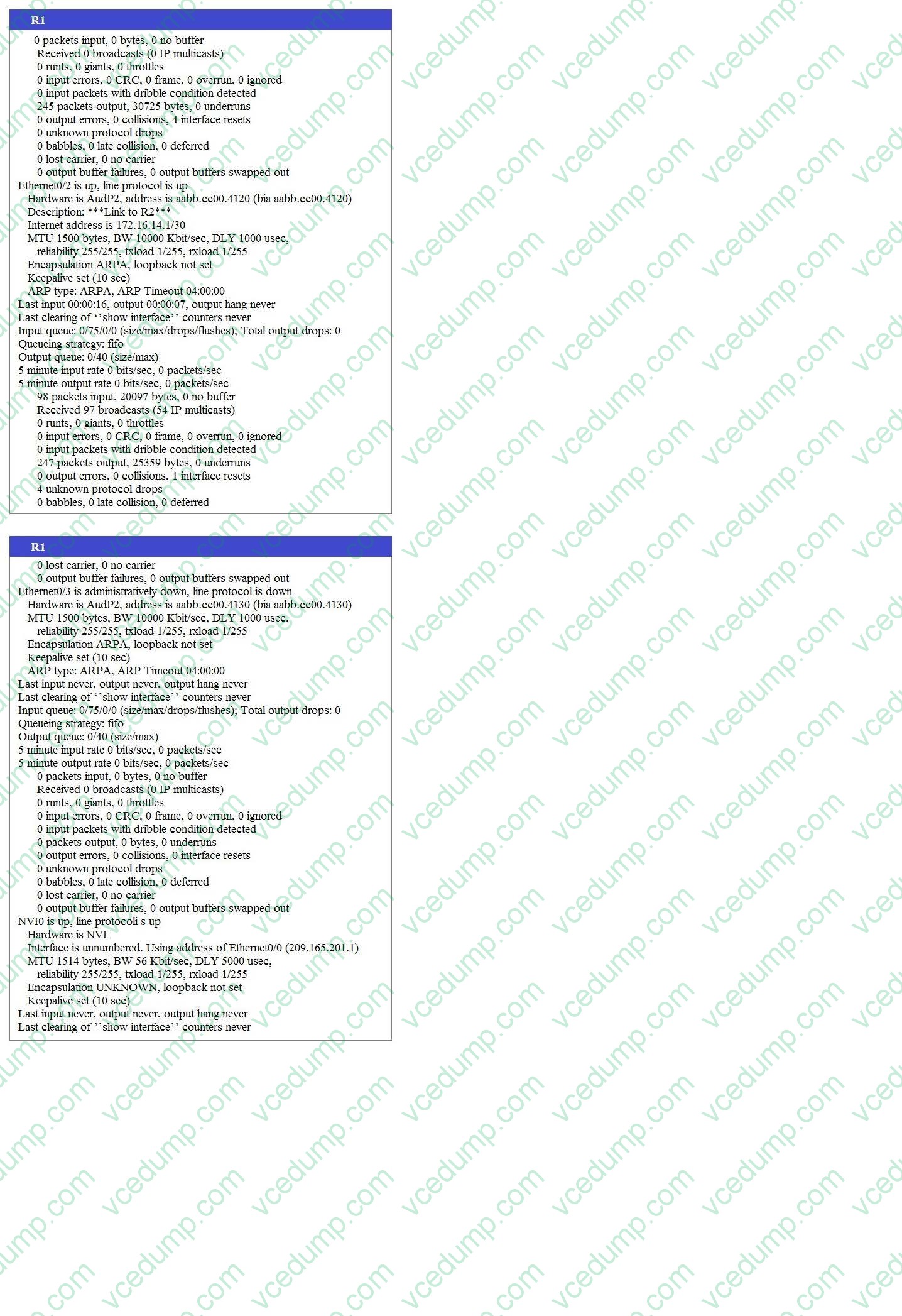

  You have console access on R1, R2, R3, and L2SW1 devices.

  Use only show commands to troubleshoot the issues.

  Instructions

  Enter IOS commands on the device to verify network operation and answer the multiple-choice questions.

  This task does not require device configuration.

  Click the device icon to gain access to the console of the device. No console or enable passwords are required.

  To access the multiple-choice questions, click the numbered boxes on the left of the top panel.

  There are four multiple-choice questions with this task. Be sure to answer all four questions before clicking Next.



  Router R1 connects the main office to internet, and routers R2 and R3 are internal routers NAT is enabled on Router R1.

  The routing protocol that is enable between routers R1, R2, and R3 is RIPv2.

  R1 sends default route into RIPv2 for internal routers to forward internet traffic to R1.

































  Server1 and Server2 are unable to communicate with the rest of the network.

  Your initial check with system administrators shows that IP address settings are correctly configured on the server side.

  What could be an issue?

  A. The VLAN encapsulation is misconfigured on the router subinterfaces.
  B. The Router is missing subinterface configuration.
  C. The Trunk is not configured on the L2SW1 switch.
  D. The IP address is misconfigured on the primary router interface.
  A. The VLAN encapsulation is misconfigured on the router subinterfaces.

• Question 233:

  What is the default administrative distance of OSPF?

  A. 90
  B. 100
  C. 110
  D. 120
  C. 110

• Question 234:

  Which protocol provides best-effort delivery of user data in a network?

  A. TCP
  B. MAC
  C. IP
  D. ARP
  E. SMTP
  C. IP

• Question 235:

  Which two network device types perform the translation of internal IP addresses to external IP addresses? (Choose two.)

  A. ACS
  B. routers
  C. bridges
  D. WLCs
  E. firewalls
  B. routers
  E. firewalls

• Question 236:

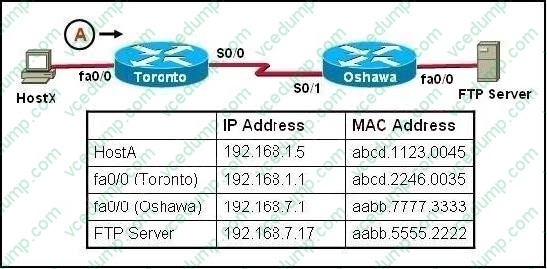

  Refer to the exhibit.



  HostX is transferring a file to the FTP server. Point A represents the frame as it goes toward the Toronto router. What will the Layer 2 destination address be at this point?

  A. abcd.1123.0045
  B. 192.168.7.17
  C. aabb.5555.2222
  D. 192.168.1.1
  E. abcd.2246.0035
  E. abcd.2246.0035

• Question 237:

  Refer to the exhibit.



  A company wants to use NAT in the network shown. Which commands will apply the NAT configuration to the proper interfaces? (Choose two.)

  A. R1(config)# interface serial0/1 R1(config-if)# ip nat inside
  B. R1(config)# interface serial0/1 R1(config-if)# ip nat outside
  C. R1(config)# interface fastethernet0/0 R1(config-if)# ip nat inside
  D. R1(config)# interface fastethernet0/0 R1(config-if)# ip nat outside
  E. R1(config)# interface serial0/1 R1(config-if)# ip nat outside source pool 200.2.2.18 255.255.255.252
  F. R1(config)# interface fastethernet0/0 R1(config-if)# ip nat inside source 10.10.0.0 255.255.255.0
  B. R1(config)# interface serial0/1 R1(config-if)# ip nat outside
  C. R1(config)# interface fastethernet0/0 R1(config-if)# ip nat inside

• Question 238:

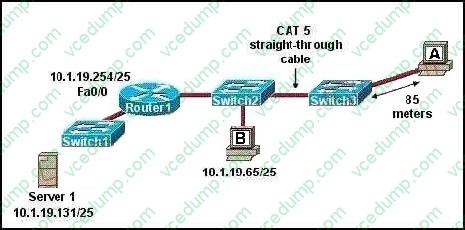

  The internetwork shown in the diagram is experiencing network connectivity problems. What is the cause of the problem?



  A. The cabling connecting host A to Switch3 is too long.
  B. The address of host B is a broadcast address.
  C. The IP address of interface Fa0/0 of Router1 is not a usable address.
  D. The cable connecting Switch2 and Switch3 should be a crossover.
  E. The IP address of Server 1 is in the wrong subnet.
  D. The cable connecting Switch2 and Switch3 should be a crossover.

• Question 239:

  Which two statements about RIPv2 are true? (Choose two)

  A. It must be manually enabled after RIP is configured as the routing protocol
  B. It uses multicast address 224.0.0.2 to share routing information between peers
  C. its default administrative distances 120
  D. It is a link-state routing protocol
  E. It is an EGP routing protocol
  A. It must be manually enabled after RIP is configured as the routing protocol
  C. its default administrative distances 120

• Question 240:

  Which feature facilitates the tagging of frames on a specific VLAN?

  A. Routing
  B. hairpinning
  C. switching
  D. encapsulation
  D. encapsulation
