VMware VCP-510 Online Practice Questions and Exam Preparation

VMware VCP-510 Online Questions & Answers

• Question 101:

  Which network settings are only available with vSphere Distributed Switches?

  A. Jumbo Frames
  B. PVLAN
  C. Load Balancing
  D. Promiscuous Mode
  B. PVLAN

• Question 102:

  An administrator is deploying several ESXi 5.x hosts. Centralized logging with accurate timestamps is a requirement for the deployment. Which two operations ensure these requirements are met? (Choose two.)

  A. Ensure TCP port 123 is not blocked
  B. Configure a syslog server on each host
  C. Configure ensure the hosts have the proper timezone configured
  D. Configure a syslog server on the vSphere Management Appliance
  A. Ensure TCP port 123 is not blocked
  D. Configure a syslog server on the vSphere Management Appliance

• Question 103:

  What is the proper LUN Masking configuration for LUNs presented to an ESX Host when using the Boot from SAN option?

  A. The Boot LUN should be masked so that only one ESX Host can see the LUN, while the datastore LUNS should be masked so that all ESX Hosts can see the LUNs
  B. The Boot LUN and datastore LUNS should be masked so that all ESX Hosts can see the LUNs
  C. The Boot LUN should be masked so that all ESX Hosts can see the LUN, while the datastore LUNS should be masked so that only one ESX Host can see the LUNs
  D. The Boot LUN and datastore LUNS should be masked so that only one ESX Host can see the LUNs
  A. The Boot LUN should be masked so that only one ESX Host can see the LUN, while the datastore LUNS should be masked so that all ESX Hosts can see the LUNs

• Question 104:

  What virtual machine action listed below can be performed on a template?

  A. Power on
  B. Clone
  C. Edit Settings
  D. Migrate
  B. Clone

• Question 105:

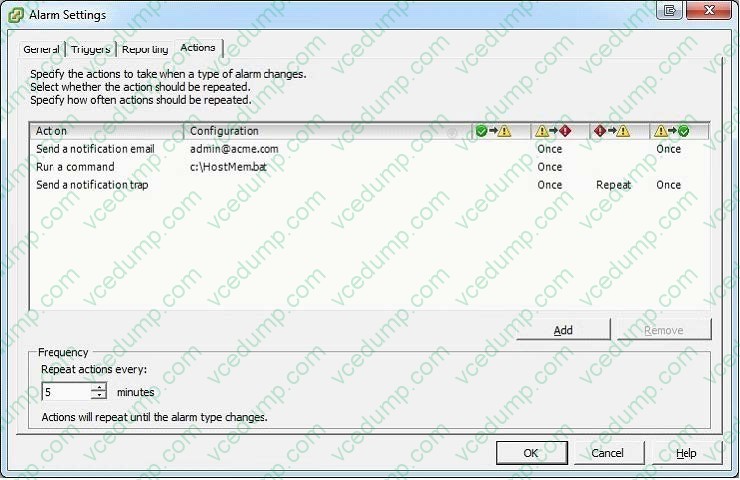

  Click the Exhibit button. An administrator is seeing a warning on one of their hosts. The warning in the Triggered Alarms panel appears to come from a custom configured host alarm. The administrator has not seen any actions taken for this alarm even though the actions are configured in the alarm definition. The configured actions are shown in the exhibit. What change can the administrator make to correct the problem?



  A. Configure the Alarm Frequency to repeat more often.
  B. Add an action for when the alarm changes from yellow to red.
  C. Add an action for when the alarm changes from green to yellow.
  D. Configure the alarm yellow to red action to repeat for all three actions configured.
  C. Add an action for when the alarm changes from green to yellow.

• Question 106:

  When PSA is coordinating the VMware NMP and any installed third-party MPPs, the MPPs perform which task?

  A. Implement logical device bandwidth sharing
  B. Handle I/O queuing to the logical devices
  C. Provide logical device and physical path I/O statistics
  D. Manage physical path claiming and unclaiming
  D. Manage physical path claiming and unclaiming

• Question 107:

  An administrator is responsible for enabling file access for desktop users. Many users have complained that they cannot access their files. An alert in the vSphere Client states that the storage connectivity alarm for all hosts has been triggered. The storage screen indicates that everything is connected, but the triggered alert has not been acknowledged. Which action will correct the user access problem?

  A. Rescan the storage on the file-sharing virtual machine on which the users are seeing the problem.
  B. Reconnect the storage containing the user files to all hosts in the cluster, then Refresh datastores on all hosts in the cluster.
  C. Tell each user to reboot their computer.
  D. Reconnect the storage containing the user files to all hosts in the cluster, then Rescan datastores on all hosts in the cluster.
  D. Reconnect the storage containing the user files to all hosts in the cluster, then Rescan datastores on all hosts in the cluster.

• Question 108:

  The page file for a Windows guest operating system or the swap partition for a Linux guest operating system is created by.

  A. the ESXi host
  B. the guest operating system
  C. vCenter server
  D. the VMFS datastore
  B. the guest operating system

• Question 109:

  A request has been made to the SAN administrator to provision a new LUN. A LUN (LUN 6) is created, and the SAN administrator presents the LUN to an ESXi 5.x host, using the storage array SAN management software. The administrator looks at the Storage configuration for the ESXi host, and does not see the new LUN. Other LUNs from the same storage array are visible. Which two conditions are most likely to cause the error described? (Choose two.)

  A. The administrator has not performed a Rescan All on the ESXi host.
  B. The multipathing policy has been set to Fixed for the LUN.
  C. Zoning on the Fibre Channel switches is not configured correctly.
  D. The LUN was not presented to the correct ESXi host.
  A. The administrator has not performed a Rescan All on the ESXi host.
  D. The LUN was not presented to the correct ESXi host.

• Question 110:

  Which of the following are true about the share value for a virtual machine after it has been added to a Resource Pool (Choose Two)?

  A. If a previously defined share level (high, medium, low) exists, the %Shares value is adjusted to reflect the total number of shares in use in the Resource Pool.
  B. If a previously defined custom share value exists, the %Shares value is adjusted to reflect the total number of shares in use in the Resource Pool.
  C. If a previously defined share level (high,medium,low) exists, the %Shares value is maintained.
  D. If a previously defined custom share value exists, the %Shares value is maintained
  A. If a previously defined share level (high, medium, low) exists, the %Shares value is adjusted to reflect the total number of shares in use in the Resource Pool.
  D. If a previously defined custom share value exists, the %Shares value is maintained
