UiPath UIPATH-ADAV1 Online Practice Questions and Exam Preparation

UiPath UIPATH-ADAV1 Online Questions & Answers

• Question 31:

  Which of the following statements accurately describes the primary components of a State Machine in a workflow?

  A. A State Machine consists of four primary components: States, Triggers, Transitions, and Actions.
  B. A State Machine is composed of States, Triggers, and Loops.
  C. A State Machine comprises three main components: Sequences, Flowcharts, and Input/Output Arguments.
  D. A State Machine is made up of States, Transitions, Entry Actions, and Exit Actions.
  D. A State Machine is made up of States, Transitions, Entry Actions, and Exit Actions.

  ---

  Explanation

• Question 32:

  What are the differences between the Workbook Write Range and Excel Application Integration Write Range activities in writing a DataTable to an Excel file?

  A. (Excel) Write Datatable to Excel activity only works in the background. (Workbook) Write Range activity requires that the file is not opened by the user before running.
  B. (Excel) Write Datatable to Excel activity only works in the foreground, visible to the user. (Workbook) Write Range activity only works in the background.
  C. (Excel) Write Datatable to Excel activity will create the file in the WorkbookPath property if it does not exist. (Workbook) Write Range activity can only be used when Excel is installed.
  D. (Excel) Write Datatable to Excel activity will execute correctly even if the file is opened by the user before running. (Workbook) Write Range activity will create the file in the WorkbookPath property if it does not exist.
  D. (Excel) Write Datatable to Excel activity will execute correctly even if the file is opened by the user before running. (Workbook) Write Range activity will create the file in the WorkbookPath property if it does not exist.

  ---

  Explanation

  The difference between "Workbook Write Range" and "Excel Application Integration Write Range" activities is that the "Excel Application Integration Write Range" (also known as "Excel Write Range") activity can execute correctly even if the Excel file is already opened by the user before running. It interacts with Excel as an application, making it visible and allowing for interaction with the Excel interface. On the other hand, the "Workbook Write Range" activity works in the background, does not require Excel to be installed, and will create the Excel file in the specified path if it does not exist. So, the correct answer is

  D.

  References: UiPath Activities Guide: Excel Write Range UiPath Activities Guide: Workbook Write Range

• Question 33:

  A developer needs to create an unattended automation process that extracts the information from emails from a centralized mailbox. The developer needs to use the mail folder, port, server, username, and password values, with no email client accessible on the unattended machine.

  Which activity should the developer use to fetch unread emails with the subject "Email for Robot"?

  A. Save Mail Message
  B. Get Outlook Mail Messages
  C. Save Outlook Mail Message
  D. Get IMAP Mail Messages
  D. Get IMAP Mail Messages

  ---

  Explanation

  For an unattended automation process that extracts information from emails on an unattended machine without an email client, the "Get IMAP Mail Messages" activity should be used. This activity allows the developer to fetch emails from an IMAP server using the mail folder, port, server, username, and password, which are suitable for scenarios where email clients are not accessible.

  References: UiPath Activities Guide: Get IMAP Mail Messages

• Question 34:

  A developer is reviewing an existing workflow in UiPath Studio Based on best practices, what should be used to view the available versions for activities used in the workflow?

  A. Workflow Analyzer
  B. Project Dependencies
  C. Project Settings
  D. Ul Explorer
  B. Project Dependencies

  ---

  Explanation

  To view the available versions for activities used in the workflow, the Project Dependencies option should be used. The Project Dependencies option is located in the Project panel in UiPath Studio. It shows the list of all the packages and activities that are used in the current project, along with their current versions and available updates. The Project Dependencies option also allows the developer to install, update, or remove packages and activities, as well as view their details and documentation2. By using the Project Dependencies option, the developer can ensure that the project is using the latest and compatible versions of the activities, and avoid any errors or conflicts that might arise from outdated or missing packages3.

  References: Managing Dependencies and Project Dependencies Mass Update from UiPath documentation and forum.

• Question 35:

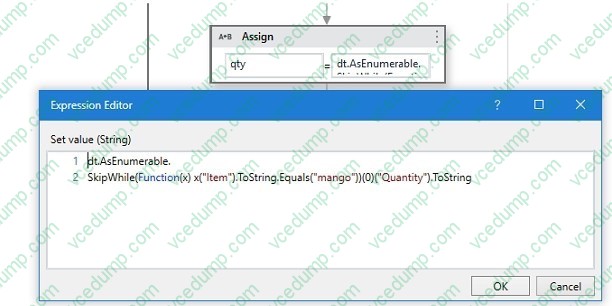

  The following table is stored in a variable called "dt".



  What will the value of the qty variable be after executing the Assign activity?



  A. 5
  B. 10
  C. 80
  D. null
  C. 80

  ---

  Explanation

  The Assign activity is used to assign a value to a variable. In this case, the variable is "qty". The value of the variable will be 80 after executing the Assign activity because the expression in the Assign activity is "dt.AsEnumerable().Where

  (Function(x) x("Item").ToString.Equals("mango")).Select(Function(y) y("Quantity")).ToString". This expression is filtering the data table "dt" for rows where the "Item" column is equal to "mango" and then selecting the "Quantity" column from

  those rows. Since there is only one row in the data table where "Item" is equal to "mango", the value of the "Quantity" column in that row is 80. (UiPath Studio documentation)

  References:

  : [Assign - UiPath Activities].

• Question 36:

  What is the purpose of the Invoke Code activity in UiPath?

  A. Invokes VB.NET or C# code, optionally passing it a list of input arguments.
  B. Invokes VB.NET or Java code, optionally passing it a list of input arguments.
  C. Invokes VB.NET code, optionally passing it a list of input arguments.
  D. Invokes Java code, optionally passing it a list of input arguments.
  A. Invokes VB.NET or C# code, optionally passing it a list of input arguments.

  ---

  Explanation

  The Invoke Code activity in UiPath is an activity that allows developers to execute custom code written in VB.NET or C# within a workflow. The activity can accept a list of input arguments and return a list of output arguments, which can be used to exchange data between the code and the workflow. The activity can also access the variables and arguments defined in the current scope of the workflow. The Invoke Code activity can be useful for scenarios where the existing activities do not meet the specific requirements or logic of the automation process. (UiPath Automation Developer study guide)

  References: Invoke Code How To Use Invoke Code Activity - In UiPath

• Question 37:

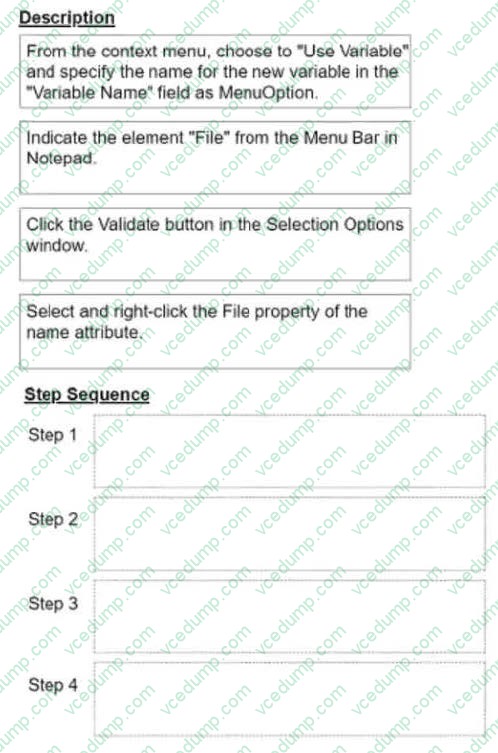

  DRAG DROP

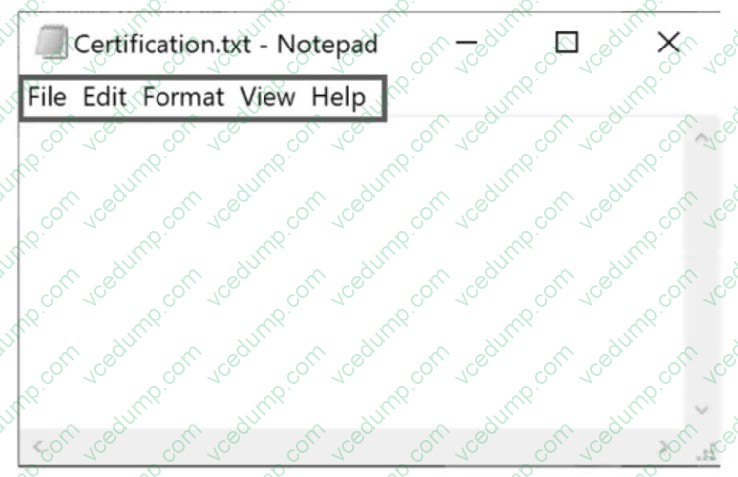

  A developer aims to set up a single Click activity that can click on all menu items within the Notepad application's Menu Bar.



  Referring to the exhibit, what is the proper order of steps to update the dynamic variable?

  Instructions: Drag the Description found on the left and drop on the correct Step Sequence found on the right.

  Select and Place:

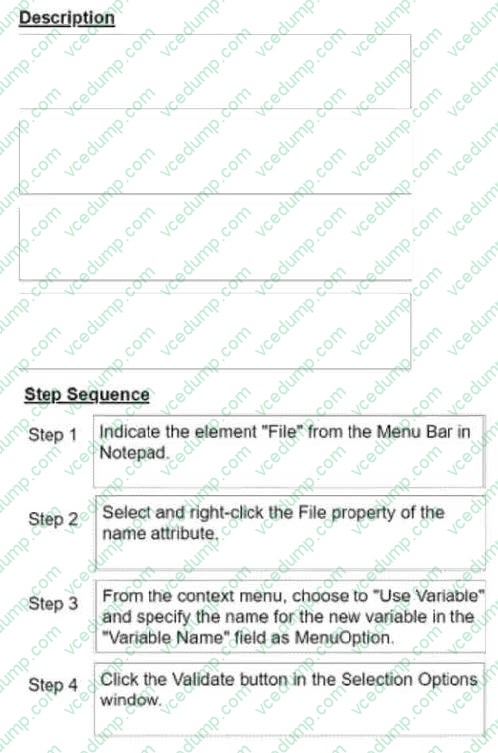

  Explanation

  STEP 1: Indicate the element "File" from the Menu Bar in Notepad.

  STEP 2: Select and right-click the File property of the name attribute.

  STEP 3: From the context menu, choose to "Use Variable" and specify the name for the new variable in the "Variable Name" field as MenuOption.

  STEP 4: Click the Validate button in the Selection Options window.

• Question 38:

  When a developer runs a process using the REFramework, with the process utilizing Orchestrator queues and a queue already created with the Name provided and the Auto Retry function disabled, which states will be executed without errors?

  A. Initialization -> Process Transaction -> End Process
  B. Initialization -> Get Transaction Data -> Process Transaction -> End Process
  C. Initialization -> Get Transaction Data -> End Process
  D. Initialization -> End Process
  B. Initialization -> Get Transaction Data -> Process Transaction -> End Process

  ---

  Explanation

  The REFramework is a template that provides a structured and consistent way to develop automation processes using state machines. The REFramework has four main states: Initialization, Get Transaction Data, Process Transaction, and End Process. Each state performs a specific function and transitions to another state based on the outcome. When a developer runs a process using the REFramework, with the process utilizing Orchestrator queues and a queue already created with the Name provided and the Auto Retry function disabled, the following states will be executed without errors: Initialization: This state is used to initialize the application, read the configuration data, and log in to Orchestrator. If the initialization is successful, the state transitions to Get Transaction Data; otherwise, it transitions to End Process. (UiPath ReFramework documentation1) Get Transaction Data: This state is used to retrieve a transaction item from the Orchestrator queue and assign it to a variable. If there is a transaction item available, the state transitions to Process Transaction; otherwise, it transitions to End Process. (UiPath ReFramework documentation1) Process Transaction: This state is used to execute the business logic for the current transaction item and handle any exceptions that may occur. If the transaction is successful, the state updates the status of the transaction item to Successful and transitions to Get Transaction Data; if the transaction fails due to a business exception, the state updates the status of the transaction item to Failed and transitions to Get Transaction Data; if the transaction fails due to a system exception, the state updates the status of the transaction item to Failed and retries the transaction based on the MaxRetryNumber parameter from the Config file. If the retry limit is reached, the state transitions to End Process; otherwise, it transitions to Get Transaction Data. (UiPath ReFramework documentation1) End Process: This state is used to close all applications, log out of Orchestrator, and terminate the process. This state does not have any transition. (UiPath ReFramework documentation1)

  References:

  1: Robotic Enterprise Framework Template - UiPath Studio.

• Question 39:

  Which set of properties, methods, or activities enables the developer to obtain a subset of data from a data table called "dt"?

  A. Output Data Table Lookup Data Table Build Data Table Merge Data Table
  B. Sort Data Table Join Data Tables Get Row Item
  C. dt.Rows(1 .. 5) Remove Data Row activity
  D. Filter Data Table dt.Select dt.AsEnumerable().Where
  D. Filter Data Table dt.Select dt.AsEnumerable().Where

  ---

  Explanation

  These are the properties, methods, or activities that enable the developer to obtain a subset of data from a data table called "dt":

  Filter Data Table activity: This activity enables you to filter a data table by specifying conditions in the Filter Wizard. You can choose to keep or remove rows that match the filter criteria. You can also specify the columns to include or exclude

  in the output data table1. dt.Select method: This method returns an array of data rows that match a specified filter expression. You can use this method to query a data table using SQL-like syntax2. dt.AsEnumerable().Where method: This method returns an

  enumerable collection of data rows that satisfy a given predicate. You can use this method to query a data table using LINQ syntax3.

  References:

  1: Filter Data Table

  2: DataTable.Select Method

  3: Enumerable.Where Method

• Question 40:

  A developer creates a process that uses data from multiple sources and uploads it to an Orchestrator queue. The data originates from emails in different email inboxes and needs to be processed in the same order in which the email was received. To ensure the Queue Items are processed in the correct order, which property of the Add Queue Item activity should be used?

  A. Postpone
  B. ItemInformation
  C. Reference
  D. Deadline
  A. Postpone

  ---

  Explanation

  The Postpone property of the Add Queue Item activity allows you to specify a date and time when the queue item becomes available for processing. This can be used to ensure that the queue items are processed in the same order as the emails were received, by setting the Postpone value to the email received date and time. (UiPath Studio - Add Queue Item - UiPath Academy)

  References: Studio - Add Queue Item - UiPath Documentation Portal UiPath Studio - Add Queue Item - UiPath Academy How to use Postpone property in Add Queue Item activity? - Studio - UiPath Community Forum
