UiPath UIPATH-ADAV1 Online Practice Questions and Exam Preparation

UiPath UIPATH-ADAV1 Online Questions & Answers

• Question 241:

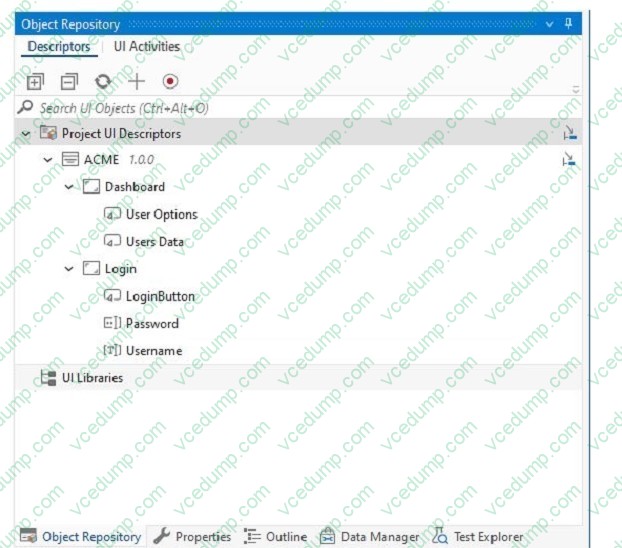

  Which of the following options is correct regarding the below Object Repository tree structure?



  A. One Screen Two Applications Five UI Elements
  B. One Application Two UI Elements Five Screens
  C. One Library One Application Two Screens Five UI Elements
  D. One Application Two Screens Five UI Elements
  D. One Application Two Screens Five UI Elements

  ---

  Explanation

  The Object Repository tree structure shows one application with two screens and five UI elements. The application is the top-level node, the screens are the second-level nodes, and the UI elements are the third-level nodes. The UI elements have properties, selectors, and images that define them. https://docs.uipath.com/studio/docs/about-the-object-repository

• Question 242:

  A developer is working with a Purchase Order automation process The number of shipment containers and boxes per container are obtained in two strings, "ShipmentContainers" and "BoxesPerContainer" The task is for the robot to obtain the total number of boxes in all shipment containers in an Int32 variable TotalBoxes.

  Which expression should be used for calculating the total number of boxes?

  A. Convert Tolnt32(ShipmentContainers) * Convert Tolnt32(BoxesPerContamer)
  B. ShipmentContainers.Tolnt() * BoxesPerContainer Tolnt()
  C. ShipmentContamersTolnt32() * BoxesPerContainer.Tolnt32()
  D. ShipmentContamers * BoxesPerContainer
  A. Convert Tolnt32(ShipmentContainers) * Convert Tolnt32(BoxesPerContamer)

  ---

  Explanation

  To calculate the total number of boxes in all shipment containers, the expression that should be used is:

  Convert.ToInt32(ShipmentContainers) * Convert.ToInt32(BoxesPerContainer) This expression converts the two strings, "ShipmentContainers" and "BoxesPerContainer", into integer values using the Convert.ToInt32 method. This method

  converts the specified string representation of a 32-bit signed integer to an equivalent integer value1. Then, the expression multiplies the two integer values to obtain the total number of boxes. For example, if "ShipmentContainers" is "5" and

  "BoxesPerContainer" is "10", then the expression will return 50 as the total number of boxes.

  References: Convert.ToInt32 Method from UiPath documentation.

• Question 243:

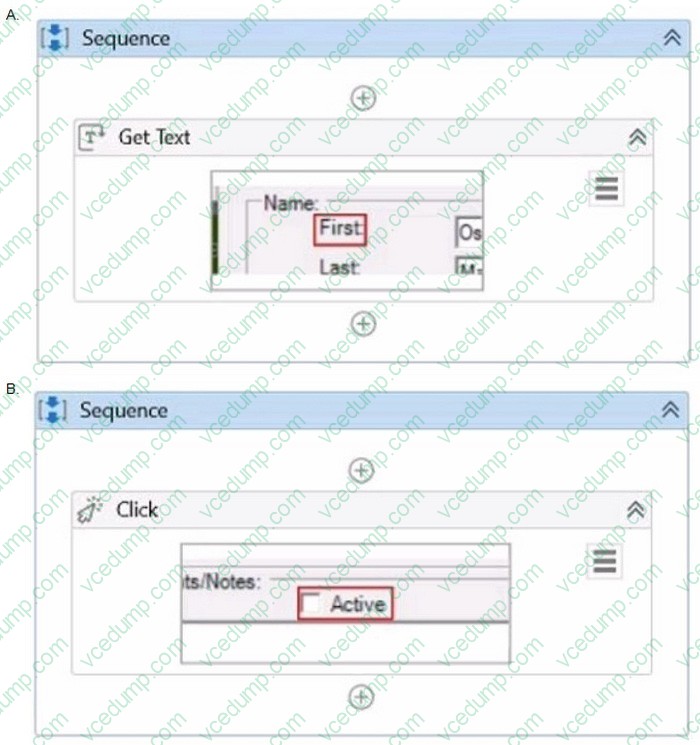

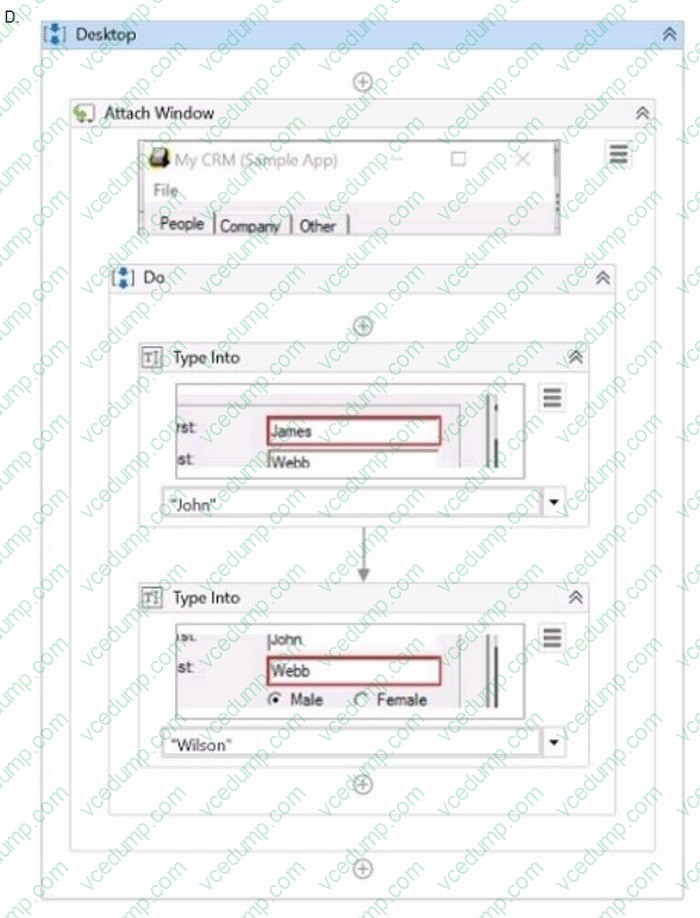

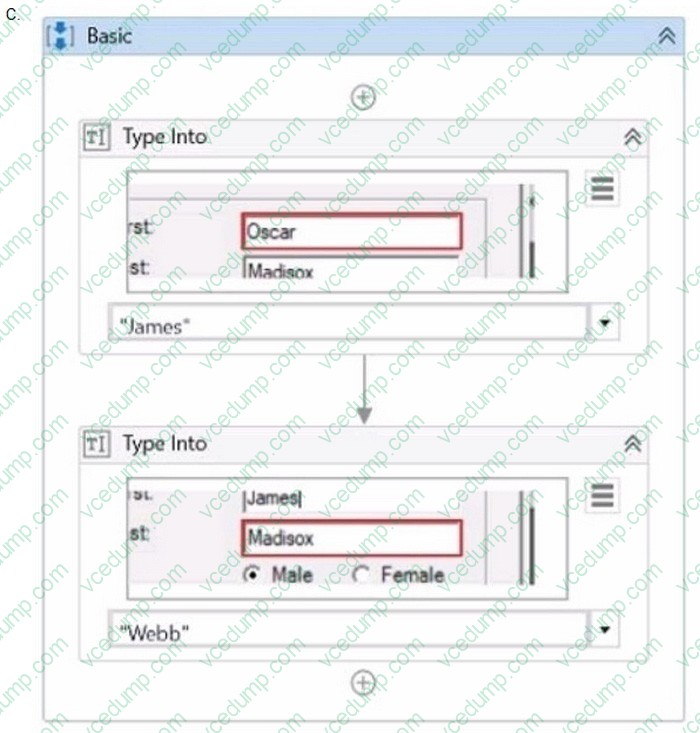

  What represents a sequence that contains an activity with a partial selector?







  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

  ---

  Explanation

  A partial selector is a selector that does not contain the information about the top-level window. A partial selector is usually generated when a UI Automation activity is included in a container activity, such as Attach Browser or Attach Window, that has a full selector of the outer window. This way, the UI Automation activity can use the partial selector relative to the container, instead of the full selector from the root. A partial selector is indicated by the icon in the Properties panel of the UI Automation activity. In this question, the sequence that contains an activity with a partial selector is Option B, where the Click activity has the partial selector icon and is enclosed in an Attach Window activity. The other options have activities with full selectors, indicated by the icon . Therefore, the answer is

  B. Option

  B.

  References: Full Versus Partial Selectors, Selectors

• Question 244:

  What is the default priority value for the Job Priority field in UiPath Orchestrator when starting a job manually?

  A. Medium
  B. Low
  C. Inherited
  D. High
  A. Medium

  ---

  Explanation

  The Job Priority field in UiPath Orchestrator is used to specify the priority of a job when it is added to a queue of pending jobs on the same robot. The priority can be set to Low, Medium, High, or Inherited. The Inherited option means that the priority is inherited from the trigger that started the job. When starting a job manually, the default priority value is Medium, which means that the job will be executed after any high-priority jobs and before any low-priority jobs in the queue. (UiPath Orchestrator documentation1)

  References:

  1: Starting a Job - UiPath Orchestrator.

• Question 245:

  HOTSPOT

  A developer is using a Type into activity to enter details into a web form The developer notices that the selector for the text field is unreliable. The selector that is shown in the exhibit currently targets both a text label and a text field at runtime

  Only one additional Property needs to be clicked to ensure the selector targets only the First Name text field at runtime.

  Instructions: Click the additional Property checkbox in the following Ul Explorer "Unselected Items" column that should be used for the First Name text field.





  Explanation

  To ensure the selector targets only the First Name text field at runtime, you need to click the additional Property checkbox for ID in the UI Explorer Unselected Items column. This will add the ID attribute to the selector, which is a unique identifier for the text field element. The ID attribute has the value "firstname" for the First Name text field, as shown in the image. This will make the selector more reliable and specific, and avoid targeting the text label or other elements with the same class or tag. https://docs.uipath.com/de/studio/standalone/2021.10/user-guide/uipath-explorer

• Question 246:

  What is the purpose of Breakpoints when debugging a project in UiPath Studio?

  A. To purposely pause the debugging process on an activity which may trigger execution issues.
  B. To automatically restart the debugging process when an error is encountered.
  C. To measure the execution time of each activity in the workflow.
  D. To export debugging results in different formats.
  A. To purposely pause the debugging process on an activity which may trigger execution issues.

  ---

  Explanation

  Breakpoints are used in debugging to pause the execution of the project at specific activities, which may potentially cause execution issues, making option A correct. This allows developers to inspect the state of the application at that point,

  aiding in the identification and resolution of issues. Options B, C, and D do not accurately describe the purpose of breakpoints in the debugging process.

  References:

  UiPath Documentation: Debugging

• Question 247:

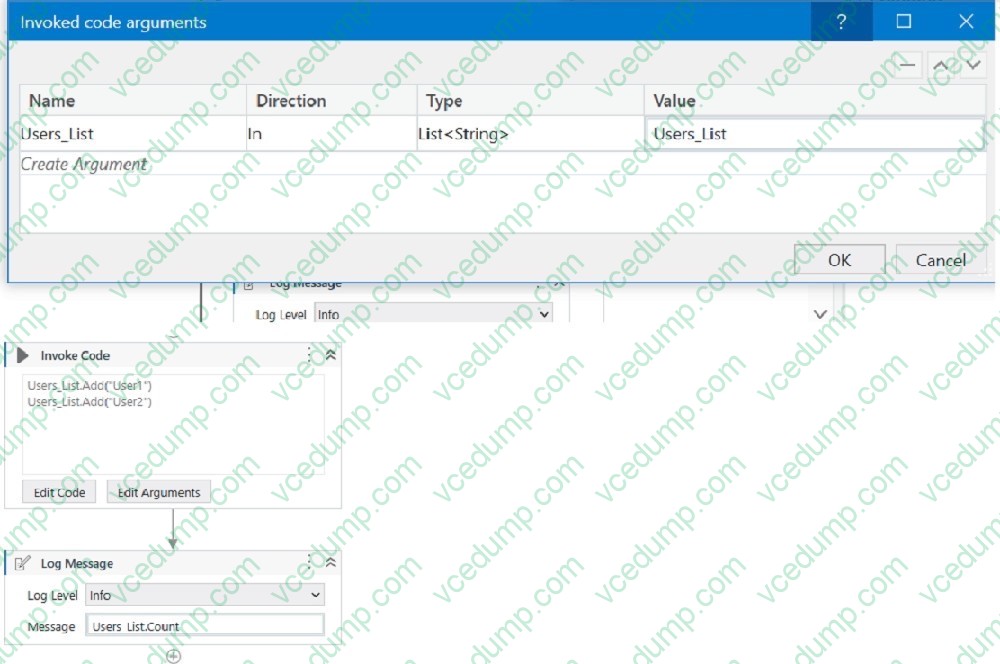

  A developer has created a variable of type List of Strings named "UsersList", and initialized it with an empty list: "UsersList = new List(Of String)".

  What is printed in the log message after the following Invoke Code is executed?



  B. 2
  C. Object reference not set to an instance exception is thrown
  D. System Argument Exception is thrown
  A

  ---

  Explanation

  The code is adding two items to the list, but since the list is initialized as an empty list, the count will be 0.

  References:

  Data Manipulation with Lists and Dictionaries in Studio course, Lesson 2: Lists, Topic: Creating Lists

  How to initiate List? forum post, Answer by @VishalS

• Question 248:

  A developer is building a robot to validate that the birth date is in the correct format within the submitted forms. Which method or activity is best-suited to validate the format?

  A. String Method: Contains
  B. Activity Replace
  C. String Method: Equals
  D. Activity. Is Match
  D. Activity. Is Match

  ---

  Explanation

  The Is Match activity is used to check if a string matches a given regular expression pattern. The regular expression pattern can be used to validate the format of a string, such as a date. In this case, the developer wants to validate that the birth date is in the correct format, which is dd-MM-yyyy. The regular expression pattern for this format is "\d{2}-\d{2}- \d{4}", which means two digits, followed by a hyphen, followed by two digits, followed by a hyphen, followed by four digits. The Is Match activity will return True if the input string matches this pattern, and False otherwise. Therefore, the answer is

  D. Activity. Is Match.

  References: Is Match, Regular Expressions

• Question 249:

  What are the components that define a state within a State Machine in UiPath Studio?

  A. Activities, Connectors, and Annotations.
  B. Input Arguments, Output Arguments, and Variables.
  C. Sequence, Flowchart, and Transactional Business Process.
  D. Entry, Exit, and Transition Actions with Trigger Conditions.
  D. Entry, Exit, and Transition Actions with Trigger Conditions.

  ---

  Explanation

  A state in a State Machine is a set of actions that execute while the workflow is in a certain condition1. Each state has three components: Entry, Exit, and Transition Actions2. Entry Actions are executed when the state is entered, Exit Actions

  are executed when the state is exited, and Transition Actions are executed when a transition is triggered by a condition3.

  References:

  State Machines in Studio course, Lesson 1: Introduction to State Machines, Topic:

  What is a State Machine?

  State Machine documentation, States section

  How does State Machine work? forum post, Answer by @aksh1yadav

• Question 250:

  A developer has created a string array variable as shown below:

  UserNames = {"Jane", "Jack", "Jill", "John"}

  Which expression should the developer use in a Log Message activity to print the elements of the array separated by the string ", "?

  A. String.Join(UserNames, ",")
  B. String.Join(", ", UserNames)
  C. String.Concat(UserNames,",")
  D. String.Concat(",", UserNames)
  B. String.Join(", ", UserNames)

  ---

  Explanation

  The String.Join method takes two parameters: a separator and an array of strings. It returns a new string that concatenates the elements of the array using the separator. The correct syntax is String.Join(separator, array). Therefore, option B is the correct answer.

  References: Automation Developer Associate Training course, Section 1: Data Manipulation, Lecture: Data Manipulation with Strings in Studio How to use Array of string forum post, Answer by @balupad14
