• Question 61:

  Given: The 802.11n APs you have selected for your public access deployment support many of the PHY and MAC enhancements offered by the 802.11n standard. The AP is single-band (2.4 GHz) and only allows 20 MHz channels. The WLAN radio in the AP is a 3x3 802.11n chip that supports two spatial streams.

  What is the maximum MCS rate that could be supported by this AP?

  A. 54 Mbps
  B. 65 Mbps
  C. 108 Mbps
  D. 144 Mbps
  E. 150 Mbps
  F. 300 Mbps
  D. 144 Mbps

• Question 62:

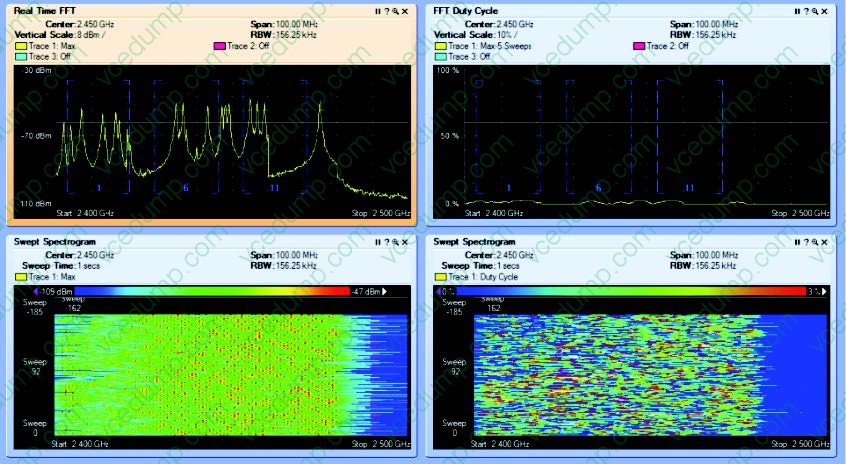

  A wireless engineer from your company performed a site survey in an office building where a wireless network extension was needed. He reports that while performing a Layer 1 sweep near a meeting room full of people, he detected the RF environment displayed in the exhibit. He is unsure how to interpret what he recorded to determine its impact on a future Wi-Fi network.



  A. The signal affects the entire spectrum and will render the wireless network unusable. It must be located and removed.
  B. The signal has a low duty cycle and should not be of major impact on the wireless network.
  C. The signal is alternating between peaks (high interference level) and valleys (low interference level). The network channel design must be built to avoid the affected peak frequencies.
  D. The signal is typical of a high radio card background noise. It shows that the card used for the Layer 1 sweep should be replaced and the Layer 1 sweep re-done.
  E. The Real Time FFT shows a high amplitude, narrowband jammer pulsing across the entire 2.4 GHz band. This will cause significant, intermittent interference to the WLAN.
  B. The signal has a low duty cycle and should not be of major impact on the wireless network.

• Question 63:

  Given: You are evaluating the theoretical and real-world RF gain benefits of transmit and receive features introduced by 802.11n with MIMO. This exercise allows you to quantify the feature's value in a real-world environment.

  What is the maximum theoretical signal gain of chip-based TxBF and MRC (as features) when compared to the same AP using only a single antenna for transmit and receive (effectively simulating a 1x1 chip)?

  A. 2 Rx or Tx chains = 3 dBi gain 3 Rx or Tx chains = approx 5 dBi gain 4 Rx or Tx chains = 6 dBi gain
  B. 2 Rx or Tx chains = 1 dBi gain 3 Rx or Tx chains = 2 dBi gain 4 Rx or Tx chains = 3 dBi gain
  C. 2 Rx or Tx chains = 3 dBi gain 3 Rx or Tx chains = 6 dBi gain 4 Rx or Tx chains = 9 dBi gain
  D. 2 Rx or Tx chains = approx 4-6.5 dBi gain 3 Rx or Tx chains = approx 7-10 dBi gain 4 Rx or Tx chains = approx 10-12 dBi gain
  E. The theoretical gains offered by each additional radio are different for TxBF and MRC.
  A. 2 Rx or Tx chains = 3 dBi gain 3 Rx or Tx chains = approx 5 dBi gain 4 Rx or Tx chains = 6 dBi gain

• Question 64:

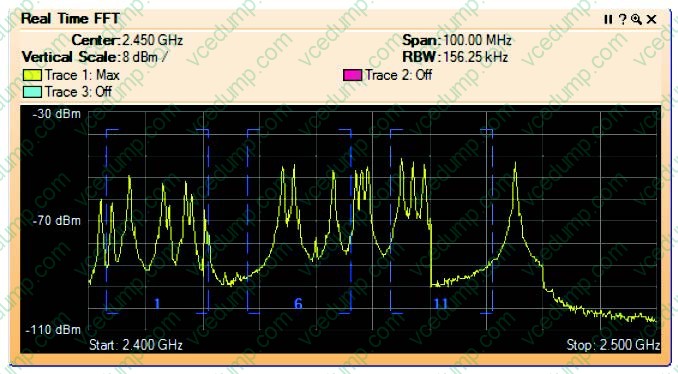

  A Layer 1 sweep was performed at a customer location, and you are asked to review a capture taken during the survey.



  What is the meaning of the chart shown in the exhibit and how should it be interpreted?

  A. Real Time FFT means Real Time First Fundamental Trace and shows the value of the first signal detected on each frequency at each sweep interval.
  B. Real Time FFT means Real Time Fast Frequency Timing and shows the RF pulses measured by the Layer 1 sweep tool.
  C. Real Time FFT means Real Time Fast Fourier Transform and shows the max value of the signal detected on each frequency in real time.
  D. Real Time FFT means Real Time Frequency Fundamental Texture and shows the value of the noise background generated by the card used to perform the Layer 1 sweep.
  C. Real Time FFT means Real Time Fast Fourier Transform and shows the max value of the signal detected on each frequency in real time.

• Question 65:

  In a PC-based spectrum analyzer, what data chart identifies the overall RF utilization of a specific frequency in the environment being surveyed?

  A. FFT Max Hold
  B. FFT Average
  C. Swept Spectrogram
  D. Duty cycle
  E. Sweep Time
  F. Bandwidth resolution
  D. Duty cycle
