• Question 81:

  What events are recorded in the crashlogs of a FortiGate device? (Choose two.)

  A. A process crash.

  B. Configuration changes.

  C. Changes in the status of any of the FortiGuard licenses.

  D. System entering to and leaving from the proxy conserve mode.

  Correct Answer: AD

• Question 82:

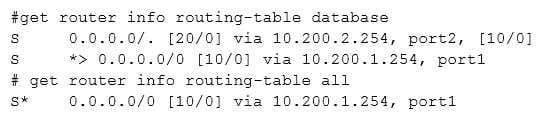

  Examine the following partial outputs from two routing debug commands; then answer the question below:



  Why the default route using port2 is not displayed in the output of the second command?

  A. It has a lower priority than the default route using port1.

  B. It has a higher priority than the default route using port1.

  C. It has a higher distance than the default route using port1.

  D. It is disabled in the FortiGate configuration.

  Correct Answer: C

  http://kb.fortinet.com/kb/viewContent.do?externalId=FD32103

• Question 83:

  When does a RADIUS server send an Access-Challenge packet?

  A. The server does not have the user credentials yet.

  B. The server requires more information from the user, such as the token code for two-factor authentication.

  C. The user credentials are wrong.

  D. The user account is not found in the server.

  Correct Answer: B

• Question 84:

  The logs in a FSSO collector agent (CA) are showing the following error: failed to connect to registry: PIKA1026 (192.168.12.232)

  What can be the reason for this error?

  A. The CA cannot resolve the name of the workstation.

  B. The FortiGate cannot resolve the name of the workstation.

  C. The remote registry service is not running in the workstation 192.168.12.232.

  D. The CA cannot reach the FortiGate with the IP address 192.168.12.232.

  Correct Answer: C

  https://kb.fortinet.com/kb/documentLink.do?externalID=FD30548

• Question 85:

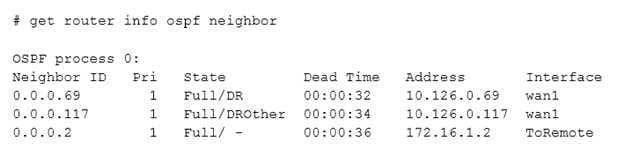

  Examine the output of the `get router info ospf neighbor' command shown in the exhibit; then answer the question below.



  Which statements are true regarding the output in the exhibit? (Choose two.)

  A. The interface ToRemote is OSPF network type point-to-point.

  B. The OSPF router with the ID 0.0.0.2 is the designated router for the ToRemote network.

  C. The local FortiGate is the backup designated router for the wan1 network.

  D. The OSPF routers with the IDs 0.0.0.69 and 0.0.0.117 are both designated routers for the wan1 network.

  Correct Answer: AC

  https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13685-13.html

• Question 86:

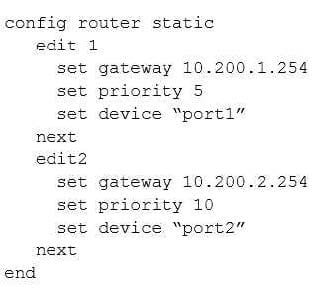

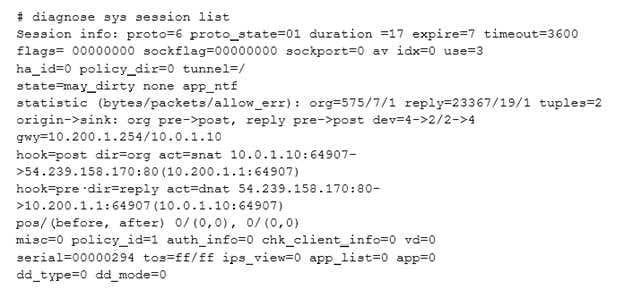

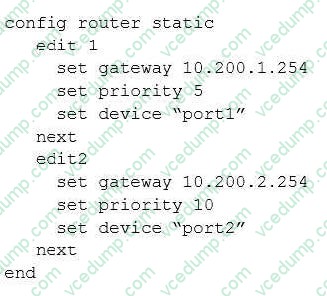

  A FortiGate has two default routes: All Internet traffic is currently using port1. The exhibit shows partial information for one sample session of Internet traffic from an internal user:





  What would happen with the traffic matching the above session if the priority on the first default route (IDd1) were changed from 5 to 20?

  A. Session would remain in the session table and its traffic would keep using port1 as the outgoing interface.

  B. Session would remain in the session table and its traffic would start using port2 as the outgoing interface.

  C. Session would be deleted, so the client would need to start a new session.

  D. Session would remain in the session table and its traffic would be shared between port1 and port2.

  Correct Answer: A

• Question 87:

  Two independent FortiGate HA clusters are connected to the same broadcast domain. The administrator has reported that both clusters are using the same HA virtual MAC address. This creates a duplicated MAC address problem in the network.

  What HA setting must be changed in one of the HA clusters to fix the problem?

  A. Group ID.

  B. Group name.

  C. Session pickup.

  D. Gratuitous ARPs.

  Correct Answer: A

  https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-high-availability- 52/HA_failoverVMAC.htm

• Question 88:

  An administrator is running the following sniffer in a FortiGate: diagnose sniffer packet any "host 10.0.2.10" 2

  What information is included in the output of the sniffer? (Choose two.)

  A. Ethernet headers.

  B. IP payload.

  C. IP headers.

  D. Port names.

  Correct Answer: BC

  https://kb.fortinet.com/kb/documentLink.do?externalID=11186

• Question 89:

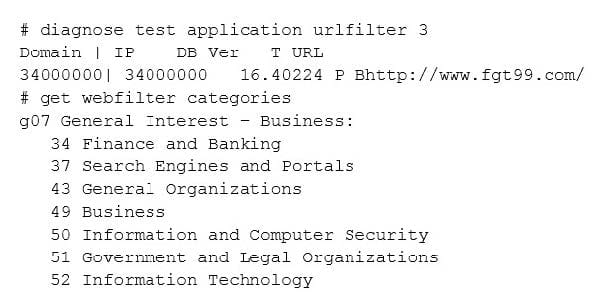

  Examine the partial output from two web filter debug commands; then answer the question below: Based on the above outputs, which is the FortiGuard web filter category for the web site www.fgt99.com?



  A. Finance and banking

  B. General organization.

  C. Business.

  D. Information technology.

  Correct Answer: C

• Question 90:

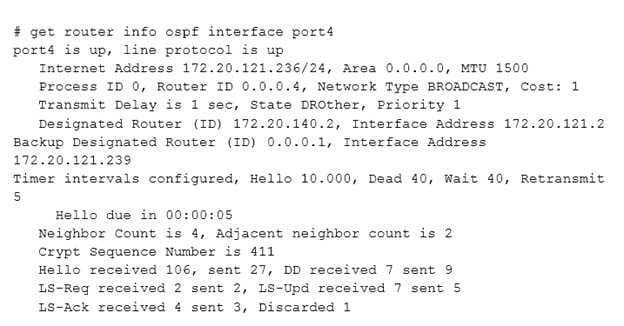

  Examine the output of the `get router info ospf interface' command shown in the exhibit; then answer the question below.



  Which statements are true regarding the above output? (Choose two.)

  A. The port4 interface is connected to the OSPF backbone area.

  B. The local FortiGate has been elected as the OSPF backup designated router.

  C. There are at least 5 OSPF routers connected to the port4 network.

  D. Two OSPF routers are down in the port4 network.

  Correct Answer: AC

  on BROADCAST network there are 4 neighbors, among which 1*DR +1*BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
