Fortinet NSE 7 - Enterprise Firewall 6.2

Exam Details

  • Exam Code
    :NSE7_EFW-6.2
  • Exam Name
    :Fortinet NSE 7 - Enterprise Firewall 6.2
  • Certification
    :Fortinet Certifications
  • Vendor
    :Fortinet
  • Total Questions
    :102 Q&As
  • Last Updated
    :Jun 17, 2025

Fortinet Fortinet Certifications NSE7_EFW-6.2 Questions & Answers

  • Question 91:

    Examine the output of the `get router info bgp summary' command shown in the exhibit; then answer the question below.

    Which statements are true regarding the output in the exhibit? (Choose two.)

    A. BGP state of the peer 10.125.0.60 is Established.

    B. BGP peer 10.200.3.1 has never been down since the BGP counters were cleared.

    C. Local BGP peer has not received an OpenConfirm from 10.200.3.1.

    D. The local BGP peer has received a total of 3 BGP prefixes.

  • Question 92:

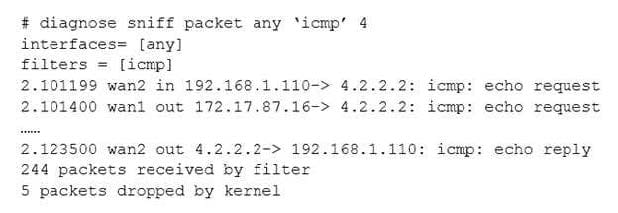

    Examine the following partial output from a sniffer command; then answer the question below.

    What is the meaning of the packets dropped counter at the end of the sniffer?

    A. Number of packets that didn't match the sniffer filter.

    B. Number of total packets dropped by the FortiGate.

    C. Number of packets that matched the sniffer filter and were dropped by the FortiGate.

    D. Number of packets that matched the sniffer filter but could not be captured by the sniffer.

  • Question 93:

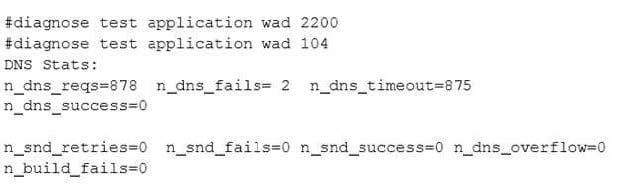

    A FortiGate is configured as an explicit web proxy. Clients using this web proxy are reposting DNS errors when accessing any website. The administrator executes the following debug commands and observes that the n-dns-timeout counter is increasing:

    What should the administrator check to fix the problem?

    A. The connectivity between the FortiGate unit and the DNS server.

    B. The connectivity between the client workstations and the DNS server.

    C. That DNS traffic from client workstations is allowed by the explicit web proxy policies.

    D. That DNS service is enabled in the explicit web proxy interface.

  • Question 94:

    Which real time debug should an administrator enable to troubleshoot RADIUS authentication problems?

    A. Diagnose debug application radius -1.

    B. Diagnose debug application fnbamd -1.

    C. Diagnose authd console -log enable.

    D. Diagnose radius console -log enable.

  • Question 95:

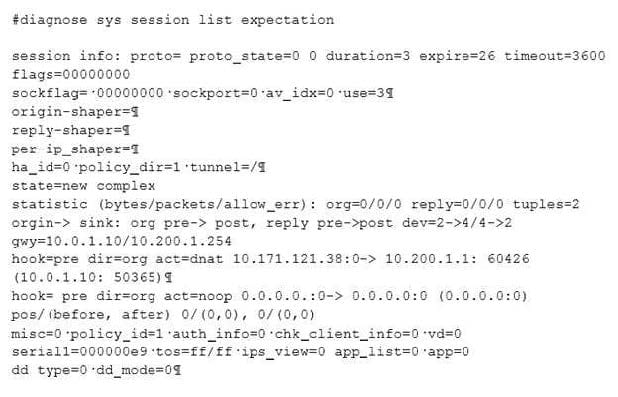

    Examine the output of the `diagnose sys session list expectation' command shown in the exhibit; than answer the question below.

    Which statement is true regarding the session in the exhibit?

    A. It was created by the FortiGate kernel to allow push updates from FotiGuard.

    B. It is for management traffic terminating at the FortiGate.

    C. It is for traffic originated from the FortiGate.

    D. It was created by a session helper or ALG.

  • Question 96:

    An administrator has configured a FortiGate device with two VDOMs: root and internal. The administrator has also created and inter-VDOM link that connects both VDOMs. The objective is to have each VDOM advertise some routes to the other VDOM via OSPF through the inter-VDOM link. What OSPF configuration settings must match in both VDOMs to have the OSPF adjacency successfully forming? (Choose three.)

    A. Router ID.

    B. OSPF interface area.

    C. OSPF interface cost.

    D. OSPF interface MTU.

    E. Interface subnet mask.

  • Question 97:

    An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth)

    and IKE mode configuration. The administrator has also enabled the IKE real time debug:

    diagnose debug application ike-1

    diagnose debug enable

    In which order is each step and phase displayed in the debug output each time a new dial-up user is

    connecting to the VPN?

    A. Phase1; IKE mode configuration; XAuth; phase 2.

    B. Phase1; XAuth; IKE mode configuration; phase2.

    C. Phase1; XAuth; phase 2; IKE mode configuration.

    D. Phase1; IKE mode configuration; phase 2; XAuth.

  • Question 98:

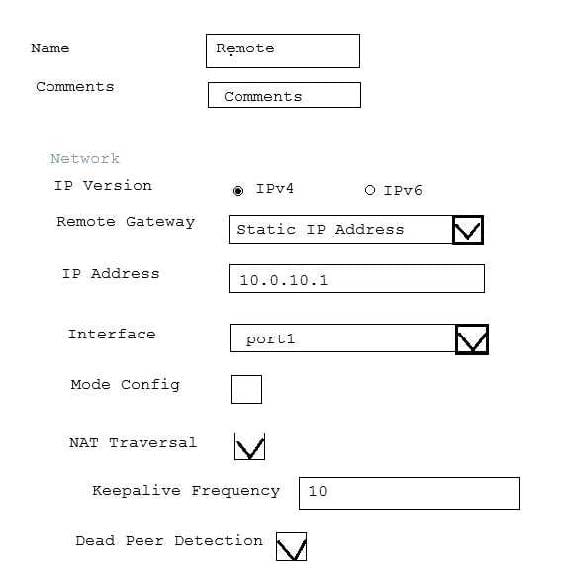

    Examine the IPsec configuration shown in the exhibit; then answer the question below. Questions and Answers PDF P-3

    An administrator wants to monitor the VPN by enabling the IKE real time debug using these commands: diagnose vpn ike log-filter src-addr4 10.0.10.1 diagnose debug application ike -1 diagnose debug enable The VPN is currently up, there is no traffic crossing the tunnel and DPD packets are being interchanged between both IPsec gateways. However, the IKE real time debug does NOT show any output.

    Why isn't there any output?

    A. The IKE real time shows the phases 1 and 2 negotiations only. It does not show any more output once the tunnel is up.

    B. The log-filter setting is set incorrectly. The VPN's traffic does not match this filter.

    C. The IKE real time debug shows the phase 1 negotiation only. For information after that, the administrator must use the IPsec real time debug instead: diagnose debug application ipsec -1.

    D. The IKE real time debug shows error messages only. If it does not provide any output, it indicates that the tunnel is operating normally.

  • Question 99:

    Which of the following statements are true regarding the SIP session helper and the SIP application layer gateway (ALG)? (Choose three.)

    A. SIP session helper runs in the kernel; SIP ALG runs as a user space process.

    B. SIP ALG supports SIP HA failover; SIP helper does not.

    C. SIP ALG supports SIP over IPv6; SIP helper does not.

    D. SIP ALG can create expected sessions for media traffic; SIP helper does not.

    E. SIP helper supports SIP over TCP and UDP; SIP ALG supports only SIP over UDP.

  • Question 100:

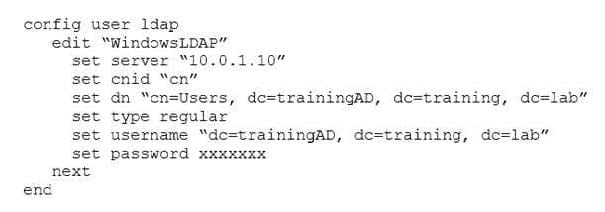

    A FortiGate device has the following LDAP configuration:

    The administrator executed the `dsquery' command in the Windows LDAp server 10.0.1.10, and got the following output: >dsquery user -samid administrator "CN=Administrator, CN=Users, DC=trainingAD, DC=training, DC=lab" Based on the output, what FortiGate LDAP setting is configured incorrectly?

    A. cnid.

    B. username.

    C. password.

    D. dn.
