NI NI-CLAD Online Practice Questions and Exam Preparation

NI NI-CLAD Online Questions & Answers

• Question 81:

  Which of the following statements is true?

  A. The default setting for a tunnel into or out of a For Loop has auto-indexing enabled if the data being passed is an array.
  B. The default setting for a tunnel into or out of a While Loop has auto-indexing disabled if the data being passed is an array.
  C. Both A. and B. are trued.
  D. None of the above
  C. Both A. and B. are trued.

• Question 82:

  What type of loop should you use when the number of iterations is unknown?

  A. For Loop
  B. While Loop
  C. Sequence Loop
  D. Case Loop
  B. While Loop

• Question 83:

  Which of the following apply to Property Nodes? (Choose all apply)

  A. Property Nodes allow attributes of front panel objects to be programmatically manipulated.
  B. Property Nodes can be used to u pdate the values contained in a front panel object.
  C. More than one Property Node can be used for a single front panel object.
  D. Property Nodes contained in a SubVI will always cause the front panel to be loaded in memory.
  A. Property Nodes allow attributes of front panel objects to be programmatically manipulated.
  B. Property Nodes can be used to u pdate the values contained in a front panel object.
  C. More than one Property Node can be used for a single front panel object.
  D. Property Nodes contained in a SubVI will always cause the front panel to be loaded in memory.

• Question 84:

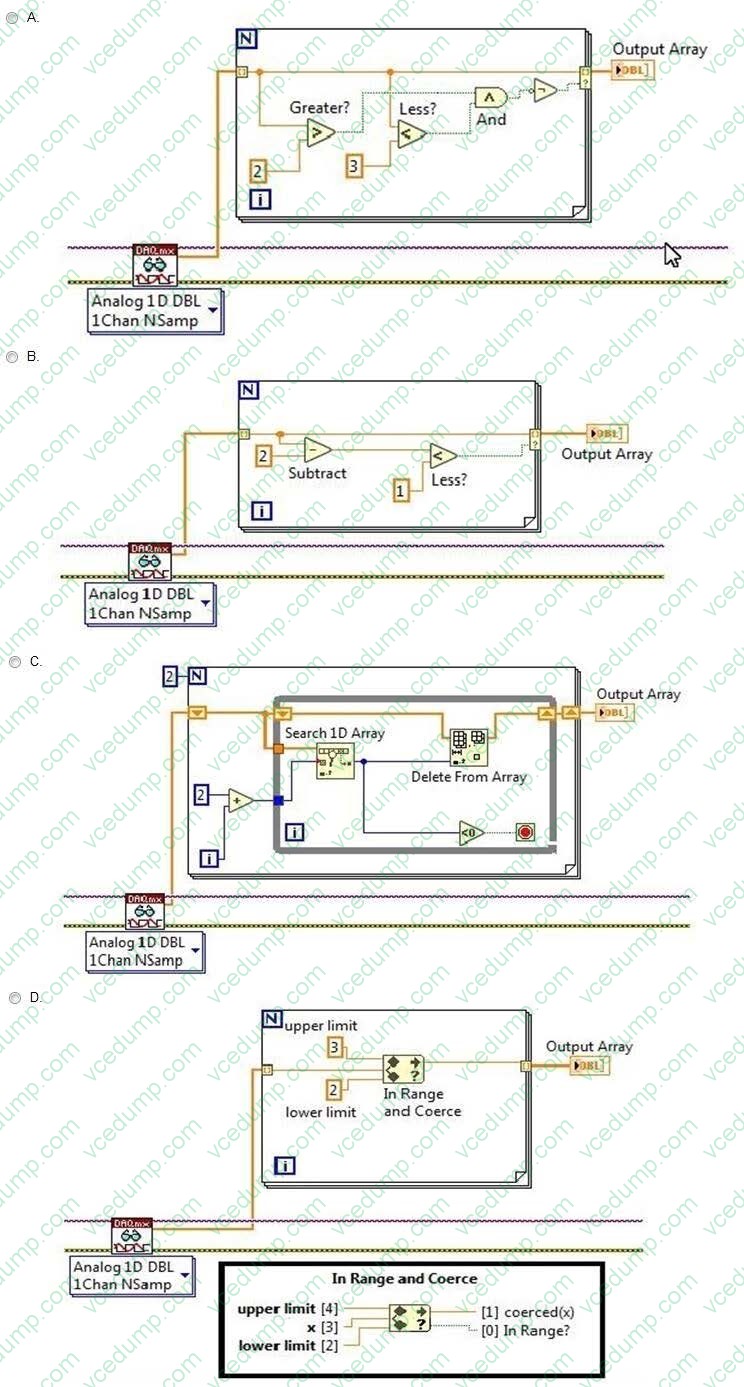

  Which code will remove any and all samples in the array that are between 2 and 3, exclusive?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 85:

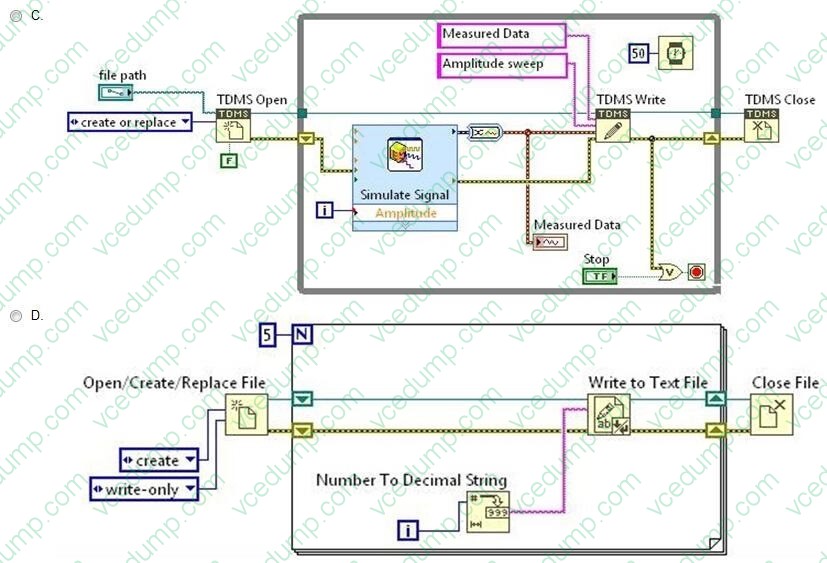

  Which of the following VIs will generate a human-readable text file?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 86:

  Which of the following methods will create an XY Graph with two plots?

  A. Create a single cluster from two arrays of X values and two arrays of Y values in an X, Y, X, Y pattern.
  B. Bundle the X and Y array pairs together into two clusters and then create an array of these two clusters.
  C. Bundle the X and Y array pairs together into two clusters and create a cluster of these two clusters.
  D. Create a single array of each of the X arrays and Y arrays in an X, Y, X, Y pattern.
  B. Bundle the X and Y array pairs together into two clusters and then create an array of these two clusters.

• Question 87:

  What of these could cause the Case Structure's case selector to show numbers instead of the Enum text?



  A. The Case Structure Options are set to display Enum as Numeric
  B. The Enum constants are not Type Defs
  C. The Coercion dots prevent the text from displaying
  D. The Enum constants have inconsistent sets of cases
  A. The Case Structure Options are set to display Enum as Numeric

• Question 88:

  Which of the following display options are available for strings on the Front Panel?

  A. `\' Codes
  B. Password
  C. Hex
  D. All of the above
  D. All of the above

• Question 89:

  The following figure is an example of which common type of VI architecture?

  A. Multiple Case Structure VI
  B. General VI
  C. State Machine VI
  D. Parallel Loop VI
  C. State Machine VI

• Question 90:

  The following code executes with the error in control configured as shown.

  What value will be displayed in the error out indicator when the VI completes execution?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A
