NI NI-CLAD Online Practice Questions and Exam Preparation

NI NI-CLAD Online Questions & Answers

• Question 91:

  Which of the following is a manual step when creating a SubVI from a section of Code using Edit>Create SubVI?

  A. Select the section of the block diagram you want to convert to a SubVI
  B. Connect the controls and indicators on the front panel to terminals on the connector pane
  C. Assigning terminals to the appropriate indicators and controls
  D. Configure the Connector Pane to have enough terminals for all inputs and outputs
  A. Select the section of the block diagram you want to convert to a SubVI

• Question 92:

  What is the default value of an uninitialized Shift Register?

  B. FALSE
  C. Empty Data Type
  D. It retains its last value
  D. It retains its last value

• Question 93:

  Which chart update mode plots new data from left to right, then clears the chart and plots the newer data?

  A. Strip Chart
  B. Scope Chart
  C. Sweep Chart
  D. Step Chart
  B. Scope Chart

• Question 94:

  In the figure below, the output of Array Size is



  A. a 1-D Array of {2, 3}
  B. a 1-D Array of {3,2}
  C. 2
  D. None of the above
  A. a 1-D Array of {2, 3}

• Question 95:

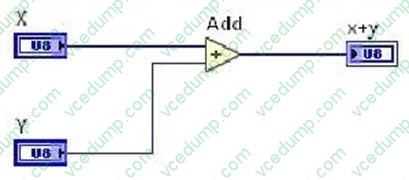

  The VI begins execution with the values of X=255 and Y=9. What will be the value of x+y after the VI completes execution?



  A. 8
  C. 264
  D. 255
  C. 264

• Question 96:

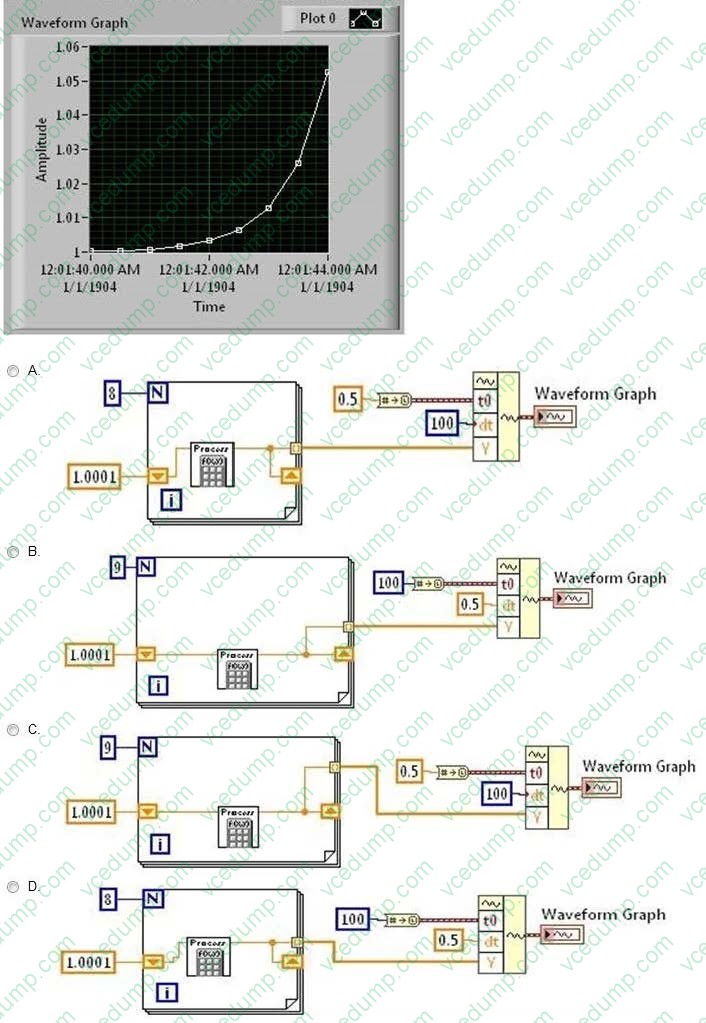

  Which code will produce this front panel? (Time zone set to UTC+00:00)



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 97:

  How does a global variable differ from a local variable?

  A. It allows data to be shared across multiple VIs
  B. It runs faster than a local variable
  C. It cannot be written to multiple times
  D. It only works inside While Loops
  A. It allows data to be shared across multiple VIs

• Question 98:

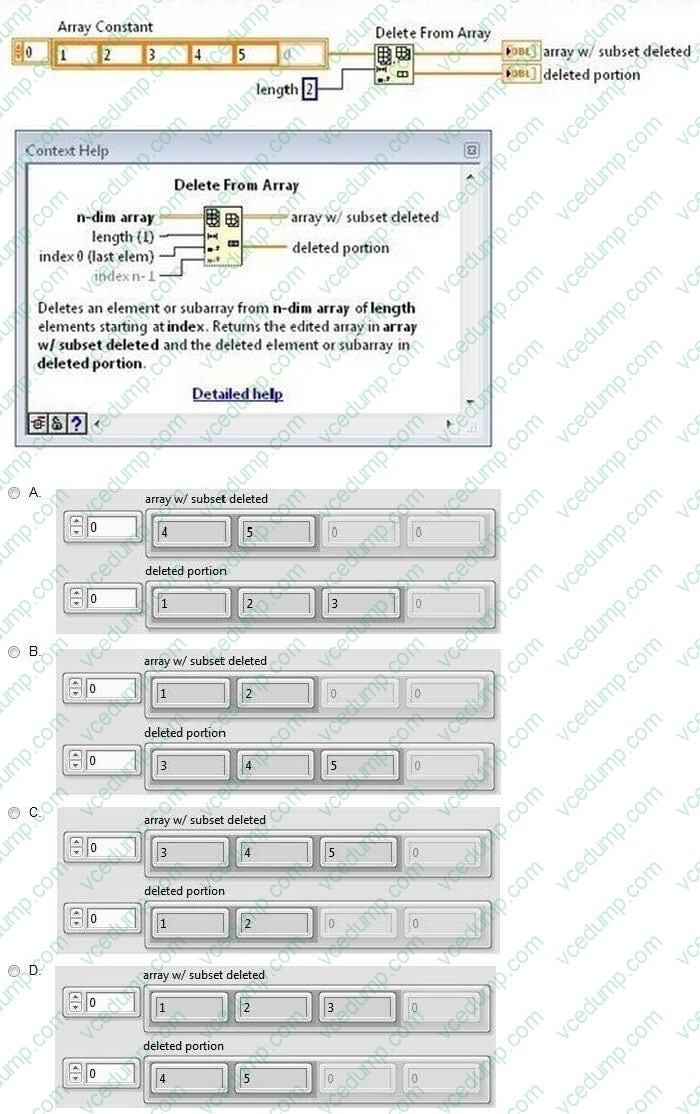

  What value will be displayed in the array w/ subset deleted and the deleted portion indicators after the VI completes execution?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 99:

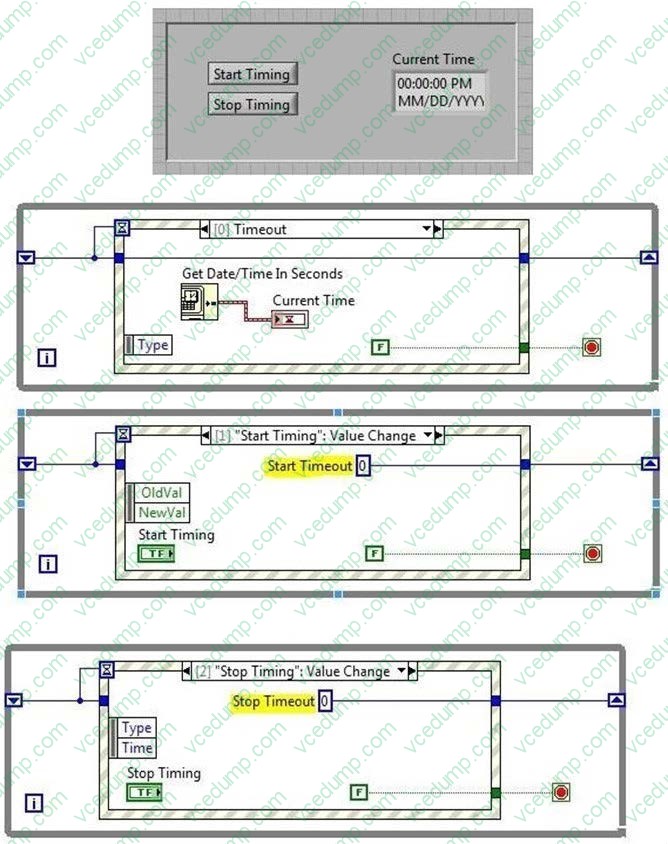

  The Current Time indicator should update every second, starting when the user clicks the Start Timing button and stopping when the user clicks the Stop Timing button. What values must be entered in the Start Timeout and Stop Timeout constants in the Start Timing and the Stop Timing event structure cases?



  A. Start Timeout = 1, Stop Timeout = -1
  B. Start Timeout = 1, Stop Timeout = 0
  C. Start Timeout = 1000, Stop Timeout = -1
  D. Start Timeout = 1000, Stop Timeout = 0
  C. Start Timeout = 1000, Stop Timeout = -1

• Question 100:

  You can use all of the following data types as inputs to the case selector terminal except:

  A. Doubles
  B. Enumerated type values
  C. Strings
  D. Integers
  A. Doubles
