• Question 121:

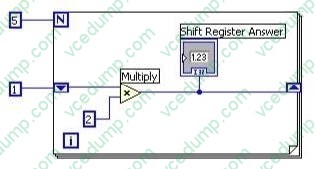

  What is the value in Shift Register Answer after the following code has executed?



  A. 16
  B. 24
  C. 32
  D. 10
  C. 32

• Question 122:

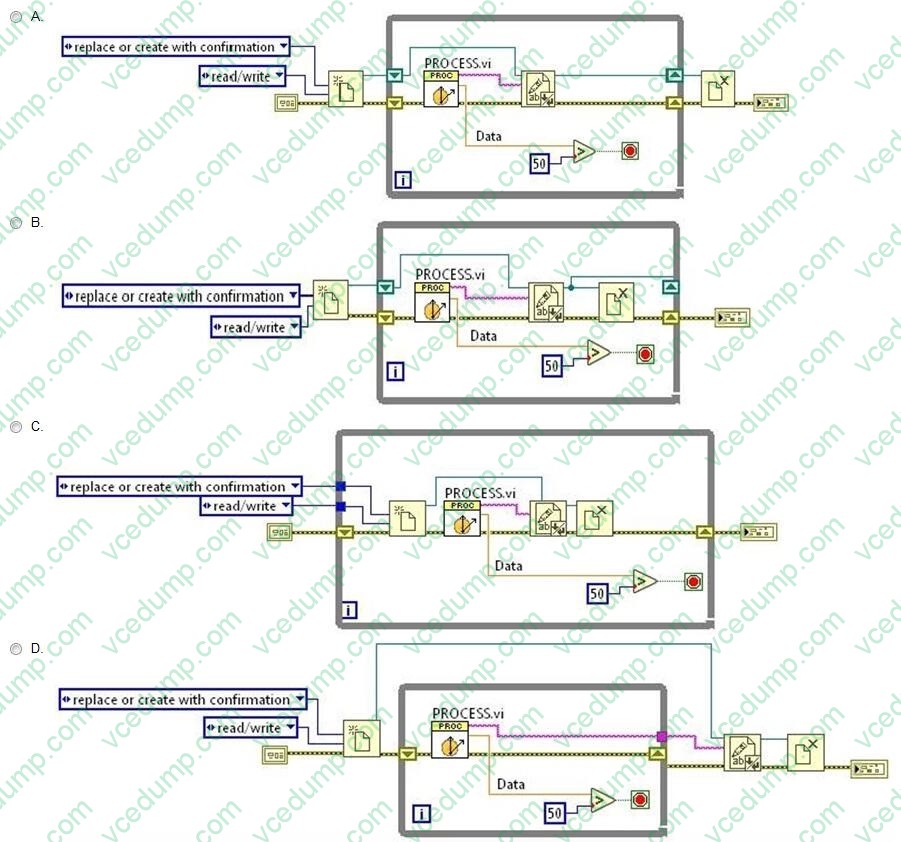

  The SubVI PROCESS represents a test that outputs one line of text each time the test runs. When the VI stops, we need to have a log showing every line of data output from PROCESS. Which of the following VIs meets all these requirements?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 123:

  Clicking on the _________ button allows you to bypass a node in the Block Diagram without single-stepping through the node.

  A. Step Into
  B. Step Over
  C. Step Out
  D. Step Through
  B. Step Over

• Question 124:

  Which terminal of a While Loop is used to stop execution?

  A. Loop Condition Terminal
  B. Loop Count Terminal
  C. Loop Reset Terminal
  D. Execution Terminal
  A. Loop Condition Terminal

• Question 125:

  Which Boolean mechanical action mimics a Windows dialog button?

  A. Switch Until Released
  B. Latch When Released
  C. Toggle
  D. Switch When Released
  B. Latch When Released

• Question 126:

  Which of the following describes a Tab Control?

  A. A control that outputs ASCII values equal to the selected tab label
  B. A type of enumerated control
  C. A control that outputs a cluster of the controls / indicators on the tabs
  D. A controls that outputs the tab order of the controls on the front panel
  B. A type of enumerated control

• Question 127:

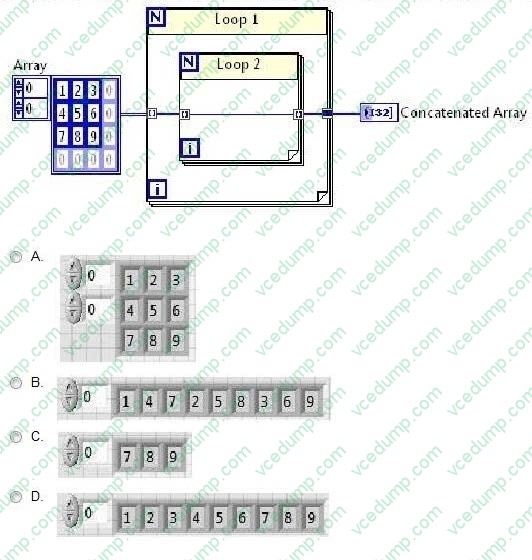

  What value will be displayed in Concatenated Array indicator when the VI completes execution?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 128:

  Which is the correct order for the signal to propagate through components when acquiring a signal?

  A. Sensor>Terminal Block>DAQ>LabVIEW
  B. DAQ>Sensor>Terminal Block>LabVIEW
  C. Terminal Block>LabVIEW>Sensor>DAQ
  D. Sensor>DAQ>Terminal Block>LabVIEW
  B. DAQ>Sensor>Terminal Block>LabVIEW

• Question 129:

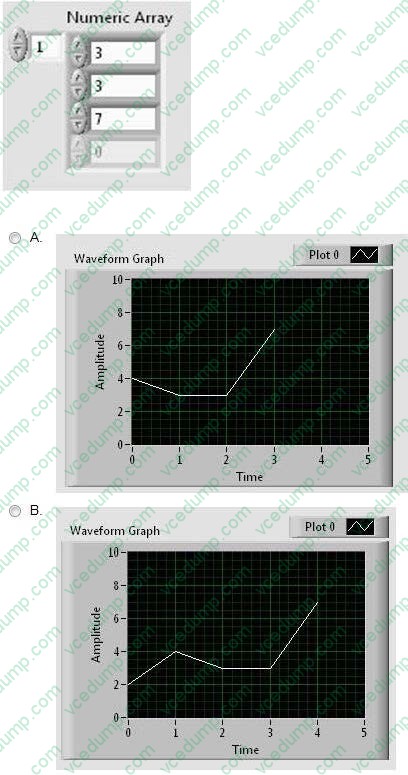

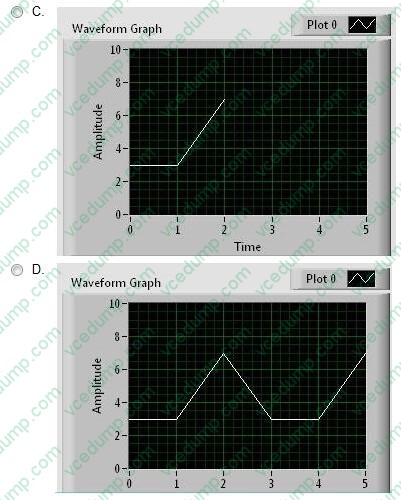

  Which Waveform Graph could be a representation of the data in the Numeric Array control?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 130:

  What does a coercion dot on a wire indicate?

  A. Data types are incompatible and the program will break
  B. LabVIEW is automatically converting the data type
  C. A loop will execute one additional iteration
  D. A local variable is required to store the data
  B. LabVIEW is automatically converting the data type
