Juniper JN0-362 Online Practice Questions and Exam Preparation

Juniper JN0-362 Online Questions & Answers

• Question 11:

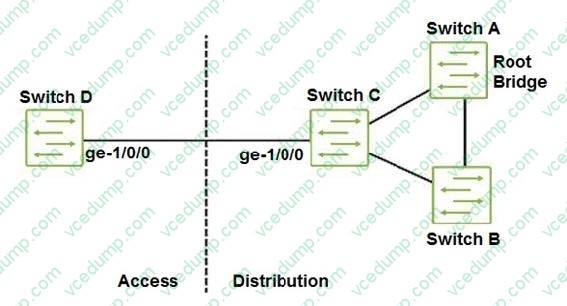

  Click the Exhibit button.



  In the network shown in the exhibit, all switches are configured with the default STP root bridge priority, and Switch A has been selected as root. You recently added the older Switch D into the network as an access switch, and notice it has taken over as root.

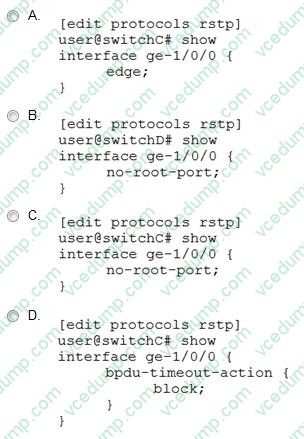

  Which configuration would solve this problem?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 12:

  You are deploying an RSVP-based MPLS network in your core. You must ensure that your LSPs are continually analyzing the usage levels and recalculating the best LSP. You also want to ensure that a minimal amount of traffic is lost when an LSP is re-signaled without user intervention.

  Which two features must be enabled in this scenario? (Choose two.)

  A. adaptive
  B. MPLS fast reroute
  C. class of service
  D. auto-bandwidth
  B. MPLS fast reroute
  D. auto-bandwidth

• Question 13:

  In which situation would you disable penultimate-hop popping?

  A. When you want to bypass a penultimate router that does not support IPv6 tunneling
  B. When you want to ensure the penultimate router can perform the destination route lookup
  C. When you want to enforce the same class-of-service behavior through the entire LSP
  D. When you want to utilize a penultimate router that supports IPv6 tunneling
  C. When you want to enforce the same class-of-service behavior through the entire LSP

• Question 14:

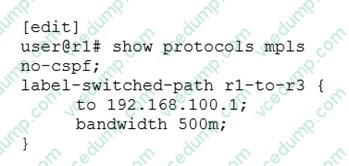

  Click the Exhibit button.



  Referring to the exhibit, which statement is true?

  A. The router will attempt to signal the LSP along the IGP shortest path to 192.168.100.1
  B. The router will prune links with insufficient bandwidth from the path before beginning the signaling process
  C. The router will analyze the traffic engineering database to determine the best path through the network
  D. The router will precalculate a valid path through the network for LSP r1-to-r3
  B. The router will prune links with insufficient bandwidth from the path before beginning the signaling process

• Question 15:

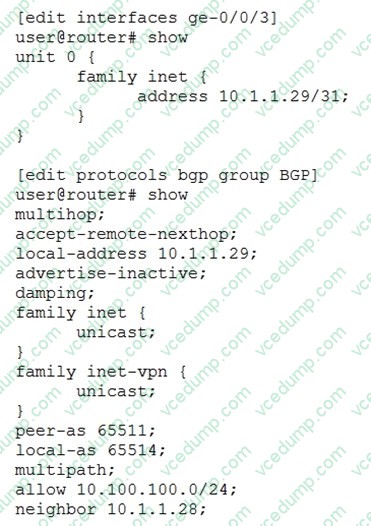

  Click the Exhibit button.



  Referring to the exhibit, which two statements are true? (Choose two.)

  A. The configuration is for an external BGP session
  B. The local-address statement is required for the BGP session to establish correctly
  C. The multi-hop statement is required for the BGP session to establish correctly
  D. The configuration is for an internal BGP session
  B. The local-address statement is required for the BGP session to establish correctly
  D. The configuration is for an internal BGP session

• Question 16:

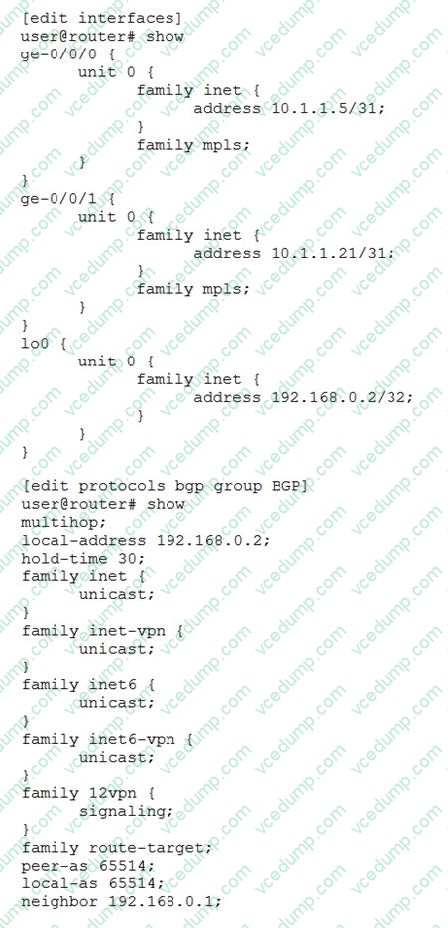

  Click the Exhibit button.



  Referring to the exhibit, which two statements are true? (Choose two.)

  A. The configuration is for an external BGP session
  B. The local-address statement is not required for the BGP session to establish correctly
  C. The configuration is for an internal BGP session
  D. The local-address statement is required for the BGP session to establish correctly
  C. The configuration is for an internal BGP session
  D. The local-address statement is required for the BGP session to establish correctly

• Question 17:

  Which two statements are true when considering logical systems? (Choose two.)

  A. Logical systems do not support nonstop active routing
  B. Logical systems share the master routing table and can create routing instances
  C. Logical tunnels cannot be used to connect logical systems
  D. Logical systems provide management separation by providing user access per logical system
  C. Logical tunnels cannot be used to connect logical systems
  D. Logical systems provide management separation by providing user access per logical system

• Question 18:

  When working with an MPLS LSP, what will the install 172.16.6.0/24 active command accomplish?

  A. The command will swap the prefix from inet.0 to inet.3
  B. The command will swap the prefix from inet.3 to inet.0
  C. The command will install the prefix in inet.0 rather than inet.3
  D. The command will install the prefix in inet.3 rather than inet.0
  D. The command will install the prefix in inet.3 rather than inet.0

• Question 19:

  What happens when a packet matches a static route with the next hop parameter set to reject?

  A. The system silently drops the packet
  B. An ICMP message is sent to the source and the packet is forwarded
  C. An ICMP message is sent to the source and the packet is dropped
  D. The packet is forwarded and the packet is marked as rejected in the header
  C. An ICMP message is sent to the source and the packet is dropped

• Question 20:

  Which three attributes are well-known mandatory BGP attributes? (Choose three.)

  A. next-hop
  B. AS path
  C. local preference
  D. MED
  E. origin
  A. next-hop
  B. AS path
  E. origin
