HP HPE6-A79 Online Practice Questions and Exam Preparation

HP HPE6-A79 Online Questions & Answers

• Question 51:

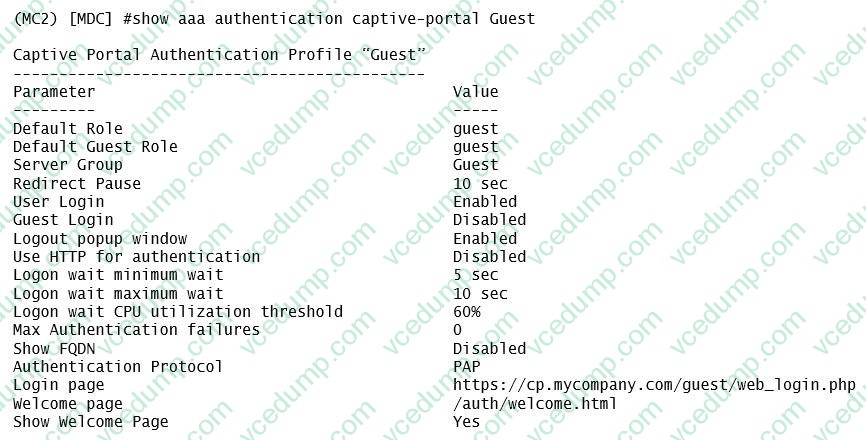

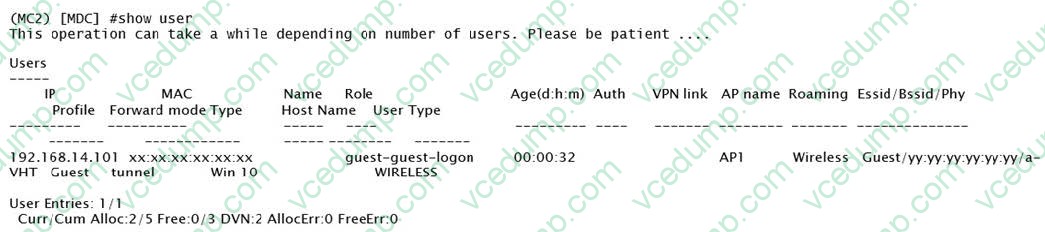

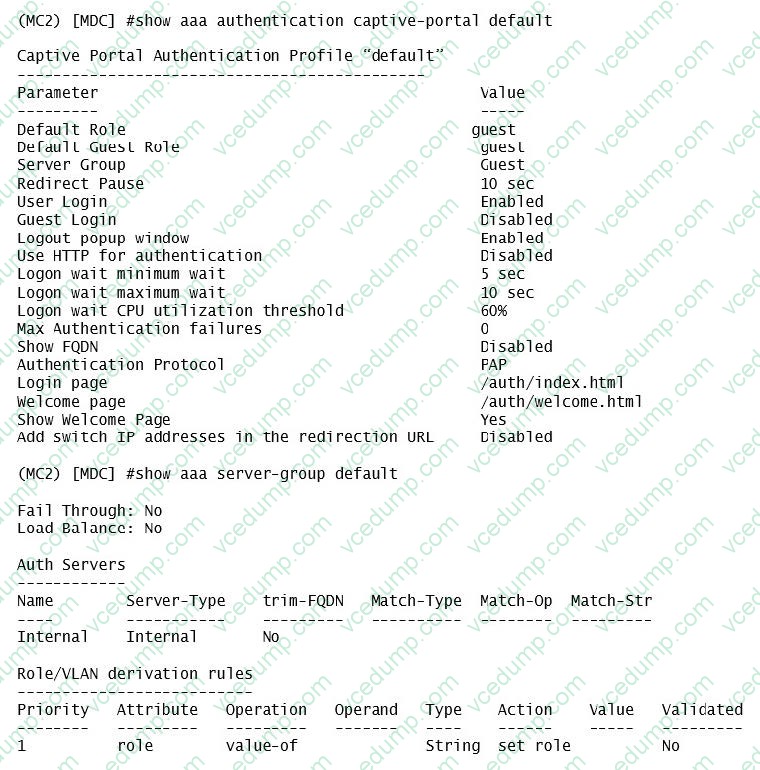

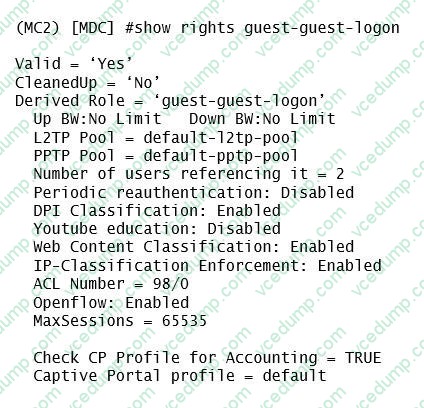

  Refer to the exhibits. Exhibit 1



  Exhibit 2



  Exhibit 3



  Exhibit 4



  A captive portal-based solution is deployed in a Mobility Master (MM) - Mobility Controller (MC) network. A wireless station connects to the network and attempts the authentication process. The outputs are shown in the exhibits. Which names correlate with the authentication and captive portal servers?

  A. ClearPass.23 is the authentication server, and cp.mycompany.com is the captive portal server.
  B. ClearPass.23 is the authentication server, and MC2 is the captive portal server.
  C. Internal database in MC2 is the authentication server, and cp.mycompany.com is the captive portal server.
  D. cp.mycompany.com is the authentication server, and ClearPass.23 is the captive portal server.
  A. ClearPass.23 is the authentication server, and cp.mycompany.com is the captive portal server.

• Question 52:

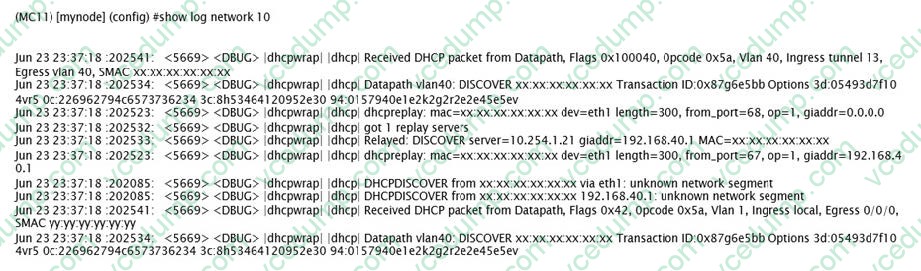

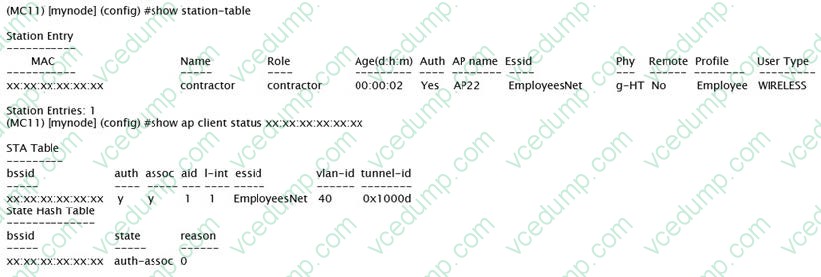

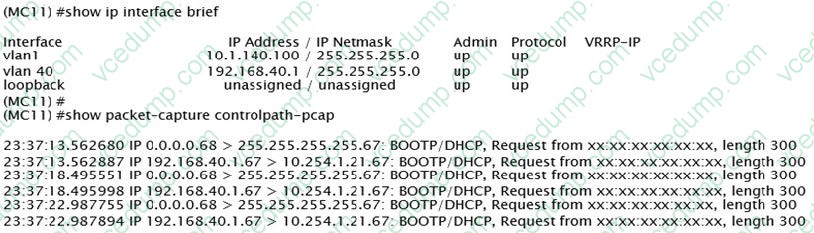

  Refer to the exhibits. Exhibit 1



  Exhibit 2



  Exhibit 3



  A network administrator wants to allow contractors to access the corporate WLAN named EmployeesNet with the contractor role in VLAN 40. When users connect, they do not seem to get an IP address. After some verification checks, the network administrator confirms the DHCP server (10.254.1.21) is reachable from the Mobility Controller (MC) and obtains the outputs shown in the exhibits.

  What should the network administrator do next to troubleshoot this problem?

  A. Permit UDP67 to the contractor role.
  B. Remove the IP address in VLAN 40.
  C. Configure the DHCP helper address.
  D. Confirm there is an IP pool for VLAN 40.
  A. Permit UDP67 to the contractor role.

• Question 53:

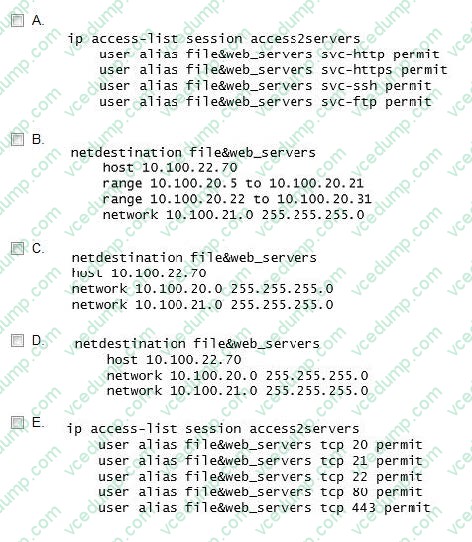

  A network administrator wants to permit explicit SSH, FTP and HHTP(s) access to servers in the 10.100.20.5 to 10.100.20.31 range, all devices in 10.100.21.0/24 network, and a host with IP address 10.100.22.70. The services must work properly at all times.

  Which configuration scripts accomplish this task with the fewer number of lines, while avoiding access to other devices not included in these ranges? (Choose two.)



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  E. Option E
  A. Option A
  B. Option B

• Question 54:

  Refer to the exhibit.



  A network administrator has recently enabled WMM on the VAP's SSID profile and enabled UCC Skype4B ALG at the Mobility Master level. During testing, some voice and video conference calls were made, and it was concluded that the call quality has dramatically improved. However, end to end information isn't displayed in the call's details. Also, Skype4B app-sharing's performance is poor at times.

  What must the administrator do next in order to enable end to end call visibility and QoS correction to app-sharing service?

  A. Deploy the SDN API Software in the Skype4B Solution and point to the MM.
  B. Increase the app-sharing DSCP value in the Skype4B ALG profile.
  C. Enable UCC monitoring on the "default-controller" mgmt.-server profile.
  D. Enable the App-sharing ALG profile at both MM and MD hierarchy levels.
  D. Enable the App-sharing ALG profile at both MM and MD hierarchy levels.

• Question 55:

  A network administrator is in charge of a Mobility Master (MM) ?Mobility Controller (MC) based network security. Recently the Air Monitors detected a Rogue AP in the network and the administrator wants to enable "Tarpit" based wireless containment.

  What profile must the administrator enable "tarpit" wireless containment on?

  A. IDS Unauthorized device profile
  B. IDS profile
  C. IDS General profile
  D. IDS DOS profile
  A. IDS Unauthorized device profile
