HP HP Certifications HPE6-A29 Questions & Answers

• Question 71:

  Which set of configuration commands are needed to make VLAN 10 the management VLAN?

  A. config# vlan 10 config# interface vlan 10 config-subif# ip address 10.10.10.1 255.255.255.0 config# controller-ip vlan 10

  B. config# vlan 10 config# interface vlan 10 config-subif# ip address 10.10.10.1 255.255.255.0 configsubif# management-vlan

  C. config# vlan 10 config-subif# interface vlan 10 config-subif# ip address 10.10.10.1 255.255.255.0 config-subif# management-vlan 10

  D. config# vlan 10 config-subif# interface vlan 10 config-subif# ip address 10.10.10.1 255.255.255.0 config-subif# default-management-vlan

  Correct Answer: A

• Question 72:

  A evaluation License is valid for a maximum of ________?

  A. 30 Days

  B. 60 Days

  C. 90 Days

  D. 6 Months

  E. 12 Months

  Correct Answer: C

• Question 73:

  An Aruba controller is configured with the correct IP address and gateway information and is connected to the corporate LAN via a core layer 2 switch. Control Plane Security is not enabled on the network. An access point is provisioned with AP name and group and connected to a different Layer 2 switch on the corporate LAN that has IP connectivity to the core layer 2 switch. The AP powers on and layer 2 connects to the network, but the wireless radios do not power on.

  Which could cause this condition? (Choose two.)

  A. the layer 2 switches have ACLs that block GRE traffic

  B. the layer 2 switches are configured to block IPSec traffic

  C. a DHCP server is not configured for the segment to which the AP is connected

  D. the AP's mac address needs to be configured in the Aruba controller whitelist.

  E. the AP and controller are in different subnets

  Correct Answer: AC

• Question 74:

  What is true about client match? (Choose two)

  A. Does Load balancing

  B. Does Spectrum load balancing

  C. Does Band Steering/Band Balancing

  D. Moves higher traffic devices to adjacent APs

  E. Sends QRT frames to neighbor APs

  Correct Answer: AC

• Question 75:

  (group8) #show ap active Active AP Table

  Name Group IP Address 11g Clients 11g Ch/EIRP/MaxEIRP 11a Clients 11a Ch/EIRP/MaxEIRP

  AP1 building1 10.1.80.150 0 AM 0 AM AP2 building1 10.1.80.151 0 AM 0 AM A user called technical support because they cannot see any of their APs in building one. You perform the

  "show" command as illustrated above.

  What can you conclude about these two APs from this output?

  A. the GRE for the APs terminate on two different controllers: 10.1.80.150 and 10.1.80.151

  B. the system will not function because there is no building1 group defined

  C. the building1 APs will not accept any user connections

  D. the user needs to configure his client to use the b/g band

  E. the user needs to configure his client to use the a band

  Correct Answer: C

• Question 76:

  What cannot be configured from the Initial Configuration wizards?

  A. Controller name

  B. Syslog server and levels

  C. User firewall policy

  D. User derivation rules

  Correct Answer: B

• Question 77:

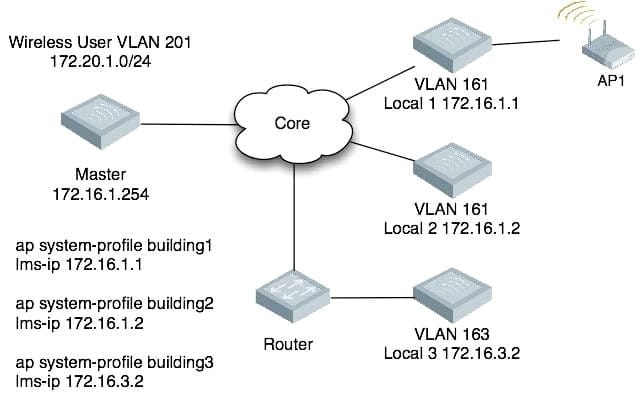

  The above diagram has one master and three local controllers. AP1 GRE terminates on controller Local 1.

  All controllers are configured with the wireless user VLAN 201. A wireless user associates with AP 1. Only L2 mobility is enabled.

  Which elements will know about this association?

  A. Local 1 only

  B. Local 1 and the Master

  C. Local 1 and Local 2 and the Master

  D. Local 1 and AP1

  E. All Controllers

  Correct Answer: B

• Question 78:

  How does the ARM Band Steering feature encourage 5GHz capable clients to move/connect to the 5GHz radios of Aruba APs?

  A. ARM "hides" the 2.4GHz radios from 5GHz capable clients

  B. ARM utilizes third party software on the wireless clients

  C. Current Wi-Fi chipset firmware supports this by default

  D. It's not possible the move clients to 5GHz radios when they can see both 2.4 and 5GHz APs

  Correct Answer: A

• Question 79:

  The corporation has deployed hundreds of RAP3 and all are working. A user has received a RAP3 from the IT department. At his home he connects the Ethernet port to his DSL modem. The corporate SSID is not advertises but an Instant SSID is. What could be the problem?

  A. This RAP was purchased as an IAP and not as a RAP

  B. The activate server does not have this RAPs configured

  C. The corporate Firewall is blocking VPN

  D. The RAP3 must be pre-staged

  E. The user must connect his laptop, get the Zero touch window and enter the URL

  Correct Answer: B

• Question 80:

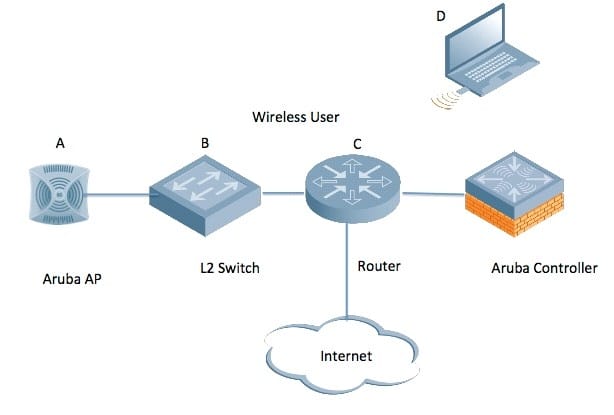

  In the diagram provided for this question, the Aruba controller terminates one end of a GRE tunnel that carries wireless user traffic.

  Where does the other end terminate?

  A. A

  B. B

  C. C

  D. D

  E. A or B

  Correct Answer: A
