HP HP Certifications HPE6-A29 Questions & Answers

• Question 41:

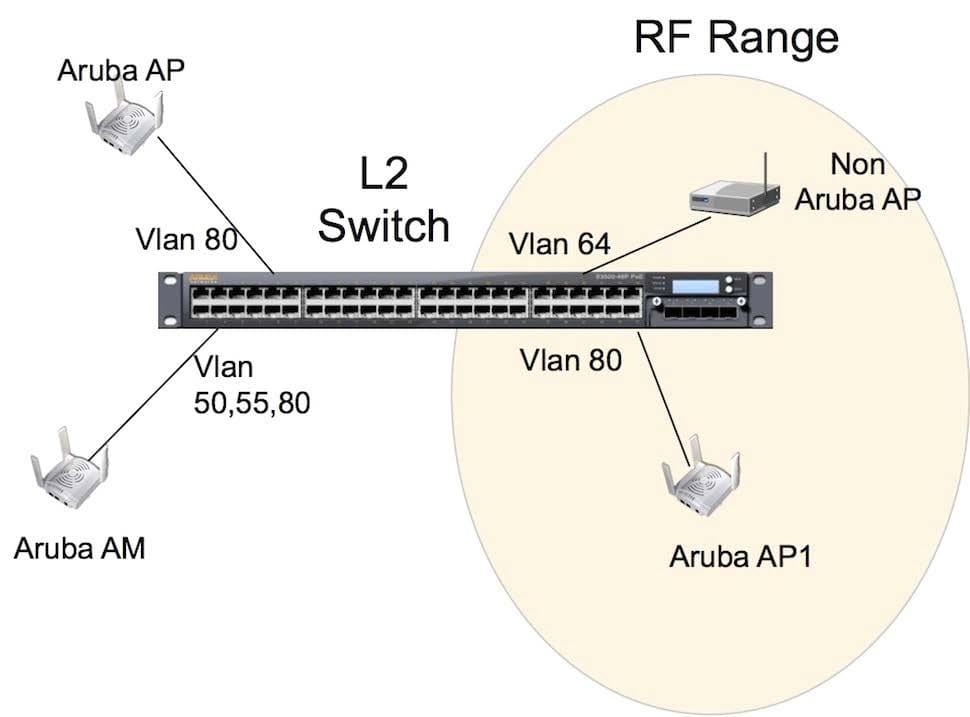

  Exhibit: Referring to the diagram provided for this question, an employee brought an unauthorized AP from home and attached it to the cubicle Ethernet port as shown in the diagram. The APs are in VLANs as shown in the diagram. Only AP1 is within RF range.



  How will the Aruba controller classify this AP?

  A. an AP

  B. an AM

  C. a Rogue AP

  D. an Interfering AP

  E. a workstation

  Correct Answer: D

• Question 42:

  The reusable Aruba Controller wizards are accessible in what way?

  A. Only on startup through the CLI

  B. Through the CLI, after the initial CLI wizard has been completed

  C. In the Web UI under maintenance.

  D. In the Web UI under configuration.

  E. Must be initialized from CLI first.

  Correct Answer: D

• Question 43:

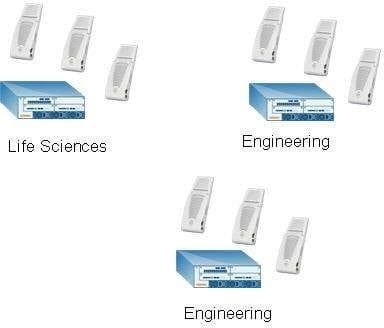

  In the university illustrated in the above diagram, the Life Sciences department has its own mobility domain, as does the engineering department. The university is planning on offering a new application and needs users to be able to roam between both mobility domains.



  What is the best way to accomplish this?

  A. The 2 existing domains should be left as they are. A 3rd mobility domain should then be created and all 3 controllers need to be added to it

  B. Merge the Life Sciences and Engineering controllers into the same mobility domain

  C. The IP subnets of all controllers need to be configured to match

  D. This cannot be accomplished

  Correct Answer: B

• Question 44:

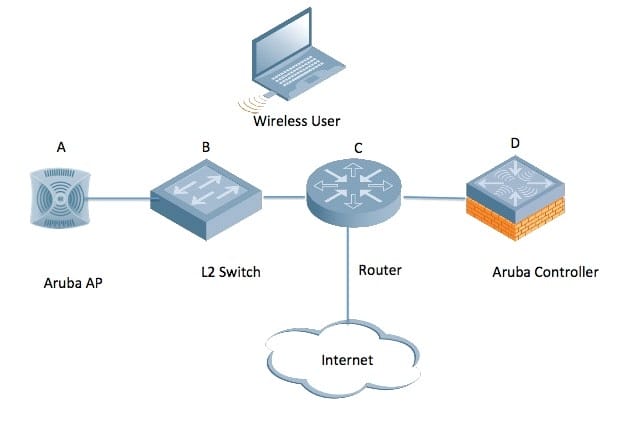

  In the diagram provided for this question, the wireless user's laptop is associated with an Aruba AP in tunnel forwarding mode. The AP terminates on the local controller.

  When the client transmits, where will the 802.11 headers be removed?

  A. AP

  B. L2 Switch

  C. Router

  D. Local Controller

  E. Internet

  Correct Answer: D

• Question 45:

  A Remote AP provisioned in "Split-Tunnel" Forwarding mode has which of the following characteristics?

  A. Local traffic first goes to the controller and is then spilt back to the local network.

  B. User Traffic is CPSec encrypted before it is sent to the controller.

  C. The user role must have a "Permit" statement in order to locally bridge the traffic.

  D. The user role must have a "permit dst-nat" statement to locally bridge the traffic.

  E. The RAP uses UDP 4500 to send traffic to the controller.

  Correct Answer: E

• Question 46:

  A Remote AP provisioned with an SSID in "Bridged" forwarding mode has which one of the following characteristics?

  A. The client obtains its IP address from the controller.

  B. The client's default gateway must be the controller.

  C. The client traffic is forwarded through a GRE tunnel to the controller.

  D. The client's default gateway may be the Access Point or a local gateway.

  E. The client's authentication must be 802.1X.

  Correct Answer: D

• Question 47:

  The Aruba Policy Enforcement Firewall (PEF) module supports source network address translation (srcnat).

  Which is a use of this statement in an Aruba configuration?

  A. provide a single source IP address for users in a role

  B. redirect Captive Portal HTTP sessions

  C. redirect Access Points to another Aruba controller

  D. provide IP addresses to clients

  E. redirects clients to Aruba Firewall

  Correct Answer: A

• Question 48:

  What is true about an AP in Hybrid Spectrum mode?

  A. Scan home channel and services client traffic on home channel

  B. Scans all channels and services clients on home channel

  C. Puts the selected band in spectrum mode and services clients on other band

  D. Makes the AP a spectrum monitor, but does not affect other APs in the AP-group

  E. All APs in AP-group scan home channel and service clients

  Correct Answer: A

• Question 49:

  An AP was configured to use dynamic controller discovery and assigned to an AP group, then powered off for over a week. When the AP is redeployed, what previous configuration will it retain?

  A. Its AP name and AP Group

  B. Its Serial Number

  C. The controller's IP address

  D. After a few days all configurations are lost

  E. The controller IP address and the AP Group

  Correct Answer: A

• Question 50:

  A client attaches to a secure jack interface set to untrusted. But when the client tries to access the captive portal page, the following message appears, "Web Authentication is not enabled." What might be wrong?

  A. The client has the browser provisioned with proxy settings.

  B. The controller port needs to be set to trusted.

  C. A "aaa" profile needs to be selected on the Wired Access page.

  D. A Captive Portal profile needs to be assigned to the initial role.

  E. Web Authentication cannot be used in this way.

  Correct Answer: D
