HP HPE0-V14 Online Practice Questions and Exam Preparation

HP HPE0-V14 Online Questions & Answers

• Question 1:

  A customer needs a Layer 2 switch that provides basic switch functionality without the need to use a CLI or a GUI. Which type of switch meets the customer's needs?

  A. smart web-managed
  B. managed
  C. unmanaged
  D. cloud-managed
  C. unmanaged

• Question 2:

  A customer with limited IT administration resources needs a complete HPE server, storage, and networking solution. The solution must be able to be deployed in an hour or less through a simple, wizard-based setup. They want to manage the HPE solution through a simple, integrated plug-in to vCenter, since their IT staff members are already familiar with vCenter.

  Which HPE solution best meets the customer requirements?

  A. HPE ConvergedSystem 750
  B. HPE Proliant for Microsoft Azure Stack
  C. HPE Nimble Storage dHCI
  D. HPE OneView for VMware vCenter
  D. HPE OneView for VMware vCenter

• Question 3:

  Refer to the exhibit.

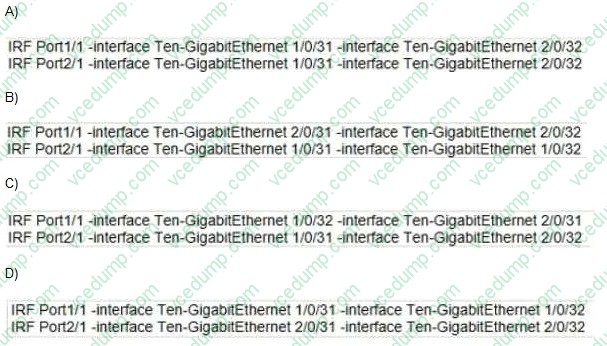

  You are configuring a pair of HPE 5945 switches into an IRF stack You have cabled the switches as depicted in the exhibit Into which IRF Ports should you place each switch interface?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 4:

  Refer to the exhibit.



  You observed some high temperature alerts on a switch shown in the middle rack of the exhibit. The cooling in the data center is following best practices for the layout in the exhibit. The switch is an HPE 5945 series switch, and all the fans are operating normally. The switch is racked so that its ports face the rear of the rack. The administrator noticed the fan modules have red handles.

  What should the administrator do to resolve the issue?

  A. Replace the fan modules with port-to-power fan modules.
  B. Add additional fan modules to the switch.
  C. Replace the fan modules with power-to-port fan modules.
  D. Change the fan direction with the fan preferred direction command.
  D. Change the fan direction with the fan preferred direction command.

• Question 5:

  Read the question, and then refer to the exhibit.

  display interface Ten-GigabitEthernet 1/0/1 Ten-GigabitEthernet1/0/1 Current state: Administratively DOWN Line protocol state: DOWN IP packet frame type: Ethernet II, hardware address: d894-03fb-793d Description: TenGigabitEthernet1/0/1 Interface Bandwidth: 10000000 kbps Loopback is not set Media type is stack wire, port hardware type is STACK_SFP_PLUS Unknown-speed mode, unknown-duplex mode Link speed type is autonegotiation, link duplex type is autonegotiation Flow-control is not enabled Maximum frame length: 10000 Allow jumbo frames to pass Broadcast max-ratio: 100% Multicast max-ratio: 100% Unicast max-ratio: 100% PVID: 1 MDI type: Automdix Port link-type: Trunk VLAN Passing: 10, 20 VLAN permitted: 10, 20 Trunk port encapsulation: IEEE 802.1q Port priority: 0 Last link flapping: 0 hours 0 minutes 18 seconds Last clearing of counters: Never Peak input rate: 78 bytes/sec, at 2011-03-31 04:55:57 Peak output rate: 15 bytes/sec, at 2011-03-30 23:00:57 Last 300 second input: 0 packets/sec 67 bytes/sec -% Last 300 second output: 0 packets/sec 14 bytes/sec -% Input (total): 62670 packets, 8565340 bytes 0 unicasts, 0 broadcasts, 62670 multicasts, 0 pauses Input (normal): 62670 packets, -bytes 0 unicasts, 0 broadcasts, 62670 multicasts, 0 pauses Input: 0 input errors, 0 runts, 0 giants, 0 throttles 0 CRC, 0 frame, -overruns, 0 aborts ?ignored, -parity errors Output (total): 3707 packets, 1294835 bytes 0 unicasts, 0 broadcasts, 3707 multicasts, 0 pauses Output (normal): 3707 packets, -bytes 0 unicasts, 0 broadcasts, 3707 multicasts, 0 pauses Output: 0 output errors, -underruns, -buffer failures 0 aborts, 0 deferred, 0 collisions, 0 late collisions 0 lost carrier, -no carrier

  A customer added a new switch to their network. They connected it using interface Ten-GigabitEthernet 1/0/1. They are using VLAN 10 and 20 for the devices in their network.

  The new switch was fully operational. Then, the customer experienced a power failure later that day and could not reach any device on the new switch after the power returned.

  From the output in the exhibit, would could be the issue?

  A. The interface loopback is not set.
  B. The interface link-speed and duplex are unknown.
  C. The interface is administratively down.
  D. The interface is configured for a PVID of VLAN 1.
  C. The interface is administratively down.

• Question 6:

  A customer has a single HPE ProLiant Gen 10 server.

  Which embedded management tool should they use to monitor the server?

  A. HPE OneView Standard
  B. HPE Smart Update Manager
  C. NPE Intelligent Provisioning
  D. HPE iLO5
  B. HPE Smart Update Manager

• Question 7:

  A customer needs to update firmware and perform diagnostic tests on various components of a HPE ProLiant server. Which utility should they use?

  A. Insight Online
  B. Intelligent Provisioning
  C. Intelligent Management Center
  D. UEFI
  B. Intelligent Provisioning

• Question 8:

  A customer needs a Fibre Channel storage solution that supports block storage with the lowest cost. Which HPE solution meets this customer's requirements?

  A. HPE Nimble Storage
  B. HPE SimpliVity
  C. HPE MSA
  D. HPE StoreVirtual VSA
  C. HPE MSA

• Question 9:

  A customer is planning an upgrade to their network infrastructure. They want to move to an open networking solution, and they want to install a network switch that supports their choice of network operating system. Which HPE product family will meet the customer's needs?

  A. Altoline
  B. FlexFabric
  C. Arista
  D. Aruba
  A. Altoline

• Question 10:

  A customer has the following requirements:

  1.

  two or more 10Gb SFP+ uplinks

  2.

  downlink ports capable of 1Gb or 10Gb operation over CAT6a or CAT7 cables.

  3.

  24 downlink ports

  Which HPE tool would you use to help choose an HPE network solution that meets the customer requirements?

  A. HPE Switch Selector
  B. HPE NinjaSTARS
  C. HPE SAF
  D. HPE SPOCK
  A. HPE Switch Selector
