HP HPE0-S59 Online Practice Questions and Exam Preparation

HP HPE0-S59 Online Questions & Answers

• Question 81:

  DRAG DROP

  Match each HPE Synergy logical component with the definition.

  Select and Place:





• Question 82:

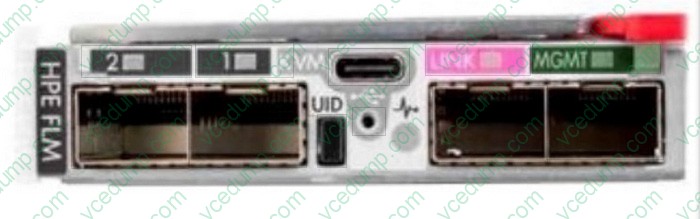

  HOTSPOT

  Click the port on the Frame Link Module which is used to include an HPE Synergy frame in the management ring.





• Question 83:

  Your customer uses HPE OneView to manage their HPE Synergy environment. They plan to use it to manage a new set equipment that includes.

  1.20 HPE ProLiant DL365 Gen10 Plus servers

  2.20 HPE ProLiant DL380 Gen10 Plus servers

  3.5 HPE Primera 650

  4.5 HPE MSA 2062 Storage Array

  Which statements about now OneView will work with this new equipment are true? (Select two)

  A. HPE ProLiant DL365 Gen10 Plus servers are not supported in HPE OneView
  B. HPE MSA 2062 Storage Array is not supported in HPE OneView
  C. HPE OneView replaces array management tools for both types of array
  D. HPE ProLiant DL380 Gen10 Plus servers have an HPE OneView license included
  E. HPE Primera 650 can be managed using HPE OneView.
  B. HPE MSA 2062 Storage Array is not supported in HPE OneView
  E. HPE Primera 650 can be managed using HPE OneView.

• Question 84:

  Your customer has an HPE Synergy platform deployed and managed using HPE OneView. The customer also has HPE Superdome Flex with RMC deployed They plan to deploy a second nPar and HPE Superdome Flex 280 They plan to manage new components using HPE OneView

  What must be done to achieve this goal?

  A. The customer must use IL05 to add HPE Superdome Flex systems to HPE OneView
  B. The customer should deploy an HPE OneView appliance for HPE Superdome Flex management
  C. The customer must add a second Rack Management Controller for HPE Superdome Flex 280
  D. The customer has to add HPE Superdome Flex to the HPE OneView used to manage HPE Synergy
  D. The customer has to add HPE Superdome Flex to the HPE OneView used to manage HPE Synergy

• Question 85:

  What is a restriction of using a RoCE network?

  A. It is by default configured as an untagged network and cannot be a part of a network set.
  B. It does not support Private VLAN and Multicast VLAN.
  C. it is not supported with HPE Virtual Connect SE 40 GD F8 Module for HPE Synergy.
  D. It does not support smart link and private network features.
  B. It does not support Private VLAN and Multicast VLAN.

• Question 86:

  Your customer wants to add a second HPE Synergy frame to an existing logical enclosure Based on a single HPE Synergy frame. The customer wants to use a highly available master setup. Which procedures should De performed during the expansion process? (Select two.)

  A. Create a new logical interconnect group and enclosure group for two frames setup
  B. Create a new logical enclosure based on both HPE Synergy frames.
  C. Re-parent an existing enclosure group to the new logical interconnect group.
  D. Modify an existing logical interconnect to include second HPE Synergy frame.
  E. Move one of the master modules to the appropriate interconnect bay in the second frame.
  D. Modify an existing logical interconnect to include second HPE Synergy frame.
  E. Move one of the master modules to the appropriate interconnect bay in the second frame.

• Question 87:

  You need to configure a RoCE network to enable lossless networking for HPE J2000 Flash Enclosure support Which interconnects are required to support this connection? (Select two.)

  A. HPE Virtual Connect SE 40Gb F8 Module for HPE Synergy
  B. HPE Virtual Connect SE 16Gb FC Module for HPE Synergy
  C. HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy
  D. HPE Virtual Connect SE 32Gb FC Module for HPE Synergy
  E. Brocade 16Gb Fibfe Channel SAN Switch Module for HPE Synergy
  F. Brocade 32Gb Fibre Channel SAN Switch Module for HPE Synergy
  A. HPE Virtual Connect SE 40Gb F8 Module for HPE Synergy
  C. HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy

• Question 88:

  A logical interconnect group can span on multiple HPE Synergy frames for which interconnect type?

  A. Brocade 32GB Fibre Channel Switch Module for HPE Synergy
  B. HPE virtual Connect SE 32 Gb FC Module for Synergy
  C. HPE Virtual Connect SE 100 Gb F32 Module tor Synergy
  D. HPE Synergy 12 Gb SAS Connection Module
  C. HPE Virtual Connect SE 100 Gb F32 Module tor Synergy

• Question 89:

  Which statement about the HPE D3940 storage module is true?

  A. Only one type of drives (SATA, SAS, SSD) can be installed in each module.
  B. It is configured through CLI available from HPE Synergy console.
  C. SATA drives require redundant IO adapters to be installed in this module.
  D. Up to five modules can be installed in a single frame with Gen10 servers.
  C. SATA drives require redundant IO adapters to be installed in this module.

• Question 90:

  Which statement about manual orchestration during the firmware update is true?

  A. It is supported only for logical enclosures with at least three frames
  B. It provides an ability to select and update one side of the Interconnect topology at a time
  C. It provides the ability to install an older firmware version than currently Installed In the interconnect
  D. It allows all the interconnect modules to be activated manually at the same time.
  B. It provides an ability to select and update one side of the Interconnect topology at a time
