HP HP2-Z30 Online Practice Questions and Exam Preparation

HP HP2-Z30 Online Questions & Answers

• Question 61:

  A network administrator acquires a new HP Comware switch from HP with the factory default settings. The network administrator logs into the console port and configures the following information: user-interface aux0 quit super password level 0 simple hp0 super password level 1 simple hpl super password level 2 simple hp2 super password level 3 simple hp3 What happens the next time the network administrator logs into the console?

  A. The network administrator is immediately taken to level 3 with no password prompted.
  B. The network administrator must enter a password of hp3.
  C. The network administrator must perform the password recovery procedure because it was incorrectly configured.
  D. The network administrator must enter a password of hp0.
  B. The network administrator must enter a password of hp3.

• Question 62:

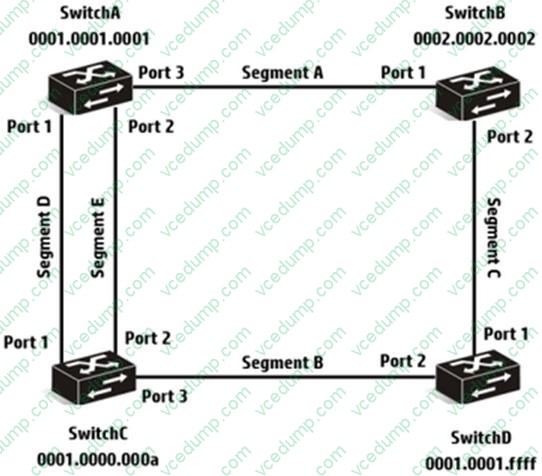

  Refer to the network exhibit.



  Assume the network shown in the exhibit has implemented RSTP Based on the topology, which port is a root port?

  A. SwrtchAport2
  B. SwitchD port 1
  C. SwitchC port 2
  D. SwitchB port 1
  C. SwitchC port 2

• Question 63:

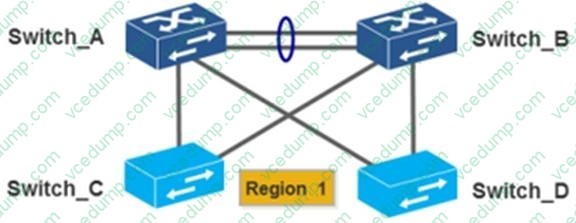

  Refer to the network exhibit.



  All of the switches in the exhibit are configured as follows:

  1.

  Config name =";Region!'

  2.

  Revision #= 1

  3.

  Instance 1=VLANs 10.12

  4.

  lnstance2 = VLANs11,13

  5.

  1ST instance = VLANs 1-9.14-4094

  Currently, onlyVLANs 1,10,11,12, and 13 exist on the four switches. A network administrator adds VLAN 15 to Switch_C. How is the topology affected by this change?

  A. Spanning tree recalculates, with load sharing not in effect to Switch_C.
  B. Spanning tree recalculates, with load sharing still in effect to Switch_C.
  C. A loop now exits involving Switch_C.
  D. No topology changes occur with spanning tree.
  B. Spanning tree recalculates, with load sharing still in effect to Switch_C.

• Question 64:

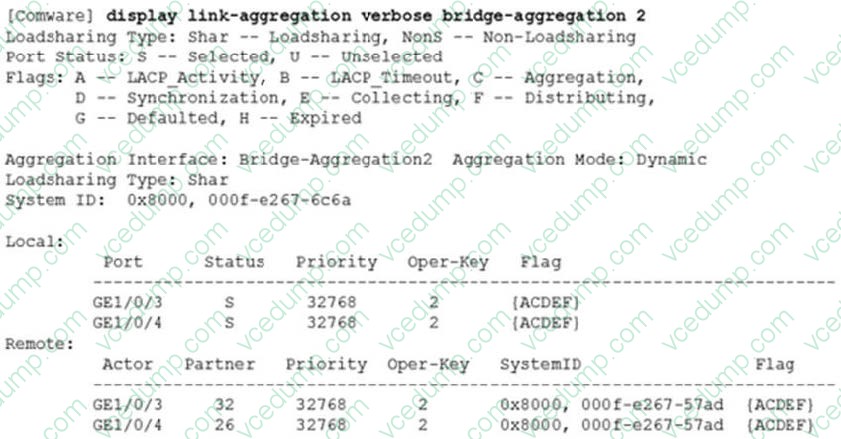

  Refer to the partial command output: Based on this output, which statement is true?



  A. Dynamic LACP is used, and load sharing is functioning correctly.
  B. Static LACP is used, and load sharing has failed.
  C. Dynamic LACP is used, and load sharing has failed.
  D. Static LACP is used, and load sharing is functioning correctly.
  B. Static LACP is used, and load sharing has failed.

• Question 65:

  What is a key emerging standard protocol that HP Virtual Application Networks (VAN) use to implement Software-Defined Networks (SDN)?

  A. IMC
  B. OpenFlow
  C. FlexFabric
  D. OpenStack
  B. OpenFlow

• Question 66:

  Which HP Provision switch command controls the logging level of messages sent to a syslog server?

  A. info-center level
  B. logging severity
  C. logging-host trap-level
  D. syslog severity
  B. logging severity

• Question 67:

  Which action can be performed from an HP Comware switch?

  A. Execute the super command to change privilege levels.
  B. Execute the startup-default command to define the configuration file to load upon bootup.
  C. Execute the show flash command to examine the operating systems stored in flash.
  D. Execute the boot set-default flash command to define the default operating system to load.
  A. Execute the super command to change privilege levels.

• Question 68:

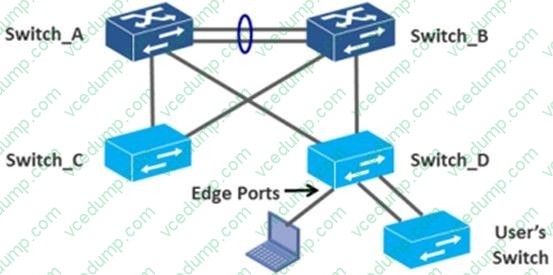

  Refer to the network exhibit.



  A user brings a generic switch from home into a company. The user switch does not support any Spanning Tree protocols. The user switch has two connections to the network on switch ports that are defined as edge ports. Assume the company switches are HP Provision switches.

  Which HP protection feature effectively manages this problem?

  A. Edge Protection
  B. Loop Protection
  C. Root Protection
  D. BPDU Protection
  B. Loop Protection

• Question 69:

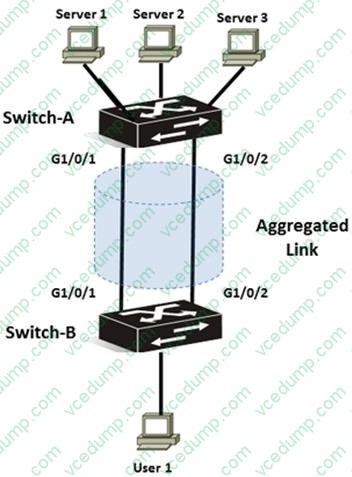

  Refer to the exhibit.

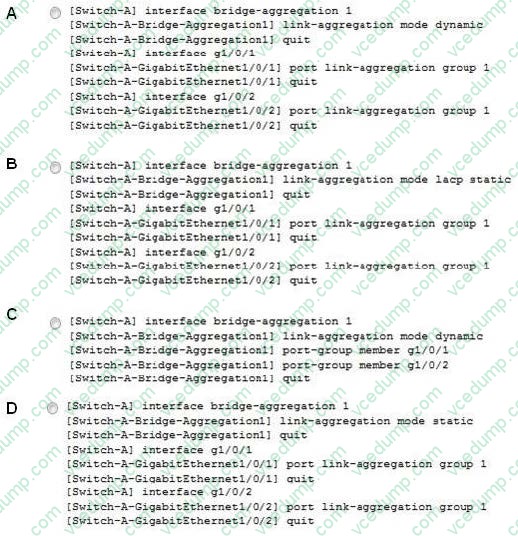

  A network administrator needs to configure link aggregation using static LACP on Switch-A, which is an HP Comware switch. Which configuration accomplishes this goal?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

• Question 70:

  After setting up DHCP relay, the network administrator has the DHCP client try to acquire addressing information, but the process fails. What should the network administrator do to solve this problem?

  A. Configure DHCP relay on SwitchB.
  B. Enable DHCP Snooping on SwichA.
  C. Execute the dhcp enable command on SwitchA.
  D. Execute the routing command SwichA.
  C. Execute the dhcp enable command on SwitchA.
