HP HP0-Y46 Online Practice Questions and Exam Preparation

HP HP0-Y46 Online Questions & Answers

• Question 51:

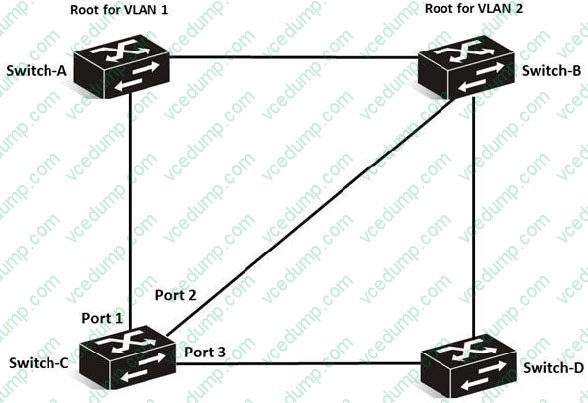

  Refer to the network exhibit.



  The network is running spanning tree. Examine this configuration of Switch-C:



  Port 1 on Switch-C fails. Based on this topology, which statement is true?

  A. If PVST+ was running, a loop-free topology would be created.
  B. If Port Monitor was running, a loop-free topology would be created.
  C. If MSTP was running, a loop-free topology would be created.
  D. If RSTP was running, a loop-free topology would be created.
  D. If RSTP was running, a loop-free topology would be created.

• Question 52:

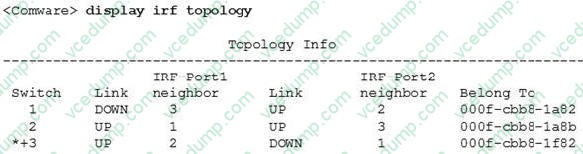

  Refer to the topology output.



  Based on this topology, which statements are true? (Select two.)

  A. The topology is functioning normally
  B. This is a daisy chain topology
  C. This is a ring topology
  D. A break exists in the topology
  E. There is a split stack
  C. This is a ring topology
  D. A break exists in the topology

• Question 53:

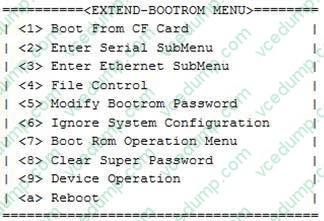

  A network administrator attempts to access the console port of an HP Comware switch. The network administrator is immediately prompted for a username and password, but cannot remember the correct account information. The network administrator then reboots the switch and accesses the Extended BootROM menu, where this information displays:



  Which option can the network administrator choose to get access to User and System Views from the switch's console port?

  A. Option 4
  B. Option 5
  C. Option 6
  D. Option 8
  B. Option 5

• Question 54:

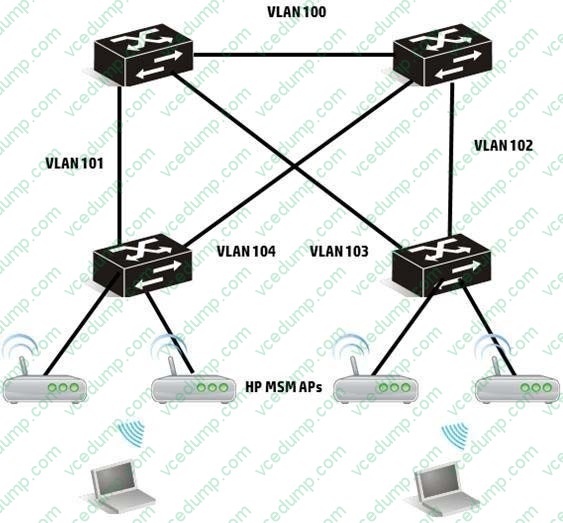

  Refer to the network exhibit.



  When should the topology shown in the exhibit be implemented in a network?

  A. When roaming is not desired
  B. When autonomous mode is needed on the APs
  C. When a layer 2 switched network is required
  D. When centralized management of APs is required
  C. When a layer 2 switched network is required

• Question 55:

  What is the function of HP Intelligent Provisioning?

  A. Enables quick and secure implementation of a wireless network
  B. Uses application templates to configure virtual networks, servers, and storage using industry best practices
  C. Deploys, configures, and maintains HP ProLiant Gen8 servers
  D. Secures access control at the edge of a network so that guest users are isolated
  C. Deploys, configures, and maintains HP ProLiant Gen8 servers

• Question 56:

  A VLAN is connected to an HP Comware hybrid port. What can a network administrator use to assign a device to the VLAN? (Select two.)

  A. IP address
  B. Access Control List (ACL)
  C. IPX address
  D. Protocol
  E. LLDP device type
  A. IP address
  D. Protocol

• Question 57:

  A network administrator has installed IMC and the appropriate licenses. The network administrator is attempting to import the HP Comware and HP Provision switches into IMC but is experiencing problems importing the Comware switches. The network administrator verifies the SNMPv2c configuration on both sets of switches and the SNMP configuration in IMC. The SNMP parameters are correct.

  What is the cause of the import problem?

  A. Comware switches are not fully supported by IMC.
  B. Comware switches implement SNMPv3 by default.
  C. Comware switches require SSH to be configured for remote CLI access.
  D. Comware switches do not have telnet fully configured.
  C. Comware switches require SSH to be configured for remote CLI access.

• Question 58:

  Which statements are true about the Network Time Protocol (NTP)? (Select two.)

  A. It can deliver time-stamped messages via a multicast delivery system.
  B. It delivers time-stamped messages using TCP to port 123.
  C. The most precise time source is a stratum level 16 clock.
  D. Timestamps can be digitally signed with certificates.
  E. Timestamps can be digitally signed for verification.
  A. It can deliver time-stamped messages via a multicast delivery system.
  E. Timestamps can be digitally signed for verification.

• Question 59:

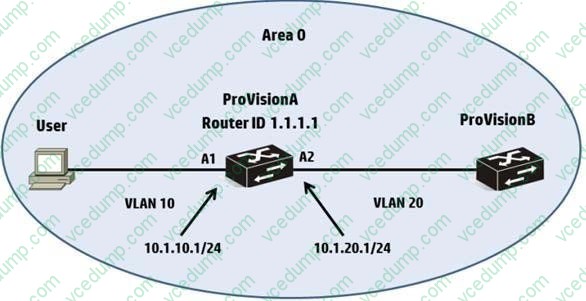

  Refer to the network exhibit.

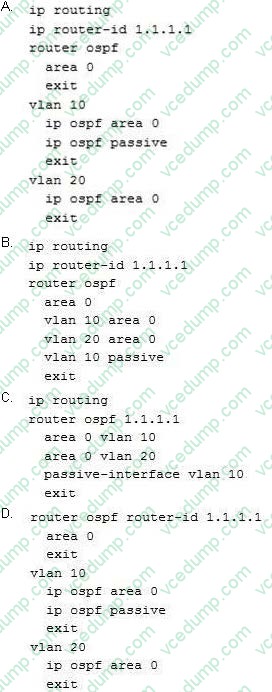

  A network administrator needs to ensure that no adjacency is formed with the User device. Based on the topology shown in the exhibit, which configuration successfully configures OSPF for ProVisionA?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 60:

  What are the participants in the 802 1X authentication process? (Select two.)

  A. Supplicant
  B. Client
  C. Access point (AP)
  D. Intermediary
  E. Authenticator
  A. Supplicant
  E. Authenticator
