HP HP0-Y46 Online Practice Questions and Exam Preparation

HP HP0-Y46 Online Questions & Answers

• Question 1:

  A network administrator has an HP Comware switch that is configured with OSPF. The network administrator views the routing table and sees that a default route was learned from an OSPF neighbor (10.1.1.1). However, the network administrator wants to override this action and use a different neighbor (10.1.1 2) for the default route.

  The network administrator configures this command:

  [Comware] ip route-static 0.0.0.0 0 10.1.1.2

  After configuring the command, the network administrator examines the routing table and notices that the original neighbor's default route is still in the routing table, but the static route is missing.

  What is the cause of this problem?

  A. OSPF routes have a lower precedence value
  B. The ip default-gateway command must be used when creating a default route
  C. Only one routing protocol can be operational on a Comware device
  D. The static route has a syntax mistake
  A. OSPF routes have a lower precedence value

• Question 2:

  Before upgrading networking equipment like switches, a network administrator should first perform some important preparation tasks. What should the network administrator include in the creation of an upgrade policy? (Select two.)

  A. Read the release notes of the old operating system.
  B. Update network management software before deploying upgrades to network switches
  C. Verify remote access connectivity to the device to be upgraded.
  D. Make a copy of the old operating system.
  E. Test the upgrade in a lab network or a less important part of the network first.
  C. Verify remote access connectivity to the device to be upgraded.
  E. Test the upgrade in a lab network or a less important part of the network first.

• Question 3:

  Which item is different between the IEEE 802.3z and 802.3ae standards?

  A. Link aggregation
  B. Frame sizes
  C. Support of copper and fiber cabling
  D. Duplexing
  D. Duplexing

• Question 4:

  Based on the default precedence used to rank routing protocols in HP Comware switches, if a default route (0.0.0.0/0) is learned from multiple routing protocols, which source would the Comware operating system prefer?

  A. Static
  B. RIP
  C. External BGP
  D. Internal OSPF
  D. Internal OSPF

• Question 5:

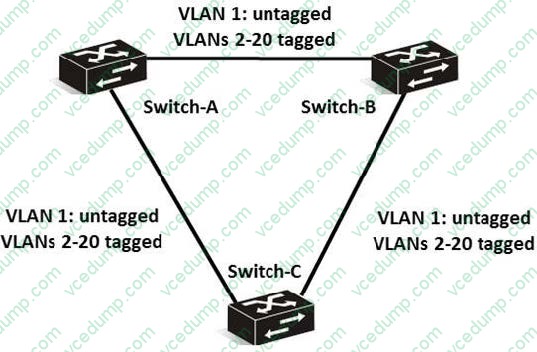

  Refer to the network exhibit.



  A network administrator has created a layer 2 network based on the design shown in the exhibit. Switch-A and Switch-B are distribution layer switches. Switch-C is an access layer switch. What is the best spanning tree solution for this environment?

  A. STP
  B. RSTP
  C. PVST+
  D. MSTP
  A. STP

• Question 6:

  Refer to the HP Comware configuration.



  The network administrator set up VLAN 2 as a management VLAN This VLAN should not be included in the OSPF routing process Now only directly connected network administrators in VLAN 2 can manage the switch. How should the network administrator solve this problem?

  A. Define the ip authorized-managers 10.1.0.0/24 command
  B. Define the management-vlan 2 command.
  C. Define the VLAN 2 interface as a silent interface.
  D. Change the network command in OSPF.
  B. Define the management-vlan 2 command.

• Question 7:

  Which FlexArchitecture component uses Virtual Connect in blade server systems?

  A. FlexFabric
  B. FlexDataCenter
  C. FlexCampus
  D. FlexManagement
  A. FlexFabric

• Question 8:

  A network administrator is building two IRF domains:

  Each access layer switch should have a connection to each distribution layer switch. In this design, how many access switches can the administrator have in the access layer IRF domain before spanning tree is required to remove loops between the two IRF domains?

  A. 2
  B. 4
  C. 6
  D. 8
  E. 12
  A. 2

• Question 9:

  A network administrator receives a new HP Provision switch and notices that the software version running on the switch is older than what is currently used in the network. The network administrator copies an updated version of the operating system from the new switch's USB port to the secondary flash location. The network administrator then executes the following command:

  ProVision # boot system flash secondary

  The switch reboots using the new operating system. However, when the network administrator turns off the switch and turns it back on, the switch boots from the old operating system. Which solution should the network administrator use to fix the problem?

  A. Execute the startup-default secondary command.
  B. Execute the boot-loader file command.
  C. Execute the boot set-default flash secondary command.
  D. Boot into the switch's Monitor ROM Console and perform the upgrade a second time.
  E. Execute the startup-boot secondary command
  C. Execute the boot set-default flash secondary command.

• Question 10:

  A network administrator views this message on the console of an HP Comware switch:



  What is the significance of this message?

  A. The switch has shared routes with the DR
  B. The switch has become the BDR
  C. The switch has received routes from a DROTHER
  D. The switch has become the DR
  B. The switch has become the BDR
