HP HP0-S35 Online Questions & Answers

• Question 51:

  Which resource can be used to identify supported third-party SAN configurations for HP BladeSystem?

  A. HP Heterogeneous SAN Design Guide
  B. SNIA SMI_S Specifications Support Matrix
  C. HP SAN Design Reference Guide
  D. SNIA Compatibility Reference Tables
  C. HP SAN Design Reference Guide

• Question 52:

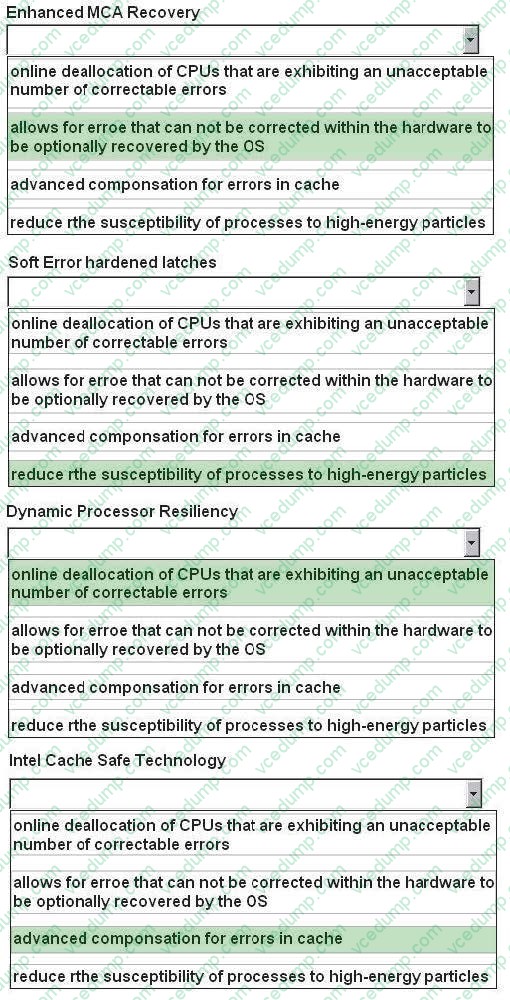

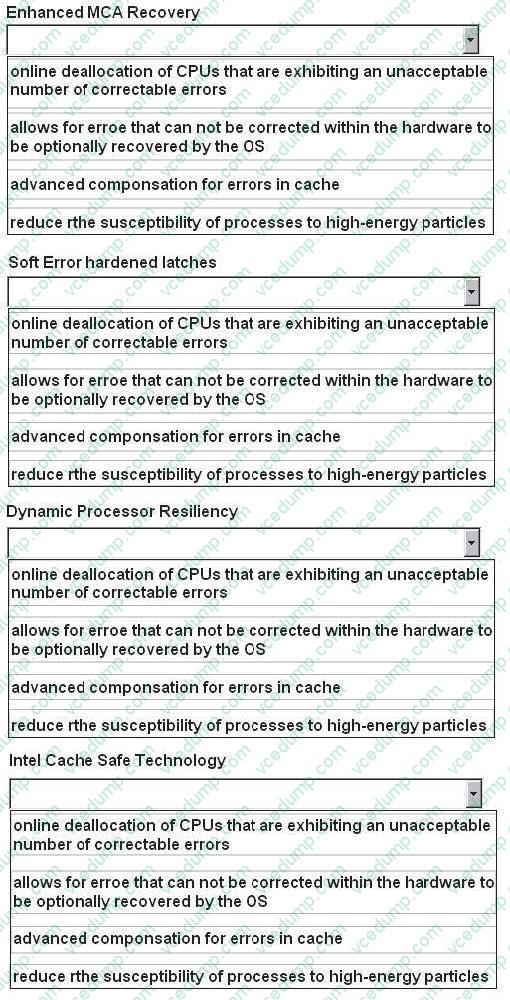

  Match each technology to its description.

  Hot Area:





• Question 53:

  All Production Systems are backed up every night at a specific time and backup is run concurrently to a locally attached tape library. Which Concept does this represent?

  A. Backup Strategy
  B. Disaster Tolerance
  C. Disaster Recovery
  D. Business Continuity
  A. Backup Strategy

• Question 54:

  What is required on a server to use Server Deployment in Insight control? (Choose 3)

  A. PXE
  B. DNS
  C. DHCP
  D. SNMP
  A. PXE
  B. DNS
  C. DHCP

  ---

  http://h18013.www1.hp.com/products/servers/management/rdp/knowledgebase/20000069.html Bare Metal servers require a PXE server to get an IP address.

  To boot PXE, you must have a DHCP server

  Is DNS required?

  SNMP Is NOT required

  HP Insight Control Software - Overview version 7.0

  Deployment Server Prerequisites

  ?Hardware: ProLiant server with at least 2.0 GHz processor and 2 GB of memory, or an equivalent virtual machine. ?Operating System:Microsoft Windows Server 2003 R2 x86 Standard SP2;Microsoft Windows Server 2008 x86 or x64

  Standard or Enterprise Editions; or Microsoft Windows Server 2008 R2 x64 Standard or Enterprise Editions or Microsoft Windows Server 2008 R2 SP1 x64 Standard or Enterprise Editions.The server must not be a domain controller.

  ?Storage: 8 GB of free space on the system drive, 4 GB for the base installation, about 4 GB for each distribution, and additional space for each captured disk image.

  ?Networking: a network adapter configured with a static IP address and all firewalls properly configured. For Windows 2008 with a local DHCP service, refer to Symantec Knowledgebase (Article TECH41571). ?Microsoft .NET Framework 2.0

  (available at http://www.microsoft.com/net/Download.aspx). ?Microsoft SQL Server 2005 SP3 Express, Standard, or Enterprise Editions; or Microsoft SQL Server 2008 SP2 Express, Standard, or Enterprise Editions (installed either locally or

  remotely; available at http://www.microsoft.com/sqlserver/2008/en/us/default.aspx) ; or Microsoft SQL Server 2008 R2 Express.

  Configured as follows:

  ?SQL Server Protocols TCP/IP and Named Pipes must be enabled.

  ?SQL Server must be configured with a TCP static port; TCP dynamic ports are not supported. ?The user performing the installation must be a member of the SYSADMIN SQL Server Security Role. ?For remote SQL Server installations on

  the remote Windows Server, (a) the user performing the installation must have Administrator permissions, (b) the firewall must be properly configured, and (c) the SQL Browser service must be running.

  ?Microsoft Windows Automated Installation Kit (AIK) for Windows Vista SP1 and Windows Server 2008 1.1 (available at http://www.microsoft.com/downloads/ details.aspx? familyid=94bb6e34-d890-4932-81a55b50c657de08anddisplaylang=enandtm).

  ?Disable antivirus software.

  ?To use the Deployment Web Console, Microsoft IIS with ASP.NET.

  ?To deploy VMware ESX or Linux, Microsoft IIS FTP. For IIS 7.5, IIS 6 compatibility mode must be enabled and FTP Publishing must be added to the default web site with anonymous read access.

  ?When upgrading, console security must be disabled.

• Question 55:

  After a new installation has been completed on a server, which HP tool collects most information to establish baseline for firmware and driver revisions on that server?

  A. HP Offline Diagnostics
  B. HP Active Health System
  C. HP SUM
  D. HPS Report
  B. HP Active Health System

  ---

  Because the Active Health System collects data from iLO 4 itself, System ROM, Smart Array, NIC, and power supply firmware, hardware components, and optional OS agents. It collects approximately 1,600 unique data items http://h20000.www2.hp.com/bc/docs/support/SupportManual/c03207602/c03207602.pdf

• Question 56:

  An administrator has just installed the latest service pack for Microsoft Windows Server 2008 R2. What else needs to be done to keep the server up to date?

  A. Uninstall Microsoft patches
  B. Delete the temporary install files
  C. Remove older security updates
  D. Re-install the ProLiant Support Pack or HP Service Pack for ProLiant
  D. Re-install the ProLiant Support Pack or HP Service Pack for ProLiant

• Question 57:

  You are at a customer's site configuring two c3000 enclosure with Flex10 modules. Both enclosure are in the same room and will be hooked up to the same network switchies. The customer does not plan to use Multi Enclosure Stacking, and does not have a Virtual Connect Enterprise Manager License To configure the Virtual Connect domains, what should you do regarding the MAC address ranges?

  A. Set up the enclosure link and configure one range for both enclosure
  B. Use a different range for each enclosure to avoid duplicate MAC addresses
  C. Use a predefined range for one enclosure and manually define the second enclosure
  D. Use the same range or each enclosure to simplify management
  B. Use a different range for each enclosure to avoid duplicate MAC addresses

  ---

  Multi-Enclosure Stacking is NOT supported on the c3000 Enclosure... http://h20000.www2.hp.com/bc/docs/support/SupportManual/c02102153/c02102153.pdf - Page Conversely, here are some reasons why you could not or would not want to use Multi-Enclosure Stacking:

  If you are using c 3000 enclosures If the enclosure you are considering to be the base enclosure has Virtual Connect 1/10Gb modules running Virtual Connect Manager If you want to maintain different VC firmware versions across the enclosures If not all OA and VC modules are on the same network/IP subnet If many VC faceplate ports are used for uplinks and you do not have enough available ports to form a recommended stacking configuration If all the OA modules do not have common login credentials with administrator privileges If you cannot or do not want to have identical FC or FCoE uplink ports across all enclosures If you want to use DirectAttach FC fabrics (connecting Virtual Connect directly to a Storage Array without going through a FC switch) because moving across enclosures a server profile with Boot from SAN settings would require some manual adjustments (the target controller WWN would change)

• Question 58:

  After upgrading an existing system, a new baseline is needed. What are the options when using Version control Agent to select a managed baseline? (Select two)

  A. iLO management Engine
  B. Systems Insight manager
  C. Proliant Support Pack
  D. Custom software baseline
  C. Proliant Support Pack
  D. Custom software baseline

• Question 59:

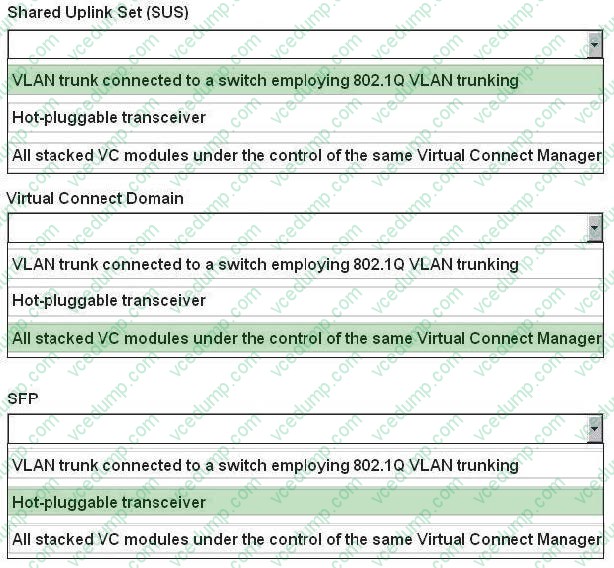

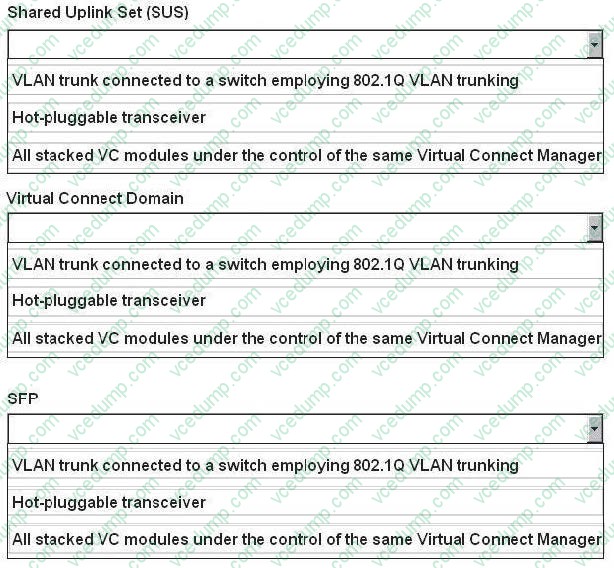

  Match each Virtual Connect term with its description.

  Hot Area:





• Question 60:

  Which HP resource is used primarily by HP partners to check warranty information and part ordering?

  A. Channel Service Networks (CSN)
  B. Part Surfer
  C. Active Answers
  D. Single Point of Configuration Knowledge (SPOCK)
  A. Channel Service Networks (CSN)
