Huawei H12-831 Online Practice Questions and Exam Preparation

Huawei H12-831 Online Questions & Answers

• Question 341:

  In the DU label distribution mode, if the Liberal retention mode is adopted, the device will retain the labels distributed by all LDP peers, regardless of whether the LDP peer is the optimal next hop to the destination network segment.

  A. True
  B. False
  A. True

• Question 342:

  When deploying BGPIMPLS IPVPN, when two VPNs have a common site, the common site must not use overlapping address space with other sites of the two VPNs.

  A. True
  B. False
  B. False

• Question 343:

  In the absence of a header, the Domain ID of each OSPF process running on the router and the process ID of the process. Be consistent and can be modified under the process through the domain-id command.

  A. True
  B. False
  B. False

• Question 344:

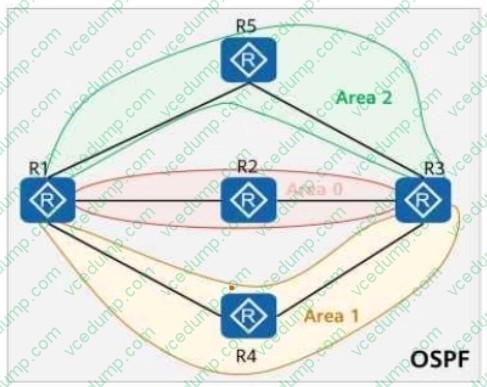

  On the OSPF network shown in the figure, area 1 is an NSSA, area 2 is a common area, and R4 imports an external route 10.0.4.4/32. The router ID of each router is 10.0.X.X, where X is the router number. If the asbr-summary 10.0.4.0

  255.255.255.0 command is run in the OSPF processes of R1 and R3, which of the following routers have the route 10.0.4.0/24 in their routing tables?



  A. R1
  B. R2
  C. R3
  D. R5
  A. R1
  C. R3

• Question 345:

  OSPF is deployed in a campus to achieve network interworking, and OSPF is also enabled on the GEO/0/2 interface of R3. Area1 is deployed as an NSSA area, and the device addresses are shown in the figure. An engineer configures a static route on R3 to access the loopback interface address of R4, and imports the static route in the 0SPF process. At this point, in the Type5 LSA received by R1, the forwarding address (FA) is____. (Note: Please fill in the IP address without mask)



  10.1.23.2

• Question 346:

  A campus has deployed IPv6 for service testing. In the early stage of deployment, engineers wanted to achieve network interoperability through IPv6 static routes. When creating an IPv6 static route. You can specify both the outbound interface and the next hop, or only the outbound interface or only the next hop.

  A. True
  B. False
  B. False

• Question 347:

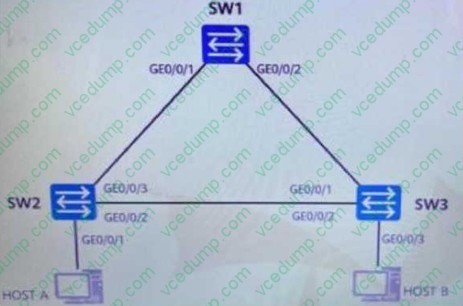

  As shown in the figure, the network has a loop because STP is not enabled. Which of the following phenomena may be bowed?



  A. Hostreceive a large number of broadcasts
  B. The device will generate a loop alarm
  C. equipmentCPUOccupancy is too high
  D. MA, CAddress table flapping
  A. Hostreceive a large number of broadcasts
  B. The device will generate a loop alarm
  C. equipmentCPUOccupancy is too high
  D. MA, CAddress table flapping

• Question 348:

  As shown in the figure, the MP_BGP neighbor relationship is established between PE1 and PE2 through the LoopbackO interface. After the configuration is complete, it is found that CE1 and CE2 cannot learn routes from each other. Which of the following options will cause this problem.



  A. PEIorPE2not presentBGP-VPNv 4Enabling neighbors in unicast address family view
  B. PE1orPE2fVPNInstance parameter configuration error
  C. PE1andPE2betweenLSPTunnel not established
  D. PF1orPE2with each otherCEMisconfigured routing protocol between
  A. PEIorPE2not presentBGP-VPNv 4Enabling neighbors in unicast address family view
  B. PE1orPE2fVPNInstance parameter configuration error
  C. PE1andPE2betweenLSPTunnel not established
  D. PF1orPE2with each otherCEMisconfigured routing protocol between

• Question 349:

  What is the command to adjust the link cost of an IS-IS interface?

  A. isis cost
  B. isis timer hello
  C. isis circuit-level
  D. isis circuit-type
  A. isis cost

• Question 350:

  In the BFD (Bidirectional Forwarding Detection) mechanism, two systems establish a BFD session and periodically send BFD control packets along the path between them. If one system does not receive BFD control packets within a

  specified period, the path is considered faulty.

  Which of the following is NOT a possible cause of the BFD session down event?

  Options:

  A. Packets with UDP destination port 4784 are denied.
  B. The outbound interface bound to the single-hop BFD session is physically faulty.
  C. The remote and local discriminators of the BFD session do not match.
  D. The BFD session names configured in the two systems are different.
  D. The BFD session names configured in the two systems are different.
