Huawei H12-831 Online Practice Questions and Exam Preparation

Huawei H12-831 Online Questions & Answers

• Question 1:

  During the daily troubleshooting process, engineers may need to view some alarm information of the device. Run the terminal command to enable the terminal to display the debugging/log/alarm information sent by the information center.

  monitor

• Question 2:

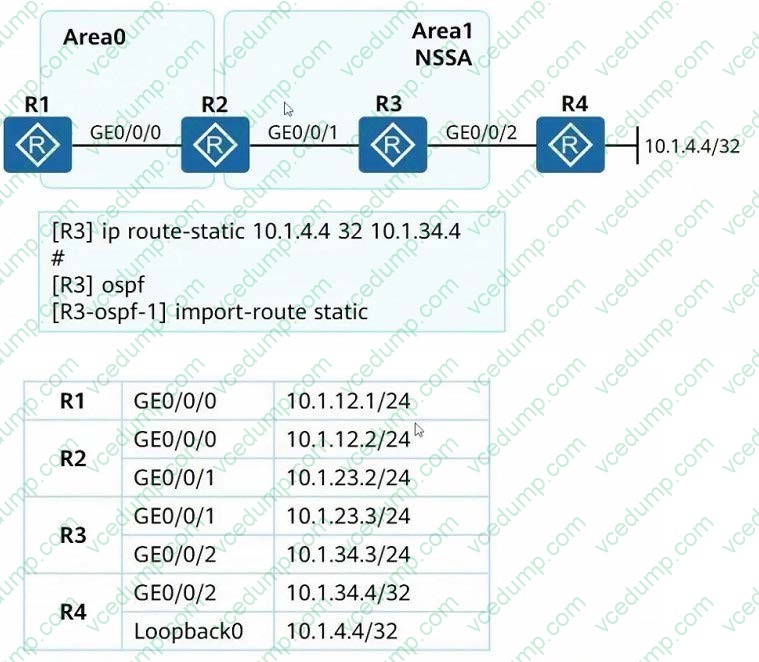

  OSPF is deployed in a campus to achieve network interworking, and OSPF is also enabled on the GEO/0/2 interface of R3. Area1 is deployed as an NSSA area, and the device addresses are shown in the figure. An engineer configures a static route on R3 to access the loopback interface address of R4, and imports the static route in the 0SPF process. At this point, in the Type5 LSA received by R1, the forwarding address (FA) is____. (Note: Please fill in the IP address without mask)



  10.1.23.2

• Question 3:

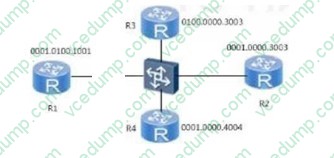

  All routers in a network run IS-IS, and all are in Area 49.0001, where the L SDB of R1 is shown in the figure According to this, it is judged that the DIS of Level-2 is. (Please fill in the device name, such as R1)



  | displayisisisdb DatabaseinformationforISIS (1) Level-1Link State Database LSPIDO Seq Num ChecksumbHoldtime Length ATT/P/OL 0001.0000.4004.00-00 0x00000008 0xb701 1186 68 0/0/0 0001.0000.2002.00-00Ox 0000008 0xb701 1186680/0/0 0001.0100.1001.00-00*0x00000050x2f9d1187 680/0/0 0001.0100.1001.01-00*0x00000001 0xa79e1110550/0/0 Level-2 Link State Database LSPIDAN> Seq Num Checksum., Holdtime Length ATT/P/OL 0001.00002002.00-00 0000000080xb7011188 6S0/0/0 0001.0100.1001.00-00* 0x00000060x2d9e 1187 680/0/0 0001.0100.1001.01-00* 0x00000005OxdObO 1191 660/0/0 0100.0000.3003.00-00 000000005 0xfe53 1185 560/0/0

  R1

• Question 4:

  IGP converges faster than BGP, which may cause network traffic loss. By enabling the OSPF and BGP linkage feature of the device, the device can keep the OSPF and BGP linkage during the set linkage time.____The router makes the link metric value in the LSA advertised to be the maximum value, so as to inform other OSPF devices not to use this router to forward data, so as to avoid traffic loss. (Note: If English letters are involved, all uppercase)

  STUB-ROUTER

• Question 5:

  By executing___________The command can completely isolate the second and third layer users of different ports on the same LAN and cannot communicate. (Please use English and lowercase letters to complete the command, and the command cannot be abbreviated)

  port-isolate enable

• Question 6:

  FILL IN THE BLANK

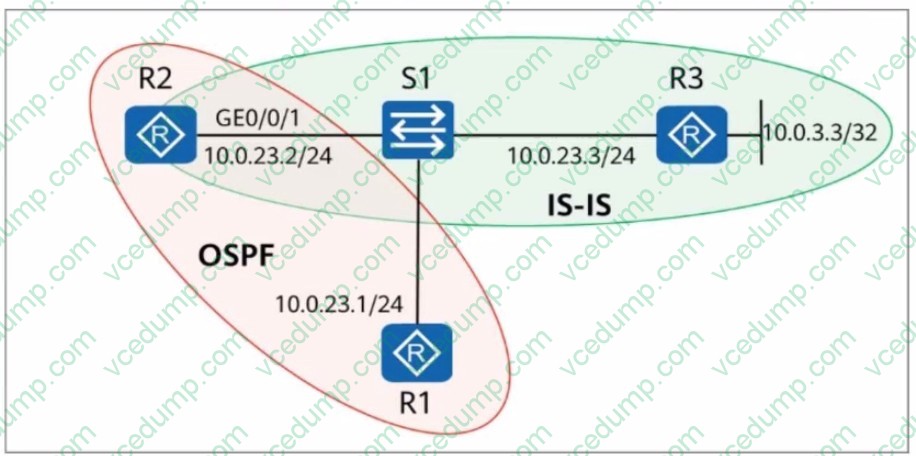

  On the network shown in the figure, OSPF is deployed on R1 and R2. IS-IS is deployed on R2 and R3. To enable R1 to obtain the route to 10.0.3.3/32, ISIS routes are imported into OSPF on R2. In this case, the next hop address to 10.0.3.3/32 in the routing table of R1 is_____.



  10.0.23.2

• Question 7:

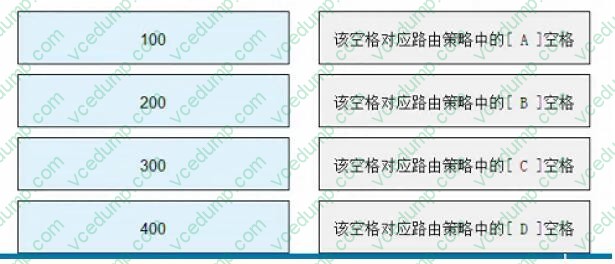

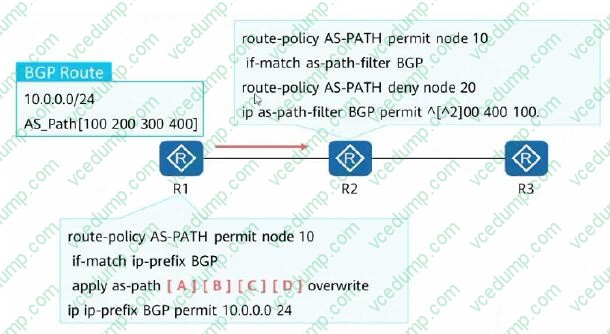

  Drag and Drop The configuration shown is performed on R2 to filter all incoming routes. Suppose there is a BGP route with the AS_Path attribute of [100200300400] on R1 that needs to be sent to R2. Please help the network administrator to adjust the AS order in the AS_Path attribute of the route on R1 to ensure that the route entry will not be filtered by the routing policy of R2____, ____, ____, ____.



  Select and Place:





• Question 8:

  Drag and Drop

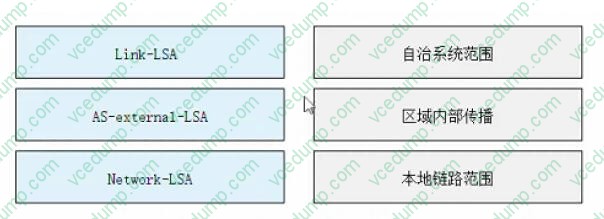

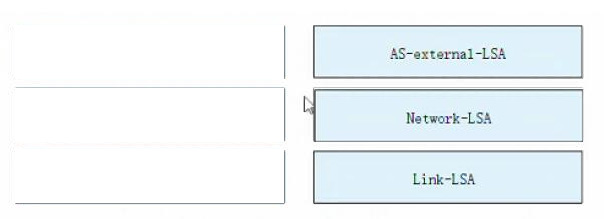

  Please match 0SPFv3LSA with its transmission range.

  Select and Place:





• Question 9:

  Drag and Drop

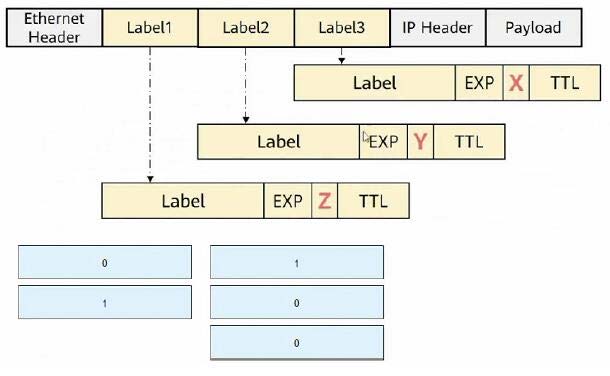

  As shown in the figure, there is a packet containing a three-layer label header. Please select the values (decimal) corresponding to the x, and Z fields in the figure.

  Select and Place:





• Question 10:

  DRAG DROP

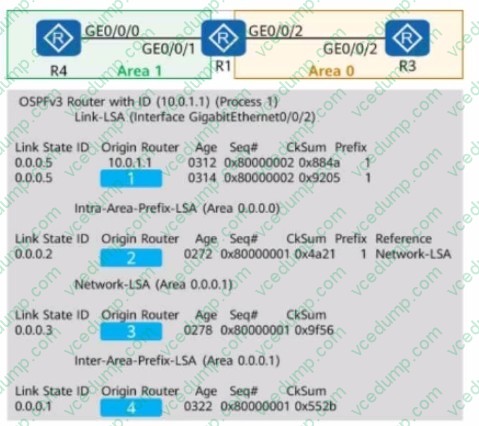

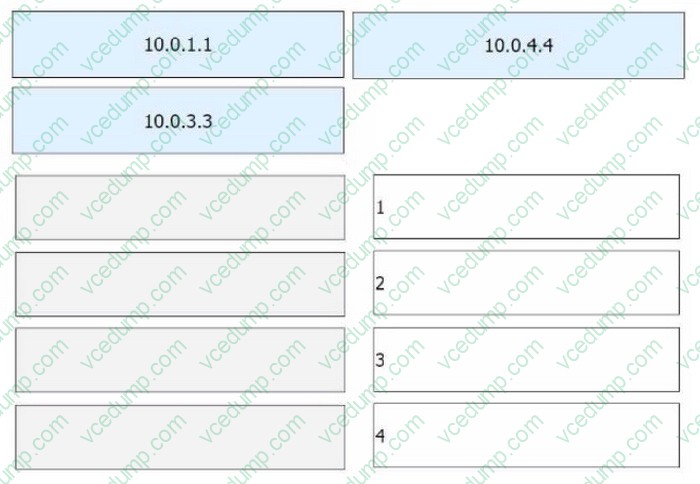

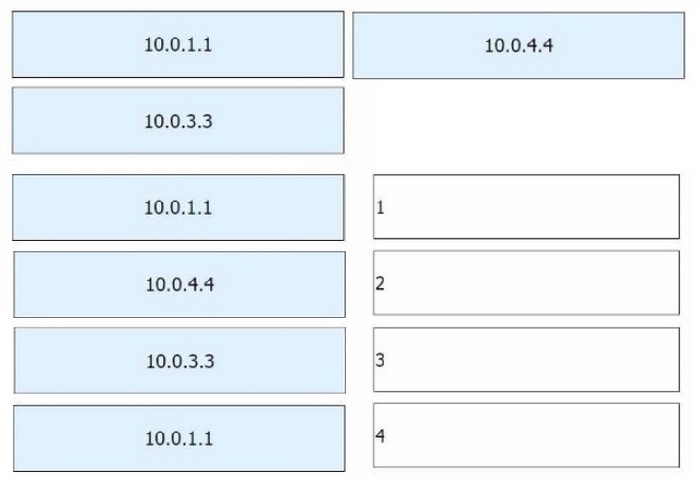

  On the OSPFv3 network shown in the figure, OSPFv3 parameters use default values. The LSDB is checked on one of the devices. The router IDs of R1, R3, and R4 are 10.0.1.1, 10.0.3.3, and 10.0.4.4, respectively. The Origin Router part of some LSAs is hidden.

  Complete this part. (Tokens can be reused.)



  Select and Place:
