Huawei H12-831 Online Practice Questions and Exam Preparation

Huawei H12-831 Online Questions & Answers

• Question 331:

  Which of the following features affects BGP neighbor establishment?

  A. BGPCertification
  B. BGP GSTM
  C. BGProute filtering
  D. ebgp max hop
  A. BGPCertification
  B. BGP GSTM
  D. ebgp max hop

• Question 332:

  DRAG DROP

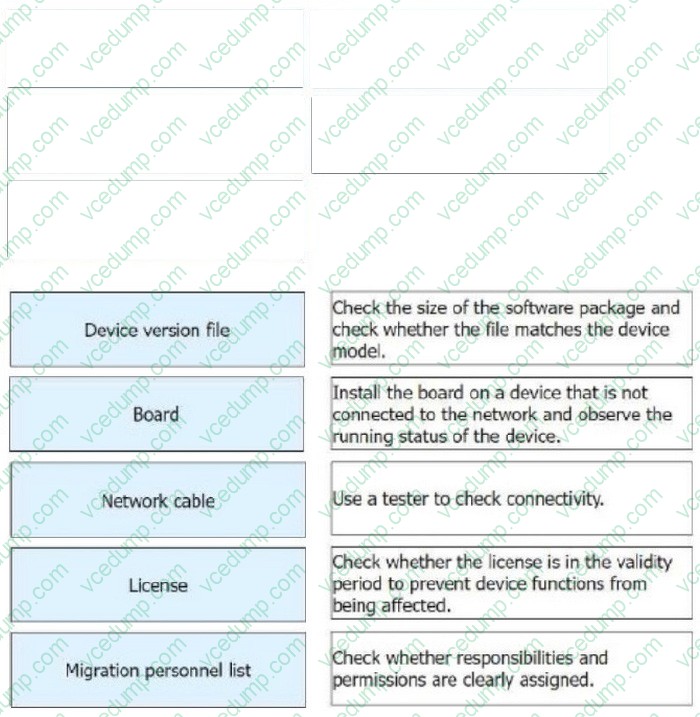

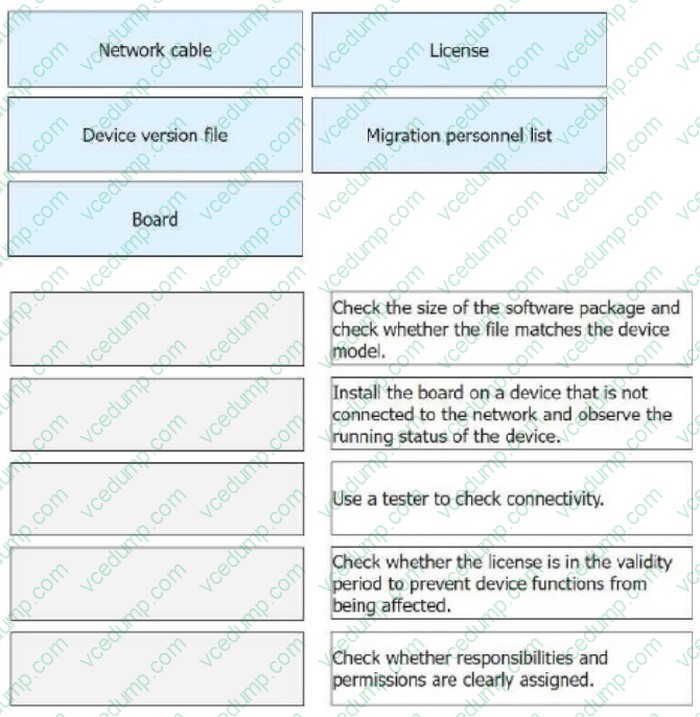

  In the preparation phase of a migration project, the software and hardware need to be checked. Match the operation objects in the preparation phase with the corresponding operation contents.

  Select and Place:





• Question 333:

  Which of the following TLVs is added to IS-IS to support multi-topology?

  A. TLV229
  B. TLV232
  C. TLV236
  D. TLV129
  A. TLV229

• Question 334:

  Configure ipv6 preference in IS-IS protocol view. The function of this command is to configure the priority of IPv6 routes generated by IS-Is protocol.

  A. True
  B. False
  A. True

• Question 335:

  The routing policy tools that can be used by BGP mainly include Filterpolicy and oRoute- policy. Fiterpolicy can only filter routes, Rote - policy can only modify routes.

  A. True
  B. False
  B. False

• Question 336:

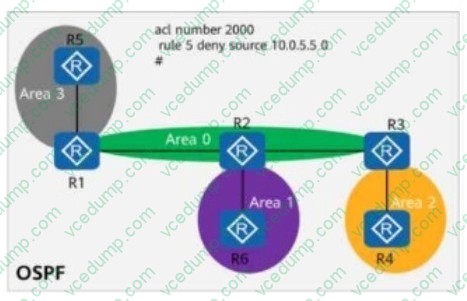

  On the OSPF network shown in the figure, areas 1, 2, and 3 are common areas. The IP address of Loopback0 on R5 is 10.0.5.5/32, and OSPF is enabled on the interface using the network command.

  ACL 2000 (with the matching rule shown in the figure) is configured on all routers. If the command filter 2000 import is run in area 0 (where R1, R2, and R3 reside), which of the following routers do not have the route 10.0.5.5/32 in their routing tables?



  A. R1
  B. R3
  C. R4
  D. R2
  A. R1
  B. R3
  D. R2

• Question 337:

  IS-/S supports multi-instance and multi-process, that is, one IS-S router. Multiple VPN instances can be configured with multiple IS-IS process associated. Are the following descriptions of IS-JS multi-instance and multi- process correct?

  A. indivualIS-ISprocess can only be used with1indivualVPNinstance association
  B. if oneIS-ISThe router creates multipleIS-ISProcess, each process does not affect each other, independent of each other
  C. 1indivualIS-ISprocess can be associated with multiple differentVPNinstance association
  D. 1indivualVPNInstances can be associated with multiple differentIS-ISprocess association
  A. indivualIS-ISprocess can only be used with1indivualVPNinstance association
  B. if oneIS-ISThe router creates multipleIS-ISProcess, each process does not affect each other, independent of each other
  D. 1indivualVPNInstances can be associated with multiple differentIS-ISprocess association

• Question 338:

  esigth uses different colors to distinguish different alarm levels, red represents emergency, orange represents important, and yellow represents. The table is secondary, and blue represents the prompt. Which of the following statements about different alarm levels is correct: (multiple choice)

  A. Prompt: A potential or imminent business-impacting failure has been detecteD. but currently has little business impact
  B. Minor: There is currently a certain impact on the business, but corrective actions are required to prevent serious failure alarms
  C. Urgent: Alerts that have affected the business and require immediate corrective action
  D. Important: An alarm that has affected the business and will have serious consequences if not handled in time
  A. Prompt: A potential or imminent business-impacting failure has been detecteD. but currently has little business impact
  B. Minor: There is currently a certain impact on the business, but corrective actions are required to prevent serious failure alarms
  C. Urgent: Alerts that have affected the business and require immediate corrective action
  D. Important: An alarm that has affected the business and will have serious consequences if not handled in time

• Question 339:

  Regarding MP-BGP, which of the following descriptions is wrong?

  A. PEandCEpass betweenBGPWhen interactive routing, you need toCEup for eachVPNinstance creationBGPprocess
  B. MP-BGPthe message type,VPNv4route advertisement strategy andBGP-4same
  C. MP-BGPneeds to beVPNv4route assignment private network label
  D. MP-BGPpass throughMP_REA, CH_NLRIandMP_UREA, CH_NLRItwo properties to advertiseVPNv4routing
  A. PEandCEpass betweenBGPWhen interactive routing, you need toCEup for eachVPNinstance creationBGPprocess

• Question 340:

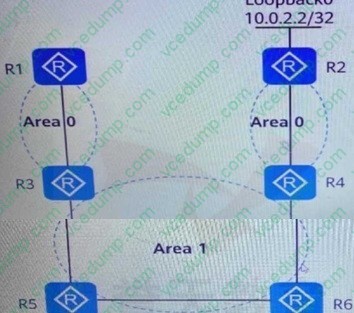

  As shown in the figure, OSPF is enabled on all interfaces of the router. Which of the following statements is correct?



  A. R2in the area0generated inTypel LSAcontains10.0.2.2/32routing information
  B. R2in the area0generated inType5 LSAcontains10.0.2.2/32routing information
  C. R2in the area0generated inType2 LSAcontains10.0.2.2/24routing information
  D. R2in the area0generated inType3 LSAcontains10.0.2.2/32routing information
  A. R2in the area0generated inTypel LSAcontains10.0.2.2/32routing information
