Huawei H12-831 Online Practice Questions and Exam Preparation

Huawei H12-831 Online Questions & Answers

• Question 191:

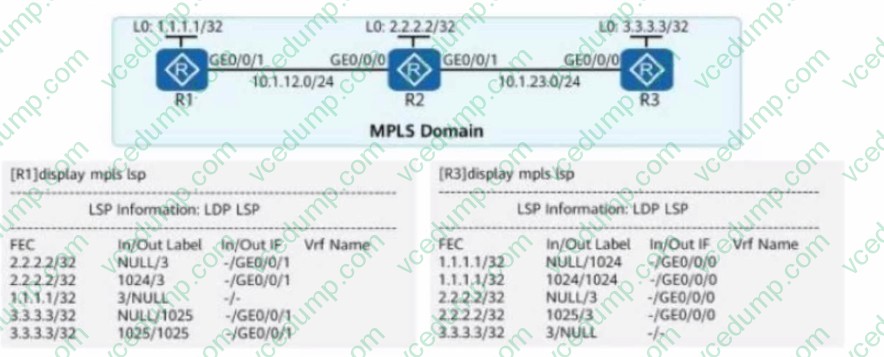

  The figure shows the LSP information of R1 and R3 on an MPLS network. An administrator runs the ping -a 1.1.1.1 3.3.3.3 command on R1. Given this, which of the following statements is true?



  A. The Echo Request packet received by R2 carries label 1025, and the Echo Reply packet received by R2 does not carry any label.
  B. The Echo Request packet received by R2 carries label 1025, and the Echo Reply packet received by R2 carries label 1024.
  C. Both the Echo Request and Echo Reply packets received by R2 do not carry any label.
  D. The Echo Request packet received by R2 does not carry any label, and the Echo Reply packet received by R2 carries label 1024.
  A. The Echo Request packet received by R2 carries label 1025, and the Echo Reply packet received by R2 does not carry any label.

• Question 192:

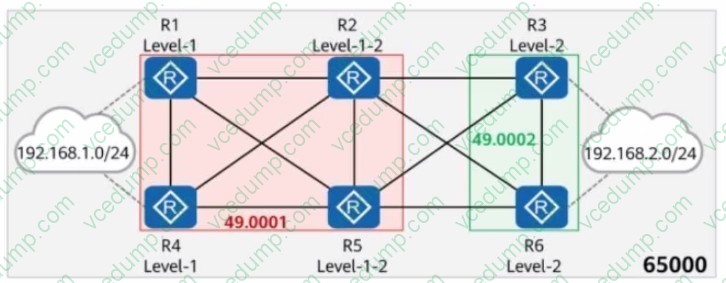

  On the network shown in the figure, IS-IS runs on Rl, R2, R4, and R5, and the area ID is 49.0001. IS-IS runs on R3 and R6, and the area ID is 49.0002. In AS 65000, Ri, R3, R4, and R6 each establish IBGP peer relationships with R2 and R5. R2 and R5 are RRs, and Rl, R4, R3, and R6 are clients. The IBGP peer relationships are established using LoopbackO. The IP address of LoopbackO on each router is 10.0.X.X/32, and the router ID is 10.0.X.X, where X is the number of the router. Rl and R4 import the external route 192.168.1.0/24 to BGP through the import-route command, and R3 and R6 import the external route 192.168.2.0/24 to BGP through the import-route command. Which of the following statements are true?



  A. For 192.168.2.0/24, R2 preferentially selects the BGP route received from R3.
  B. For 192.168.1.0/24, R3 preferentially selects the BGP route received from R2.
  C. For 192.168.2.0/24, R5 preferentially selects the BGP route received from R3.
  D. For 192.168.1.0/24, R6 preferentially selects the BGP route received from R2.
  A. For 192.168.2.0/24, R2 preferentially selects the BGP route received from R3.
  B. For 192.168.1.0/24, R3 preferentially selects the BGP route received from R2.
  C. For 192.168.2.0/24, R5 preferentially selects the BGP route received from R3.
  D. For 192.168.1.0/24, R6 preferentially selects the BGP route received from R2.

• Question 193:

  In addition to virtual connections, what type of IPv6 address is the source IPv6 address of OSPFv3's Hello text?

  A. IPv6anycast address
  B. unique local address
  C. Global Unicast Address
  D. link-local address
  D. link-local address

• Question 194:

  DRAG DROP

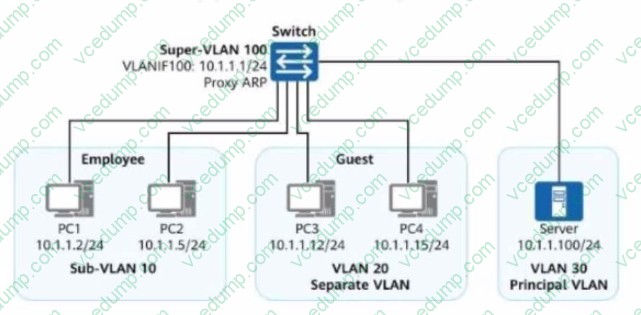

  Both VLAN aggregation and MUX VLAN are deployed on the enterprise network shown in the figure, and all switch interfaces connected to terminals are access interfaces. Given this, match PCI to PC4 with the hosts or servers that they can access on the network. (Note: A host cannot be matched with itself. For example, PCI cannot match PCI.) (Tokens can be reused.)



  Select and Place:





• Question 195:

  aboutOSPF. Which of the following statements is false?

  A. For a pair of additional 0hers on an Ethernet link, it is normal to stop clearing in the 2-72 state
  B. Stalling in ExStart state may be a bad match between neighbor routers
  C. stagnantINThe it state indicates that the router has received the neighbor'sHello message. butHell messagedoes not include this routerOSPF Router ID
  D. The two router databases are synchronized, SPFAn error occurred in the calculation, it must be because of the RouterID repeated
  A. For a pair of additional 0hers on an Ethernet link, it is normal to stop clearing in the 2-72 state

• Question 196:

  You have set IS-IS IPv6 enable under the interface, what is the meaning of this command?

  A. Activate on the interfaceIPv6 IS-ISprocess1
  B. Activate on the interfaceIPv6 IS-ISprocess3
  C. activate on the interfaceIPv6 IS-ISprocess10
  D. activate on the interfaceIPv6 IS-ISprocess2
  A. Activate on the interfaceIPv6 IS-ISprocess1

• Question 197:

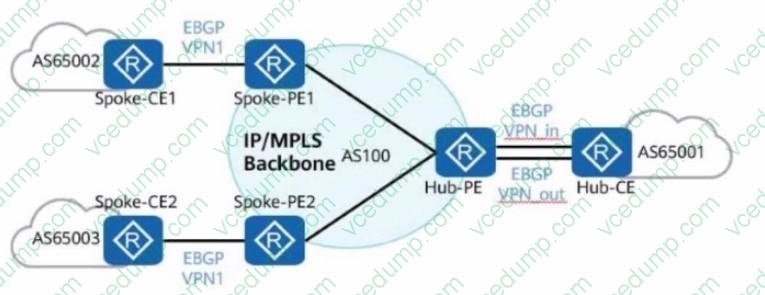

  In the hub-spoke networking shown in the figure, the Hub-PE can be configured to allow repetitive local AS numbers for correct route transmission.



  A. TRUE
  B. FALSE
  A. TRUE

• Question 198:

  To support the processing and calculation of IPv6 routes, IS-IS adds a new NLPID to TLV 129. The NLPID is an 8-bit field that identifies network layer protocol packets. Which of the following is the NLPID of IPv6?

  A. 232
  B. 142
  C. 204
  D. 236
  B. 142

• Question 199:

  Which of the following statements about the OSPFV3 packet format is correct?

  A. HelloPackets no longer carry address informationInterface ID
  B. OSPFversion number from2became3
  C. removedAuthentication,AuthTypefield
  D. HellotelegramoptionNo changes to the field
  A. HelloPackets no longer carry address informationInterface ID
  B. OSPFversion number from2became3
  C. removedAuthentication,AuthTypefield

• Question 200:

  Which of the following is the least likely cause of a VRRP backup group dual-active failure?

  A. transmissionVRRPLink failure of advertisement message
  B. low priorityVRRPThe backup group will receiveVRRPAnnounce packets are discarded as illegal packets
  C. both endsVRRPbackup groupIDdifferent
  D. Master Equipment1send in seconds1announcement message
  D. Master Equipment1send in seconds1announcement message
