E20-690 Real Exam Questions and Verified Answers

Question 1 Single choice

Refer to the exhibit.

Which connection is indicated by the number 7 in this VNX SPE Management Module?

A
Serial Console
B
Serial (unused)
C
Service port
D
Serial Management

Show answer and explanation

Correct answer: A

Question 2 Single choice

Within Unisphere, which item will indicate if a VNX Block array is operating normally?

A
Fault Status Report
B
System Properties
C
Initiator Status
D
Upgrade Check

Show answer and explanation

Correct answer: A

Question 3 Single choice

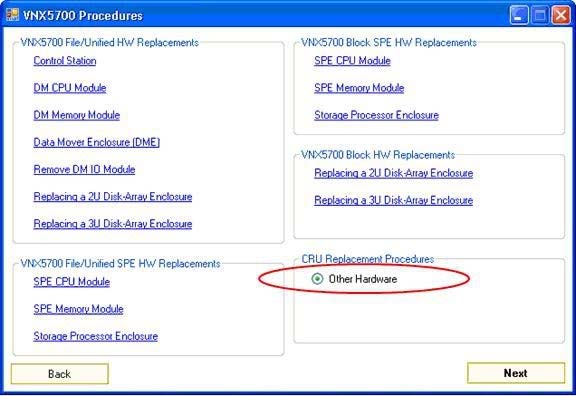

Refer to the exhibit.

What happens when the user selects the indicated option within the VNX Procedure Generator?

A
A PDF document is generated and displayed to the user for the associated activity.
B
A Word document is both displayed and emailed to the user for the associated activity.
C
A PDF document is produced with a link to a site where the user can build User Personalized Documentation.
D
A Word document is produced with a link to a site where the user can build User Personalized Documentation.

Show answer and explanation

Correct answer: D

Question 4 Single choice

You are about to install a VNX7600 Unified.

Which components should be on-site and installed?

A
At least one Data Mover Enclosure Disk Processor Enclosure
At least one Control Station Optional Disk Array Enclosure
B
At least one Data Mover Enclosure Optional Disk Array Enclosure Storage Processor Enclosure
At least one Control Station
C
Disk Processor Enclosure
A least one Standby Power Supply
At least one Data Mover Enclosure Optionally at least one Disk Array Enclosure
D
At least one Control Station Storage Processor Enclosure Optionally at least one Disk Array Enclosure Disk Processor Enclosure

Show answer and explanation

Correct answer: A

Question 5 Single choice

You are about to install a VNX8000 for File.

Which components should be on-site and installed?

A
At least one Control Station Storage Processor Enclosure
At least one Data Mover Enclosure
At least two Standby Power Supplies
At least one or more Disk Array Enclosures
B
At least one Control Station
A least one Data Mover Enclosure Disk Processor Enclosure
At least one or more Disk Array Enclosures
At least two Standby Power Supplies
C
Storage Processor Enclosure
At least one Standby Power Supply
At least one Control Station
At least one Disk Processor Enclosure
At least one or more Disk Array Enclosures
D
At least one or more Disk Array Enclosures Disk Processor Enclosure
At least one Standby Power Supply
At least one Data Mover Enclosure
At least one Control Station

Show answer and explanation

Correct answer: A

Question 6 Single choice

A customer wants to use compression, deduplication and thin provisioning.

Where are the software enablers located?

A
VNX Installation Toolbox
B
VNX Installation Assistant for File/Unified
C
VNX Storage System Initialization Wizard
D
Unisphere Server Utility

Show answer and explanation

Correct answer: A

Question 7 Single choice

From which resource would you obtain the VNX Block recovery document?

A
VNX Procedure Generator
B
VNX Installation Toolkit
C
VNX Installation Assistant
D
VNX Series Product Page

Show answer and explanation

Correct answer: A

Question 8 Single choice

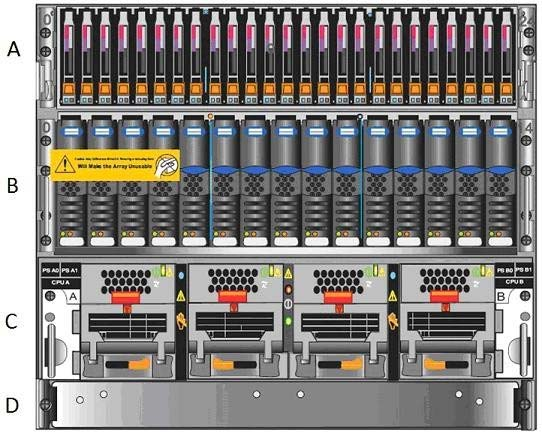

Refer to the exhibit.

Which letter refers to the SPSs?

A
D
B
B
C
C
D
A

Show answer and explanation

Correct answer: A

Question 9 Single choice

You want to verify that a storage array is configured as a Unified, File or Block.

Where can the storage type be determined?

A
Dashboard window in Unisphere
B
Login screen of Unisphere
C
Title bar of the browser after logging into Unisphere
D
Certificate screen in Unisphere

Show answer and explanation

Correct answer: A

Question 10 Single choice

What IP address is assigned to the eth3 interface on a Control Station?

A
IP address for the A management network
B
IP address for the B management network
C
Public IP address for the customer's network
D
IP address for the peer Control Station

Show answer and explanation

Correct answer: C
