EMC E10-001 Online Practice Questions and Exam Preparation

EMC E10-001 Online Questions & Answers

• Question 291:

  What must be done before LVM-based replication can take place between a source and remote volume?

  A. Ensure arrays at the target are the same type as the source
  B. Perform an initial synchronization
  C. Suspend network links between the source and the target
  D. Install the journal volume
  B. Perform an initial synchronization

• Question 292:

  Based on the exhibit, Which zone(s) represent port zoning?



  A. Zone 1
  B. Zones 1 and 3
  C. Zone 2
  D. Zone 3
  C. Zone 2

  ---

  Types of Zoning



  Zoning can be categorized into three types:

  Port zoning: Uses the the physical address of switch ports to define zones. In port zoning, access to



  node is determined by the physical switch port to which a node is connected. The zone members are the port identifier (switch domain ID and port number) to which HBA and its targets (storage devices) are connected. If a node is moved to another switch port in the fabric, port zoning must be modified to allow the node, in its new port, to participate in its original zone. However, if an HBA or storage device port fails, an administrator just has to replace the failed device without changing the zoning configuration.

  WWN zoning: Uses World Wide Names to define zones. The zone members are the unique WWN



  addresses of the HBA and its targets (storage devices). A major advantage of WWN zoning is its flexibility. WWN zoning allows nodes to be moved to another switch port in the fabric and maintain connectivity to its zone partners without having to modify the zone configuration. This is possible because the WWN is static to the node port.

  Mixed zoning: Combines the qualities of both WWN zoning and port zoning. Using mixed zoning



  enables a specific node port to be tied to the WWN of another node.

  Figure in the slide shows the three types of zoning on an FC network.

• Question 293:

  Which storage system is designed for storing fixed content?

  A. Content addressed storage
  B. Block-based storage
  C. File-based storage
  D. Hierarchy-based storage
  A. Content addressed storage

• Question 294:

  What is an accurate statement about the Common Internet File System (CIFS) protocol?

  A. Enables a CIFS server to maintain connection information regarding every connected client
  B. Uses a Remote Procedure Call mechanism to provide access to the CIFS supported file systems
  C. Contains an open variation of the stateless user datagram protocol that stores information about open files
  D. Uses file system locking to enable users to simultaneously overwrite all metadata of a file system
  A. Enables a CIFS server to maintain connection information regarding every connected client

• Question 295:

  Which NAS implementation creates a single file system that spans across all nodes in a cluster?

  A. Scale-out
  B. Unified
  C. Gateway
  D. Scale-up
  A. Scale-out

• Question 296:

  What is the function of enhanced transmission selection in an FCoE environment?

  A. Provides available bandwidth to other classes of traffic when a particular class of traffic does not use its allocated bandwidth
  B. Provides the capability to independently pause transmission of FCoE frames over each virtual link
  C. Enables an FCoE switch to send a signal to other FCoE switches that need to stop or slow down their transmissions
  D. Allows an FCoE switch to distribute configuration parameters to the converged network adapters
  A. Provides available bandwidth to other classes of traffic when a particular class of traffic does not use its allocated bandwidth

• Question 297:

  Which type of LUN is suitable for applications that require predictable performance?

  A. Traditional
  B. Thin
  C. Journal
  D. Bitmap
  A. Traditional

• Question 298:

  Which iSCSI naming feature uses a 16-character hexadecimal string?

  A. EUI
  B. IQN
  C. iSNS
  D. ARP
  A. EUI

• Question 299:

  What is an advantage of file system (FS) snapshot replication?

  A. Requires a fraction of the space used by the production FS
  B. Requires low network bandwidth for replication
  C. Enables the ability to restore data when the production FS fails
  D. Enables the ability to restore data to any point-in-time
  A. Requires a fraction of the space used by the production FS

• Question 300:

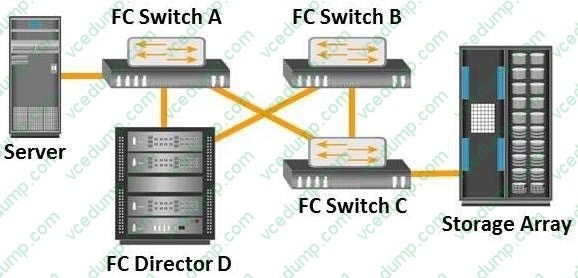

  Refer to the exhibit.



  Which type of fabric topology does the exhibit represent?

  A. Partial mesh
  B. Full mesh
  C. Single core-edge
  D. Dual core-edge
  A. Partial mesh
