EMC E10-001 Online Practice Questions and Exam Preparation

EMC E10-001 Online Questions & Answers

• Question 11:

  In an FC SAN environment, which security mechanism prevents a switch port from being enabled even after a switch reboot?

  A. Persistent Port Disable
  B. Port Lockdown
  C. Port Binding
  D. Fabric Binding
  A. Persistent Port Disable

• Question 12:

  Which iSCSI host connectivity option is recommended in a CPU-intensive application environment?

  A. iSCSI HBA
  B. NIC with software-based iSCSI initiator
  C. TCP offload engine
  D. Converged Network Adapter
  A. iSCSI HBA

• Question 13:

  Which data structure enables two node ports to identify and manage a set of information units in a Fibre Channel (FC) SAN?

  A. Exchange
  B. Sequence
  C. Frame
  D. Domain
  A. Exchange

• Question 14:

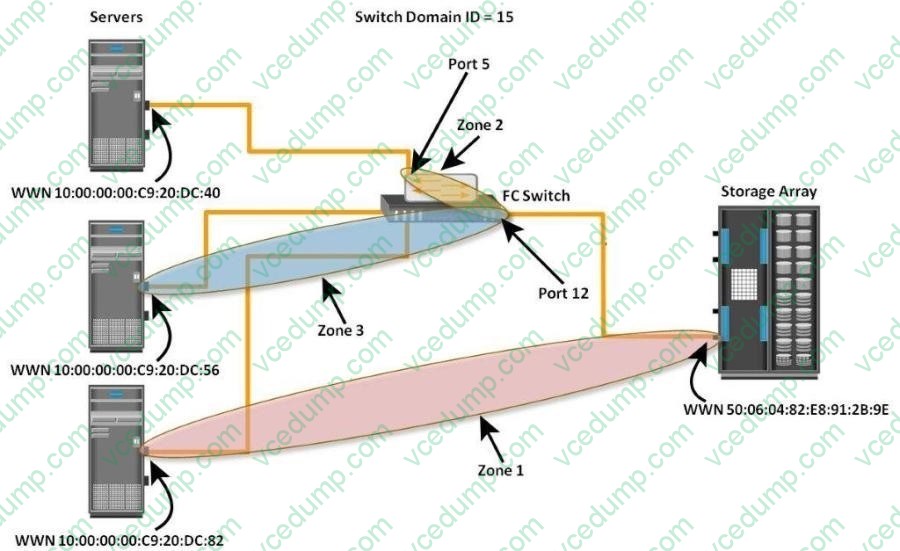

  Based on the exhibit,



  Which zone(s) represent mixed zoning?

  A. Zone 1 B. Zones 1 and 2
  C. Zone 2
  D. Zone 3
  D. Zone 3

  ---

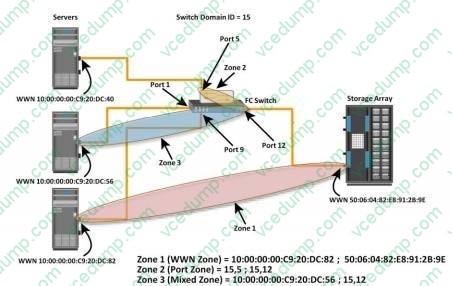

  Types of Zoning



  Zoning can be categorized into three types:

  Port zoning: Uses the the physical address of switch ports to define zones. In port zoning, access to



  node is determined by the physical switch port to which a node is connected. The zone members are the port identifier (switch domain ID and port number) to which HBA and its targets (storage devices) are connected. If a node is moved to another switch port in the fabric, port zoning must be modified to allow the node, in its new port, to participate in its original zone. However, if an HBA or storage device port fails, an administrator just has to replace the failed device without changing the zoning configuration. WWN zoning: Uses World Wide Names to define zones. The zone members are the unique WWN



  addresses of the HBA and its targets (storage devices). A major advantage of WWN zoning is its flexibility. WWN zoning allows nodes to be moved to another switch port in the fabric and maintain connectivity to its zone partners without having to modify the zone configuration. This is possible because the WWN is static to the node port. Mixed zoning: Combines the qualities of both WWN zoning and port zoning. Using mixed zoning



  enables a specific node port to be tied to the WWN of another node. Figure in the slide shows the three types of zoning on an FC network. EMC E10-001 Student Resource Guide. Module 5: Fibre Channel Storage Area Network (FC SAN)

• Question 15:

  Which functionality is offered by user access management software?

  A. Provides a user interface to browse the service catalog and request cloud services
  B. Enables a user to create VMs and allocate them to CPU, memory, and storage capacity
  C. Provides a user interface to view a consolidated view of existing physical and virtual infrastructures across data centers
  D. Allows a user to monitor performance, capacity, and availability of physical and virtual resources centrally
  A. Provides a user interface to browse the service catalog and request cloud services

• Question 16:

  Which parameter determines the rotation latency of a disk drive?

  A. Speed of the spindle
  B. Seek time
  C. Data transfer speed
  D. Response time
  A. Speed of the spindle

• Question 17:

  What is a key advantage of data striping across multiple disks as compared to a single disk?

  A. Performance
  B. Space utilization
  C. Protection
  D. Capacity
  A. Performance

• Question 18:

  In an FC SAN environment, what does a Domain ID represent?

  A. Switch port ID
  B. Switch ID
  C. Switch port card ID
  D. WWN of a switch
  B. Switch ID

  ---

  FC Addressing in Switched Fabric

  An FC address is dynamically assigned when a node port logs on to the fabric. The FC address has a distinct format, as shown in the slide.

  The first field of the FC address contains the domain ID of the switch. A Domain ID is a unique number provided to each switch in the fabric.

  Although this is an 8-bit field, there are only 239 available addresses for domain ID because some addresses are deemed special and reserved for fabric management services. For example, FFFFFC is reserved for the name server, and

  FFFFFE is reserved for the fabric login service.



  EMC E10-001 Student Resource Guide. Module 5: Fibre Channel Storage Area Network (FC SAN)

• Question 19:

  An administrator has defined a backup policy to perform full backups every Monday and cumulative backups on the remaining week days. How many backup copies are required to restore the data if it was accidentally deleted on Friday morning?

  A. 1
  B. 2
  C. 3
  D. 4
  B. 2

• Question 20:

  In which stage of the business continuity planning lifecycle does an organization identify critical business processes and assign recovery priorities?

  A. Analyzing
  B. Establishing objectives
  C. Designing and developing
  D. Implementing
  A. Analyzing
