• Question 1:

  HOTSPOT

  Identify the portion of the connector that carries the signal. Select the answer by clicking anywhere on the correct part of the connector.





  ---

  The tip portion of the connector.

  This is a 1/4-inch TS (Tip-Sleeve) connector, commonly known as an unbalanced mono plug. For these connectors, the tip is the portion responsible for carrying the signal, while the sleeve serves as the ground or return path. In audio applications, TS connectors are typically used for unbalanced signals, such as instrument cables for guitars.

  The tip of the connector is at the very end, identifiable by the small section separated by an insulating ring. This section is where the signal travels. The sleeve is the long metal section that connects to the ground.

  CTS Technology Specialist Reference

  The CTS materials on audio connectors detail how TS connectors carry signals, with the tip designated for signal and the sleeve for ground. Recognizing the signal-carrying part is crucial for proper AV connections and troubleshooting.

• Question 2:

  As the height of a character increases on a display.

  A. legibility increases.
  B. legibility decreases.
  C. brightness increases.
  D. brightness decreases.
  A. legibility increases.

  ---

  Explanation

  Legibility of text on a display is directly related to the height of the characters. As the height increases, the text becomes easier to read from a distance because the characters are larger and more distinct. This is a fundamental principle in design and ergonomics, ensuring that text is easily readable for users in various viewing conditions. This is particularly important in contexts such as digital signage, user interfaces, and public information displays.

  References:

  Axis Communications - Display and Readability Guidelines Human-Computer Interaction Textbooks

• Question 3:

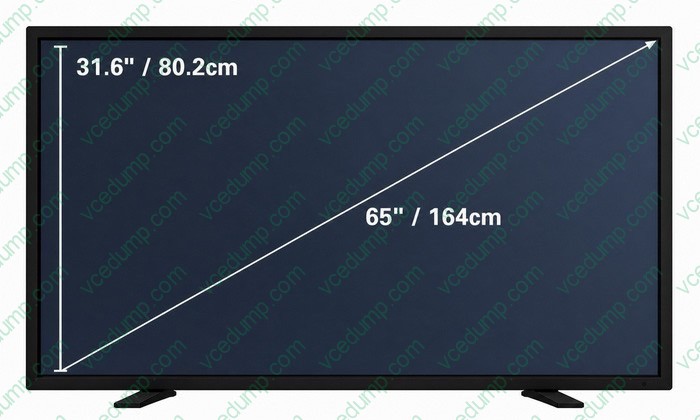

  This screen has a 16:9 aspect ratio.



  How close should the nearest viewer be positioned?

  A. 3'3" (1 m)
  B. 6'7" (2 m)
  C. 4'8" (1.4 m)
  D. 5'11" (1.8 m)
  C. 4'8" (1.4 m)

  ---

  Explanation

  The question relates to viewer distance based on image height, which is part of image size and viewing distance calculations under AVIXA design principles. This screen is 65" diagonal with a 16:9 aspect ratio. The image height is given as 31.6" (80.2 cm). According to the AVIXA CTS Exam Guide, the formula for minimum (nearest) viewing distance for a basic decision-making (BDM) environment is: Minimum viewing distance = 1.5 x Image Height

  -AVIXA CTS Exam Guide, 5th Edition - Chapter 7: Display Design, p. 155 So in this case: Image Height = 31.6 inches (80.2 cm)

  Nearest Viewing Distance = 1.5 x 31.6 inches = 47.4 inches # 4'8" (1.4 m) Thus, the correct and closest viewing distance to ensure readability and visual comfort is Option C: 4'8" (1.4 m). Note: For analytical decision-making (ADM), a shorter distance might be used (up to 4x height), and for passive viewing (PV), longer distances are acceptable. But this question implies nearest (minimum) viewer positioning, hence the 1.5x rule applies.

  References:

  AVIXA CTS Exam Guide, 5th Edition - Chapter 7: Display Design, p. 150-160 AVIXA Design References:

  Image Size for 2D Content in Audiovisual Systems (ANSI/AVIXA V202. 01:2016)

• Question 4:

  A personnel change at an AV integration company results in the assignment of a new technician to an existing facility.

  What is the best FIRST step for the integrator to make the transition?

  A. Give the technician directions to the site.
  B. Call the client and tell them a new technician has been assigned.
  C. Have the newly assigned technician review the project documentation.
  D. Make an appointment with the client to introduce the new technician to the client.
  C. Have the newly assigned technician review the project documentation.

  ---

  Explanation

  Before visiting the site, the new technician should review the project documentation to understand the system design, past modifications, and current status. This ensures they are well-prepared and familiar with the specifics of the installation.

  CTS Technology Specialist Reference

  According to CTS best practices, reviewing project documentation is critical for any technician assigned to an existing project to minimize errors and ensure continuity.

• Question 5:

  Preventive maintenance is best described as maintenance that is carried out:

  A. At predetermined intervals
  B. Following detection of an anomaly
  C. On the equipment for performance monitoring
  D. By integrating analysis, measurement and periodic test activities
  A. At predetermined intervals

  ---

  Explanation

  Preventive maintenance refers to scheduled upkeep performed at regular intervals, regardless of system status, to prevent failures. This can include filter cleaning, firmware updates, and cable inspections. "Preventive maintenance is proactive and performed on a scheduled basis to maintain optimal system performance and reduce downtime."

  -CTS Exam Guide, Maintenance Procedures and Lifecycle Planning

• Question 6:

  The BEST way to ensure that a project is on budget is to

  A. calculate the number of calendars days remaining to completion.
  B. visit the job site and determine the percentage of work completed.
  C. ask the installation team to estimate remaining work to completion.
  D. review accrued labor and material costs against remaining work.
  D. review accrued labor and material costs against remaining work.

  ---

  Explanation

  The best way to ensure a project is on budget is by continuously reviewing accrued labor and material costs against the remaining work. This approach provides a clear understanding of the financial status of the project and helps in making informed decisions to stay within budget. By tracking these costs and comparing them to the project plan, it is possible to identify any discrepancies early and take corrective actions as needed.

  References:

  Axis Communications - Project Management Best Practices Project Management Institute (PMI) Standards

• Question 7:

  A remote monitoring system's PRIMARY benefit is that it.

  A. reduces the need for service calls.
  B. does not need to be located in the same building.
  C. provides a faster response time for problem solving.
  D. allows the AV team to make sure the equipment is being used properly.
  A. reduces the need for service calls.

  ---

  Explanation

  The primary benefit of a remote monitoring system is that it reduces the need for service calls by allowing technicians to monitor equipment status, detect issues early, and perform diagnostics remotely. This proactive monitoring minimizes downtime and often resolves issues without the need for on-site intervention.

  CTS Technology Specialist Reference

  CTS training emphasizes the value of remote monitoring in AV maintenance, highlighting its role in reducing service costs and improving system uptime by enabling early issue detection and resolution.

• Question 8:

  What is the FIRST stage in troubleshooting an AV system?

  A. evaluating possible sources of error
  B. identifying the symptoms of the error
  C. determining which devices are fully functional
  D. reviewing the system diagram showing the connections and the signal flow
  B. identifying the symptoms of the error

  ---

  Explanation

  The first stage in troubleshooting an AV system is identifying the symptoms of the error. This step involves observing and documenting the specific issues or malfunctions that are occurring. By clearly understanding and articulating the symptoms, a technician can more effectively diagnose the problem and narrow down potential causes. Once the symptoms are identified, the technician can proceed to evaluate possible sources of error, check device functionality, and review system diagrams as needed.

• Question 9:

  For a design-bid (tender)-build project, the final step for determining the owner's costs for an AV system is

  A. selecting an Integrator.
  B. performing a needs analysis.
  C. having the owner approve the design.
  D. ensuring the equipment specification is ready for bid.
  D. ensuring the equipment specification is ready for bid.

  ---

  Explanation

  For a design-bid (tender)-build project, the final step for determining the owner's costs for an AV system is ensuring the equipment specification is ready for bid. This step involves finalizing all equipment details, specifications, and requirements so that accurate bids can be obtained from potential contractors. Axis documentation indicates that having precise and detailed equipment specifications is critical for obtaining accurate project costs and selecting the best contractor for the job.

• Question 10:

  Assessing the skill level of the end user:

  A. Provides a budget for the AV project
  B. Determines the quality of the hardware
  C. Aids in the customization of the AV solution
  D. Guides the selection of display types used in the AV design
  C. Aids in the customization of the AV solution

  ---

  Explanation

  Knowing the technical comfort level of end users helps determine the complexity or simplicity of interfaces, control systems, and training needed. It ensures the system is user-friendly and not over-or under-engineered. "Understanding user experience and comfort with technology allows integrators to appropriately design interfaces and training procedures." -CTS Exam Guide, User Experience and Needs Evaluation
