Avaya Avaya Certifications 7003.1 Questions & Answers

• Question 51:

  A technician has deployed a Communication Server 1000 Rls. 7x system at their site. You are using the Virtual Terminal to access Communication Command line interface (CLI) to add telephone.

  Which Overlays (LDs) are linked to eliminate the need for existing one Overlay (LD) and entering another one?

  A. LD 10, 11, 15 and 20

  B. LD 10, 11, 20 and 32

  C. LD 10, 11, 20 and 30

  D. LD 20 and 32

  Correct Answer: B

• Question 52:

  A customer requires an upgrade from release Communication Server 1000E Rls. 7x. the current system has a release 5.0 CPPM Call Server and an ISP 1100 Signaling Server. They have 874 IP telephone users and 810 TDM telephone deployed.

  Which upgrade will support the customer's current deployment scenario?

  A. Replace the CPPM and ISP 1100 with a COTS 2 server deployed as a Co-Resident Call Server and Signaling Server.

  B. Upgrading the CPPM Call Server software to release 7.0 and deploy it as a Co-resident Call Server and Signaling Server Decommission the ISP 1100 Signaling Server.

  C. Replace the CPPM and ISP 1100 with a CPDC server deployed as a Co-Resident Call Server, Signaling Server.

  D. Upgrade the bios and the call Server software. Replace the ISP 1100 with a CPDC server deployed as a Signaling Server.

  Correct Answer: C

• Question 53:

  A technician has installed the Linux base into a commercial of the shelf (COTS) server that will be configured as a Member Server. The Security Configuration is ready to be performed. All LAN connections are in place and functioning normally.

  After connecting through a browser, what is the next step to perform the Security Configuration of this COTS Member server?

  A. Enter the IP address of the Certificate Authority in the address bar of the browser.

  B. Enter the FQDN of the COTS member server in the address bar of the browser.

  C. Enter the IP address of Primary Security server in the address bar of the browser.

  D. Enter the FQDN of the Primary Security server in the address bar of the browser.

  Correct Answer: C

• Question 54:

  Upon accessing Subscriber Manager, you discover that the Subscriber Manager database does not accurately reflect all the telephones managed under the Subscriber Manager database.

  Which Subscriber Manager operation is required to update the Subscriber Manager database with the communication Server 1000 telephones?

  A. Account Synchronization

  B. LDAP Synchronization

  C. Publish Accounts

  D. CSV Subscriber Synchronization

  Correct Answer: A

• Question 55:

  A technician is installing the Linux Base Operating System software on the CPDC server for the Avaya Aura system and steps away while the software is loading. When the technician returns, he verifies that the Linux base installation is complete and successfully installed.

  What status can the technician verify to ensure the installation is successful?

  A. There is no visible indication available.

  B. The Linux server reboots and the FQDN login prompt appears.

  C. The status of Linux Hardening items is displayed and the system reboots.

  D. The Linux server reboots and the Linux Status Completion screen appears.

  Correct Answer: B

• Question 56:

  A technician on a Communication Server 1000E SA Rls. 7x cannot get a second media Gateway to register with the Call Server. The call server and Media Gateway 1 sit in the same 19 inch rack while Media Gateway 2 is in another building and connected via the computer IP network Media Gateway 2 can ping the Call Server but cannot register. The network is suspected of having a firewall or port blocking issue. Which diagnostic tool will help to isolate and identify a firewall or port blocking issue between the call server and Media Gateway 2?

  A. Gryphon Tool

  B. Packet Capture Tool

  C. Linux PPP Tool

  D. Linux Modem Configuration Tool

  Correct Answer: B

• Question 57:

  A technician has just installed and configured a System Manager as the primary security Server and configured a Member Security Server with the Element Manager and Subscriber Manager Applications deployed. The Communication Server (CS) 1000E Rls. 7x Call Server is part of this server security domain. All connections are up and running. When the new CS 1000 Rls. 7x system link on the elements window is clicked, the web browser returns with the following message.

  "Destination IP address cannot be reached"

  What is causing the problem?

  A. The browser window has not been refreshed.

  B. The Element Manager is unable to reach the MC32S via the ELAN.

  C. The Public Key Certificates for Web SSL were not added in the Call Server.

  D. The wrong Call Server IP address was entered during the application deployment.

  Correct Answer: D

• Question 58:

  A customer has a Communication Server (CS) 1000E Rls. 7 x system with a System Manager as the primary Security Server that has been designated as a Deployment Server. The application file (.nai) has been uploaded to the deployment manager library. The customer has added an element to the security domain and wants to deploy software applications to the element. With respect to deployment services, which statement is false?

  A. Deployment Manager has logicto prevent applications beingdeployed on unsupported hardware platform.

  B. MAS application has its own separate .nai file.

  C. IM and Presence application has its own separate .nai file.

  D. MAS can be deployed on the same server as Session Manager.

  Correct Answer: D

• Question 59:

  A customer with a Communication Server (CS) 1000E at Rls. 5.5 with two IPMG is upgrading the system to CS 1000E SA release 7 x. The second media gateway includes a media Gateway Controller card with one high density DSP daughter board.

  How many voice channels does this configuration provide?

  A. 32

  B. 64

  C. 96

  D. 128

  Correct Answer: D

• Question 60:

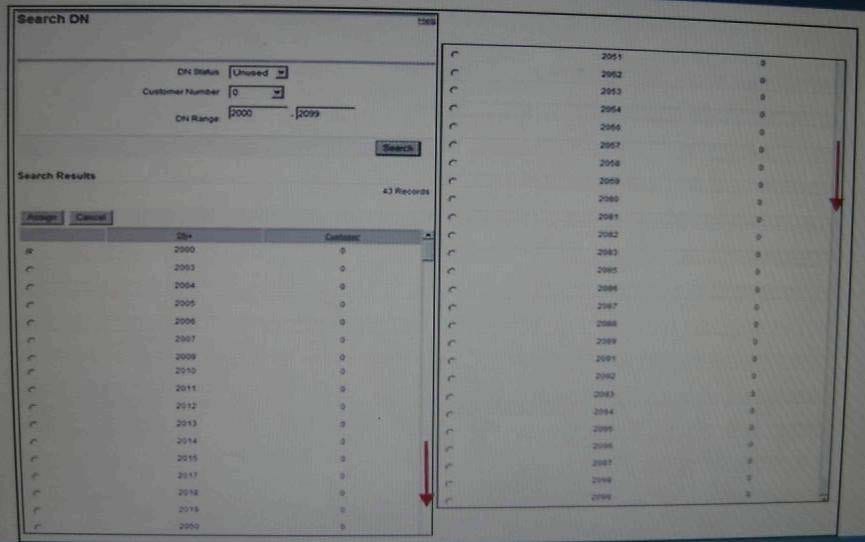

  Refer to the exhibit.



  A Communication Server 1000E Rls. 7 x customer is adding a new Human Resources department with eight IP telephone users. The customer has asked for the telephones to be programmed with consecutive Directory numbers (DNs) from their DID range (2000-2099).

  Which numbers sequence is available to meet the customer's requirements?

  A. 2001-2008

  B. 2010-2017

  C. 2050-5057

  D. 5091-2098

  Correct Answer: D
