Avaya Avaya Certifications 7003.1 Questions & Answers

• Question 31:

  A technician is completing the configuration of a new IP node for a system. All files have been transferred and synchronized, and `restart applications' is clicked for the selected servers.

  What will this cause the system to do?

  A. Reboot the Linux Server running the signaling server.

  B. Restart the signaling server application on selected servers.

  C. Restart the application on selected servers.

  D. Restart Jboss and the Signaling Server applications on the selected servers.

  Correct Answer: C

• Question 32:

  A customer has completed the security configuration for the security servers in the Avaya Aura integrated system. The System is using Avaya Aura System Manager as the Primary Security Server. The Customer is accessing the Base manager of each Server from the Element list to perform base configuration changes. Aaa Base Managers are accessible except the primary server; When Clicking on the Primary Server, the customer is taken to the System Manager Dashboard page.

  What is the recommended course of action for the customer?

  A. Log into the System Manager command to access Base Manager.

  B. On the system Manager Console, access UCM Roles to change access Privileges.

  C. No action is required; System Manager does not have an associated base Manager.

  D. Log into Base Manager of the Primary Security server using local-login to access the Base Manager.

  Correct Answer: C

• Question 33:

  A technician is upgrading an existing Option 11C 5.5 system to a Communication Server (CS) 1000E Rls. 7x Standard Availability with a single media Gateway 1000E chassis. A CPMG Co-Resident Server card is being deployed during the upgrade. This is a stand-alone system that is not part of a larger network so the CPMG will act as its own Primary Server.

  Which application should be deployed on the CPMG server for this customer?

  A. CS+SS+EM

  B. CS+SS+SIPL

  C. CS+SS+SubM

  D. CS+SS

  Correct Answer: D

• Question 34:

  A customer has a Communication Server (CS) 1000 Rls. 7x Co-Resident system, and needs to access the Call Server Overlay Shell to use the Call Server Overlay commands.

  Which two commands are used to access the Call Server Shell? (Choose two)

  A. cspdt

  B. cslogin

  C. csaccess

  D. csconsole

  Correct Answer: BD

• Question 35:

  A customer with a Communication Server (CS) 1000E 5.5 HA system with IPMG systems and dual ISP 1100 signaling Servers is upgrading their system to release 7x. The ISP 100 Signaling Servers are being replaced with CPDC servers. The contents of the upgrade kit have been installed and the maintenance terminal connection has been established.

  What are three other upgrades tasks to be completed? (Choose three)

  A. Insert a large system security device.

  B. Insert the bootable media into the faceplate.

  C. Connect the card to the TLAN/ELAN subnets.

  D. Place the CPDC card into an empty card slot.

  Correct Answer: ABC

• Question 36:

  A technician is installing a new Communication Server (CS) 1000E Rls. 7x system for a customer. The requirements include installation of IP telephones for a small group of inside sales people. The telephones have been configured and are ready to be registered.

  Which two items are to be entered when performing the IP telephone registration? (Choose two)

  A. The Directory Number

  B. The Node ID

  C. The Terminal Number

  D. The Customer Number

  Correct Answer: BC

• Question 37:

  A customer is installing a new common processor Media Gateway (CPMG) in a Communication Server (CS) 1000E system. They are connected to the backplane serial port 0 of the MGC to access the configuration menu. No IP information exists for the MGC.

  How does the customer access the configuration menu for the MGC?

  A. Type "mgcsetup" on the screen.

  B. No action required. The MGC will boot directly into the setup menu.

  C. The prompt "Press any key to stop auto-boot enter mgcsetup"appears.

  D. Enter a shell command : 0M, provide OAM username and password to access OAM shell.

  Correct Answer: B

• Question 38:

  A customer is commissioning a Communication Server (CS) 1000E 7x system with package 403 (soft switch) and 402 (IPMG). The CPDC Call Server software has been installed successfully, and now the customer is provisioning the Media Gateway Tone and conference loops for the Media Gateway Controller.

  Which switch overlay and prompt should the customer use to configure the Media gateway TDS loop?

  A. LD 17, XCT

  B. LD 17, VXCT

  C. LD 17, SUPT

  D. LD 17, MGTDS

  Correct Answer: A

• Question 39:

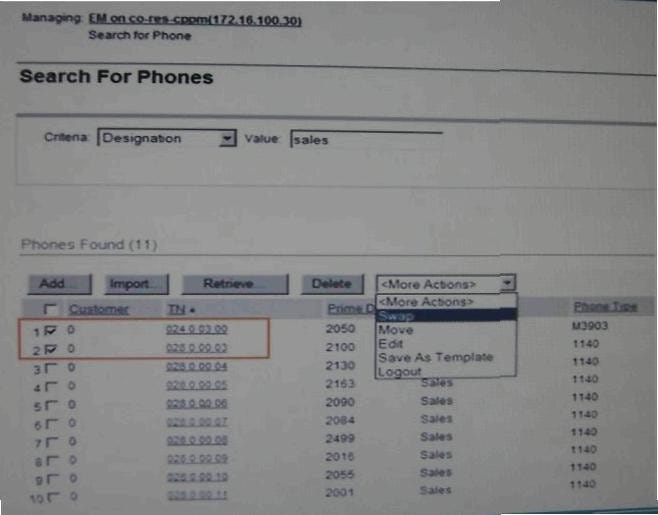

  Click the Exhibit button.



  A customer has deployed a Communication Server (CS) 1000Rls. 7x system at their site, and has asked that a swap using the Element Manager Phones tool on the two telephone sets shows in the Print-out be performed.

  What should the customer be told regarding the request?

  A. These two telephones cannot be swapped because they do not have competitive TN types.

  B. These two telephones can be swapped because they are both assigned to TGAR 1.

  C. These two telephones can be swapped because they both have the same VCE Class of service.

  D. These two telephones cannot be swapped because they are not in the same Call Pickup group.

  Correct Answer: A

• Question 40:

  A customer is implementing a Communication Server 1000E (CS 1000E) Rls. 7x High Availability (HA) system. The customer wants to know if there are any special package requirements beyond the HA Package needed for the system.

  Which two software packages are mandatory when deploying a CS 1000E system? (Choose two)

  A. IPMG Media gateway 1000E package 403

  B. SOFTSWITCH-Soft Switch Package 402

  C. SBO Branch Office Package 390

  D. SIP SIP Gateway and Converged Desktop Package 406

  Correct Answer: AD
