Avaya Avaya Certifications 7003.1 Questions & Answers

• Question 11:

  A customer is preparing to install software on the CPMG server and would like to display the boot sequence on the system terminal for the BIOS, BOOT ROM, and operating System.

  Which port on the CPMG server provides this information?

  A. Frontface TTY port 2

  B. Frontface TTY PORT 1

  C. Backplane 3-port connection TTY port 0

  D. Frontface embedded LAN (ELAN) port 0

  Correct Answer: C

• Question 12:

  A technician is planning on upgrade of an option 11C 5 x system to a Communication Server (CS) 1000E Rls. 7 x System with CPMG Co-resident Call server and Media Gateway Controller.

  To perform the Linux Base software installation on the CPMG which component is required?

  A. Bootable Compact Flash (1 Gigabyte)

  B. Bootable USB drive/disk (2 Gigabyte)

  C. External CDROM drive

  D. Bootable Compact Flash (2 Gigabyte)

  Correct Answer: B

• Question 13:

  A customer with a Communication Server (CS) 1000E Rls..5.5 with two IPMGs is upgrading their system to release 7 x. The Upgrade system will have two IP media Gateways.

  Which two statements are true regarding DSP resources for the IP Media gateways in the Upgrade System? (Choose two)

  A. DSP resources are no longer required for inter-IOMG calls.

  B. DSP resources are localized to particular IPMG where the DSP resource is locted.

  C. DSP resources are considered system resources and are not localized.

  D. DSP resources are required for TDM to local calls

  Correct Answer: BC

• Question 14:

  A technician is planning to upgrade a customer's existing Communication Server 1000E Rls. 6.0 system. During the upgrade, a CPPM server card from storage will be added to provide an additional signaling server.

  Which two statements describes what must be done to the CPPM server card to distinguished it as a signaling Server (Choose two)

  A. Set switch 5 to position 1.

  B. Set switch 5 to position 2.

  C. Install one Compact Flash Drive (RMD) and one Hard Drive (FMD)

  D. Install one Compact Flash Drives (one RMD and one FMD)

  Correct Answer: CD

• Question 15:

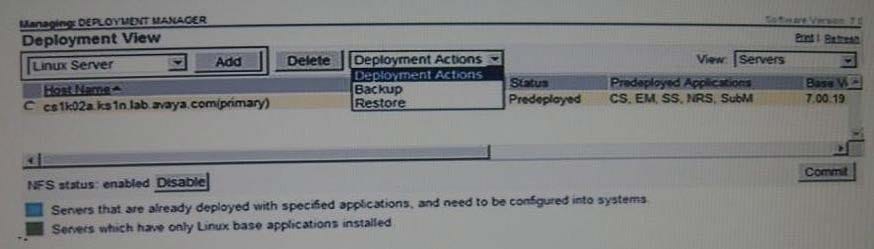

  Click the Exhibit button.



  A technician is performing an upgrade of existing Communication Server 1000E Rls. 6.0 servers from the Deployment Servers. The system is pre-configured and the status is un-deployed. The server has been selected, but the Deployment Actions pull-down list does not include the choice to deploy.

  Which two corrective actions must be taken to continue with deployment? (Choose two)

  A. Click the radio button associated with the server

  B. Click the Disable NFS button

  C. Click the Commit button

  D. Click the add Linux Server button

  Correct Answer: A

• Question 16:

  A technician is planning an upgrade for a customer's Communication Server (CS) 1000E Release 6.0 system to Release 7x.

  Which two features are now to the Release 7x Deployment manager? (Choose two)

  A. Pre-configuration Remote Installation

  B. Auto-select servers to which applications can be deployed

  C. One-Touch System Upgrade

  D. Auto-Select of the correct application file

  Correct Answer: AC

• Question 17:

  A customer has deployed a Communications Server 1000Rls. 7x system at their site. Their sales department is expanding and has asked that five new telephones be added with the same capabilities as the existing telephones in the department.

  Which programming command should be used to complete this task?

  A. Move to DN

  B. Move from DN

  C. Copy from DN

  D. Copy from TN

  Correct Answer: D

• Question 18:

  A technician is upgrading an option 11C Rls. 5x to a communication server 1000E SA Rls. 7x based on a CPPM CS, COTS SS with 4 chassis media gateway (MG), 100IP sets, 124 digital sets, 30 analog sets and one PR12 DID connection for the incoming and outgoing calls cannot be made from all type of the sets except for the sets in MG3.

  When the technician is finished with the upgrade it is noticed during the acceptance testing that outgoing calls cannot be made from all type of the sets except for the sets in mG3. All the sets have dial tone.

  Which statement describes what is causing this issue?

  A. The PR 12 loop disabled in MG3

  B. The DB 128 is not installed in MG3

  C. The COTS Signaling Server is faulty

  D. All MGs are unregistered except MG3

  Correct Answer: D

• Question 19:

  A technician has configured a new media gateway by connecting to the serial port for the MGC and entering network information for the card as well as the IP address for the Primary call server. When the MGC reboots, the faceplates displays UNRG. The Call Server console `IPMG registration denied'.

  What should be done to solve this problem?

  A. Ping from the MGC to the call server over the E-LAN

  B. Check to ensure the TLAN cable for the MGC is connected and active

  C. Check to ensure the IPMG has been configured on the call server

  D. Power cycle the MGC card to force it to register

  Correct Answer: C

• Question 20:

  A customer has successfully installed a Common Processor Media Gateway (CPMG) in a Communication Server (CS) 1000E system. The MGC has registered with the Call Server.

  What is displayed on the CPMG LED display to confirm successful registration?

  A. The MGC display will read "PASS"

  B. The MGC display will read "LOAD"

  C. The MGC display will read "Exxx" (E000)

  D. The MGC display will show Superloop and shelf number of MG 1000E

  Correct Answer: D
