Avaya Avaya Certifications 7003.1 Questions & Answers

• Question 21:

  You customer just installed three Communication Servers 1000 Rls. 7x systems to support their new campus distributed corporate offices. The customer allowed for periodic synchronization of their corporate Lightweight Directory Access Protocol (LDAP) database with subscriber Manager.

  Which Subscriber Manager Feature allows you to synchronize subscribers from an LDAP database and assign them to a telephone account of the same time?

  A. Bulk Account Creation

  B. CSV Subscriber Synchronization

  C. Account Synchronization

  D. Flow-through Provisioning

  Correct Answer: D

• Question 22:

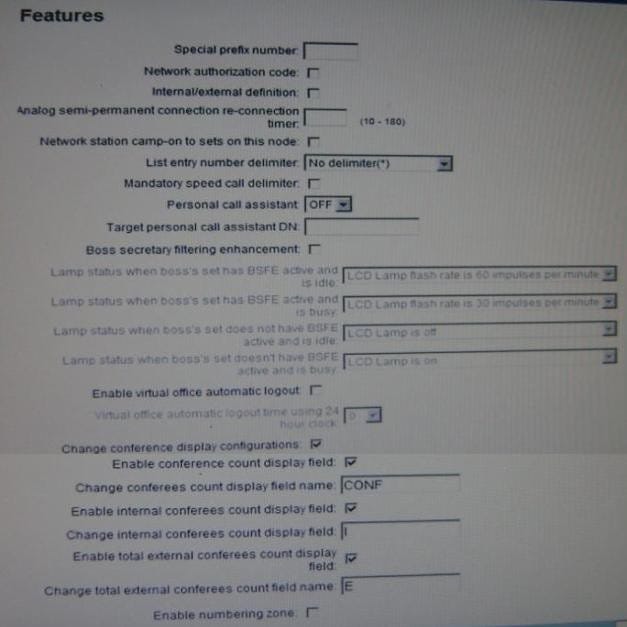

  Click the Exhibit Button.



  A customer has asked if the Communication Server (CS) 1000 Rls. 7x system can provide Executive users with the ability to selectively drop people that have been added to a conference.

  Based on the print-outs and assuming the CSD key has been programmed and the class of service assigned is CDCA, which capabilities are currently available to the user of extension 2006?

  A. The user cannot see the conferee display count or selectively disconnect callers.

  B. The user can see the conferee display count and can selectively disconnect callers.

  C. The user can see the conferee display count but cannot selectively disconnect callers.

  D. The user cannot see the conferee display count but can selectively disconnect callers

  Correct Answer: B

• Question 23:

  A customer that has an existing option 11C chassis system with an SCC card is planning t o upgrade to a Communication Server (Rls.) 1000E Rls. 7x system. A CPMG Co-Resident server card will be installed.

  Which action must be completed manually?

  A. The digital Trunk Numbers must be reprogrammed with a new format

  B. The IP Phones Terminal Numbers must be entered with a new format

  C. The IP address for each Ip media Gateway must be entered in LD 97

  D. The tone Receiver Terminal Numbers must be re-Programmed with new format

  Correct Answer: C

• Question 24:

  A customer has Communication Server (CS) RLS. 7x system, and the technician wants to create an account capable of configuring a network Time Protocol (NTP) server.

  What must be done to access the data and time parameters?

  A. Click the reboot button in Base Manager to restart the system and access the date and time parameters.

  B. Update the user role and permission mapping to include security Administrator and Time Administrator access group.

  C. Navigate to UCM and click the refresh icon to refresh the screen of properties to access data and time parameters.

  D. Update the user role and permission mapping to include Network Administrator access groups.

  Correct Answer: D

• Question 25:

  A customer with an existing Communication (CS) 1000E 6.0 system is upgrading to a CS 1000E Rls. 7x HA system. As a part of this upgrade, the CPPM Signaling Servers are being decommissioned and replaced with CPDC signaling servers.

  Which two methods can be used to restore the original IP Telephony node configuration to the CS 1000E Rls. 7x HA system? (Choose two)

  A. Import the original IP Telephone Node File from the upgraded Call Servers database.

  B. Import the original IP Telephone Node File from the upgraded Call Server database.

  C. Import the original IP Telephone Node File using an XML from the CPPM Signaling Server.

  D. Import the original IP Telephone Node File the NRS database backup file

  Correct Answer: BD

• Question 26:

  A customer has a several analog telephones running of a Flexible Analog Line Card (FALC) in an IPMG. Users are able to receive calls on the telephone and have a conversation, however they cannot initiate a call as there is no dial tone.

  What should be checked first?

  A. Tone and digital loops (TDS), extended tone detector (XTD)

  B. Physical connections, dsp resource availability, and tone loops

  C. All tone and digit switch loops (TDS), IPMG registration status

  D. All XTD and conference loops

  Correct Answer: C

• Question 27:

  A customer has completed installing and configuring a new CPMG Co-Resident Platform. The Gateway controller has rebooted and the customer has verified the LED display shows the loop and shelf of the media gateway. The customer is satisfied the gateway controller has successfully registered to the Call Server. The customer logs into the system Manager and accesses the UCM Element list and the Gateway controller does not appear in the Element List with the other registered elements in the security domain.

  What is the recommended course of action for the customer to ensure the Gateway Controller appears in the Element List?

  A. Log into the Gateway controller card using CLI and enter statSecDomain.

  B. Log into the Gateway controller card using CLI and enter joinSecDomain.

  C. Log into the Gateway controller card using CLI and enter registerSecDomain.

  D. Log into the system and access Overlay 117 and enter register ucmsecure device.

  Correct Answer: B

• Question 28:

  You are installing a new Communication Server 1000E HA Release 7x system for your customer. Which two lists can be created using the lists feature provided with the EM phones Tool? (Choose two)

  A. Speed Call Lists

  B. Dial Intercom Lists

  C. Call Pickup Lists

  D. Group Call Lists

  Correct Answer: AD

• Question 29:

  A customer has installed a Media gateway controller (MGC) and would like to change the baud rate settings for the SDI parts. The baud rates for all serial Data Interface (SDI) ports on the MGC are configurable through call server?

  Which overlay is used to configure the MGC SDI ports?

  A. LD 137

  B. LD 117

  C. LD 97

  D. LD 17

  Correct Answer: D

• Question 30:

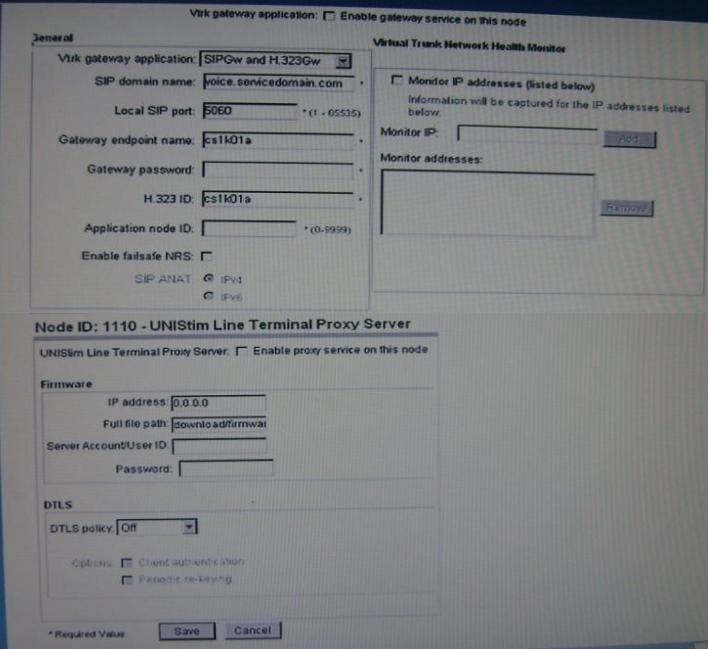

  Click the exhibit button During the installation the installation of a Communication Server 1000E Rls. 7x High Availability system for a customer, attempts to register an IP 1230 Desktop telephone with the system are unsuccessful. Network connectivity issues have already been ruled out, however a system configuration issue is suspected.



  What is causing the problem?

  A. The virtual gateway application is not enabled.

  B. The proper firmware has not been uploaded for this telephone.

  C. The Line Terminal Proxy Server is not enabled for the node

  D. The Datagram Transport Layer Security (DTLS) Policy off.

  Correct Answer: C
