Avaya Avaya Certifications 7003.1 Questions & Answers

• Question 41:

  A customer has a Communication Server (CS) 1000Rls. 7x system and installing a stand-alone CPDC

  Signaling Server.

  Which role should be chosen during the IP Telephony node Configuration?

  A. Backup

  B. Follower

  C. Leader

  D. Alternate

  Correct Answer: C

• Question 42:

  Click the Exhibit button. A customer has added a new Communication Server 1000E (CS 1000E) Standard Availability to their existing network of CS 1000M Single Group system. They are planning to use some of the spare digital telephone on the new system as well as new IP telephone. With reference to system showing three vacant slots, which two components are required to configure the system so that the digital telephone are supported and can communicate with the IP telephone? (Choose two)

  A. TMDI Card

  B. IP Line Card

  C. Digital Line Card

  D. CPPM Signaling Server

  Correct Answer: CD

• Question 43:

  A customer purchased a new Communication Server 1000E SA system with five media gateways which includes:

  MG 1: CPMG (Call Server, Signaling Server, Media Gateways Controller) MG 2: Media Gateway Controller MG 3: Media Gateway Controller MG 4: Media Gateway Controller MG 5: Media Gateway Controller

  Which statement is true regarding the configuration of Media Gateway?

  A. The Call Server and Media Gateway share the same ELAN IP address.

  B. The Call Server, Signaling Server, and Media Gateway share the same ELAN IP address.

  C. The Call Server and media gateway have different IP addresses.

  D. The Call Server, Signaling Server, and Media Gateway have different IP addresses.

  Correct Answer: D

• Question 44:

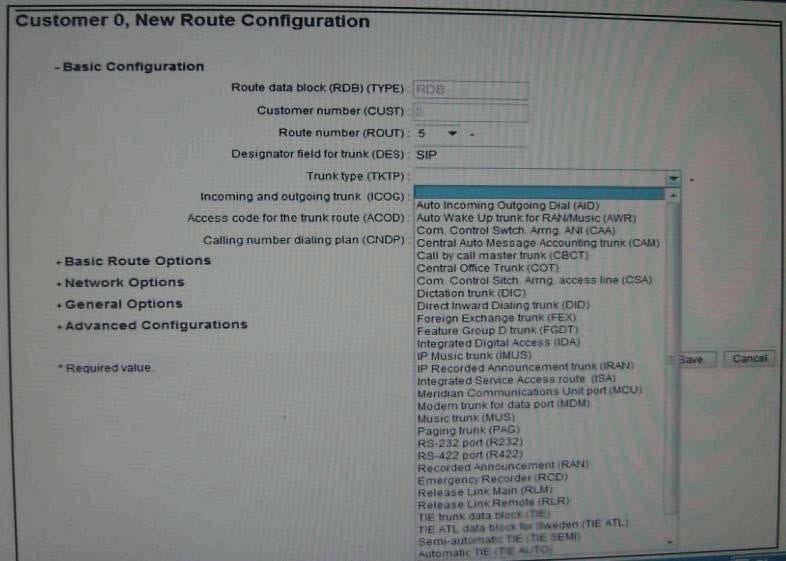

  Click the exhibit button.



  A technician is provisioning a new Communication Server (CS) 1000 Rls. 7x system for a customer, and is adding an SIP virtual route using Element Manager Routes and Trunnks.

  What is the Trunk Type (TKTP)?

  A. Integrated Service Access route (ISA)

  B. TIE Trunk data block (TIE)

  C. Automatic (TIE AUTO)

  D. Direct inward Dialing trunk (DID)

  Correct Answer: B

• Question 45:

  A customer with a Communications Server (CS) Rls. 6.0 HA system with two IPMGs and dual CPPM signaling Servers is upgrading their system to release 7x with Avaya Aura integration with Session Manager. The system is part of an IP peer network that includes a NRS database that needs to be converted and imported into the System Managre.

  Which upgrade setup is correct?

  A. Use NRS manager to download the NRS backup file to compact flash and upload the nrs.xml file into system manager for automatic database conversion

  B. Use Element Manager to download the Signaling Server backup file to a compact flash and upload the nrs.xml file to CS 100 NRS data Conversion Tool to convert so it can be imported into Session Manager

  C. Use NRS manager to download the NRS backup file to the local PC and upload the nrs.xml file to the 1000 NRS data Conversion Tool to convert so it canbe imported into System Manager

  D. Use Element Manager to download the Signaling Server backup file to the local PC and convert the nrs.xml file using the data conversion Tool in the utilities folderin the Linux Base compact flash

  Correct Answer: C

• Question 46:

  Your customer has requested you add the Call Park Feature to their Communication Server 1000 Release 7x system. You have been asked to assign at least eight consecutive numbers that can be used to park calls.

  Which CLI overlay and command will provide you with numbers that are unassigned and available?

  A. LD 20 / REQ / LUC

  B. LD 20 / REQ / LUDN

  C. LD 20 / REQ / LUU

  D. LD 20 / REQ / LUVU

  Correct Answer: B

• Question 47:

  A customer with a Communication Server (CS) Rls. 7x Co-resident system is experiencing an Element Manager issue where the page cannot be displayed to the users. The CPDC Co-Resident server has the following deployment applications:

  Call Server

  Signaling Server

  Element Manager

  Which course of action allows for the least service interruption when restarting the Element Manager Web interface?

  A. Restart the Jboss application from the Linux Base Manager.

  B. Restart the Signaling Server application by pressing the INI button on CPDC server.

  C. Restart the Jboss application by pressing the RST button on the CPDC server.

  D. Restart the Signaling Server application by logging into Linux CLI and issuing the command reboot

  Correct Answer: D

• Question 48:

  A customer is adding a new Avaya Communication Server (CS) 1000E Rls. 7x server within their existing release 7x network. The CPMG based server will become member server within an existing CS 1000 Rls. 7.0x security domain.

  Which statement describes the process you should use to simultaneously install Linux Base and deploy application to the CPMG Co-Resident server?

  A. Log into the System Manager and select UCM Services to access the LCM and access the Base Manager of the Primary Security server to deploy applications.

  B. Log into the Base Manager and access local Deployment Manager to deploy applications

  C. Login to system Manager and select UCM Services to access UCM, access central Deployment Manager, pre-deploy the CPMG, and initiate the deployment locally by choosing to use Network file Service during boot up.

  D. Login to System Manager and select UCM Services to access UCM, access central Deployment Manager to deploy Linux Base OS and CS 1000 application using network file Service.

  Correct Answer: D

• Question 49:

  A customer is installing a new CPMG Co-Resident Platform in an Integrated Avaya Aura system with Avaya Communication Server 1000 7x software. The Linux Base image is preloaded shipped from the factory. The customer must enter the default password for the Avaya user account to access the system.

  What default password does the customer use to login to the system?

  A. 0000

  B. admin

  C. admin2_Admin2

  D. Avaya12-Avaya

  Correct Answer: A

• Question 50:

  From which two ports is the Fully Qualified Domain Name (FQDN) composed, and in what order must they be configured?

  A. First the host name and then the domain name

  B. First the domain name and then the host name

  C. First the COTS server IP address and then the port number

  D. First the COTS server port number and then the IP address

  Correct Answer: A
