• Question 111:

  A company has client Windows Vista and Windows 8.1.

  You need to ensure that the client computers can share local resources.

  Which two actions should you perform on the client computers? (Each correct answer presents part of the solution. Choose two.)

  A. Disable IPv6.
  B. Enable network discovery.
  C. Configure IPSec.
  D. Enable IPv6.
  E. Configure the Windows Firewall.
  B. Enable network discovery.
  E. Configure the Windows Firewall.

  ---

  By changing your network location to Home or Work, network discovery is automatically turned on . You can also turn on these sharing options individually:

  Network discovery File sharing (in Windows 7, this is automatically turned on when you share a file or folder) Public folder sharing

  When you turn on these options, your computer can: Find other computers and devices on your home network and have other computers find your computer Share its files and folders Share its Public folders

• Question 112:

  A company has client computers that run Windows 8. You implement an AppLocker file hash rule that allows an application to run. You then apply a service pack to the application.

  When users attempt to run the application, the application is blocked by Group Policy.

  You need to ensure that the application runs.

  What should you do?

  A. Enable the Reschedule Automatic Updates scheduled installations Group Policy setting.
  B. Set the wired network connection to non-metered.
  C. Set the wired network connection to metered.
  D. Configure the Automatic Maintenance setting.
  B. Set the wired network connection to non-metered.

• Question 113:

  A company has client computers that run Windows 8. Each employee has one client computer at the office. Some employees also have personal computers at home.

  The company has applications that run only on Windows 8.

  You need to deploy Windows To Go so that employees can run the applications on their home computers.

  Which two command-line tools should you use? (Each correct answer presents part of the solution. Choose two.)

  A. bcdedit
  B. DISM
  C. bcdboot
  D. ImageX
  B. DISM
  C. bcdboot

  ---

  See step 12 and 13 below.

  Create Windows To Go on any edition of Windows 8:

  Launch an administrative level command prompt.

  Make sure that your USB Drive is plugged in and then type in diskpart and hit Enter.

  List the available disks by running "list disk" and you should see your usb device. Select your USB drive by typing "select disk #" and hit Enter. For example, "select disk 3".

  Clean the partitions on the disk by typing "clean" and hit Enter. Now create the boot partition by running the following command:create partition primary size=350

  Now create the OS partition by running the following command to create a partition taking up all remaining space:create partition primary The boot partition needs to be formatted, configured and assigned a drive letter, run the following

  commands:select partition 1format fs=fat32 quickactiveassign letter=b(if the b drive letter is already in use on your PC, substitute a different letter and replace b with your letter throughout the rest of this guide) The same must be done for the

  OS partition, run the following different commands:select partition 2format fs=ntfs quickassign letter=o(if the o drive letter is already in use on your PC, substitute a different letter and replace o with your letter throughout the rest of this guide)

  Exit Diskpart by typing Exit.

  Extract the install.wim file from the \sources\ directory of the Windows 8 install ISO to c:\wim\. On Windows 8 you can just double click an ISO to mount and then browse it.

  Use DISM to deploy the Windows 8 files to the OS partition of the USB device by running:dism /apply-image /imagefile:c:\wim\install.wim /index:1 /applydir:o:\ The boot manager needs to be installed on the boot partition with the help of the

  bcdboot utility. Run the following command:o:\windows\system32\bcdboot

  o:\windows /f ALL /s b:

  Reboot your computer and test your new Windows 8 To Go device built on Windows 8. Make sure the PC is configured to boot to USB before your local hard drive.

  Reference: How to Create a Windows To Go USB Drive

• Question 114:

  A company has an Active Directory Domain Services domain named contoso.com. The domain contains two sites that are named SiteA and SiteB. The company uses Windows 8.1 Pro laptop computers. The computer account objects are

  located in an Organizational Unit (OU) named Laptops.

  The company plans to deploy a wireless network infrastructure.

  You need to preconfigure all laptop computers with the wireless network access information by using a Group Policy Object (GPO).

  What should you do?

  A. Create and link a GPO to a group containing all laptop computers. Edit the GPO and configure a Wireless Network Policy.
  B. Create and link a GPO to the Laptops OU. Edit the GPO and configure a Wireless Network Policy.
  C. Create and link a GPO to a SiteA. Edit the GPO and configure a Wireless Network Policy.
  D. Create and link a GPO to a SiteB. Edit the GPO and configure a Wireless Network Policy,
  B. Create and link a GPO to the Laptops OU. Edit the GPO and configure a Wireless Network Policy.

• Question 115:

  You administer Windows 8.1 Pro computers in your company network.

  A user named User1 encrypts a sensitive file named file.txt by using Encrypting File System (EFS).

  A user named User2 must be able to read file.txt.

  You need to configure unencrypted read access to file.txt for User2.

  What should you do?

  A. Configure Advanced Security Settings.
  B. Share the folder that contains file.txt.
  C. Configure Advanced Attributes.
  D. Configure Effective Access.
  C. Configure Advanced Attributes.

• Question 116:

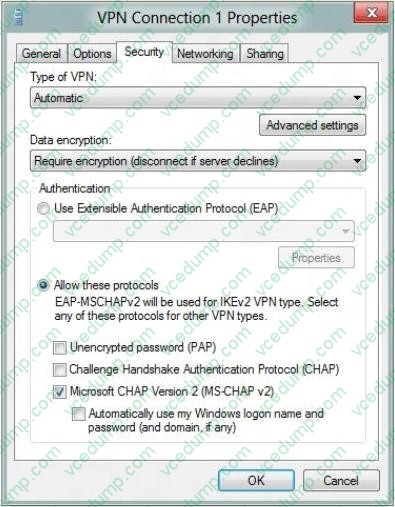

  A company has client computers that run Windows 8. You set up new virtual private network (VPN) connections on all client computers. The VPN connections require the use of a smart card for authentication. Users are unable to connect to the corporate network by using the VPN connections. The connection properties are configured as shown in the exhibit. (Click the Exhibit button.)



  You need to ensure that the client computers can connect to the corporate network. What should you do?

  A. Enable Challenge Handshake Authentication Protocol (CHAP).
  B. Change the VPN type to IKEv2.
  C. In the advanced settings, select Use preshared key for authentication.
  D. Change the authentication setting to Use Extensible Authentication Protocol (EAP).
  D. Change the authentication setting to Use Extensible Authentication Protocol (EAP).

• Question 117:

  You are employed as an administrator at contoso.com.

  The network consists of a single Active Directory Domain Services (AD DS) domain, named contoso.com.

  All workstations on the contoso.com network have Windows 8 installed.

  You need to configure files history on a client system.

  You notice that the free storage space on the selected drive is low, but you do not have a spare drive to replace it.

  What should you do?

  A. Configure the save copies of files setting to back up files once a day.
  B. Configure Size of offline cache setting to 2%
  C. Keep saved versions setting to be 1 month
  D. Keep saved versions setting until space is needed
  D. Keep saved versions setting until space is needed

• Question 118:

  You use a Windows 8 computer. You pin some of your favorite websites to the Start screen.

  When you click a pinned website, the site opens in Internet Explorer.

  You need to ensure that the pinned websites open in Internet Explorer for the desktop.

  What should you do?

  A. In Internet Options, set Choose how you open links to Always in Internet Explorer on the desktop.
  B. In Internet Options, select Open Internet Explorer tiles on the desktop.
  C. In Internet Options, select Enable flip ahead.
  D. In Internet Options, set Choose how you open links to Let Internet Explorer decide.
  B. In Internet Options, select Open Internet Explorer tiles on the desktop.

• Question 119:

  You administer client computers in your company network. The network includes an Active Directory Domain Services (AD DS) domain.

  Employees in the human resources (HR) department are getting new Windows 8.1 Enterprise computers. The HR department uses a line of business (LOB) Windows Store app named Timesheet that is not available in Windows Store.

  You need to ensure that all employees in the HR department can use Timesheet on their new computers.

  What should you do?

  A. Use a local account to log on to each computer.
  B. Set the Turn off the Store application group policy to Enabled.
  C. Activate the sideloading product key on each computer.
  D. Set the Allow Store to install apps on Windows To Go workspaces group policy setting to Enabled.
  D. Set the Allow Store to install apps on Windows To Go workspaces group policy setting to Enabled.

  ---

  *

  The average Windows 8 user can only download apps that Microsoft has approved from the Windows Store. Windows 8 offers two ways to sideload unapproved apps, which are intended for developers and businesses with internal apps.

  *

  Windows 8 offers a method for sideloading "line-of-business" apps. This allows businesses and other organizations to load apps onto their own computers without offering them publically through the Windows Store.

  There are four requirements to sideload a line-of-business app:

  You must be using Windows 8 Enterprise, Windows Server 2012, Windows 8 Pro, or Windows RT. If you're using Windows 8 Pro or Windows RT, you'll need to purchase a "sideloading product activation key" from Microsoft.

• Question 120:

  You administer computers in your company network. All computers in the network belong to a single Active Directory Domain Services (AD DS) domain. The network includes Windows Server 2012 servers located in a perimeter network.

  You add a new Windows 8 computer to the perimeter network. You enable only Remote Desktop access to the Windows 8 computer from other computers located outside the perimeter network.

  You need to use the Windows 8 computer to manage the Windows servers in the perimeter network.

  What should you do?

  A. Add the Windows 8 computer as a Trusted Host to the servers.
  B. Enable PowerShell Remoting on the Windows 8 computer.
  C. Add the Windows 8 computer as a Trusted Host to computers outside the perimeter network.
  D. Install Remote Server Administration Tools for Windows 8 (RSAT) on the Windows 8 computer.
  B. Enable PowerShell Remoting on the Windows 8 computer.
