Microsoft 70-533 Online Practice Questions and Exam Preparation

Microsoft 70-533 Online Questions & Answers

• Question 161:

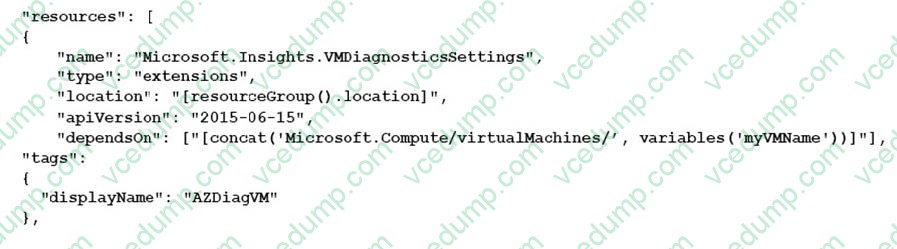

  A company uses Azure Resource Manager (ARM) templates to deploy virtual machines (VMs). You plan to include the following JSON segment in the ARM template.



  You need to provide monitoring and diagnostics capabilities for the VM. Which additional parameter should you include in the template?

  A. condition
  B. currentenvironmentSettings
  C. existingdiagnosticsStorageResourceGroup
  D. instanceCount
  C. existingdiagnosticsStorageResourceGroup

  ---

  The diagnostics extension json snippet above assumes two parameters existingdiagnosticsStorageAccountName and existingdiagnosticsStorageResourceGroup to specify the diagnostics storage account where diagnostics data is stored. Specifying the diagnostics storage account as a parameter makes it easy to change the diagnostics storage account across different environments, for example you may want to use a different diagnostics storage account for testing and a different one for your production deployment.

  References: https://docs.microsoft.com/en-us/azure/virtual-machines/windows/extensions-diagnostics-template

• Question 162:

  You manage two datacenters in different geographic regions and one branch office.

  You plan to implement a geo-redundant backup solution.

  You need to ensure that each datacenter is a cold site for the other.

  You create a recovery vault. What should you do next?

  A. Install the provider.
  B. Upload a certificate to the vault.
  C. Generate a vault key.
  D. Set all virtual machines to DHCP.
  E. Prepare System Center Virtual Machine Manager (SCVMM) servers.
  F. Create mappings between the virtual machine (VM) networks.
  C. Generate a vault key.

  ---

  http://msdn.microsoft.com/en-us/library/azure/dn337345.aspx

• Question 163:

  DRAG DROP

  You administer a virtual machine (VM) that is deployed to Azure. The VM hosts a web service that is used by several applications.

  You need to ensure that the VM sends a notification in the event that the average response time for the web service exceeds a pre-defined response time for an hour or more.

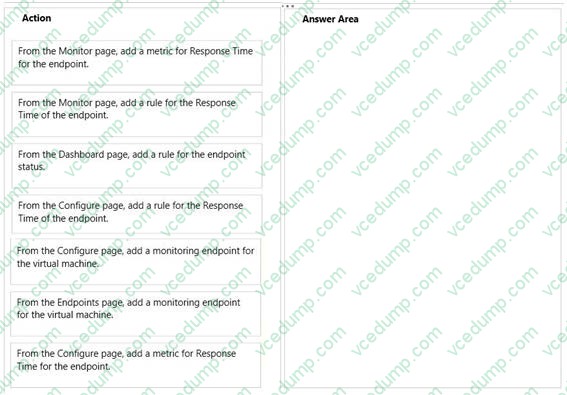

  Which three steps should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

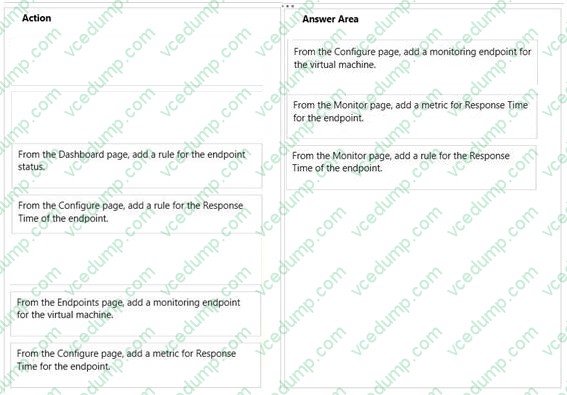

  Select and Place:





  ---

  1. From configure page, add a monitoring endpoint for the virtual machine

  2. From the monitor page, Add a metric for the Response Time for the end point

  3. From the Monitor page, add a rule for the response time of the end point.

  References:

  http://azure.microsoft.com/en-us/documentation/articles/web-sitesmonitor/#webendpointstatus

• Question 164:

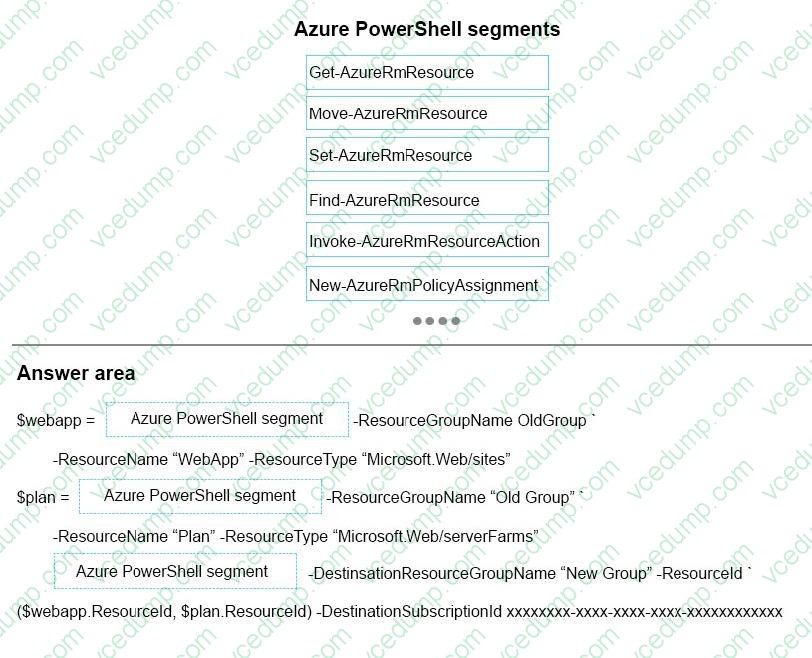

  You manage an Azure Web App.

  You need to move the Web App to a new App Service plan.

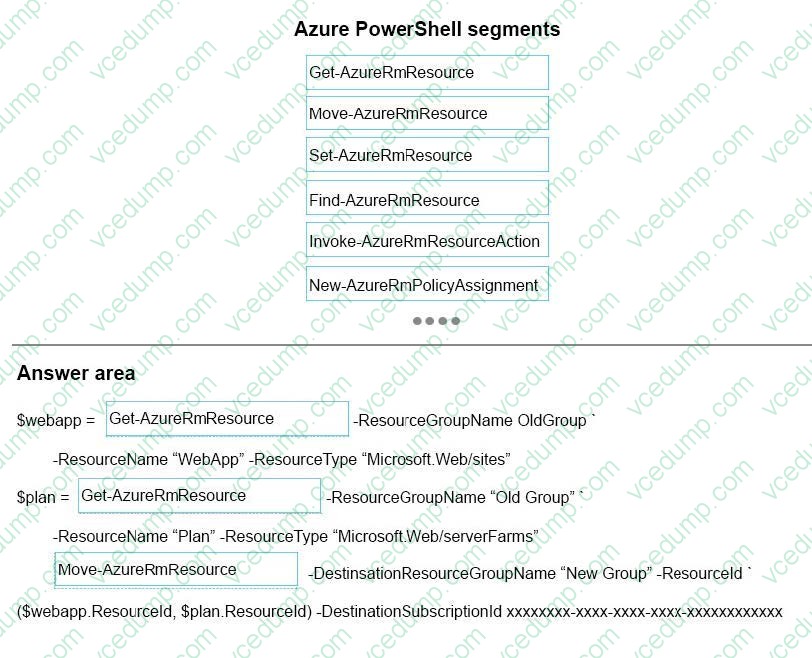

  How should you complete the Azure PowerShell script? To answer, drag the appropriate Azure PowerShell cmdlets to the correct locations. Each Azure PowerShell cmdlets may be used once, more than once, or not at all. You may need to

  drag the split bar between panes or scroll to view content.

  Select and Place:





• Question 165:

  You manage a cloud service that utilizes data encryption.

  You need to ensure that the certificate used to encrypt data can be accessed by the cloud service application.

  What should you do?

  A. Upload the certificate referenced in the application package.
  B. Deploy the certificate as part of the application package.
  C. Upload the certificate's public key referenced in the application package.
  D. Use RDP to install the certificate.
  A. Upload the certificate referenced in the application package.

  ---

  You have to upload a .pfx file, and not a .cer file. pfx files contains the private key, while cer files contains public and private keys. References: http://azure.microsoft.com/en-gb/documentation/articles/cloud-services-configure-ssl-certificate/#step3

• Question 166:

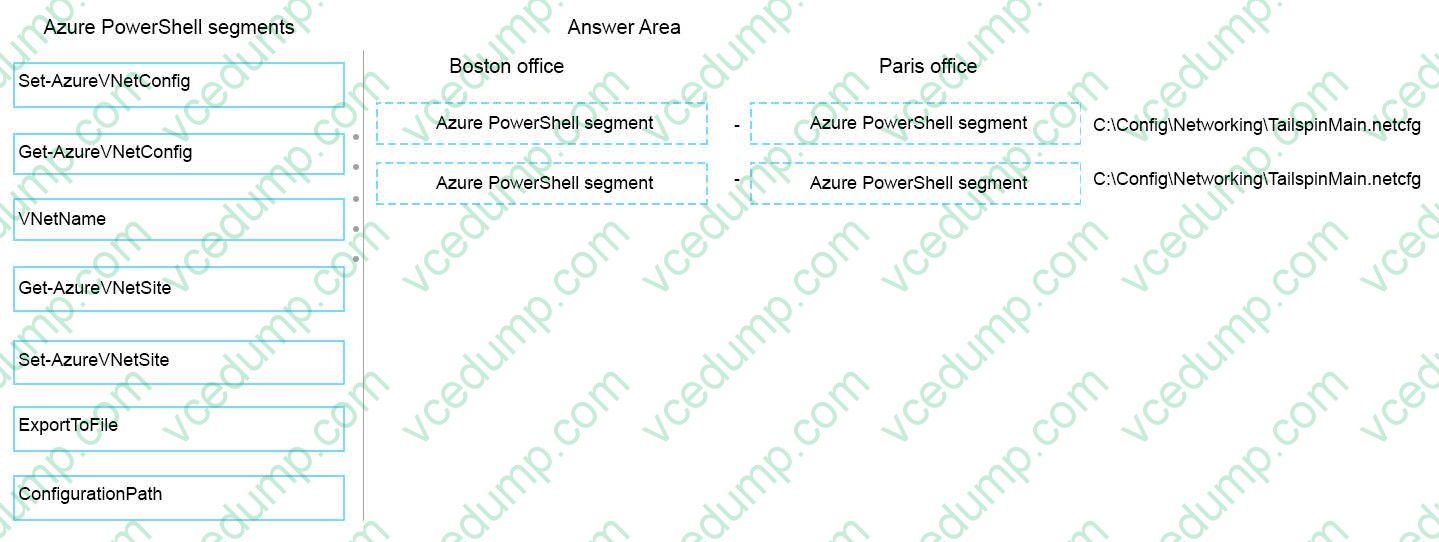

  You manage an Azure virtual network environment for a company that has an office in Boston. The company plans to open a new office location in Paris.

  You must replicate the Boston virtual network environment in Paris.

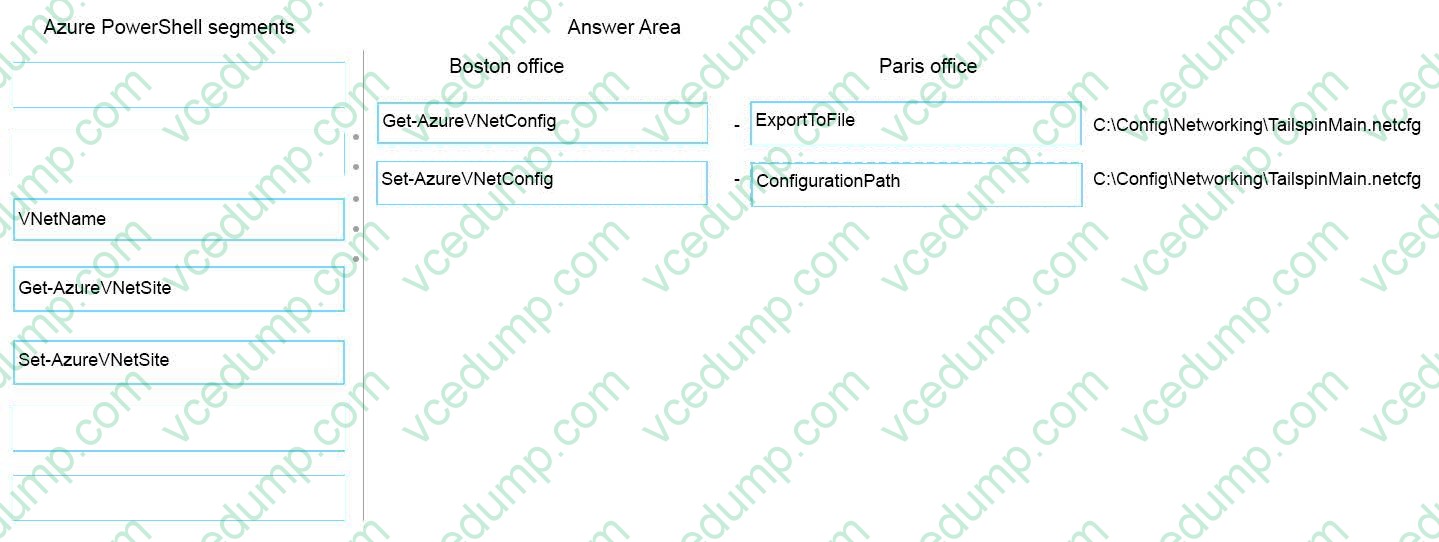

  How should you complete the relevant Azure PowerShell commands? To answer, drag the appropriate Azure PowerShell segment to the correct location. Each Azure PowerShell segment may be used once, more than once, or not at all. You

  may need to drag the split bar between panes or scroll to view content.

  Select and Place:





• Question 167:

  You administer an Azure SQL Database that runs in the S0 service tier. The database stored mission-critical data.

  You must meet the following requirements:



  minimize costs associated with hosting the database in Azure



  minimize downtime in the event of an outage



  protect the database from unplanned events

  What should you do?

  A. Implement a secondary database in the paired region.
  B. Ensure that a secondary databases are online and readable at all times.
  C. Create a continuously replicated copy.
  D. Use backups in a geo-redundant Azure storage (GRS) location.
  D. Use backups in a geo-redundant Azure storage (GRS) location.

  ---

  The data in your Microsoft Azure storage account is always replicated to ensure durability and high availability. Azure Storage replication copies your data so that it is protected from planned and unplanned events ranging from transient

  hardware failures, network or power outages, massive natural disasters, and so on. You can choose to replicate your data within the same data center, across zonal data centers within the same region, and even across regions.

  When you create a storage account, you can select one of the following replication options:

  Locally redundant storage (LRS)

  Zone-redundant storage (ZRS)

  Geo-redundant storage (GRS)

  Read-access geo-redundant storage (RA-GRS)

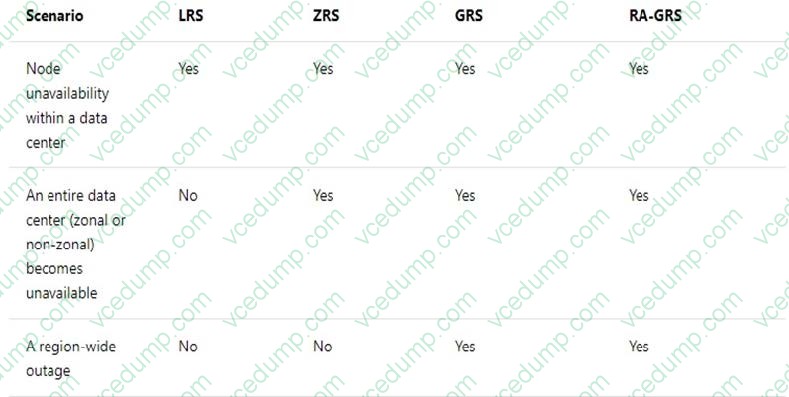

  The following table provides a quick overview of the scope of durability and availability that each replication strategy will provide you for a given type of event (or event of similar impact).



  References: https://docs.microsoft.com/en-us/azure/storage/storage-redundancy#geo-redundant-storage

• Question 168:

  HOTSPOT

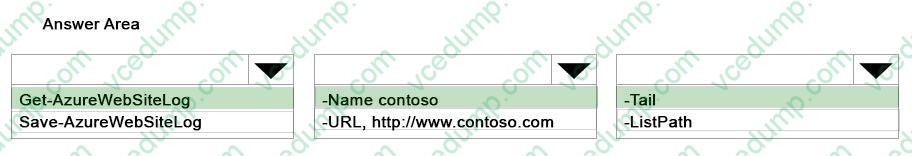

  You manage a web application named Contoso that is accessible from the URL http://www.contoso.com.

  You need to view a live stream of log events for the web application.

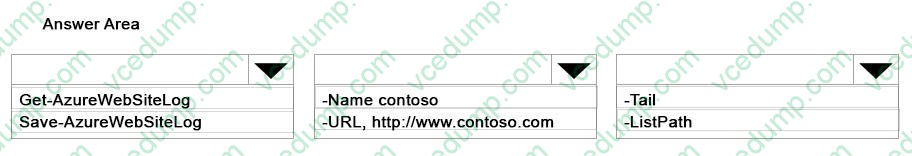

  How should you configure the Azure PowerShell command? To answer, select the appropriate Azure PowerShell segment from each list in the answer area.

  Hot Area:





  ---

  References: https://msdn.microsoft.com/en-us/library/azure/dn495187.aspx

• Question 169:

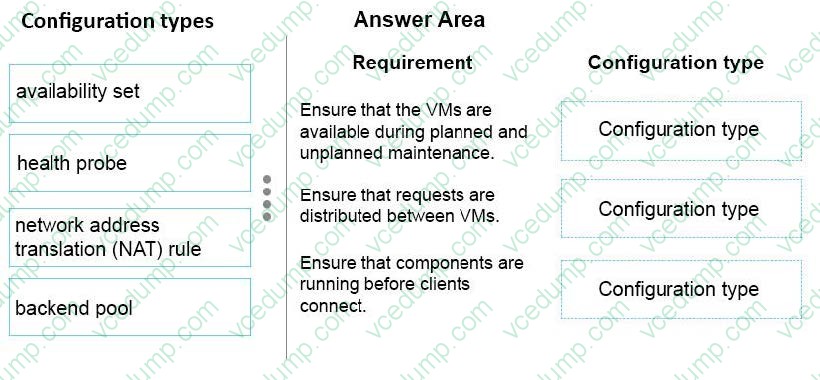

  You plan to deploy an application by using three Azure virtual machines (VMs). The application has a web-based component that uses TCP port 443 and a custom component that uses UDP port 2020.

  The application must be available during planned and unplanned Azure maintenance events. Incoming client requests must be distributed across the three VMs. Clients must be connected to a VM only if both application components are

  running.

  You need to configure the VM environment.

  For each requirement, what should you implement? To answer, drag the appropriate configuration type to the correct target. Each configuration type may be used once, more than once, or not at all. You may need to drag the split bar between

  panes or scroll to view content.

  NOTE: Each correct selection is worth one point.

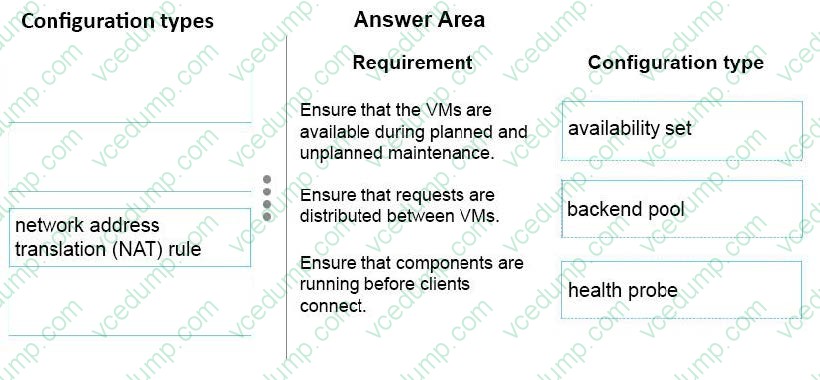

  Select and Place:





  ---

  Box 1:

  availability set.

  Box 2:

  backend pool.

  Box 3:

  health probe.

  References:

  https://docs.microsoft.com/en-us/azure/guidance/guidance-compute-multi-vm

• Question 170:

  Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some questions sets might have more than one correct solution, while

  others might not have a correct solution.

  After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

  You administer an Azure subscription for your company. You plan to deploy a virtual machine (VM) to Azure.

  The VM environment must provide 99.95% uptime. A single switch outage must not cause the VM environment to be unavailable VM must be offline due to installation of an update that requires a reboot.

  You need to configure the environment.

  Solution: Create an availability set with two VMs. Place the VMs in the same fault domain.

  Does the solution meet the goal?

  A. Yes
  B. No
  B. No

  ---

  VMs in the same fault domain share common storage as well as a common power source and network switch. References: https://docs.microsoft.com/en-us/azure/virtual-machines/windows/tutorial-availability-sets
