Microsoft 70-533 Online Questions & Answers

• Question 11:

  A company uses Azure to host virtual machines (VMs) and web apps.

  You need to ensure that a set of VMs are configured identically.

  Which two tools or features should you use? Each correct answer presents a complete solution.

  NOTE: Each correct selection is worth one point.

  A. Chef
  B. Puppet
  C. Azure Resource Manager templates
  D. Desired State Configuration (DSC)
  C. Azure Resource Manager templates
  D. Desired State Configuration (DSC)

• Question 12:

  You manage a set of virtual machines (VMs) deployed to the cloud service named fabrikamVM.

  You configure auto scaling according to the following parameters:



  With an instance range of two to six instances



  To maintain CPU usage between 70 and 80 percent to scale up one instance at a time



  With a scale up wait time of 30 minutes



  To scale down one instance at a time



  With a scale down wait time of 30 minutes

  You discover the following usage pattern of a specific application:



  The application peaks very quickly, and the peak lasts for several hours.



  CPU usage stays above 90 percent for the first 1 to 1.5 hours after usage increases.



  After 1.5 hours, the CPU usage falls to about 75 percent until application usage begins to decline.

  You need to modify the auto scaling configuration to scale up faster when usage peaks.

  What are two possible ways to achieve this goal? Each correct answer presents a complete solution.

  A. Decrease the scale down wait time.
  B. Decrease the scale up wait time.
  C. Increase the number of scale up instances.
  D. Increase the scale up wait time.
  E. Increase the maximum number of instances.
  B. Decrease the scale up wait time.
  C. Increase the number of scale up instances.

• Question 13:

  Your company has a main office and several branch offices.

  You create an Azure subscription and you deploy several virtual machines. The virtual machines are located in multiple subnets.

  You need to provide remote access to the virtual machines to five users in each office by using a VPN connection. The remote access connections will not require a VPN device nor a public-facing IP address in order to work.

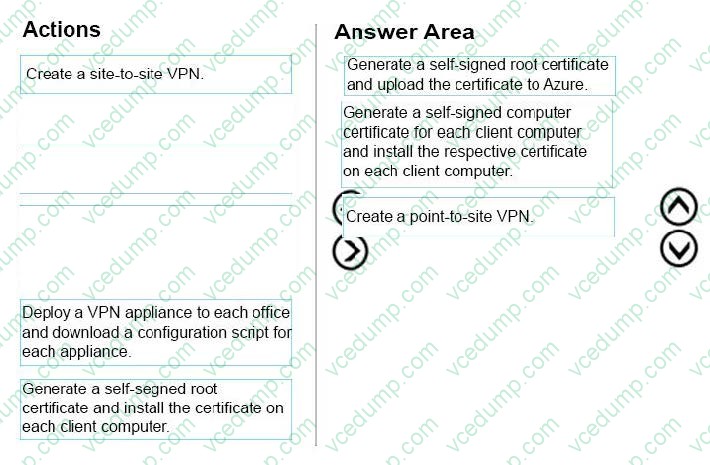

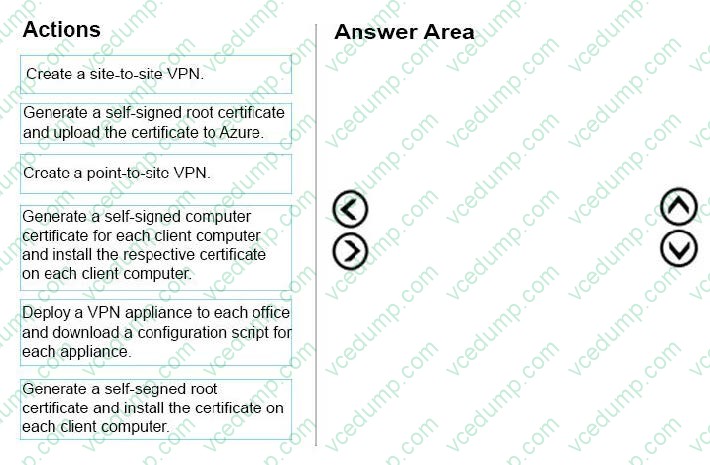

  Which three actions should you perform in sequence before you download the VPN client on each computer? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





• Question 14:

  You are a developer for a company that produces bug tracking software. The software runs on customer provisioned virtual machines (VMs) running in Azure, including deployments within private Azure Virtual Networks.

  The software has the following requirements for the runtime environment, if any of these components are missing or not configured correctly, the application will not function correctly.



  User groups named bug_users and bug_admins



  a log file location at c:\bug\logs



  a registry key that contains the license keys



  Visual C++ runtime components



  a Windows service named BugCleanup

  You need to provide a mechanism to distribute the application to customers that ensures that the application always functions correctly.

  What should you do?

  A. Provide a Windows Installer MSI that configures the VM to meet application requirements.
  B. Provide an Azure Resource Manager template to customers with an Azure PowerShell DSC script that installs the application and configures the VM.
  C. Convert the application to a ClickOnce application and distribute the URL of the application to customers.
  D. Convert the application to an Azure Cloud Service and configure the VM during startup.
  B. Provide an Azure Resource Manager template to customers with an Azure PowerShell DSC script that installs the application and configures the VM.

  ---

  You can deploy applications and services onto your Service Fabric cluster via Azure Resource Manager. This means that instead of deploying and managing applications via PowerShell or CLI after having to wait for the cluster to be ready, you can now express applications and services in JSON and deploy them in the same Resource Manager template as your cluster. The process of application registration, provisioning, and deployment all happens in one step.

  References: https://docs.microsoft.com/en-us/azure/service-fabric/service-fabric-application-arm-resource

• Question 15:

  You manage an Azure Web App.

  You must log detailed error messages and failed requests.

  You need to log the events and make the logs available for download by using an encrypted method.

  Which three actions should you perform? Each correct answer presents part of the solution.

  NOTE: Each correct selection is worth one point.

  A. Create a File Transfer Protocol (FTP) deployment username and password.
  B. Enable the App Service Authentication.
  C. Change the Azure authentication provider.
  D. Enable diagnostic logging for the app service.
  E. Provide the developer with the secure download URL.
  A. Create a File Transfer Protocol (FTP) deployment username and password.
  B. Enable the App Service Authentication.
  D. Enable diagnostic logging for the app service.

  ---

  A: Diagnostic information stored to the web app file system can be accessed directly using FTP.

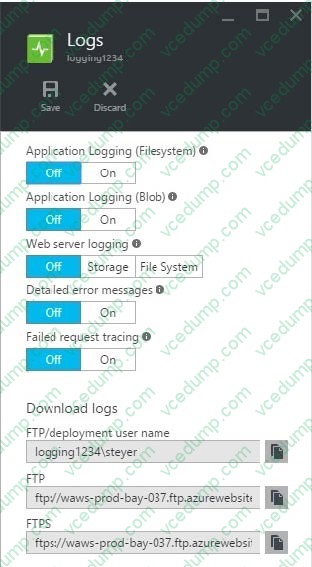

  D: To enable diagnostics in the Azure portal, go to the page for your web app and click Settings > Diagnostics logs.



  References: https://docs.microsoft.com/en-us/azure/app-service/web-sites-enable-diagnostic-log#enablediag

• Question 16:

  You are deploying an ASP.NET application to an Azure virtual machine (VM). The application throws an exception when invalid data is entered. When exceptions occur, an administrator must log on to the system to remove the bad data, and

  then restart the application.

  You need to gather information about application crashes.

  What should you do?

  A. Collect basic metrics.
  B. Collect network and web metrics.
  C. View the Windows event application logs.
  D. View the Windows event system logs.
  C. View the Windows event application logs.

  ---

  Application diagnostics allows you to capture information produced by a web application. ASP.NET applications can use the System.Diagnostics.Trace class to log information to the application diagnostics log. References: https://docs.microsoft.com/en-us/azure/app-service/web-sites-enable-diagnostic-log

• Question 17:

  HOTSPOT

  You plan to deploy Azure SQL Database instances named DB1 and DB2.

  You have the following requirements:

  DB1 must support at least 2,000 IOPS.

  DB2 must have disk sizes of 750 gigabytes (GB).

  Minimize costs when deploying the solution.

  You need to assign the appropriate storage tier for the databases.

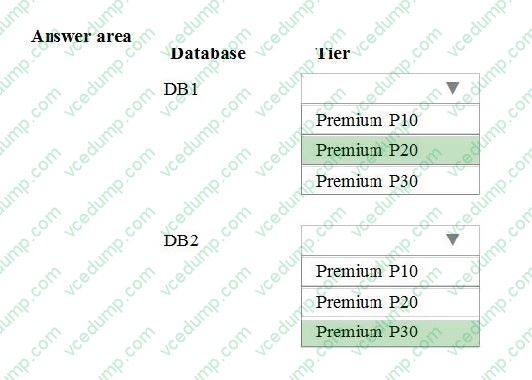

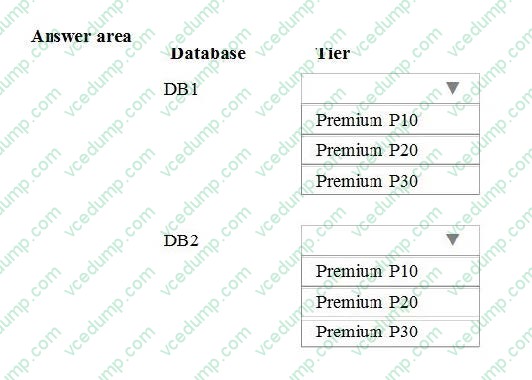

  Which tier should you use for each database? To answer, select the appropriate options in the answer area.

  NOTE: Each correct selection is worth one point.

  Hot Area:





• Question 18:

  Your company network has two branch offices. Some employees work remotely, including at public locations. You manage an Azure environment that includes several virtual networks.

  All users require access to the virtual networks.

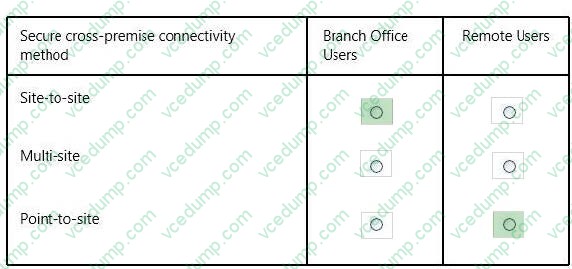

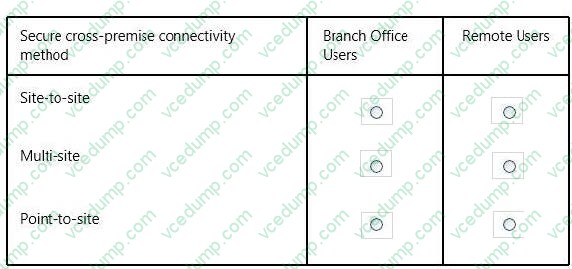

  In the table below, identify which secure cross-premise connectivity option is needed for each type of user. Make only one selection in each column.

  Hot Area:





  ---

  * A site-to-site VPN allows you to create a secure connection between your on-premises site and your virtual network.

  * A point-to-site VPN also allows you to create a secure connection to your virtual network.

  In a point-to-site configuration, the connection is configured individually on each client computer that you want to connect to the virtual network.

  * Use a point-to-site configuration when:

  You want connect to your virtual network from a remote location. For example, connecting from a coffee shop.

  You have a site-to-site connection, but have some clients that need to connect from a remote location.

• Question 19:

  You deploy an Azure web app named contosoApp. ContosoApp is available by using HTTP or HTTPS. You need to ensure that a web administrator receives an email notification if the average response time for contosoAPP exceeds 50 milliseconds.

  Which two tasks should you perform? Each correct answer presents part of the solution.

  A. Create an HTTPS monitoring endpoint.
  B. Create a metric
  C. Create a rule.
  D. Create an HTTP monitoring endpoint.
  E. Modify the properties of the connection strings.
  F. Enable Application logging.
  B. Create a metric
  C. Create a rule.

  ---

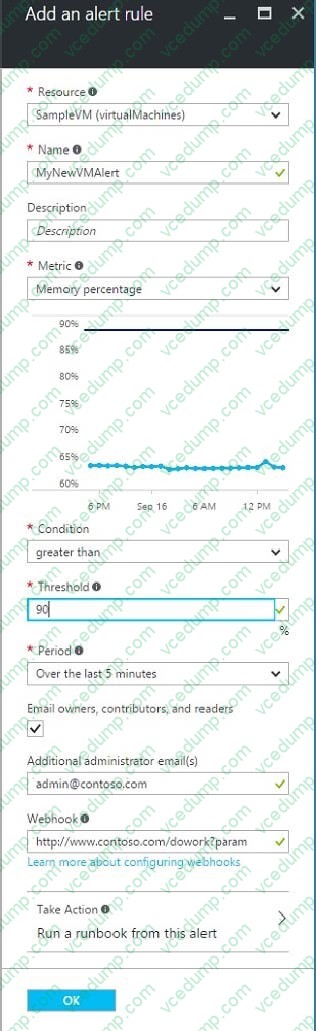

  Metrics for an App or App Service plan can be hooked up to alerts. Create an alert rule on a metric with the Azure portal

  1.

  In the portal, locate the resource you are interested in monitoring and select it.

  2.

  Select Alerts (Classic) under the MONITORING section. The text and icon may vary slightly for different resources. If you do not find Alerts (Classic), you might find them under Alerts or Alert Rules

  3.

  Select the Add metric alert (classic) command and fill in the fields.

  4.

  Name your alert rule, and choose a Description, which also shows in notification emails. https://docs.microsoft.com/en-us/azure/monitoring-and-diagnostics/insights-alerts-portal



• Question 20:

  You administer an Azure Web Site named contoso. The development team has implemented changes to the website that need to be validated.

  You need to validate and deploy the changes with minimum downtime to users.

  What should you do first?

  A. Create a deployment slot named ContosoStaging.
  B. Back up the Azure Web App to a deployment slot.
  C. Configure Remote Debugging on Contoso.
  D. Create a new Azure Web App named ContosoStaging.
  A. Create a deployment slot named ContosoStaging.

  ---

  The deployment slots feature for Azure Websites allows validating a version of your site with full content and configuration updates on the target platform before directing customer traffic to this version. The expectation is that a deployment slot would be fully configured in the desired target format before performing a swap.

  References: http://stackoverflow.com/questions/24186809/connection-strings-are-replaced-when-performing-azure-web-site-staging-swap
