• Question 71:

  You work as a Network Administrator at ABC.com. The network contains a single Active Directory Domain Services (AD DS) domain named ABC.com.

  You install a new Windows Server 2012 server named ABC-SRV10. During the installation, you select the Server with a GUI option. You then join the server to the domain and configure several server roles.

  You later decide that you want to change the installation of Windows Server 2012 on ABC-SRV10 by removing the graphical user interface (GUI). ABC-SRV10 will continue to perform it's current roles.

  Which two of the following actions could you perform to achieve this goal in the minimum amount of time? (Choose two)

  A. Remove the Desktop Experience feature using Server Manager.
  B. Run the Uninstall-WindowsFeature Server-Gui-Mgmt-Infra cmdlet.
  C. Reinstall Windows Server 2012 and select the Server Core Installation option.
  D. Remove the User Interfaces and Infrastructure feature using Server Manager.
  E. Run the Uninstall-WindowsFeature * cmdlet.
  B. Run the Uninstall-WindowsFeature Server-Gui-Mgmt-Infra cmdlet.
  D. Remove the User Interfaces and Infrastructure feature using Server Manager.

• Question 72:

  You manage an environment that has many servers. The servers run Windows Server 2012 R2 and use iSCSI storage. Administrators report that it is difficult to locate available iSCSI resources on the network. You need to ensure that the administrators can locate iSCSI resources on the network by using a central repository. Which feature should you deploy?

  A. The iSNS Server service feature
  B. The iSCSI Target Storage Provider feature
  C. The Windows Standards-Based Storage Management feature
  D. The iSCSI Target Server role service
  A. The iSNS Server service feature

  ---

  http://technet.microsoft.com/en-us/library/cc772568.aspx iSNS Server Overview Internet iStorage Name Service Server The Internet Storage Name Service (iSNS) protocol is used for interaction between iSNS servers and iSNS clients. iSNS clients are computers, also known as initiators, that are attempting to discover storage devices, also known as targets, on an Ethernet network. iSNS facilitates automated discovery, management, and configuration of iSCSI and Fibre Channel devices (using iFCP gateways) on a TCP/IP network. Note The Microsoft iSNS Server only supports the discovery of iSCSI devices, and not Fibre Channel devices. iSNS Server provides intelligent storage discovery and management services comparable to those found in Fibre Channel networks, allowing a commodity IP network to function in a similar capacity as a storage area network. iSNS facilitates a seamless integration of IP networks and manages iSCSI devices. iSNS thereby provides value in any storage network comprised of iSCSI devices.

  Features of iSNS Server iSNS Server is a repository of currently active iSCSI nodes, as well as their associated portals, entities, etc. Nodes can be initiators, targets, or management nodes. Typically, initiators and targets register with the iSNS server, and the initiators query the iSNS server for the list of available targets.

  A dynamic database of the iSCSI devices and related information that are currently available on the network: The database helps provide iSCSI target discovery functionality for the iSCSI initiators on the network. The database is kept dynamic by using the Registration Period and Entity Status Inquiry features of iSNS. Registration Period allows the server to automatically deregister stale entries. Entity Status Inquiry provides the server a functionality similar to ping to determine whether registered clients are still present on the network, and allows the server to automatically deregister those clients which are no longer present. State Change Notification Service: This allows registered clients to be made aware of changes to the database in the iSNS server. It allows the clients to maintain a dynamic picture of the iSCSI devices available on the network.

  Discovery Domain Service: This allows an administrator to assign iSCSI nodes and portals into one or more groups called discovery domains. Discovery domains provide a zoning functionality by which an iSCSI initiator can only discover those iSCSI targets who have at least one discovery domain in common with it. Benefits of iSNS Server in iSCSI Storage Area Networks Centralized management Easily scalable to large IP storage networks

  Extensible Asynchronous notification of changes in the iSCSI storage network Ability to monitor the status and availability of clients Microsoft-preferred discovery method for iSCSI Designed for Windows Logo Program requirement for iSCSI HBAs

• Question 73:

  DRAG DROP

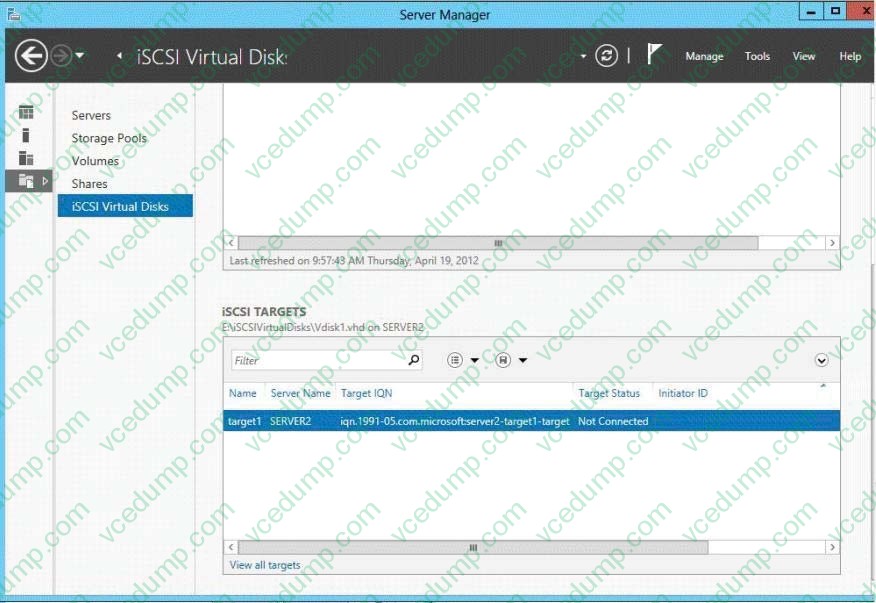

  You have a server named Server2 that runs Windows Server 2012 R2. You have storage provisioned on Server2 as shown in the exhibit. (Click the Exhibit button.)



  You need to configure the storage so that it appears in Windows Explorer as a drive letter on Server1.

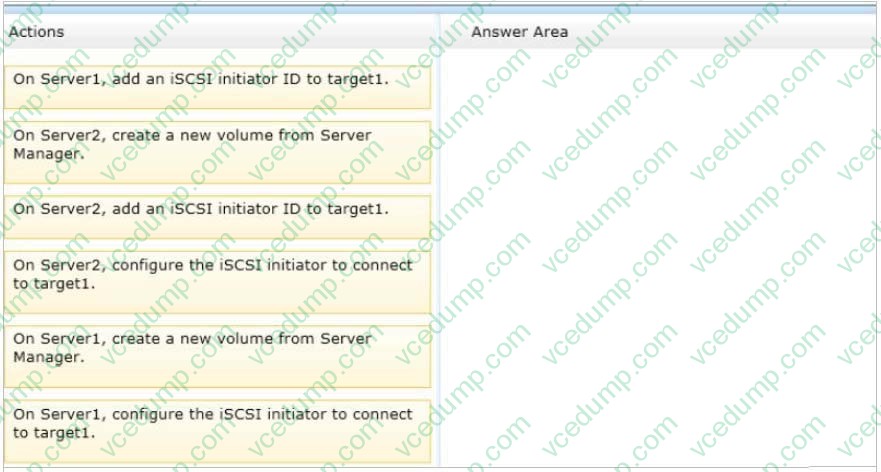

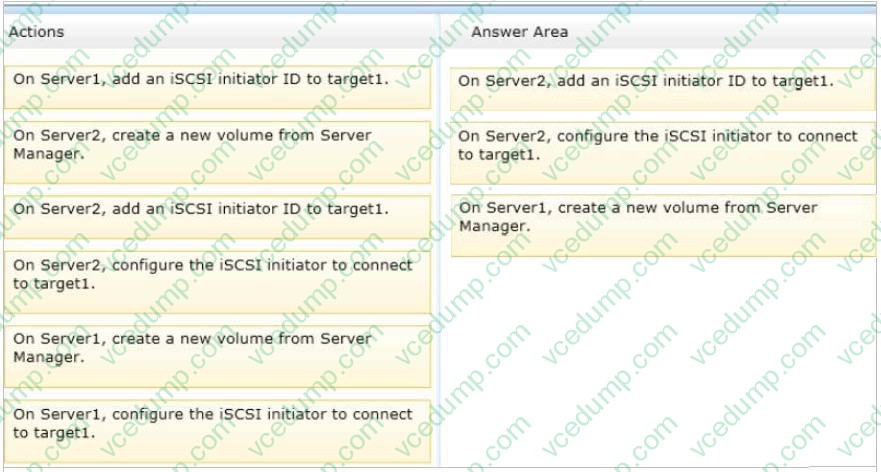

  Which three actions should you perform in sequence? To answer, move the three appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

  http://techgenix.com/configuring-iscsi-storage-part3/ http://techgenix.com/configuring-iscsi-storage-part4/

• Question 74:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com. The domain contains a domain controller named DC1 and a member server named Server1. All servers run Windows Server 2012 R2.

  You install the IP Address Management (IPAM) Server feature on Server1.

  From the Provision IPAM wizard, you select the Group Policy Based provisioning method and enter a GPO name prefix of IPAM1.

  You need to provision IPAM by using Group Policy.

  What command should you run on Server1 to complete the process?

  To answer, select the appropriate options in the answer area.

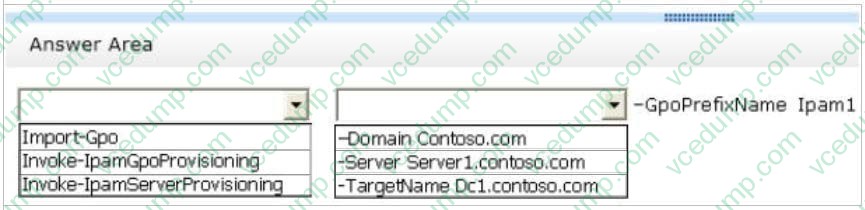

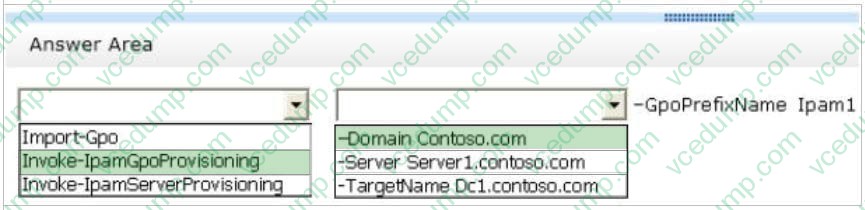

  Hot Area:





• Question 75:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  Some users work from home. The users working at home often use their own computers that are not members of the ABC.com domain.

  You need to implement a VPN solution to enable users working from home to connect to network resources.

  You want to use to use certificate-based authentication on a server running Network Policy Server (NPS) for VPN connections.

  You install a Windows Server 2012 server named ABC-NPS1. You install the Network Policy and Access Services server role on ABC-NPS1. You obtain a certificate from a third party Certification Authority. You need to ensure that ABCNPS1

  trusts the certificate to enable the server to perform the certificate based VPN authentication.

  You need to identify which certificate store in the Certificates console to import the certificate.

  Which store should you identify?

  A. Personal under Current User.
  B. Trusted Root Certification Authorities under Current User.
  C. Client Authentication Issuers under Current User.
  D. Personal under Local Computer.
  E. Trusted Root Certification Authorities under Local Computer.
  F. Client Authentication Issuers under Local Computer.
  D. Personal under Local Computer.

• Question 76:

  Your Network contains one Active Directory domain named contoso.com.

  You pilot Direct Access on the network. During the pilot deployment, you enable Direct Access only for a group Contoso\Test Computers. Ones the pilot is complete; you need to enable Direct Access for all the client computers in the domain.

  What should you do?

  A. From Group Policy Management, modify the security filtering of an object named Direct Access Server Setting Group Policy.
  B. From Active Directory Users and Computers, modify the membership of the Windows Authorization Access Group.
  C. From Group Policy Management, modify the security filtering of an object named Direct Access Client Setting Group Policy.
  D. From Remote Access Management Console, run the remote access Server Setup wizard.
  C. From Group Policy Management, modify the security filtering of an object named Direct Access Client Setting Group Policy.

  ---

  References: http://technet.microsoft.com/en-us/library/jj574180.aspx http://technet.microsoft.com/en-us/library/hh918432(v=wps.630).aspx

• Question 77:

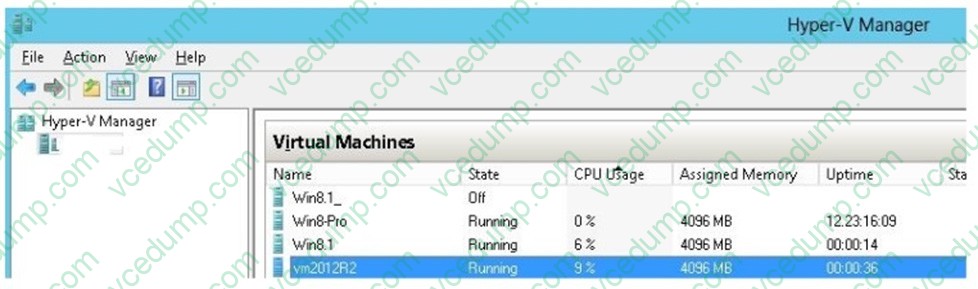

  Your network contains a Hyper-V host named Server1 that hosts 20 virtual machines.

  You need to view the amount of memory resources and processor resources each virtual machine uses currently.

  Which tool should you use on Server1?

  A. Resource Monitor
  B. Task Manager
  C. Hyper-V Manager
  D. Windows System Resource Manager (WSRM)
  C. Hyper-V Manager

  ---

  You get it from the Hyper-V Manager



• Question 78:

  Your network contains an Active Directory domain named contoso.com. The domain contains a server named Server 1. Server1 runs Windows Server 2012 R2.

  You need to create a 3-TB virtual hard disk (VHDX) on Server1.

  Which tool should you use?

  A. Computer Management
  B. Server Manager
  C. Share and Storage Management
  D. New-StorageSubsytemVirtualDisk
  A. Computer Management

• Question 79:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  You are configuring a Windows Server 2012 named ABC-File1 server as a file server. ABC-File1 is a virtual machine (VM) running on a Windows Server 2012 Hyper-V host server named ABCHVHost01. ABC-File1 will store its shared folders on a SAN (Storage Area Network) named ABCSAN1. You need to enable a user named Mia to perform backups of the shared folders on ABC-File1 by using Windows Server Backup. Company policy states that users must have the minimum permissions or administrative rights to perform their required tasks.

  How can you enable Mia to perform the required backups?

  A. By adding Mia to the Backup Operators group on ABC-HVHost01.
  B. By adding Mia to the Backup Operators group in the domain.
  C. By adding Mia to the Backup Operators group on ABC-File1.
  D. By adding Mia to the Local Administrators group on ABC-File1.
  C. By adding Mia to the Backup Operators group on ABC-File1.

• Question 80:

  Your network contains three servers named Server1, Server2, and Server3. All servers run Windows Server 2012 R2.

  You need to ensure that Server1 can provide iSCSI storage for Server2 and Server3. What should you do on Server1?

  A. Install the iSCSI Target Server role service and configure iSCSI targets
  B. Start the Microsoft iSCSI Initiator Service and configure the iSCSI Initiator Properties
  C. Install the iSNS Server service feature and create a Discovery Domain
  D. Install the Multipath I/O (MPIO) feature and configure the MPIO Properties
  A. Install the iSCSI Target Server role service and configure iSCSI targets

  ---

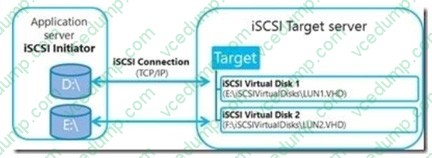

  iSCSI: it is an industry standard protocol allow sharing block storage over the Ethernet. The server shares thestorage is called iSCSI Target. The server (machine) consumes the storage is called iSCSI initiator. Typically, the iSCSI initiator is

  an application server.

  For example, iSCSI Target provides storage to a SQL server, the SQL server will be the iSCSI initiator in this deployment.

  Target: It is an object which allows the iSCSI initiator to make a connection.

  The Target keeps track of the initiators which are allowed to be connected to it.

  The Target also keeps track of the iSCSI virtual disks which are associated with it. Once the initiator establishes the connection to the Target, all the iSCSI virtual disks associated with the Target will be accessible by the initiator.

  iSCSI Target Server:

  The server runs the iSCSI Target. It is also the iSCSI Target role name in Windows Server 2012.



  References: http://blogs.technet.com/b/filecab/archive/2012/05/21/introduction-of-iscsi-targetin-windows-server-2012.aspx
