Microsoft 70-417 Online Questions & Answers

• Question 681:

  DRAG DROP

  Your network contains an Active Directory domain named contoso.com. All domain controllers run Windows Server 2012.

  The domain contains an organizational unit (OU) named OU1. OU1 contains an OU named OU2. OU2 contains a user named User1.

  User1 is the member of a group named Group1. Group1 is in the Users container.

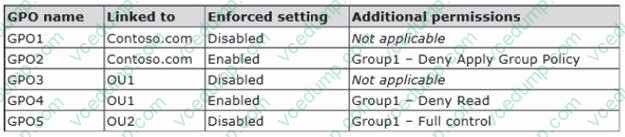

  You create five Group Policy objects (GPO). The GPOs are configured as shown in the following table.



  The Authenticated Users group is assigned the default permissions to all of the GPOs.

  There are no site-level GPOs.

  You need to identify which three GPOs will be applied to User1 and in which order the GPOs will be applied to User1.

  Which three GPOs should you identify in sequence?

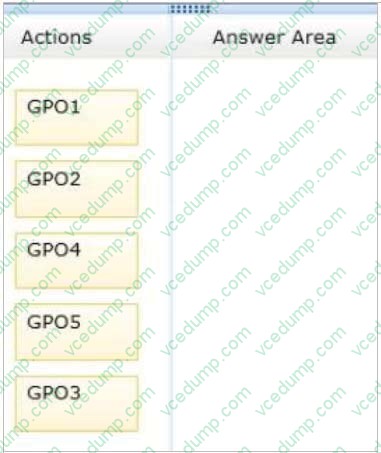

  To answer, move the appropriate three GPOs from the list of GPOs to the answer area and arrange them in the correct order.

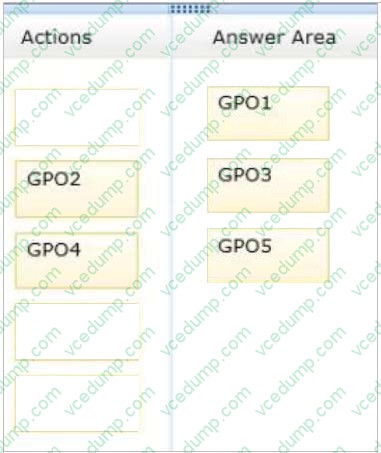

  Select and Place:





  ---

  Box 1: GPO1 Box 2: GPO3 Box 3: GPO5 Note:

  * Box 1: Domain GPOs are applied before OU GPOs.

• Question 682:

  You have a server named Server1 that runs Windows Server 2012 R2.

  You add a 4-TB disk named Disk 5 to Server1.

  You need to ensure that you can create a 3-TB volume on Disk 5.

  What should you do?

  A. Create a storage pool.
  B. Convert the disk to a GPT disk.
  C. Convert the disk to a dynamic disk.
  D. Create a VHD, and then attach the VHD.

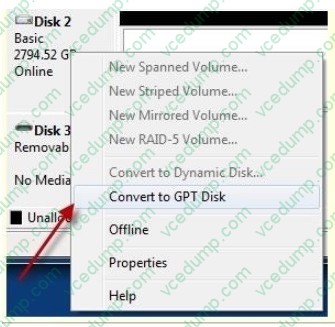

  B. Convert the disk to a GPT disk.

  ---



  The disk must be GPT since GPT disks allows for partitioning.

  References: http://msdn.microsoft.com/en-us/library/windows/hardware/gg463525.aspx

• Question 683:

  DRAG DROP

  Your network contains four servers that run Windows Server 2012 R2.

  Each server has the Failover Clustering feature installed. Each server has three network adapters installed. An iSCSI SAN is available on the network.

  You create a failover cluster named Cluster1. You add the servers to the cluster.

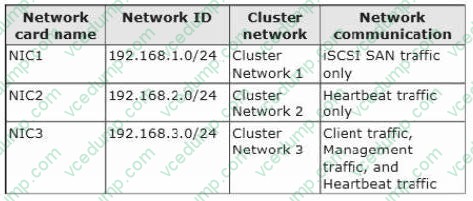

  You plan to configure the network settings of each server node as shown in the following table.



  You need to configure the network settings for Cluster1.

  What should you do?

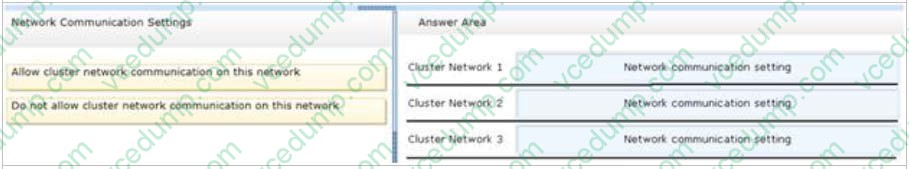

  To answer, drag the appropriate network communication setting to the correct cluster network or networks. Each network communication setting may be used once, more than once, or not at all. You may need to drag the split bar between

  panes or scroll to view content.

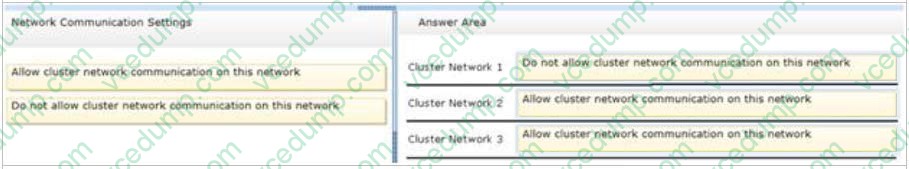

  Select and Place:





  ---

  If your cluster uses iSCSI or Fibre Channel over Ethernet (FCoE) for the cluster's shared storage, this traffic goes through an Ethernet network which the cluster will identify as a cluster network. To avoid storage I/O performance being affected with iSCSI or FCoE, it is recommended that you provide a dedicated network for storage traffic so that other network traffic does not interfere with this data. For this reason it is recommended that you do not use this network for cluster traffic, live migration or any other use. This can be configured by right-clicking on the network in Failover Cluster Manager, selecting Properties, and selecting the radio button for “Do not allow cluster network communication on this network”.

• Question 684:

  Your network contains an Active Directory domain named contoso.com. The domain contains computers that use IPv4 and IPv6.

  You have a DHCP server named Server1 that runs Windows Server 2012.

  You install Windows Server 2012 R2 on a server named Server2. You install the DHCP Server role on Server2.

  You need to migrate the DHCP services from Server1 to Server2. The solution must meet the following requirements:

  Ensure that existing leases are migrated.

  Prevent lease conflicts.

  Which cmdlet should you use to retrieve the required information from Server1?

  A. Run the Send-SmigServerData cmdlet and specify the –computername cmdlet
  B. Run the Export-DhcpServer cmdlet and specify the Leases parameter
  C. Run the Get-DhcpServer4Lease cmdlet and specify the –AllLeases parameter
  D. Run the Add-DhcpServer4Lease cmdlet and specify the –hostname parameter
  B. Run the Export-DhcpServer cmdlet and specify the Leases parameter

  ---

  References: https://docs.microsoft.com/en-us/powershell/module/dhcpserver/export-dhcpserver?view=win10-ps

• Question 685:

  HOTSPOT

  Your network contains two servers named Server1 and Server2 that run Windows Server 2012 R2. Server1 and Server2 have the Hyper-V server role installed.

  Server1 and Server2 have different processor models from the same manufacturer.

  On Server1, you plan to create a virtual machine named VM1. Eventually, VM1 will be exported to Server2.

  You need to ensure that when you import VM1 to Server2, you can start VM1 from saved snapshots.

  What should you configure on VM1?

  To answer, select the appropriate node in the answer area.

  Hot Area:





  ---

  Use the Processor Compatibility Mode only in cases where VMs will migrate from one Hyper-V-enabled processor type to another within the same vendor processor family. http://technet.microsoft.com/en-us/magazine/gg299590.aspx

• Question 686:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  The network includes virtual machines (VMs) running on Windows Server 2012 Hyper-V host servers.

  A Hyper-V host server named ABC-HV01 hosts several VMs for customers of the business. ABCHV01 has 64 GB of RAM, 4 network adapters and 4 hex-core processors. To enable accurate billing for customers, you need to measure the

  resource usage of the VMs running on the ABC-HV01.

  You need a way of measuring the following:

  Average CPU usage.



  Minimum, Maximum and Average physical memory usage.



  Amount of disk space allocated to a virtual machine.



  Total incoming and outgoing network traffic for a virtual network adapter.



  What should you do?

  A. You should configure Port Mirroring.
  B. You should configure Resource Metering.
  C. You should configure Single-root I/O virtualization.
  D. You should configure Integration Services.
  E. You should configure Resource control.
  B. You should configure Resource Metering.

• Question 687:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com.

  You have several Windows PowerShell scripts that execute when users log on to their client computer.

  You need to ensure that all of the scripts execute completely before the users can access their desktop.

  Which setting should you configure? To answer, select the appropriate setting in the answer area.

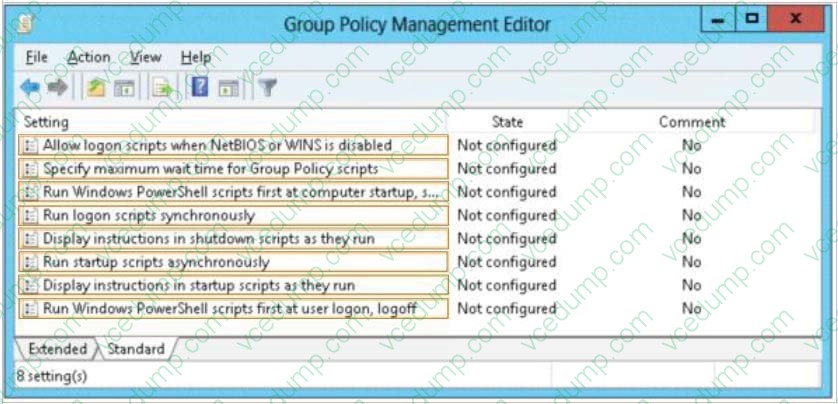

  Hot Area:





  ---

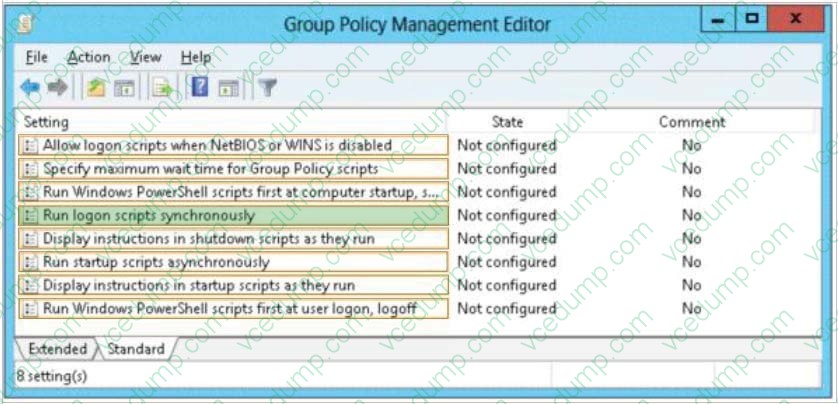

  Run logon scripts synchronously

  Directs the system to wait for logon scripts to finish running before it starts theWindows Explorer interface program and creates the desktop.

  If you enable this policy, Windows Explorer does not start until the logon scripts have finished running. This setting assures that logon script processing is complete before the user starts working, but it can delay the appearance of the desktop.

  If you disable this policy or do not configure it, the logon scripts and Windows Explorer are not synchronized and can run simultaneously.

  References:

  http://technet.microsoft.com/en-us/library/cc738773(v=ws.10).aspx

• Question 688:

  Which terminology is being described below?

  These trusts are sometimes necessary when users need access to resources that are located in a Windows NT 4.0 domain or in a domain that is in a separate Active Directory Domain Services (AD DS) forest that is not joined by a forest trust.

  A. Shortcut Trusts
  B. Realm Trusts
  C. Forest Trusts
  D. External Trust
  D. External Trust

  ---

  http://technet.microsoft.com/en-us/library/cc731297.aspx Understanding When to Create a Realm Trust When to create a realm trust You can establish a realm trust between any non-Windows Kerberos version 5 (V5) realm and an Active Directory domain. This trust relationship allows cross-platform interoperability with security services that are based on otherversions of the Kerberos V5 protocol, for example, UNIX and MIT implementations. Realm trusts can switch from non transitive to transitive and back. Realm trusts can also be either one-way or two ways.

• Question 689:

  Your network contains an Active Directory domain named contoso.com. The domain contains a file server named Server1 that runs Windows Server 2012 R2.

  You create a user account named User1 in the domain.

  You need to ensure that User1 can use Windows Server Backup to back up Server1.

  The solution must minimize the number of administrative rights assigned to User1.

  What should you do?

  A. Assign User1 the Back up files and directories user right.
  B. Add User1 to the Backup Operators group.
  C. Add User1 to the Power Users group.
  D. Assign User1 the Back up files and directories user right and the Restore files and directories user right.
  B. Add User1 to the Backup Operators group.

  ---

  You must be a member of the Administrators group or Backup Operators group to use Windows Server Backup. The question clearly states: "You need to ensure that User1 can use Windows Server Backup to back up Server1."

  References: https://technet.microsoft.com/en-us/library/cc732091.aspx

• Question 690:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  Four servers on the network run IP Address Management (IPAM). You need to enable a user named Clive to manage the IPAM servers. You add Clive to the IPAM Administrators group on all IPAM servers.

  You need to enable Clive to log in to one IPAM server and manage all four IPAM servers using Server Manager.

  What should you do?

  A. You should add Clive to the Local Administrators group on all four IPAM servers.
  B. You should add Clive to the IPAM MSM Administrators group on all four IPAM servers.
  C. You should add Clive to the Remote Management Users group on all four IPAM servers.
  D. You should add Clive to the Network Configuration Operators group on all four IPAM servers.
  C. You should add Clive to the Remote Management Users group on all four IPAM servers.
