Microsoft 70-417 Online Questions & Answers

• Question 551:

  DRAG DROP

  Your network contains an Active Directory domain named contoso.com. All client computers run Windows 8.

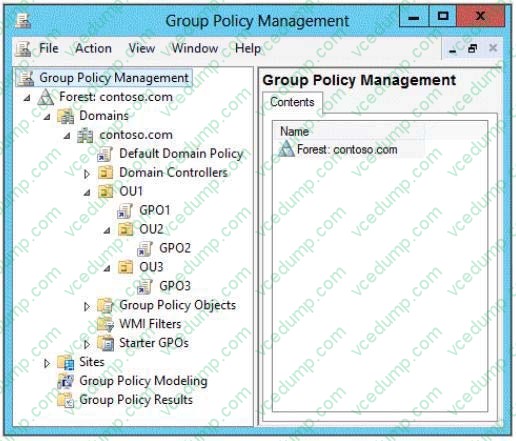

  Group Policy objects (GPOs) are linked to the domain as shown in the exhibit. (Click the Exhibit button.)



  GPO2 contains computer configurations only and GPO3 contains user configurations only.

  You need to configure the GPOs to meet the following requirements:

  Ensure that GPO2 only applies to the computer accounts in OU2 that have more than one processor.

  Ensure that GPO3 only applies to the user accounts in OU3 that are members of a security group named SecureUsers.

  Which setting should you configure in each GPO?

  To answer, drag the appropriate setting to the correct GPO. Each setting may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.

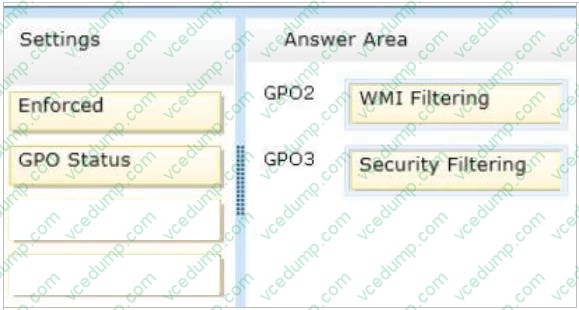

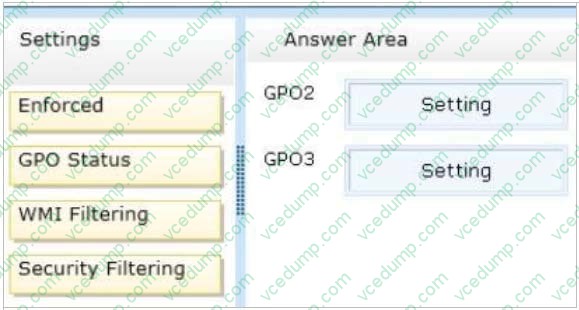

  Select and Place:





• Question 552:

  Your network contains one Active Directory domain.

  The domain contains two Hyper-V hosts named Host1 and Host2 that run Windows Server 2012 R2. Host1 contains a virtual machine named VM1.

  You plan to move VM1 to Host2.

  You need to generate a report that lists any configuration issues on Host2 that will prevent VM1 from being moved successfully.

  Which cmdlet should you use?

  A. Move-VM
  B. Debug-VM
  C. Test-VHD
  D. Compare-VM
  D. Compare-VM

  ---

  References: https://docs.microsoft.com/en-us/powershell/module/hyper-v/compare-vm?view=winserver2012r2-ps

• Question 553:

  You have just finished installing Windows Server 2008 on a new server.

  Your colleague has informed you that its essential that you must activate Windows Server.

  Which of the following command line tools can be used to Activate Windows Server?

  A. Cscript C:\windows\system32\slmgr.vbs ato
  B. Netdom C:\windows\system32\slmgr.vbs ato
  C. Ocsetup C:\windows\system32\slmgr.vbs ato
  D. Netsh C:\windows\system32\slmgr.vbs ato
  A. Cscript C:\windows\system32\slmgr.vbs ato

• Question 554:

  Your network contains an Active Directory domain named contoso.com. All domain controllers run Windows Server 2012.

  The domain contains an Edge Server named Server1. Server1 is configured as a DirectAccess server. Server1 has the following settings:

  Internal DNS name: Server1.contoso.com

  External DNS name: dal.contoso.com

  Internal IPv6 address: 2002:cla8:6a:3333::1

  External IPv4 address:65.55.37.62

  Your company uses split-brain DNS for the contoso.com zone.

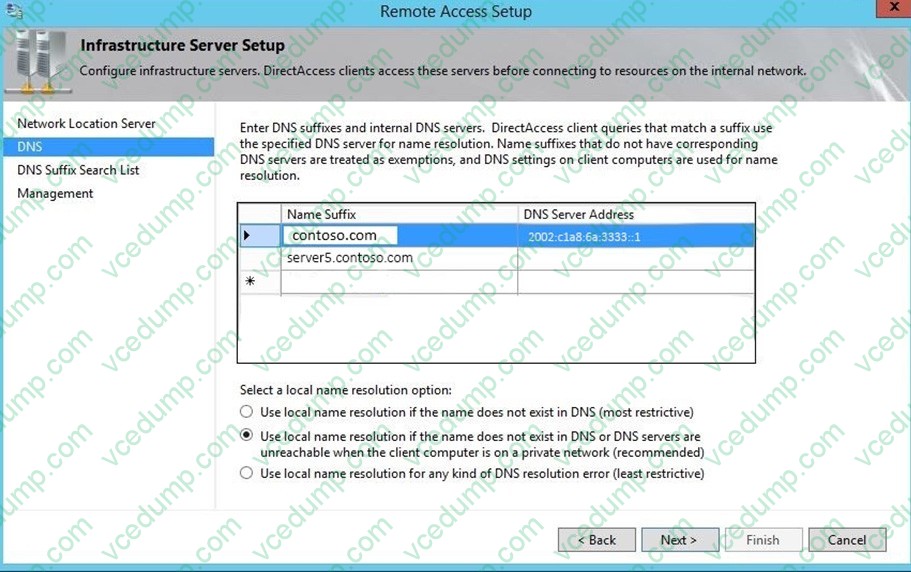

  You run the Remote Access Setup wizard as shown in the following exhibit. (Click the Exhibit button.)



  You need to ensure that client computers on the Internet can establish DirectAccess connections to Server1. Which additional name suffix entry should you add from the Remote Access Setup wizard?

  A. A Name Suffix value of Server1.contoso.com and a blank DNS Server Address value
  B. A Name Suffix value of dal.contoso.com and a blank DNS Server Address value
  C. A Name Suffix value of Server1.contoso.com and a DNS Server Address value of 65.55.37.62
  D. A Name Suffix value of dal.contoso.com and a DNS Server Address value of 65.55.37.62
  A. A Name Suffix value of Server1.contoso.com and a blank DNS Server Address value

  ---

  *

  In a non-split-brain DNS environment, the Internet namespace is different from the intranet namespace. For example, the Contoso Corporation uses contoso.com on the Internet and corp.contoso.com on the intranet. Because all intranet resources use the corp.contoso.com DNS suffix, the NRPT rule for corp.contoso.com routes all DNS name queries for intranet resources to intranet DNS servers. DNS name queries for names with the contoso.com suffix do not match the corp.contoso.com intranet namespace rule in the NRPT and are sent to Internet DNS servers.

  *

  Split-brain DNS is a configuration method that enables proper resolution of names (e.g., example.com) from both inside and outside of your local network.

  Note: For split-brain DNS deployments, you must list the FQDNs that are duplicated on the Internet and intranet and decide which resources the DirectAccess client should reach, the intranet version or the public (Internet) version. For each name that corresponds to a resource for which you want DirectAccess clients to reach the public version, you must add the corresponding FQDN as an exemption rule to the NRPT for your DirectAccess clients. Name suffixes that do not have corresponding DNS servers are treated as exemptions.

• Question 555:

  Your network contains a server named Server1 that runs Windows Server 2012. Server1 has the Hyper-V server role installed.Server1 hosts four virtual machines named VM1, VM2, VM3, and VM4.

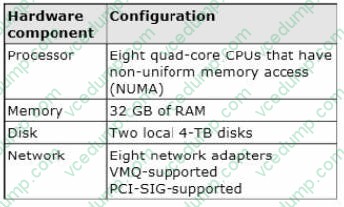

  Server1 is configured as shown in the following table.



  You install Windows Server 2012 on VM2 by using Windows Deployment Services (WDS).

  You need to ensure that the next time. VM2 restarts, you can connect to the WDS server by using PXE.

  What should you configure?

  A. NUMA topology
  B. Resource control
  C. Resource metering
  D. Virtual Machine Chimney
  E. The VLAN ID
  F. Processor Compatibility
  G. The startup order
  H. Automatic Start Action
  I. Integration Services
  J. Port mirroring
  G. The startup order

  ---

  Configure the BIOS of the computer to enable PXE boot, and set the boot order so that it is booting from the network is first.

  References:

  http://technet.microsoft.com/en-us/library/cc766320(v=ws.10).aspx

  Exam Ref 70-410, Installing and Configuring Windows Server 2012, Chapter 3: Configure Hyper-V, Objective 3.1: Create and Configure virtual machine settings, p. 144 Training Guide: Installing and Configuring Windows Server 2012:

  Chapter 7: Hyper-V Virtualization, Lesson 2: Deploying and configuring virtual machines, p. 335

• Question 556:

  HOTSPOT

  Your network contains an Active Directory domain named contoso.com.

  You have several Windows PowerShell scripts that execute when client computers start.

  When a client computer starts, you discover that it takes a long time before users are prompted to log on.

  You need to reduce the amount of time it takes for the client computers to start. The solution must not prevent scripts from completing successfully.

  Which setting should you configure?

  To answer, select the appropriate setting in the answer area.

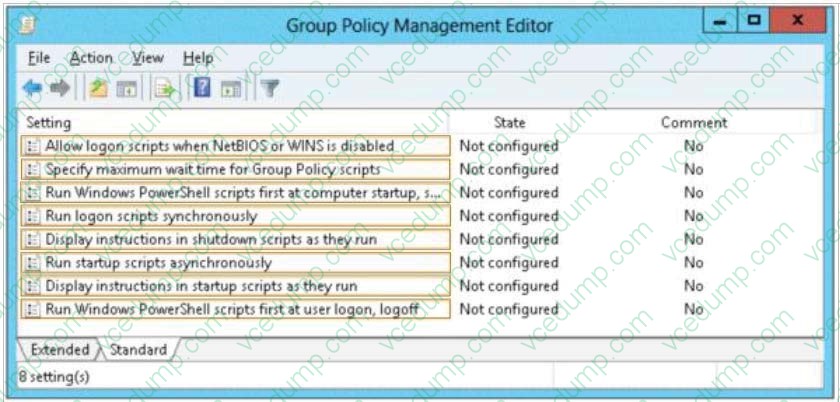

  Hot Area:





  ---

  Lets the system run startup scripts simultaneously rather than waiting for each to finish http://technet.microsoft.com/en-us/library/cc939423.aspx Directs the system to wait for logon scripts to finish running before it starts the Windows Explorer interface program and creates the desktop.

  If you enable this policy, Windows Explorer does not start until the logon scripts have finished running. This setting assures that logon script processing is complete before the user starts working, but it can delay the appearance of the desktop.

  If you disable this policy or do not configure it, the logon scripts and Windows Explorer are not synchronized and can run simultaneously.

  This policy appears in the Computer Configuration and User Configuration folders. The policy set in Computer Configuration takes precedence over the policy set in User Configuration.

  By default, the Fast Logon Optimization feature is set for both domain and workgroup members. This setting causes policy to be applied asynchronously when the computer starts and the user logs on. The result is similar to a background refresh. The advantage is that it can reduce the amount of time it takes for the logon dialog box to appear and the amount of time it takes for the desktop to become available to the user. Of course, it also means that the user may log on and start working before the absolute latest policy settings have been applied to the system.

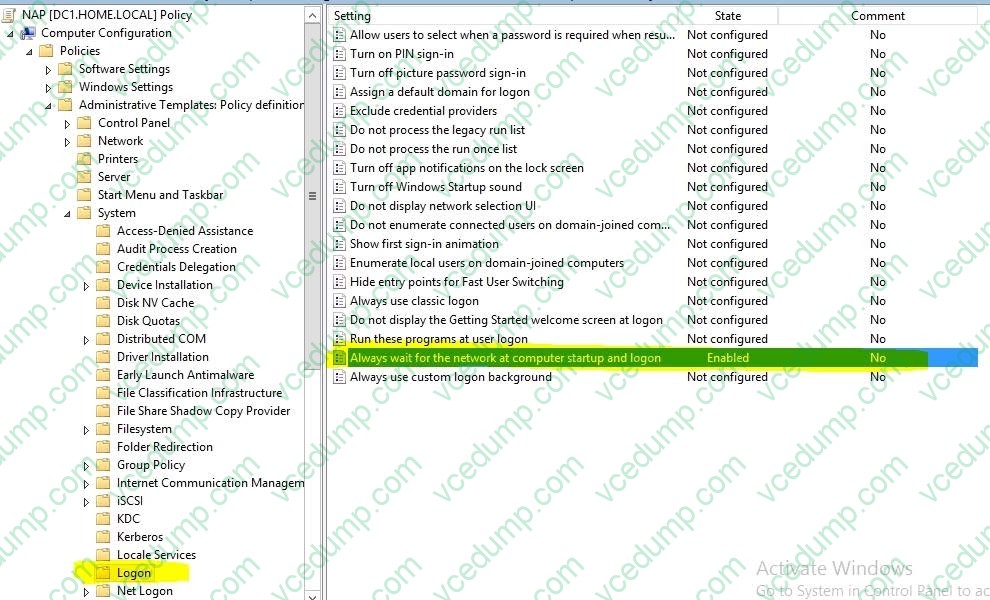

  Depending on your environment, you may want to disable Fast Logon Optimization. You can do this with Group Policy, using the Always wait for the network at computer startup and logon policy setting.



  http://technet.microsoft.com/en-us/magazine/gg486839.aspx

  http://technet.microsoft.com/en-us/magazine/gg486839.aspx

  http://technet.microsoft.com/en-us/library/cc958585.aspx

• Question 557:

  You have a server named Server1 that runs a Server Core Installation of Windows Server 2012 R2 Datacenter.

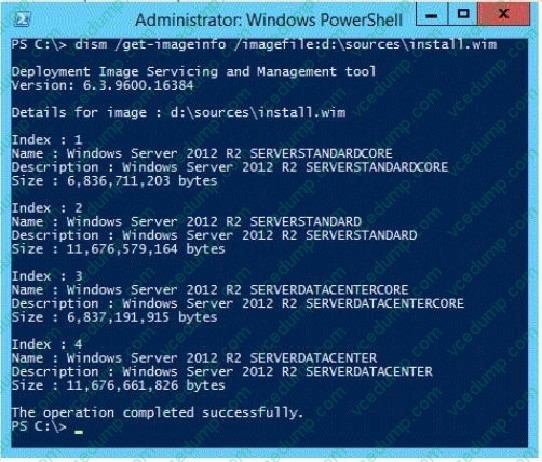

  You have a WIM file that contains the four images of Windows Server 2012 R2 as shown in the Images exhibit. (Click the Exhibit button.)

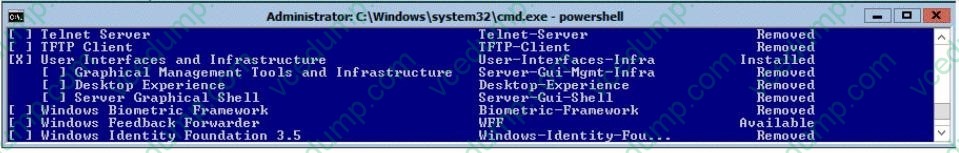

  You review the installed features on Server1 as shown in the Features exhibit. (Click the Exhibit button.)



  You need to install the Server Graphical Shell feature on Server1.

  Which two possible sources can you use to achieve this goal? (Each correct answer presents a complete solution. Choose two.)

  A. Index 1
  B. Index 2
  C. Index 3
  D. Index 4
  B. Index 2
  D. Index 4

  ---

  When you install Windows Server 2012 R2 you can choose between Server Core Installation and Server with a GUI. The "Server with a GUI" option is the Windows Server 2012 R2 equivalent of the Full installation option available in Windows Server 2008 R2. The "Server Core Installation" option reduces the space required on disk, the potential attack surface, and especially the servicing requirements, so we recommend that you choose the Server Core installation unless you have a particular need for the additional user interface elements and graphical management tools that are included in the "Server with a GUI" option. For this reason, the Server Core installation is now the default. Because you can freely switch between these options at any time later, one approach might be to initially install the Server with a GUI option, use the graphical tools to configure the server, and then later switch to the Server Core Installation option.

  References: Windows Server Installation Options

• Question 558:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  You implement DirectAccess. You leave the connection name as the default when you run the DirectAccess wizard.

  You want to view the properties of a DirectAccess connection.

  In the Networks window, what is the name of the DirectAccess connection?

  A. VPN Connection.
  B. Remote Access Connection.
  C. Local Area Connection.
  D. ABC.com.
  E. WorkplaceConnection.
  E. WorkplaceConnection.

• Question 559:

  Your role of Network Administrator at ABC.com includes the management of the Active Directory Domain Services (AD DS) domain named ABC.com. The network includes servers that run Windows Server 2012.

  The network includes virtual machines (VMs) running on Windows Server 2012 Hyper-V host servers.

  You have recently installed a new Hyper-V host server named ABC-HV06. ABC-HV06 currently has two hard disks. Disk0 is configured as a basic drive and contains the C:

  drive for ABC-HV06. Disk1 is also configured as a basic drive and contains a single partition configured as the D: drive. The D: drive hosts the virtual hard disks (VHDs) for VMs on ABCHV06. You plan to configure a new VM on ABC-HV06.

  You want to configure the new VM with a passthrough disk.

  You install an additional hard disk in ABC-VH06. You bring the new disk online as a basic disk. You discover that you are unable to select the new disk as a pass-through disk for the new VM.

  How can you make the new hard disk available as a pass-through disk?

  A. Create a partition on the new disk and configure it as drive E.
  B. Convert the new disk to a dynamic disk.
  C. Take the new disk offline.
  D. Create a partition on the new disk and extend drive D onto the new partition.
  C. Take the new disk offline.

• Question 560:

  Your network contains an Active Directory domain named contoso.com. The domain contains more than 100 Group Policy objects (GPOs). Currently, there are no enforced GPOs. You have two GPOs linked to an organizational unit (OU) named OU1.

  You need to change the precedence order of the GPOs.

  What should you use?

  A. Dcgpofix
  B. Get-GPOReport
  C. Gpfixup
  D. Gpresult
  E. Gptedit.msc
  F. Import-GPO
  G. Restore-GPO
  H. Set-GPInheritance
  I. Set-GPLink
  J. Set-GPPermission
  I. Set-GPLink

  ---

  Detailed Description

  The Set-GPLink cmdlet sets the properties of a GPO link.

  You can set the following properties:

  Enabled. If the GPO link is enabled, the settings of the GPO are applied when Group Policy is processed for the site, domain or OU.

  Enforced. If the GPO link is enforced, it cannot be blocked at a lower-level (in the Group Policy processing hierarchy) container.

  Order. The order specifies the precedence that the settings of the GPO take over conflicting settings in other GPOs that are linked (and enabled) to the same site, domain, or OU.

  References:

  http://technet.microsoft.com/en-us/library/ee461022.aspx
