Microsoft 70-417 Online Practice Questions and Exam Preparation

Microsoft 70-417 Online Questions & Answers

• Question 541:

  You work for a company named ABC.com. Your role of Network Administrator includes the management of the company's physical and virtual infrastructure. The network includes servers running Windows Server 2008 R2 Service Pack 1 (SP1) and Windows Server 2012.

  Virtual machines (VMs) are hosted on Windows Server 2012 servers running the Hyper-V role. One Windows Server 2012 Hyper-V host server is named ABC-HVHost10. ABC-HVHost10 has four quad-core processors, 48GB RAM and six physical network adapters configured as three network adapter teams. ABC-HVHost10 also has two Host Bus Adapters (HBAs) and connects to a Fiber Channel SAN.

  You plan to configure a VM named ABC-Data1. Large amounts of data will be transferred to and from ABC-Data1 over the network.

  You need to maximize the network performance of ABC-Data1 by assigning a physical network adapter directly to the VM.

  What should you do?

  A. You should configure Virtual Machine Chimney.
  B. You should configure NUMA topology.
  C. You should configure Single-root I/O virtualization.
  D. You should configure Multipath I/O.
  E. You should configure Resource metering.
  F. You should configure Virtual Fiber Channel.
  C. You should configure Single-root I/O virtualization.

• Question 542:

  Your network contains an Active Directory domain named contoso.com. The domain contains a member server named Server 1. All servers run Windows Server 2012 R2.

  You need to collect the error events from all of the servers on Server1. The solution must ensure that when new servers are added to the domain, their error events are collected automatically on Server1.

  Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

  A. On Server1, create a collector initiated subscription.
  B. On Server1, create a source computer initiated subscription.
  C. From a Group Policy object (GPO), configure the Configure target Subscription Manager setting.
  D. From a Group Policy object (GPO), configure the Configure forwarder resource usage setting.
  B. On Server1, create a source computer initiated subscription.
  C. From a Group Policy object (GPO), configure the Configure target Subscription Manager setting.

  ---

  To set up a Source-Initiated Subscription with Windows Server 2003/2008 so that events of interest from the Security event log of several domain controllers can be forwarded to an administrative workstation

  *

  Group Policy

  The forwarding computer needs to be configured with the address of the server to which the events are forwarded. This can be done with the following group policy setting:

  Computer configuration-Administrative templates-Windows components-Event forwarding-Configure the server address, refresh interval, and issue certificate authority of a target subscription manager.

  *

  Edit the GPO and browse to Computer Configuration | Policies | Administrative Templates | Windows Components | Event Forwarding - Configure the server address, refresh interval, and issuer certificate authority of a target Subscription

  Manager

• Question 543:

  Your network contains two servers that run Windows Server 2012 R2 named Server1 and Server2. Both servers have the File Server role service installed.

  On Server2, you create a share named Backups.

  From Windows Server Backup on Server1, you schedule a full backup to run every night. You set the backup destination to \\Server2 \Backups.

  After several weeks, you discover that \\Server2\Backups only contains the last backup that completed on Server1.

  You need to ensure that multiple backups of Server1 are maintained.

  What should you do?

  A. Modify the properties of the Windows Store Service (WSService) service.
  B. Change the backup destination.
  C. Modify the Volume Shadow Copy Service (VSS) settings.
  D. Configure the permission of the Backups share.
  B. Change the backup destination.

• Question 544:

  You have three Windows Server Update Services (WSUS) Servers named Server01 Server02 and Server03. Server01 synchronizes form Microsoft Update. You need to ensure that only Server02 and Server03 can Synchronize updates from Server01.

  What should you do?

  A. Modify %ProgramFiles%\Update Services\WebServices\Serversyncgwevservice\SimpleAuth.asmx.
  B. From the Update Services console, modify the Update Source and Proxy Server options.
  C. From the Update Services console, modify the Automatic Approvals Options.
  D. Modify %ProgramFiles%\Update Services\WebServices\Serversyncgwevservice\Web.config.
  D. Modify %ProgramFiles%\Update Services\WebServices\Serversyncgwevservice\Web.config.

  ---

  "The question is asking how to harden WSUS, i.e. limit the servers that can get updates from Server01 to only Server02 and Server03. This is done by modifying the web.config. "

  References: https://technet.microsoft.com/en-us/library/Cc708550(v=WS.10).aspx

• Question 545:

  Your network contains an Active Directory domain named adatum.com. The domain contains a domain controller named Server1. On Server1, you create a new volume named E. You restart Server1 in Directory Service Restore Mode. You open ntdsutil.exe and you set NTDS as the active instance.

  You need to move the Active Directory logs to E:\NTDS\.

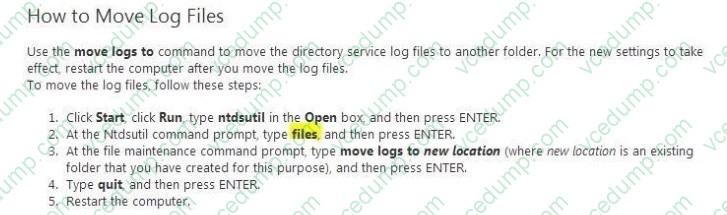

  Which Ntdsutil context should you use?

  A. IFM
  B. Files
  C. Configurable Settings
  D. Partition management
  B. Files

  ---



  References: http://support.microsoft.com/kb/816120#5

• Question 546:

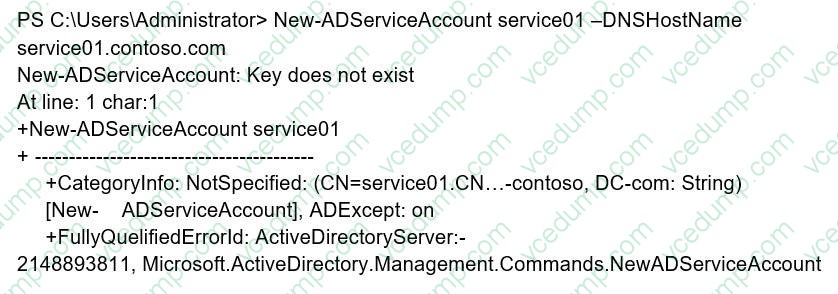

  You have the following Windows PowerShell output.



  You need to create a Managed service Account.

  What should you do?

  A. Run Set-KDSConfiguration and then run New-ADServiceAccount -Name "service01"-DNSHostName service01.contoso.com
  B. Run New-AuthenticationPolicySilo and then run New-ADServiceAccount –Name "service01" –DNSHostName service01.contoso.com
  C. Run Add-KDSRootKey and then run New-ADServiceAccount -Name "service01"-DNSHostName service01.contoso.com
  D. Run New-ADServiceAccount -Name "service01" -DNSHostName service01.contoso.com -SAMAccountName service01
  C. Run Add-KDSRootKey and then run New-ADServiceAccount -Name "service01"-DNSHostName service01.contoso.com

  ---

  From the exhibit we see that the required key does not exist. First we create this key, then we create the managed service account. The Add-KdsRootKey cmdlet generates a new root key for the Microsoft Group Key Distribution Service

  (KdsSvc) within Active Directory (AD). The Microsoft Group KdsSvc generates new group keys from the new root key.

  The New-ADServiceAccount cmdlet creates a new Active Directory managed service account.

  References: New-ADServiceAccount

  https://technet.microsoft.com/en-us/library/hh852236(v=wps.630).aspx

  Add-KdsRootKey

  https://technet.microsoft.com/en-us/library/jj852117(v=wps.630).aspx

• Question 547:

  You work for a company named ABC.com. Your role of Network Administrator includes the management of the company's Windows 2012 Active Directory Domain Services (AD DS) domain. All servers in the network run Windows Server 2012.

  The network includes a Windows Server 2012 server named ABC-File1. ABC-File1 runs the File and Storage Services server role.

  ABC-File1 currently has a single network adapter. You add a second network adapter. You want to configure a network adapter team using the two network adapters to provide resilience in the event of a network adapter failure. Which tool should you use to configure the network adapter team?

  A. Network and Sharing Center.
  B. Device Manager.
  C. Server Manager.
  D. Netsh.exe.
  E. Network Load Balancing Manager.
  C. Server Manager.

  ---

  References: https://blogs.technet.microsoft.com/kevinholman/2012/06/02/windows-server-2012-creating-a-nic-team-for-load-balancing-and-failover/

• Question 548:

  You have a server named Server1 that runs Windows Server 2012 R2. Server1 has the Hyper-V server role installed. Server1 has 8 GB of RAM.

  Server1 hosts five virtual machines that run Windows Server 2012 R2.

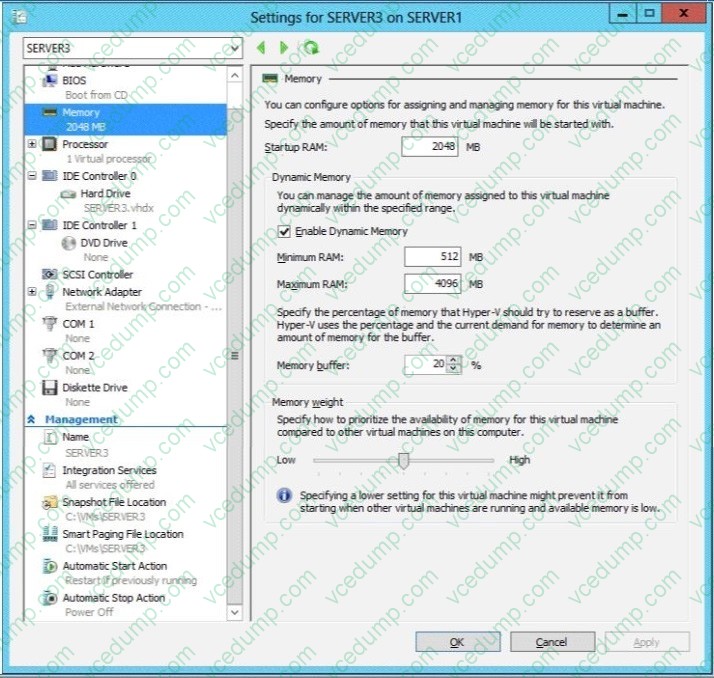

  The settings of a virtual machine named Server3 are configured as shown in the exhibit. (Click the Exhibit button.)



  You need to ensure that when Server1 restarts, Server3 automatically resumes without intervention. The solution must prevent data loss. Which settings should you modify?

  A. BIOS
  B. Automatic Stop Action
  C. Automatic Start Action
  D. Integration Services
  B. Automatic Stop Action

  ---

  The Automatic Stop Action setting should be modified because it will allow you to configure: "Save the virtual machine state" option instructs Hyper-V Virtual Machine Management Service to save the virtual machine state on the local disk when the Hyper-V Server shuts down. OR "Turn Off the virtual machine" is used by the Hyper-V Management Service (VMMS.exe) to gracefully turn off the virtual machine. OR "Shut down the guest operating system" is successful only if the "Hyper-V Shutdown" guest service is running in the virtual machine. The guest service is required to be running in the virtual machine as the Hyper-V VMMS.EXE process will trigger Windows Exit message which is received by the service. Once the message is received by the guest service, it takes the necessary actions to shut down the virtual machine.

  References: http://www.altaro.com/hyper-v/hyper-v-automatic-start-and-stop-action/

• Question 549:

  Your network contains two Hyper-V hosts named Host1 and Host2. Host1 contains a virtual machine named VM1. Host2 contains a virtual machine named VM2. VM1 and VM2 run Windows Server 2012 R2.

  You install the Network Load Balancing feature on VM1 and VM2.

  You need to ensure that the virtual machines are configured to support Network Load Balancing (NLB).

  Which virtual machine settings should you configure on VM1 and VM2?

  A. DHCP guard
  B. MAC address
  C. Router guard
  D. Port mirroring
  B. MAC address

  ---

  When MAC addresses are not assigned to virtual machines, it could cause network problems.

  References:

  Training Guide: Installing and Configuring Windows Server 2012 R2: Chapter 7: Hyper-V virtualization, Lesson 1: Deploying and configuring Hyper-V hosts, p. 313-319 http://blogs.msdn.com/b/clustering/archive/2010/07/01/10033544.aspx

• Question 550:

  You have a datacenter that contains six servers.

  Each server has the Hyper-V server role installed and runs Windows Server 2012 R2.

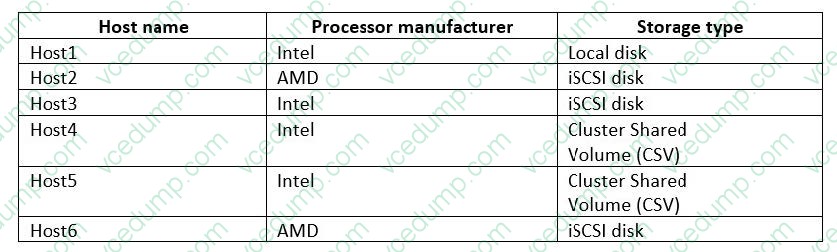

  The servers are configured as shown in the following table.



  Host4 and Host5 are part of a cluster named Cluster1.

  Cluster1 hosts a virtual machine named VM1.

  You need to move VM1 to another Hyper-V host.

  The solution must minimize the downtime of VM1.

  To which server and by which method should you move VM1?

  A. To Host3 by using a storage migration
  B. To Host6 by using a storage migration
  C. To Host2 by using a live migration
  D. To Host1 by using a quick migration
  A. To Host3 by using a storage migration

  ---

  The processor vendors should be the same so Host2 and Host6 are not possible answers Local disk cannot be used neither so Host1 is not a possible answer neither For more information about VM storage migration:

  http://technet.microsoft.com/en-us/library/hh831656.aspx

  Virtual Machine Storage Migration Overview Applies

  To: Windows Server 2012 R2 In Windows Server 2008 R2, you can move a running instance of a virtual machine using live migration, but you are not able to move the virtual machine's storage while the virtual machine is running. Hyper-V in

  Windows Server 2012 R2 introduces support for moving virtual machine storage without downtime by making it possible to move the storage while the virtual machine remains running. You can perform this task by using a new wizard in

  Hyper-V Manager or by using new Hyper-V cmdlets for Windows PowerShell.

  You can add storage to either a stand-alone computer or to a Hyper-V cluster, and then move virtual machines to the new storage while the virtual machines continue to run. The most common reason for moving a virtual machine's storage is

  to update the physical storage that is available to Hyper-V. You can also move virtual machine storage between physical storage devices, at run time, to respond to reduced performance that results from bottlenecks in the storage throughput.

  Key benefits Hyper-V in Windows Server 2012 R2 makes it possible to move virtual machine storage while a virtual machine is running.

  Requirements

  You need the following to use the Hyper-V functionality of moving virtual machine storage:

  One or more installations of Windows Server 2012 R2 with the Hyper-V role installed. A server that is capable of running Hyper-V.

  Specifically, it must have processor support for hardware virtualization.

  Virtual machines that are configured to use only virtual hard disks for storage.

  NOTE: You cannot move the storage of a virtual machine when any of its storage is directly attached to a physical disk. Technical overview This new feature allows you to move the virtual hard disks of a virtual machine while those virtual

  hard disks remain available for use by the running virtual machine.

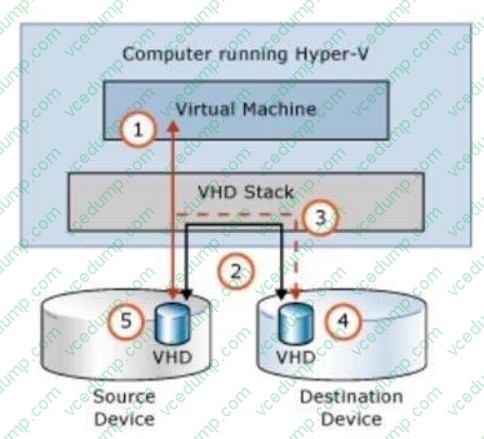

  When you move a running virtual machine's virtual hard disks, Hyper-V performs the following steps, as shown in Figure 1:



  Throughout most of the move operation, disk reads and writes go to the source virtual hard disk. While reads and writes occur on the source virtual hard disk, the disk contents are copied to the new destination virtual hard disk. After the initial disk copy is complete, disk writes are mirrored to both the source and destination virtual hard disks while outstanding disk changes are replicated. After the source and destination virtual hard disks are completely synchronized, the virtual machine switches over to using the destination virtual hard disk. The source virtual hard disk is deleted.
